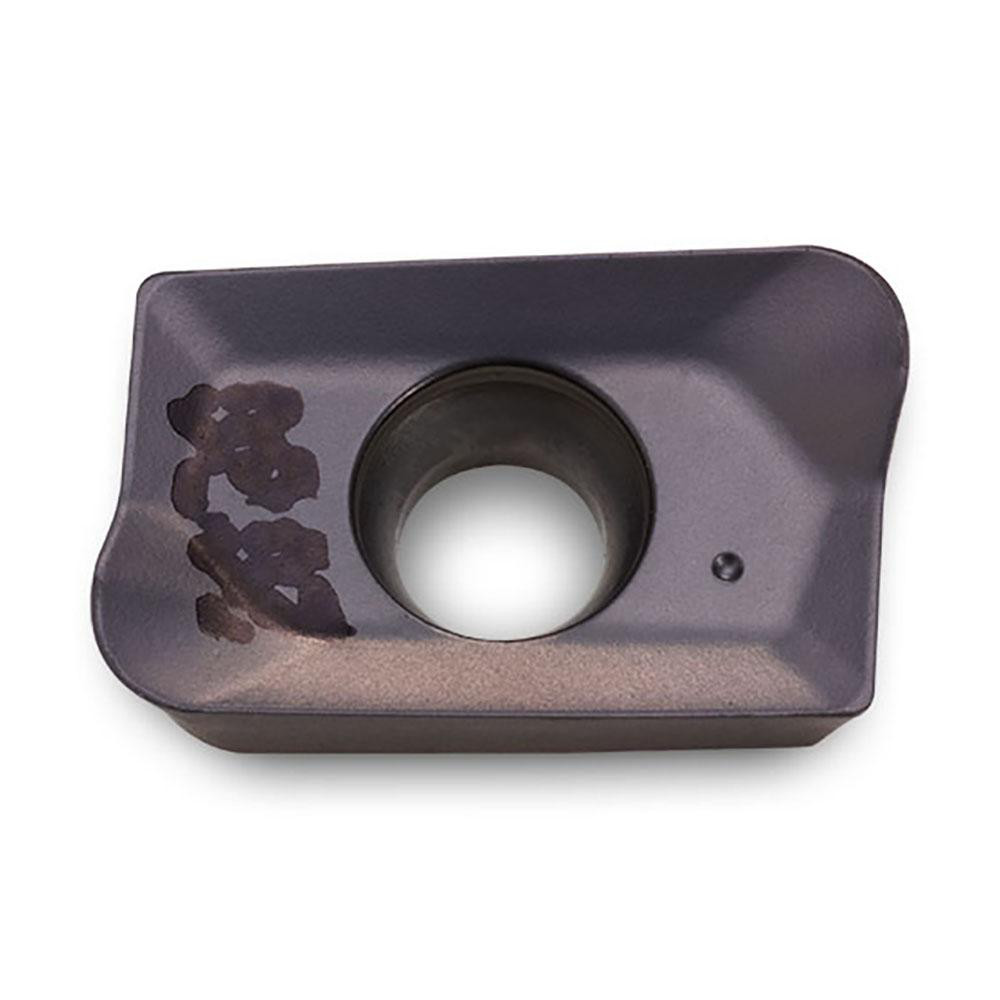

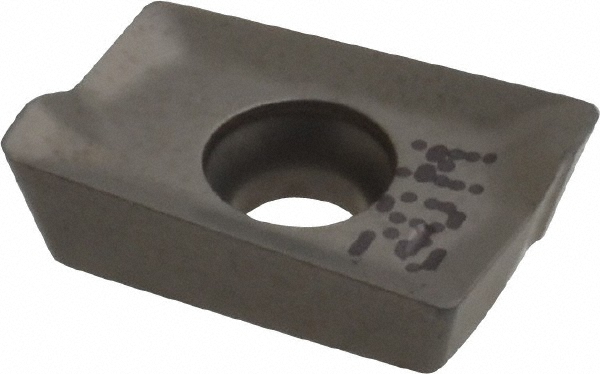

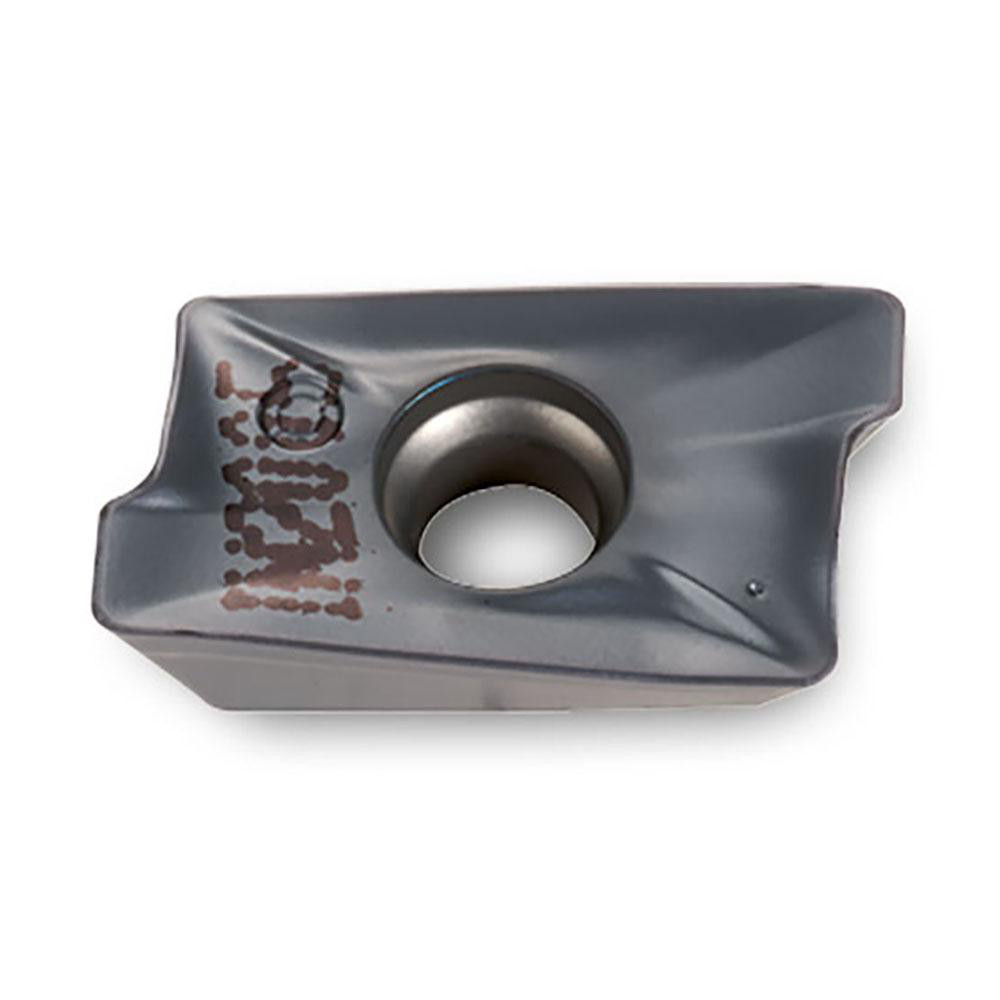

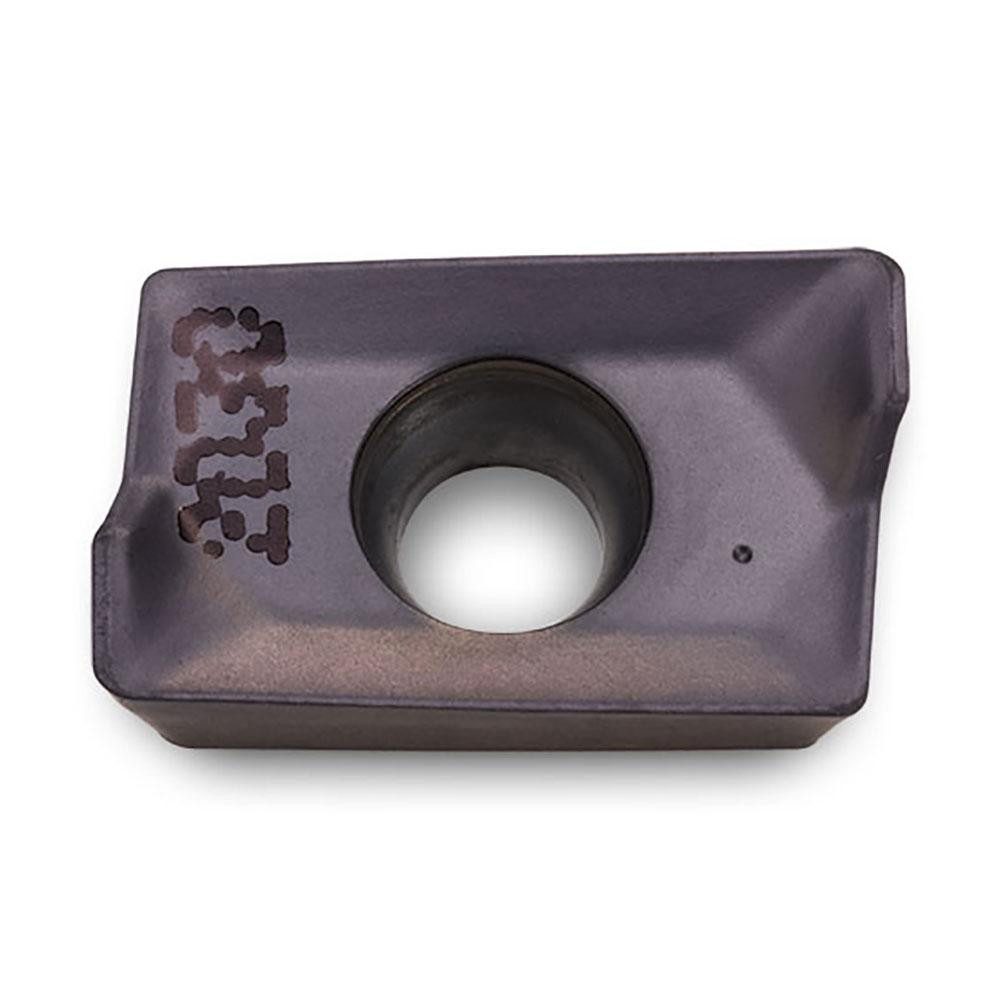

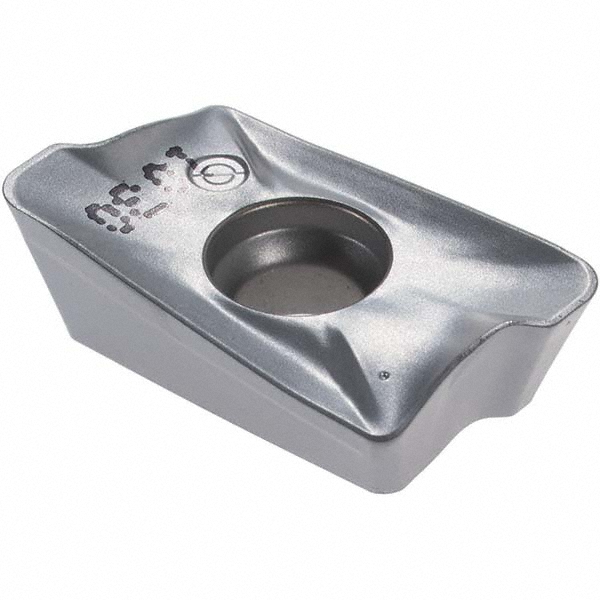

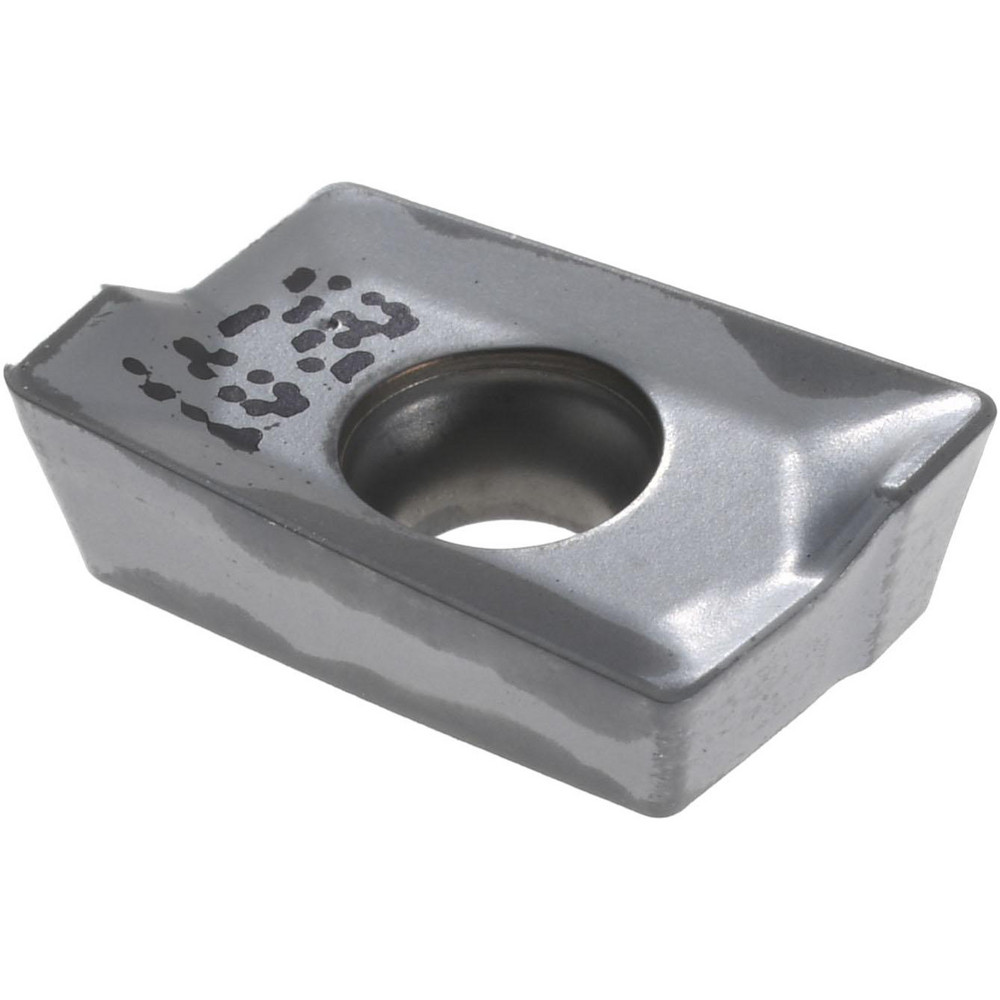

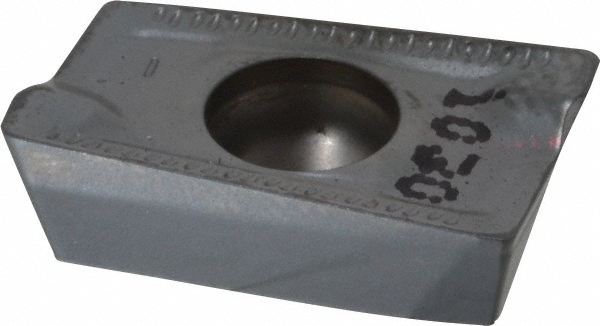

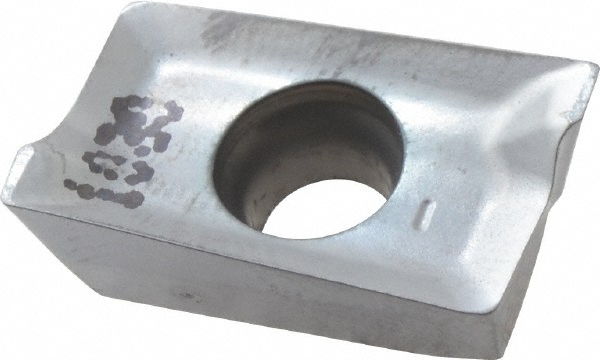

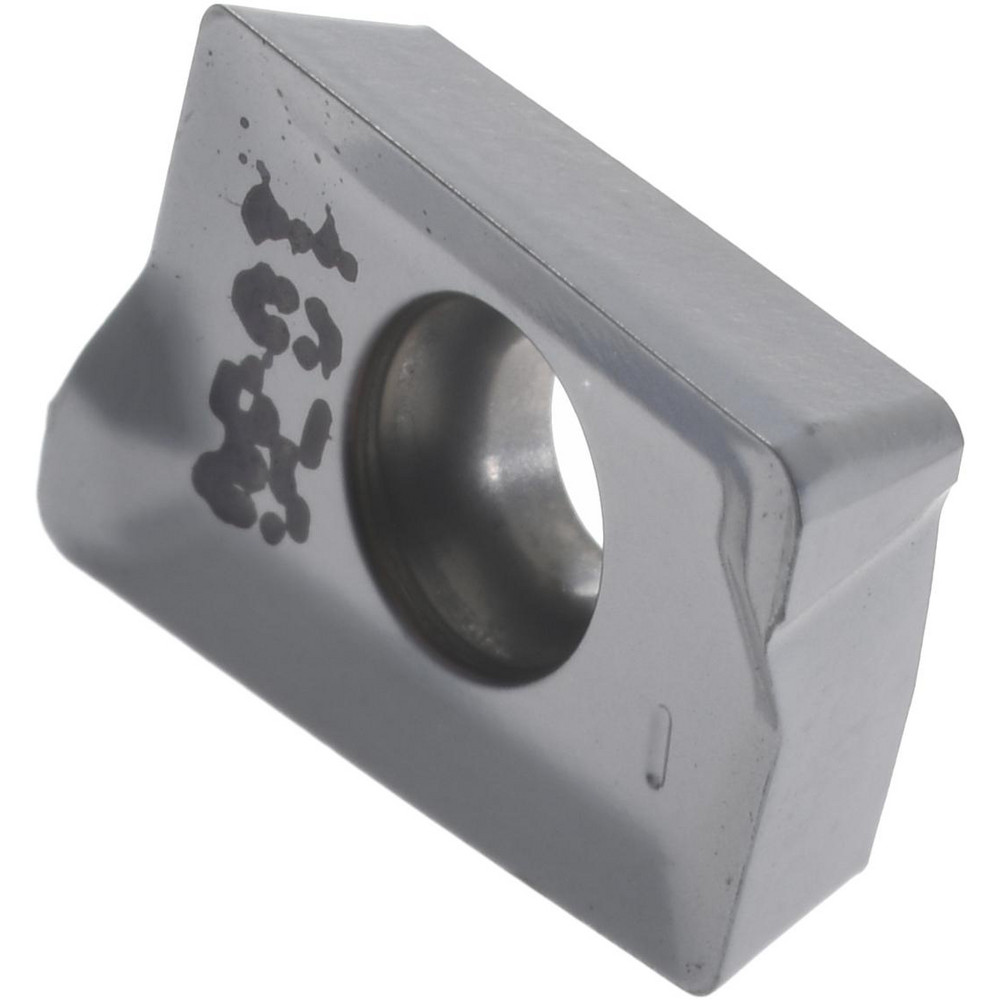

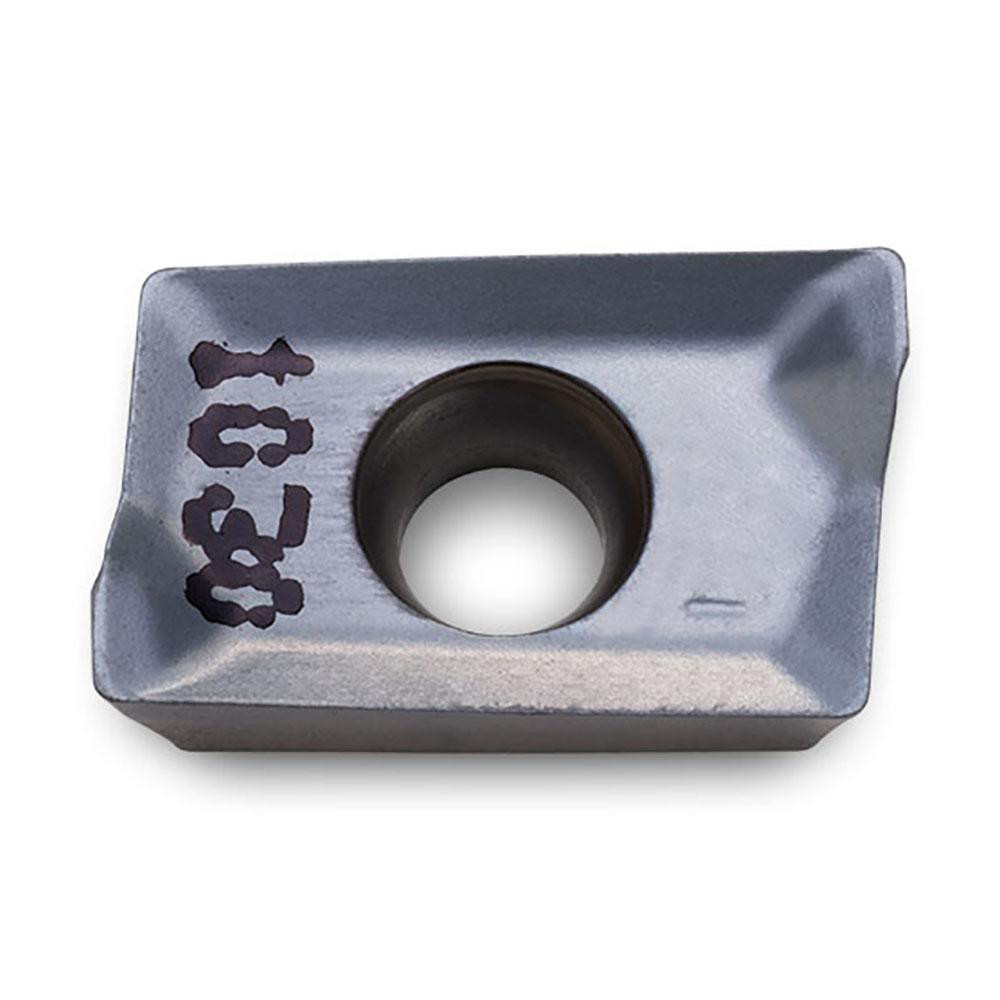

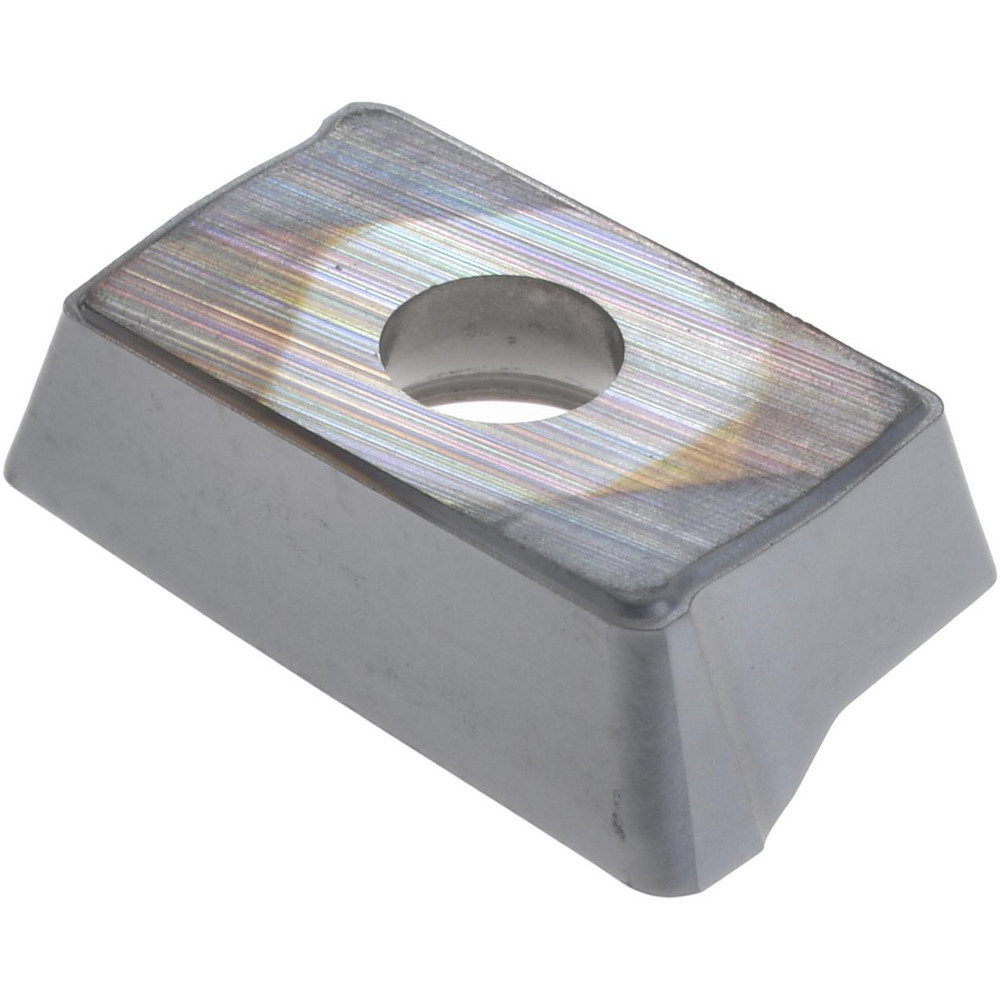

TiCN Finish, 0.1500" Thick, 0.3120" Wide
| Insert Style | APLV |
|---|---|
| Insert Size | 42 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN1030 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Coating/Finish | TiCN |
| Relief Angle | 11.00 |
| Insert Size Code | 42 |
| Material Grade | Coarse Grain |
| Inscribed Circle (Decimal Inch) | 0.3120 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | APLV |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4700 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | APLV42R01 IN1030 |
| Iso Code | APKT120308R-HS |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5802378 |
| Cutter Series Compatibility | 22J3Q; 12J1Q; 12_1Q; 12S1Q; 22J*Q; 2J1Q |
| Chip Breaker | HS |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3120 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4800 |
| MSC Number | MSC# 62028758 |
