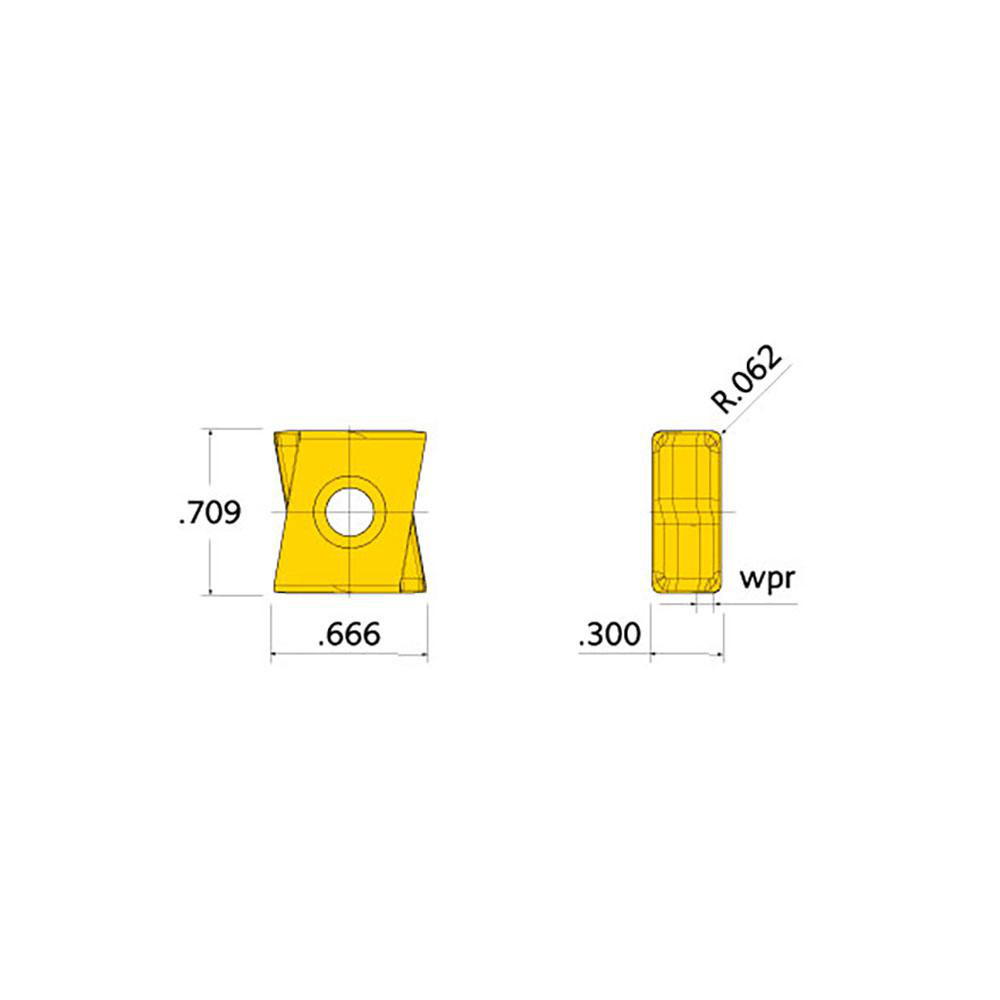

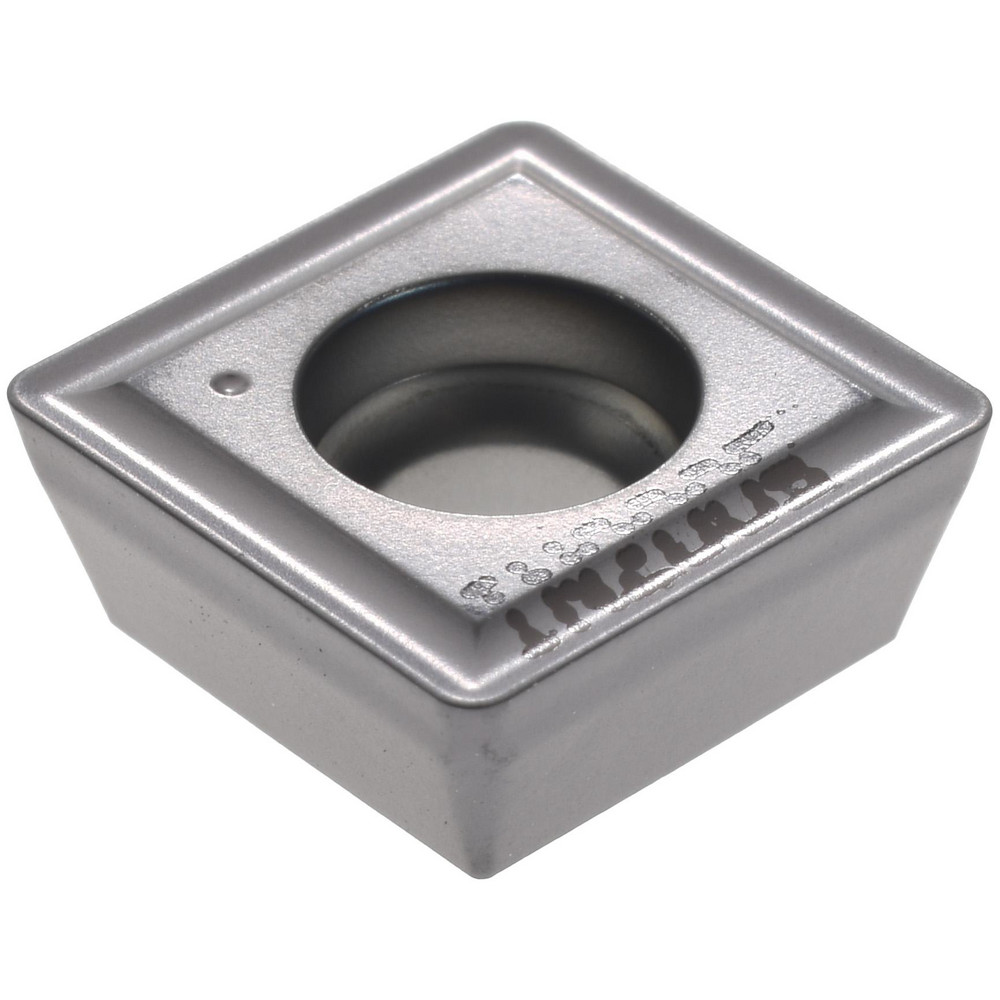

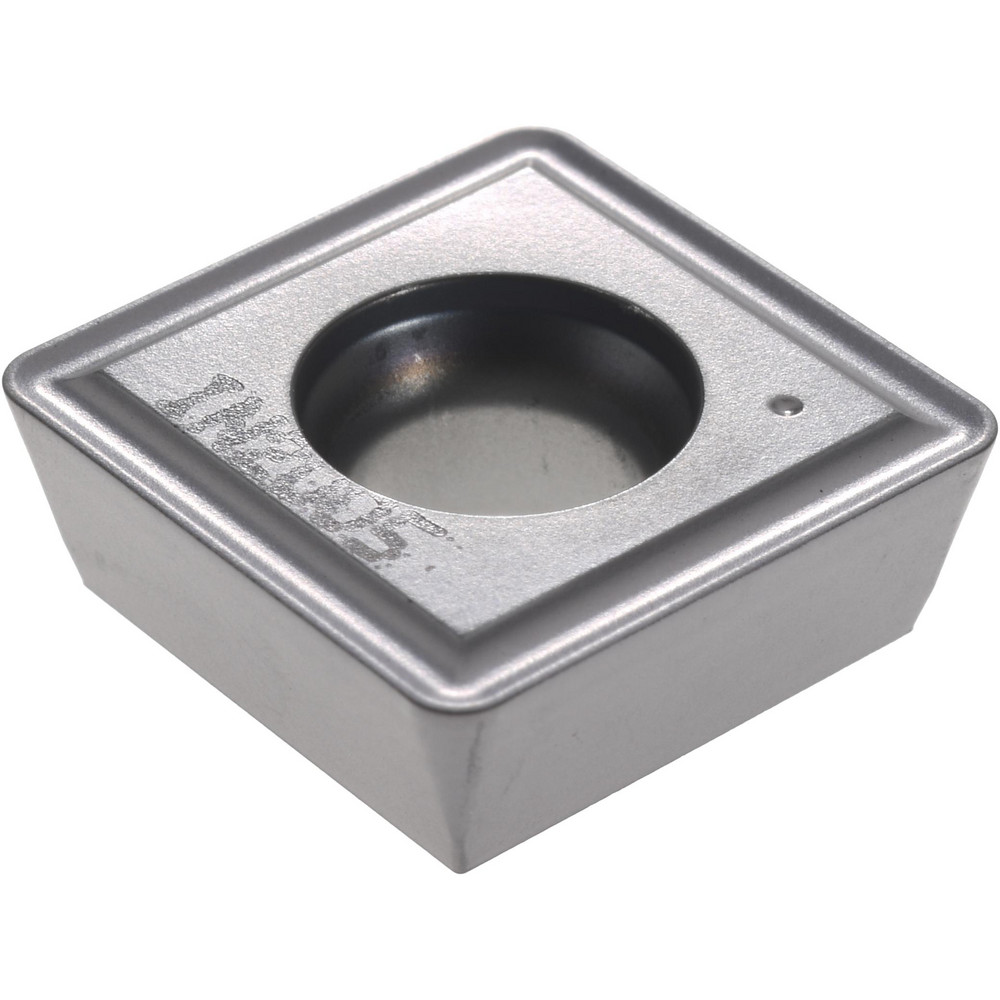

TiAlN Finish, 0.3000" Thick, 0.6660" Wide
| Insert Style | DPM |
|---|---|
| Insert Size | 43 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN2005 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3000 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 434 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.3000 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | DPM |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | DPM434R002 K IN2005 |
| Iso Code | DPM434R002 IN2005 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5811562 |
| Cutter Series Compatibility | SJ2N; SJ6N |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Width (Decimal Inch - 4 Decimals) | 0.6660 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7090 |
| undefined | undefined |
| MSC Number | MSC# 54135025 |
