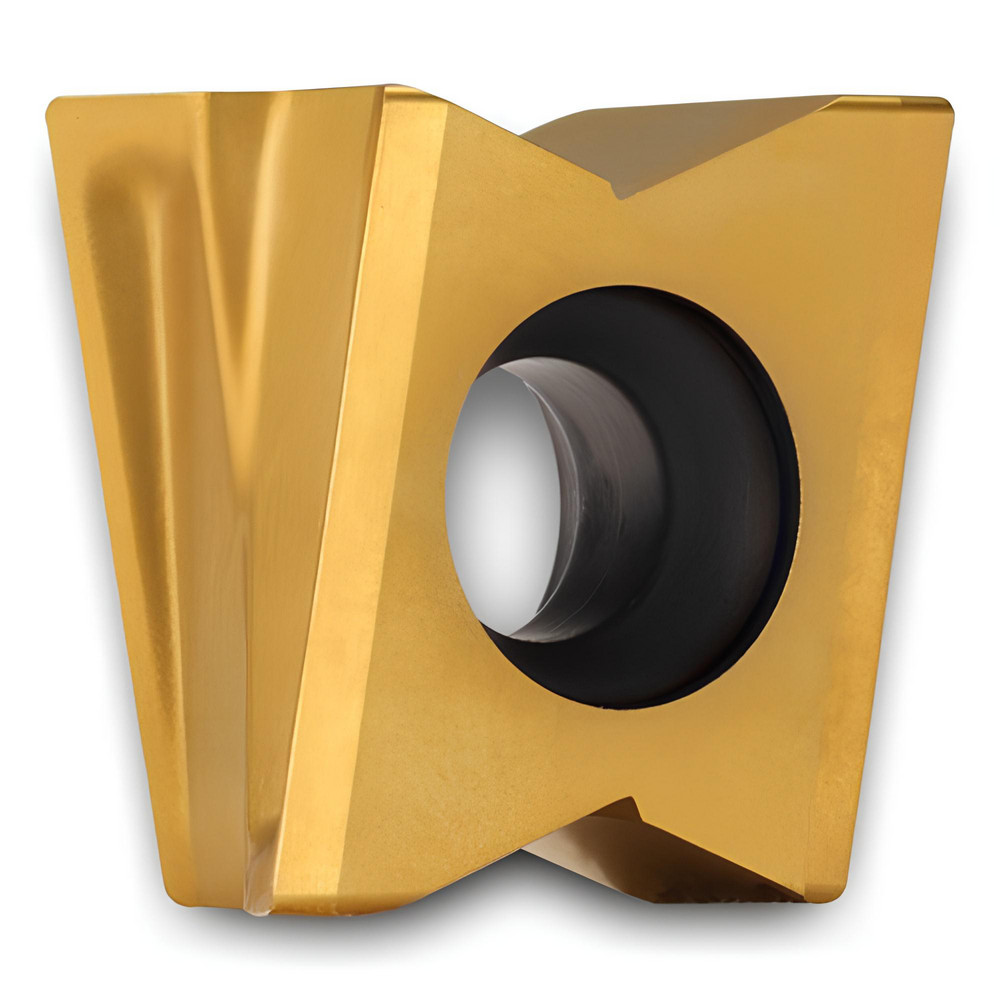

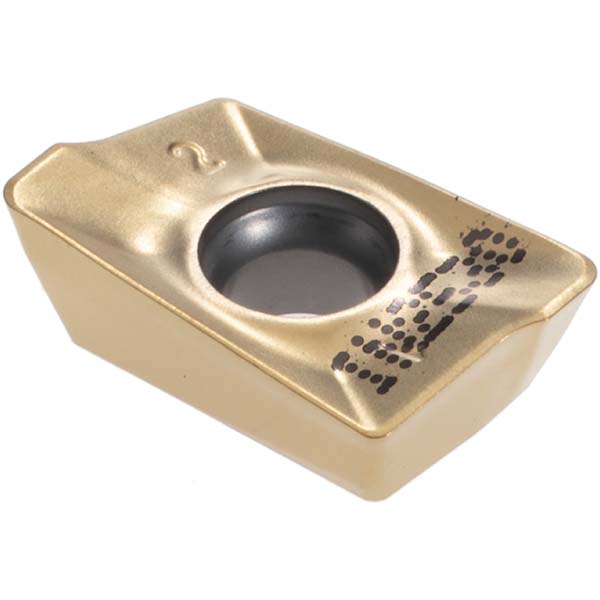

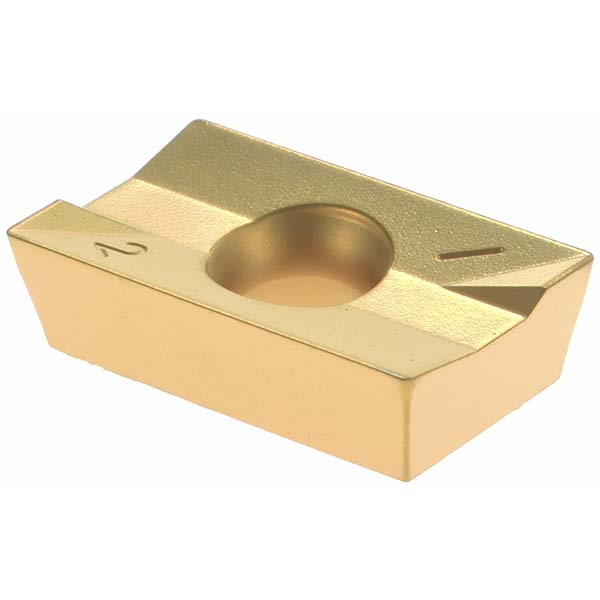

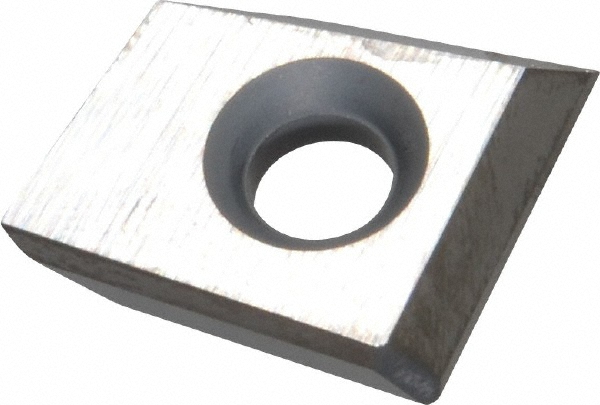

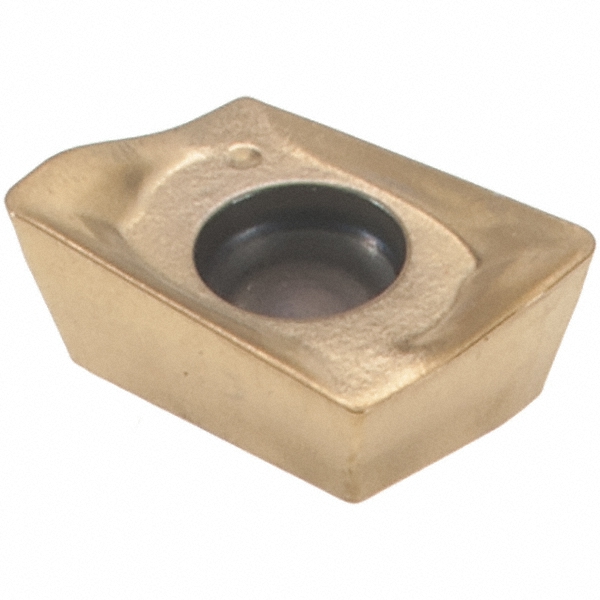

TiAlN & TiN Finish, 0.2810" Thick, 0.5120" Wide
| Insert Style | IPM |
|---|---|
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Insert Shape | Irregular |
| Manufacturer Grade | IN2530 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2810 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 324 |
| Material Grade | Coarse Grain |
| Thickness (Inch) | 9/32 |
| Inscribed Circle (Inch) | 9/32 |
| Inscribed Circle (Decimal Inch) | 0.2810 |
| Inscribed Circle (mm) | 13.00 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 13.00 |
| Series | IPM |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | IPM324R001-MM A IN2530 |
| Iso Code | IPM324R001-MM A IN2530 |
| Standards | ISO; ANSI |
| Rake Angle | 11 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 2922930 |
| Cutter Series Compatibility | 2XJ3J |
| Chip Breaker | MM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Length of Cut (mm) | 13.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 13.00 |
| Width (Decimal Inch - 4 Decimals) | 0.5120 |
| Width (mm - 2 Decimals) | 13.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5120 |
| undefined | undefined |
| MSC Number | MSC# 10134591 |
