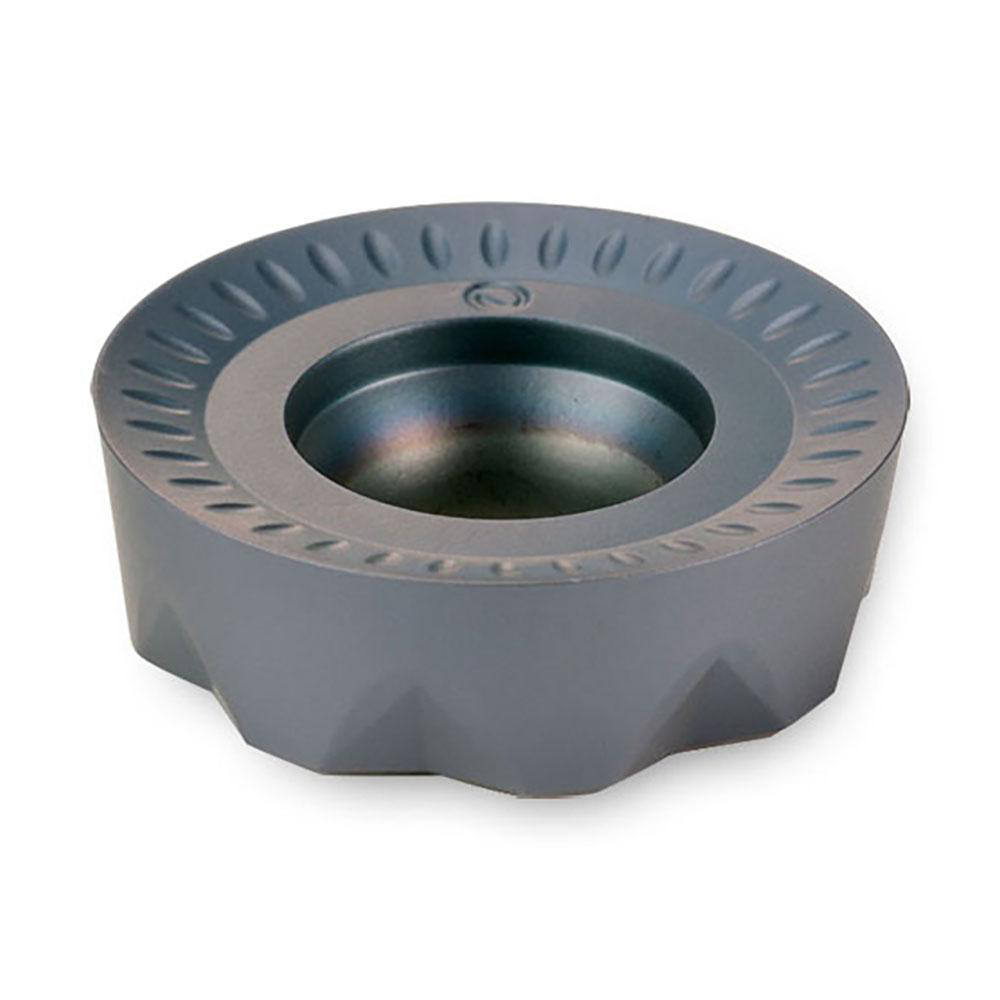

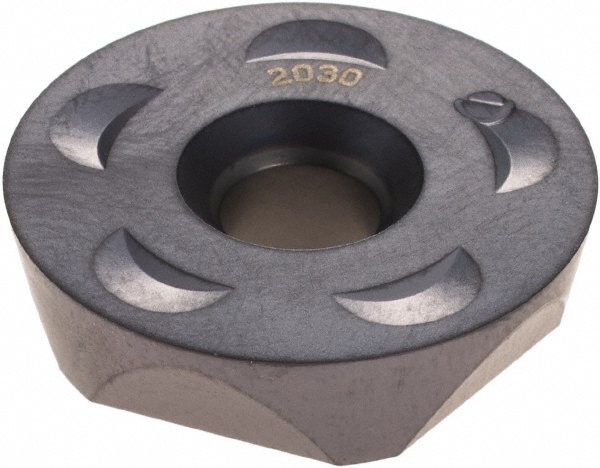

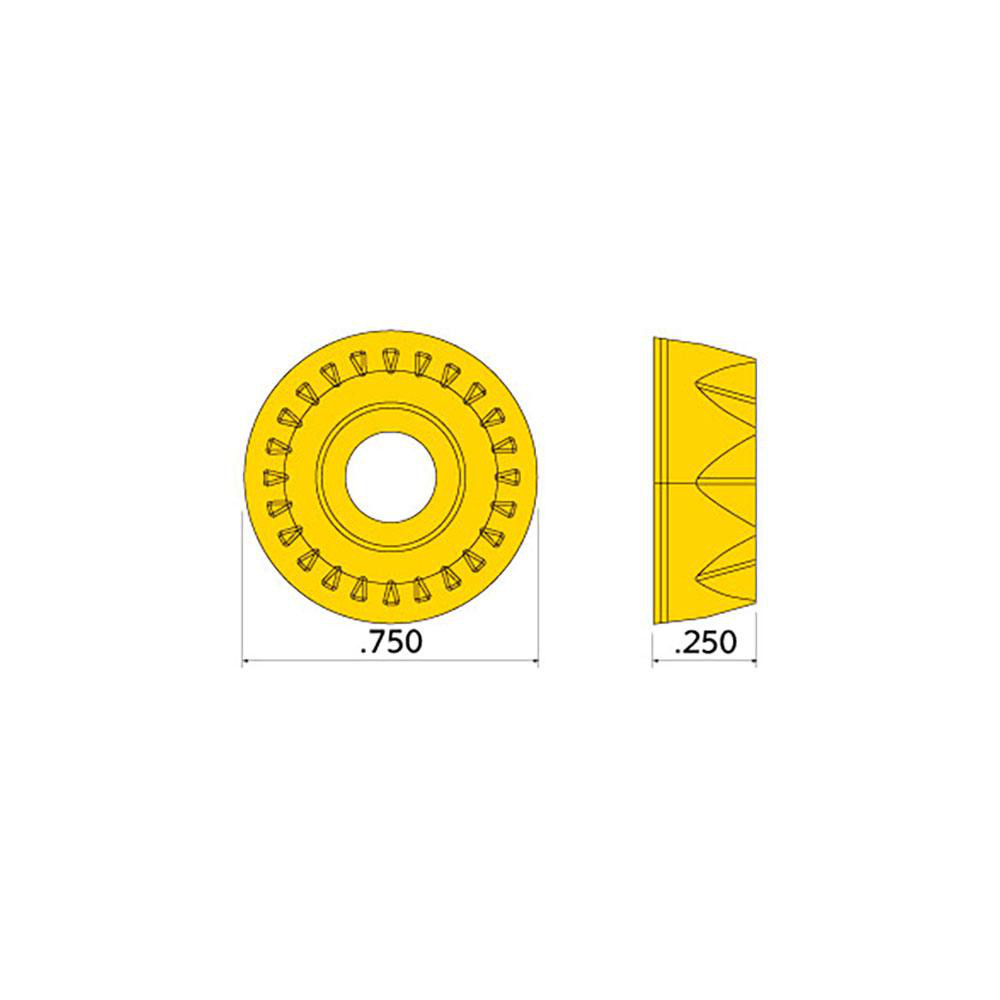

TiAlN Finish, 0.2500" Thick, 0.7500" Wide
| Insert Style | RCKX |
|---|---|
| Insert Size | 64 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | IN2030 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | TiAlN |
| Relief Angle | 7.00 |
| Insert Size Code | 64 |
| Material Grade | Coarse Grain |
| Width (Inch) | 3/4 |
| Length (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 3/8 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Series | RCKX |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | RCKX64TN-M J IN2030 |
| Iso Code | RCKX64TN-M J IN2030 |
| Standards | ISO; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | 5821042 |
| Cutter Series Compatibility | 5W6N; 15B4M |
| Chip Breaker | M |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.7500 |
| undefined | undefined |
| MSC Number | MSC# 82874777 |
