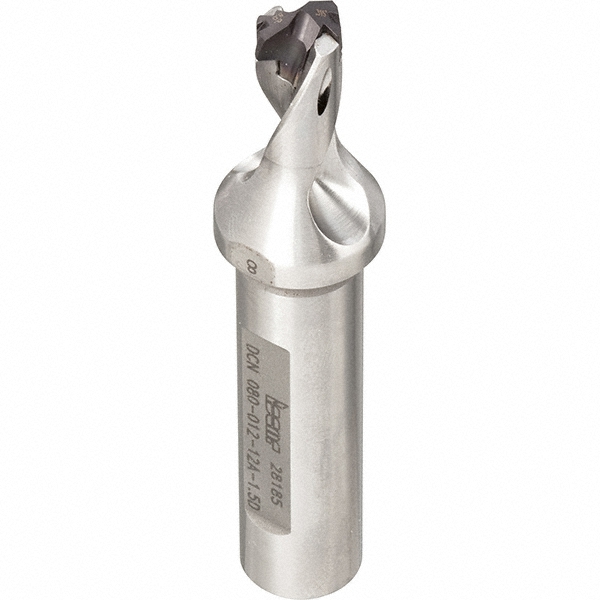

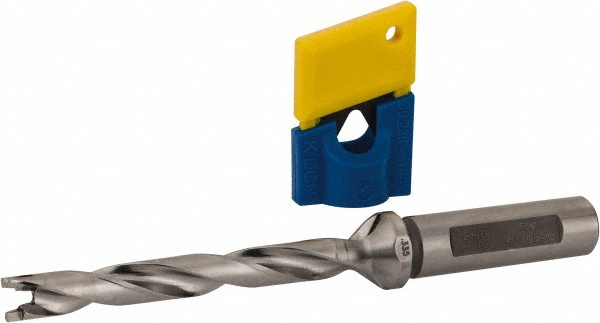

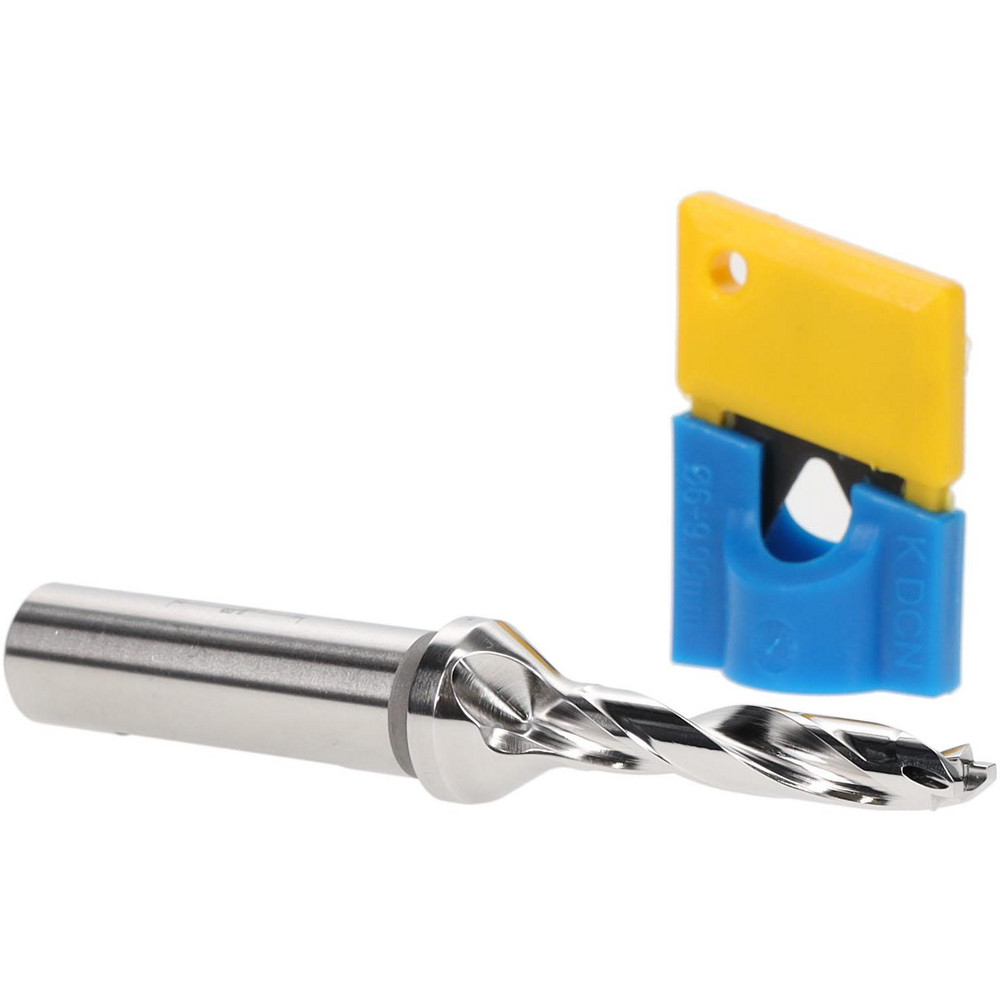

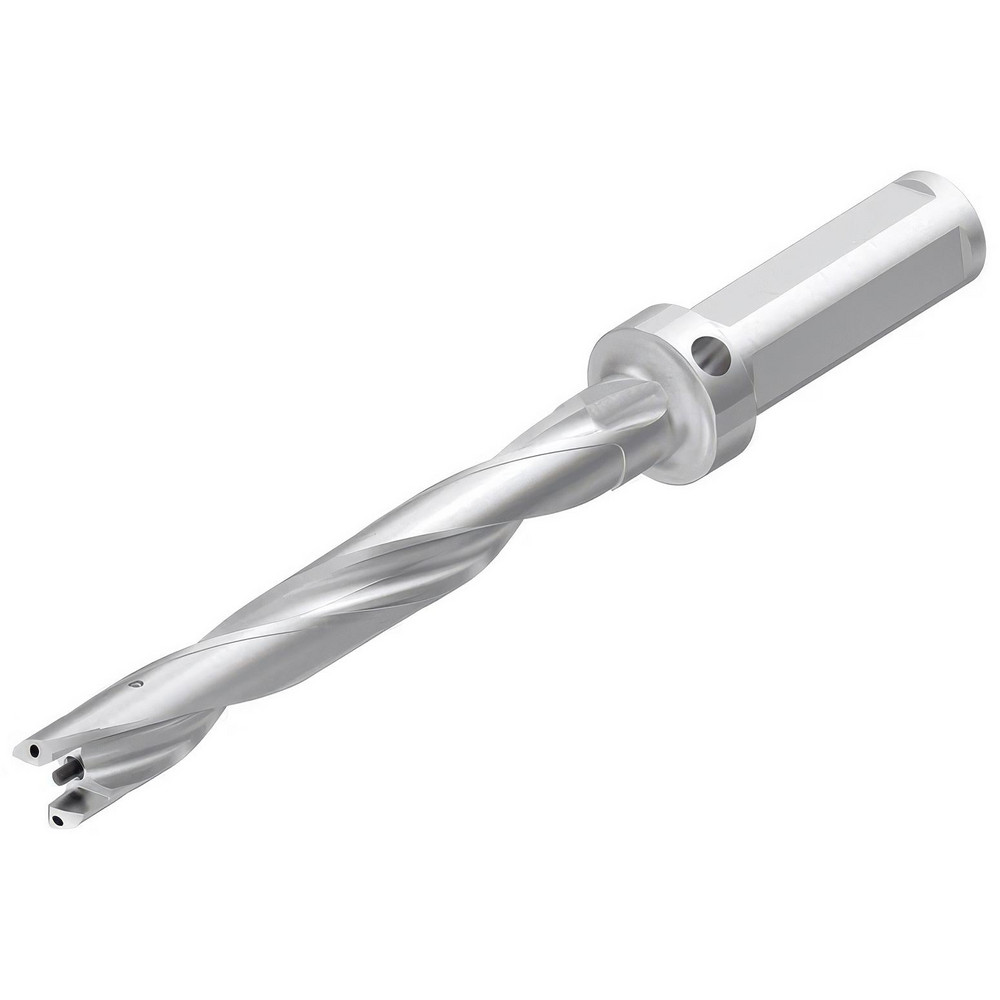

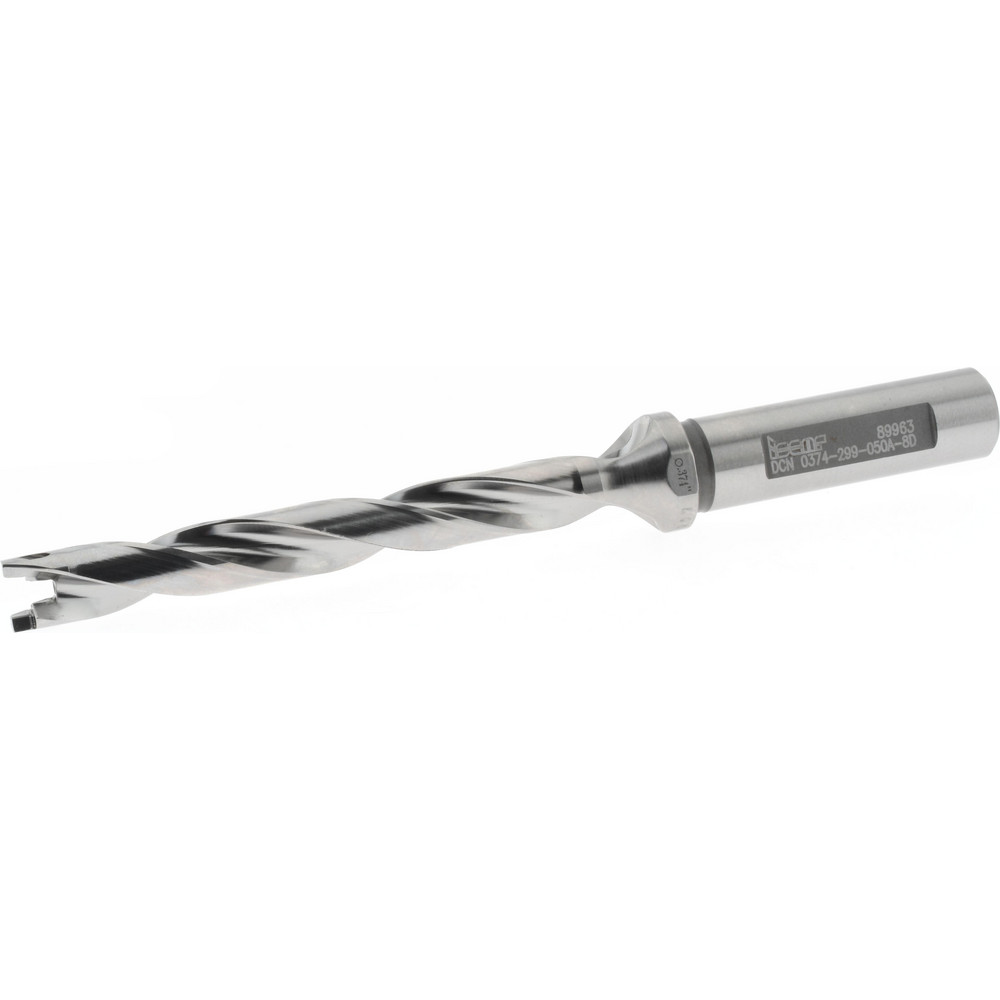

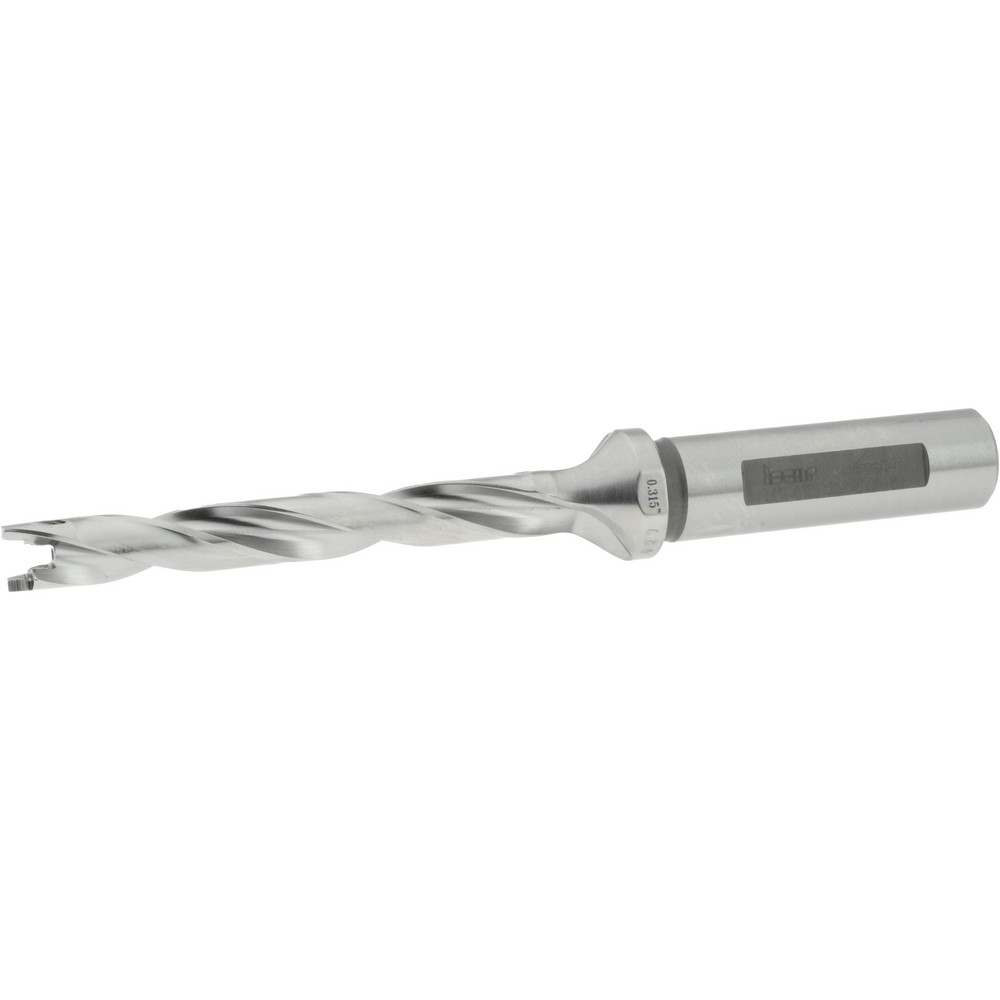

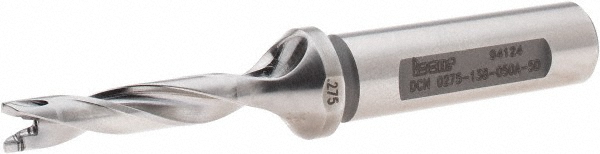

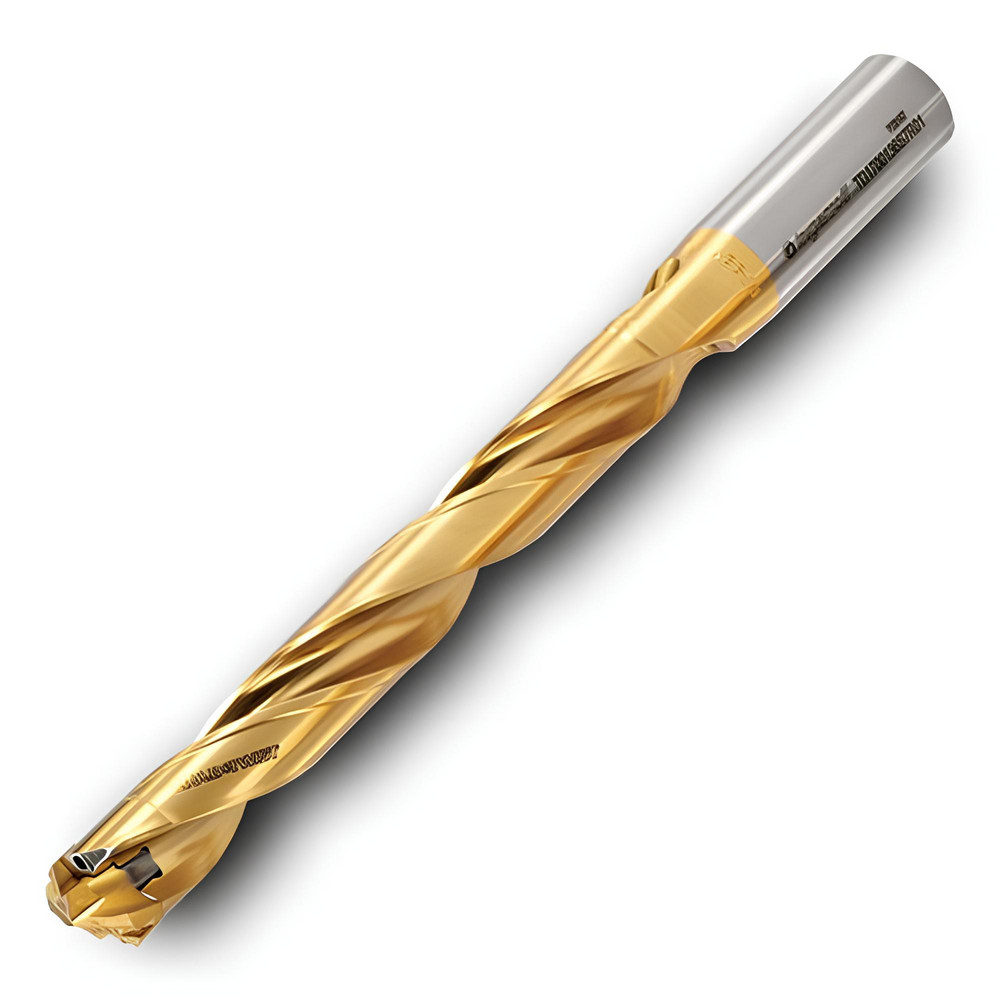

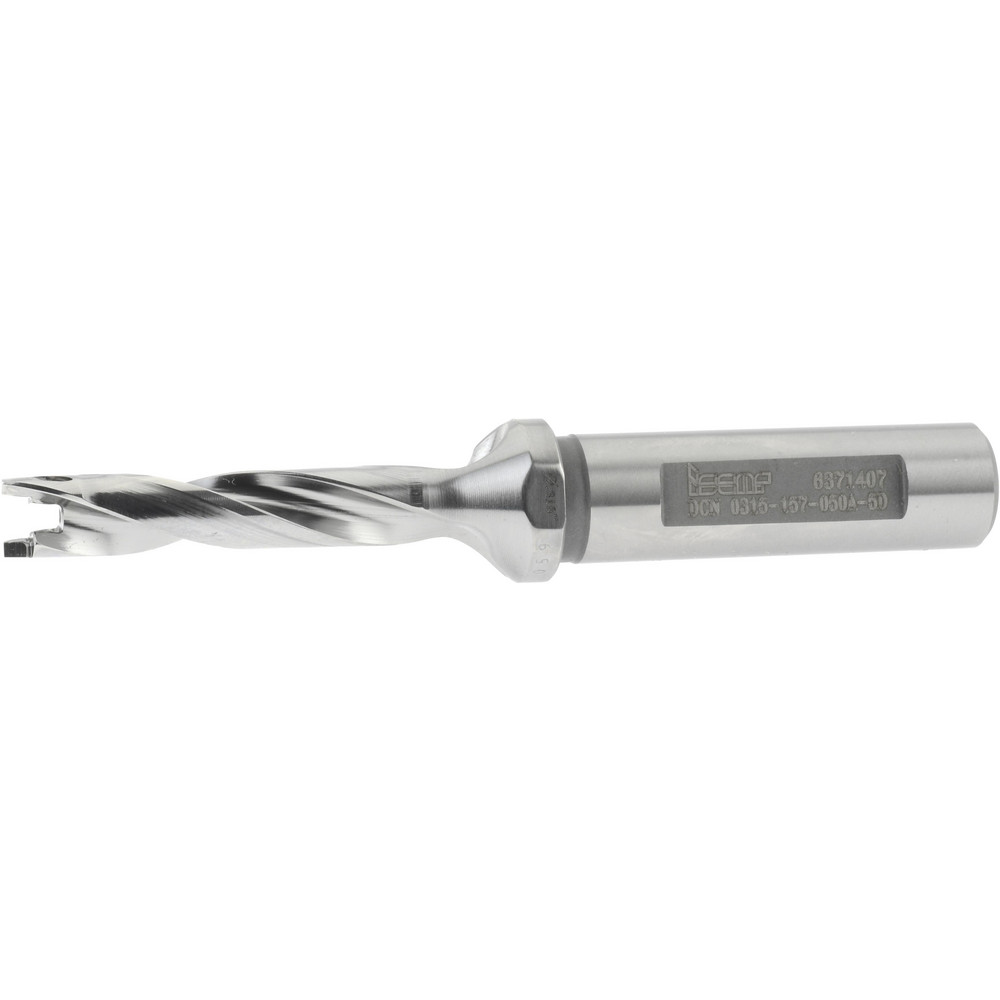

Uses TKA/TMA/TNA/TPA/TPC Inserts, Seat Size 7, 4.369" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.2756 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.2913 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 2.2000 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | 7 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA |
| Overall Length (Decimal Inch) | 4.369 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (Decimal Inch) | 2.5990 |
| Body Length (Decimal Inch) | 2.599 |
| Shank Length (Decimal Inch) | 1.7700 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
| UNSPSC Code | 23291502 |
| MSC Number | MSC# 35127414 |
