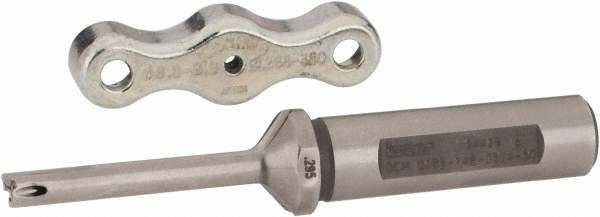

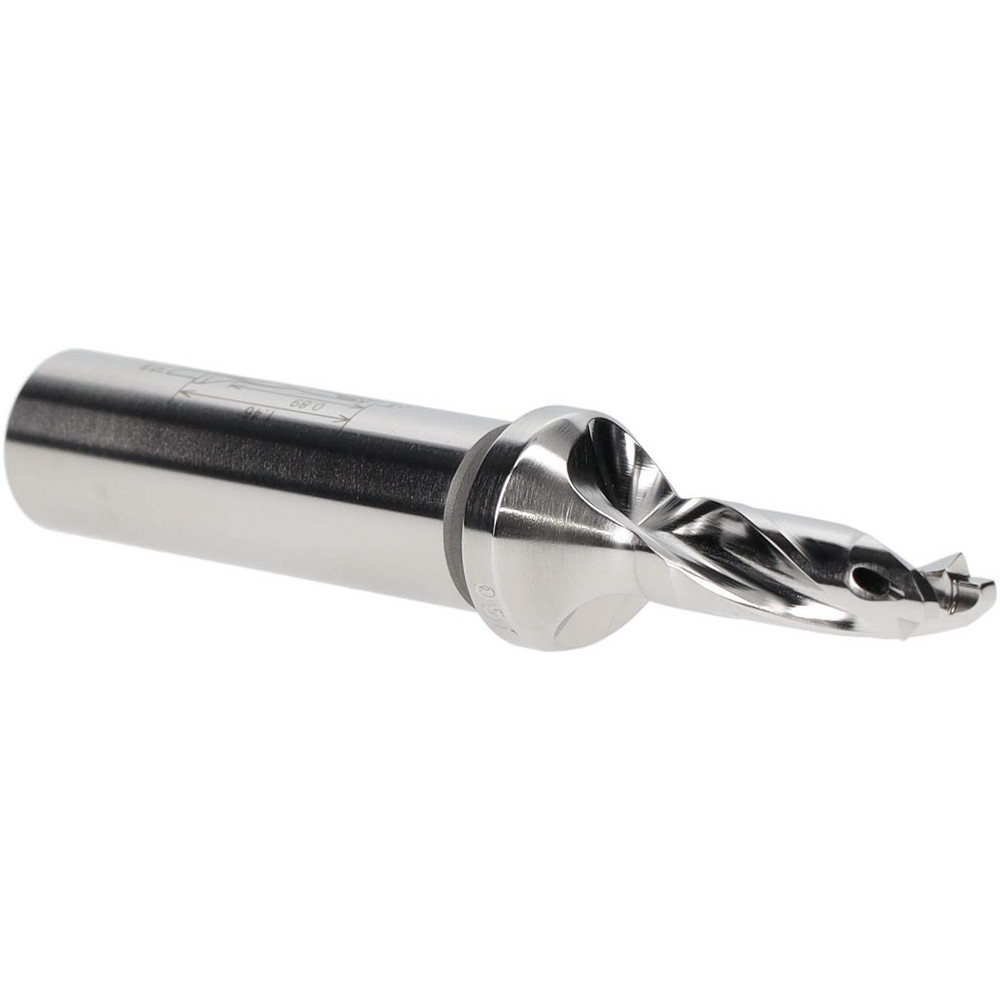

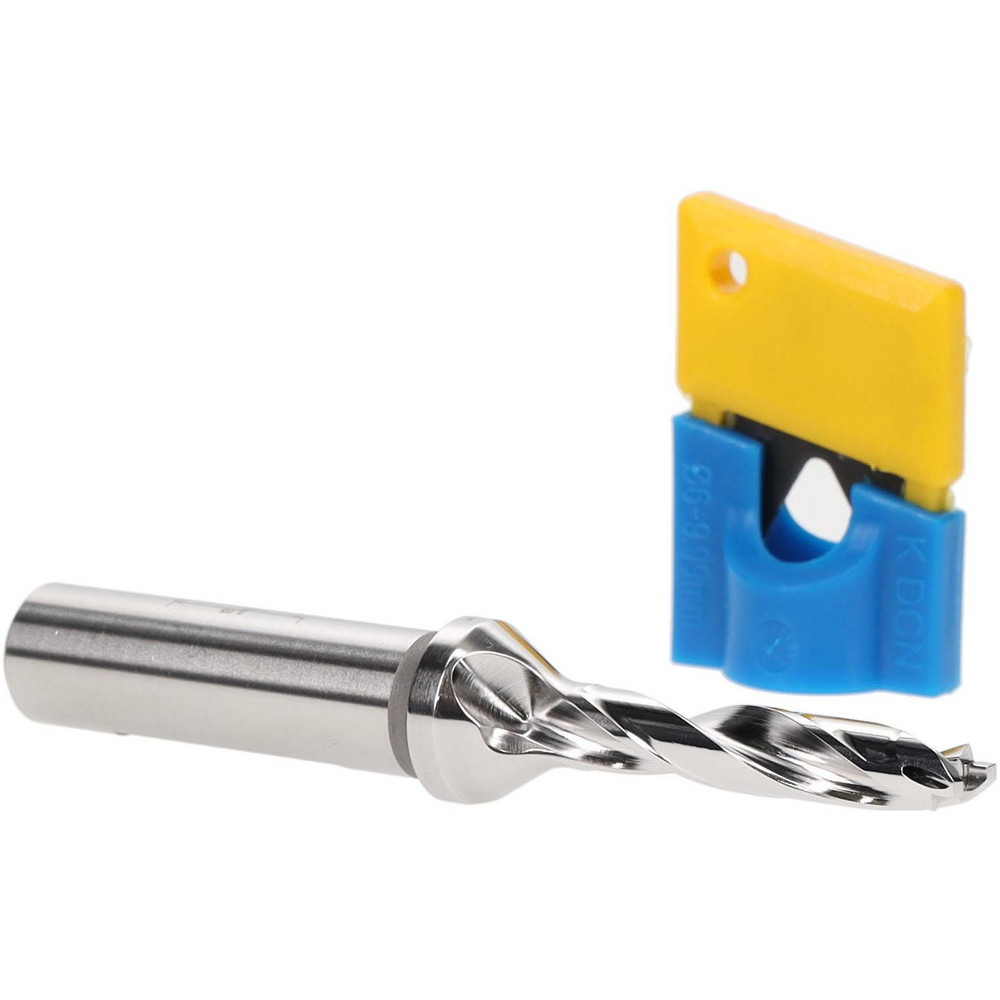

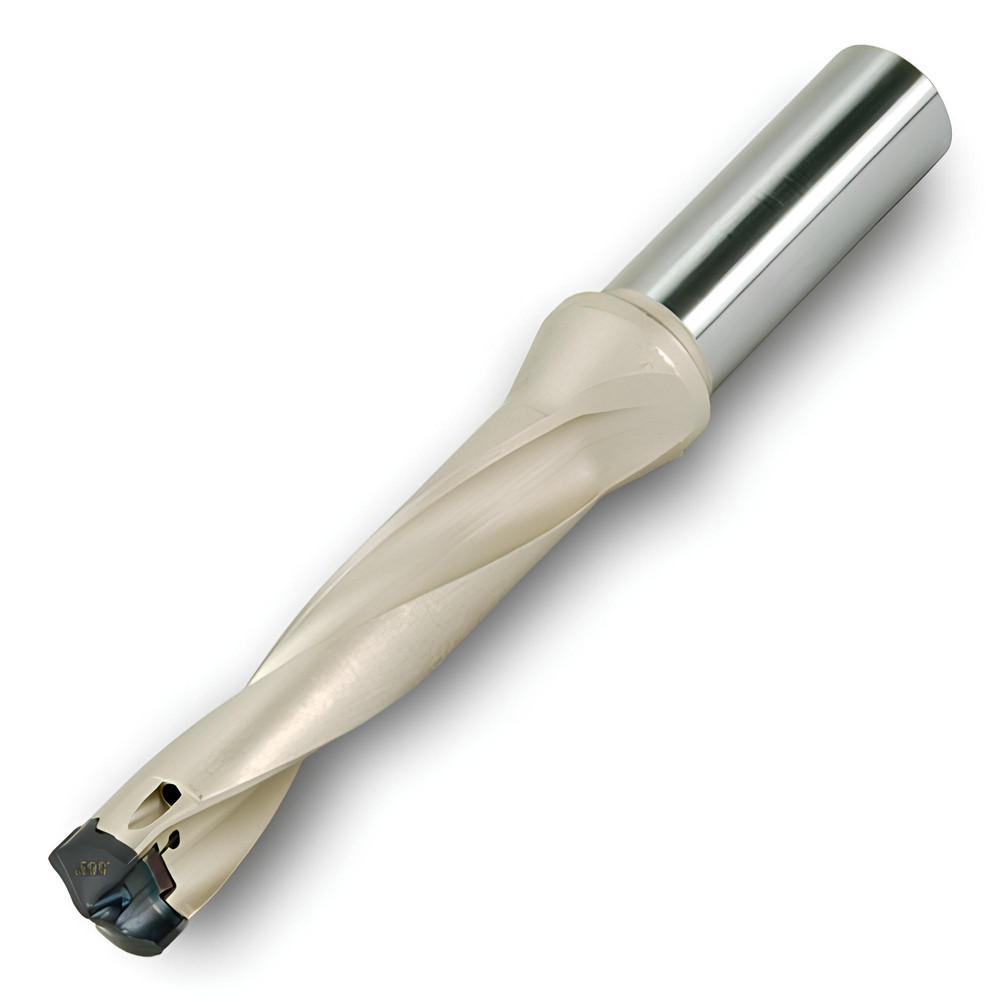

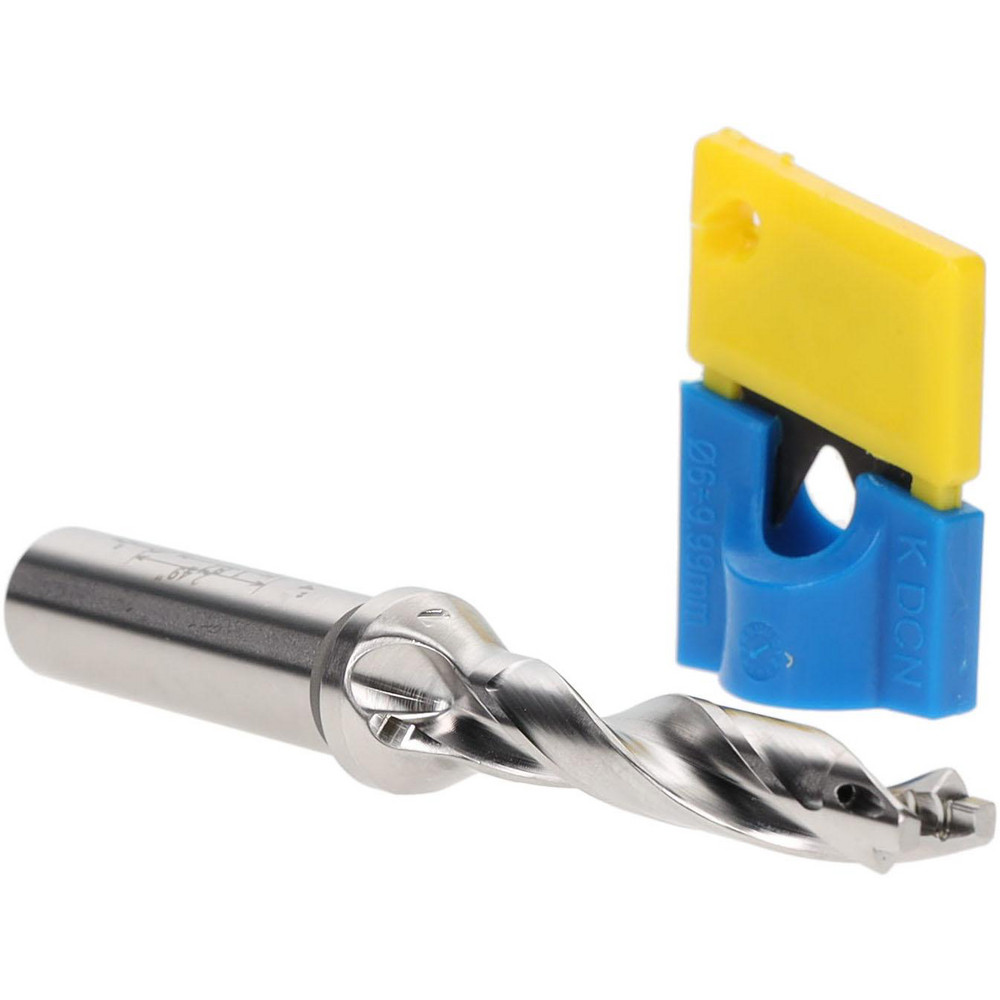

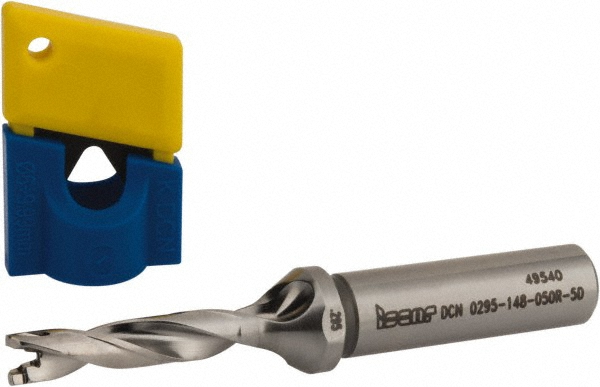

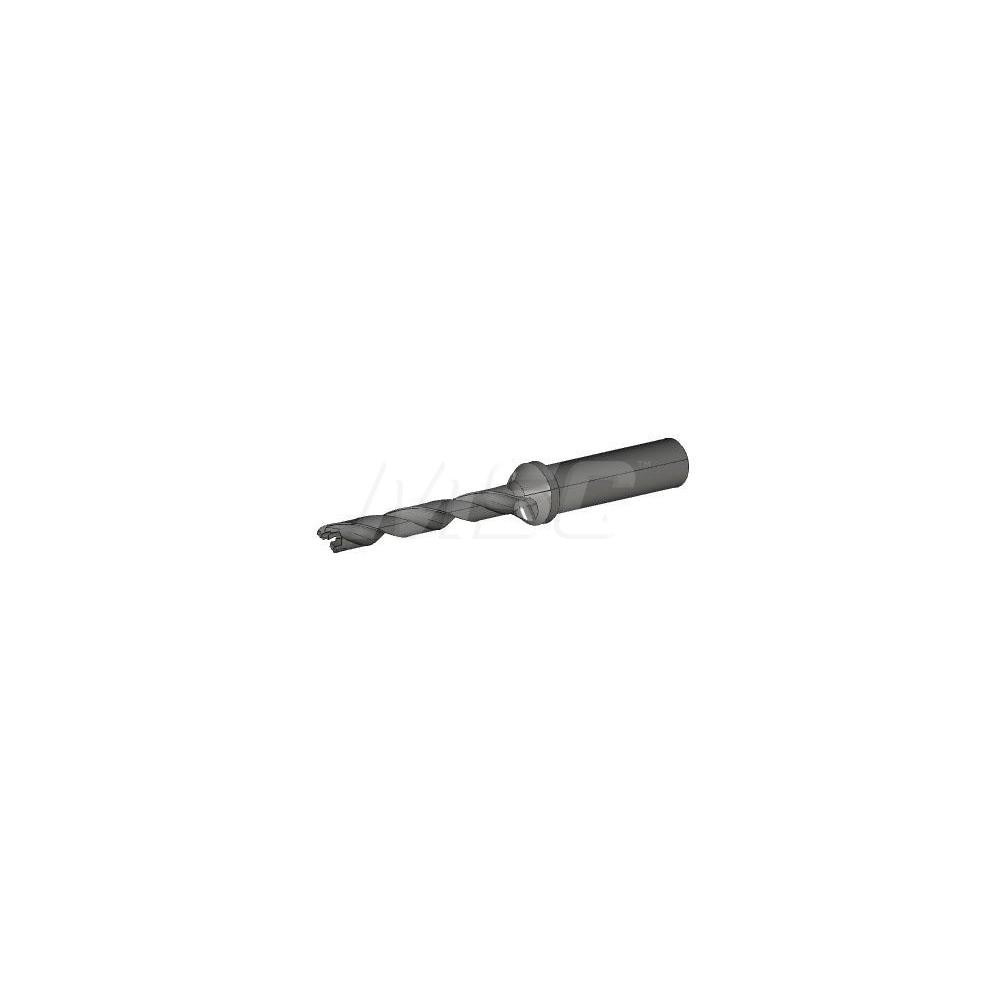

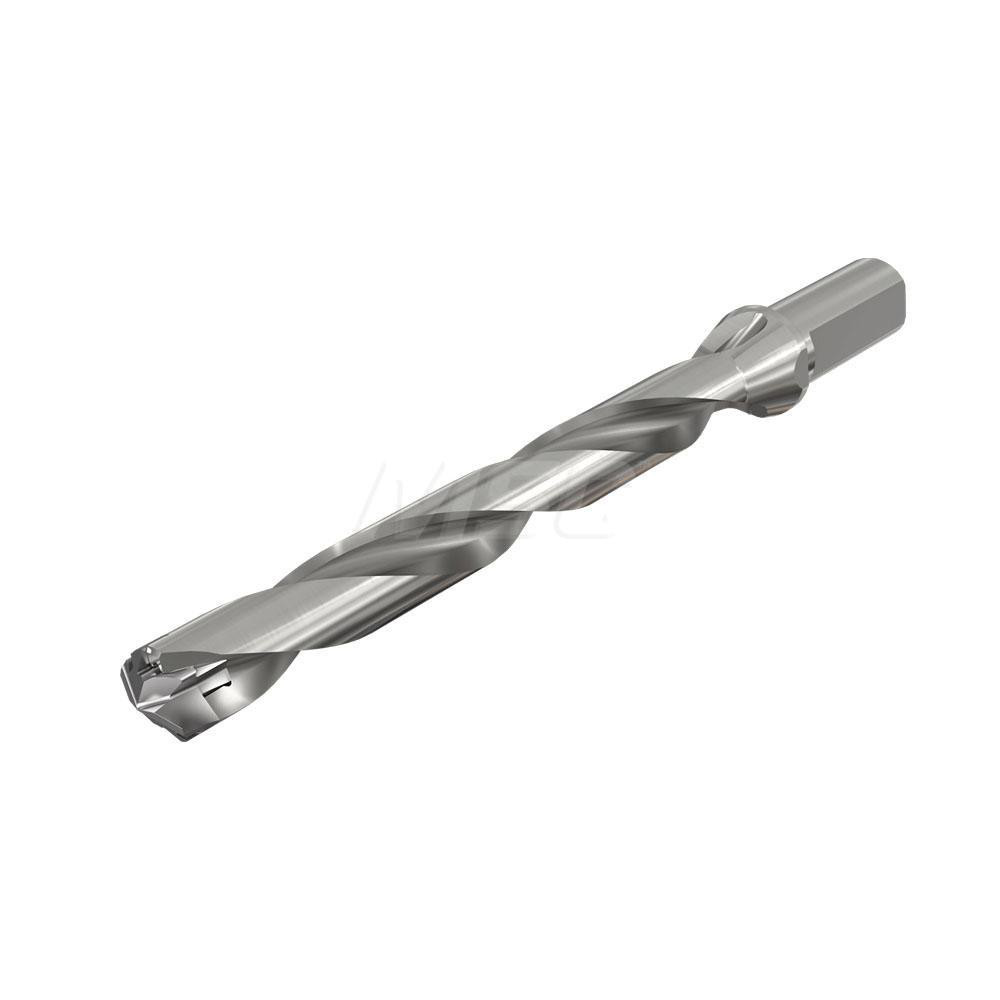

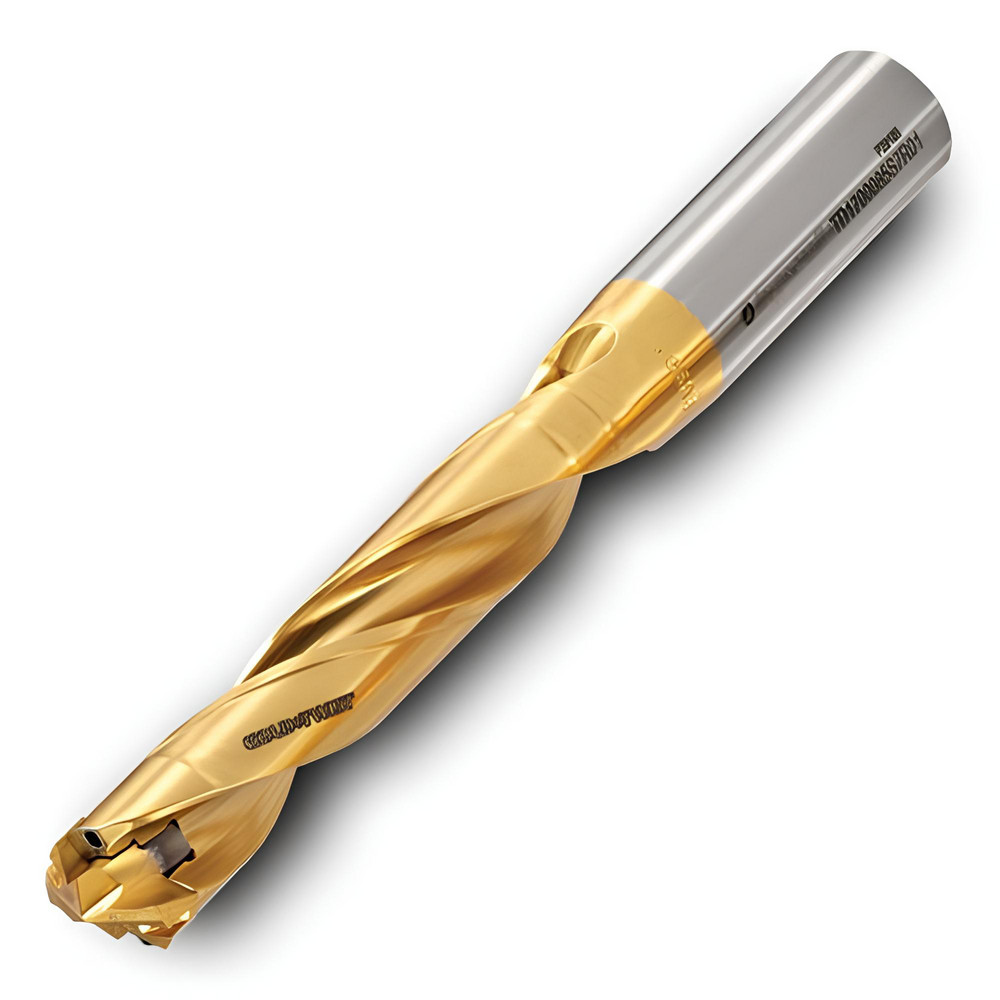

Uses YAB Inserts, Seat Size 7.5, 3.78" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.2953 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.4600 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | 7.5 |
| Tool Material | Steel |
| Compatible Insert Style | YAB |
| Overall Length (Decimal Inch) | 3.78 |
| Series | Y |
| Toolholder Style | Y |
| Shank Length (Decimal Inch) | 1.7700 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 56576069 |
