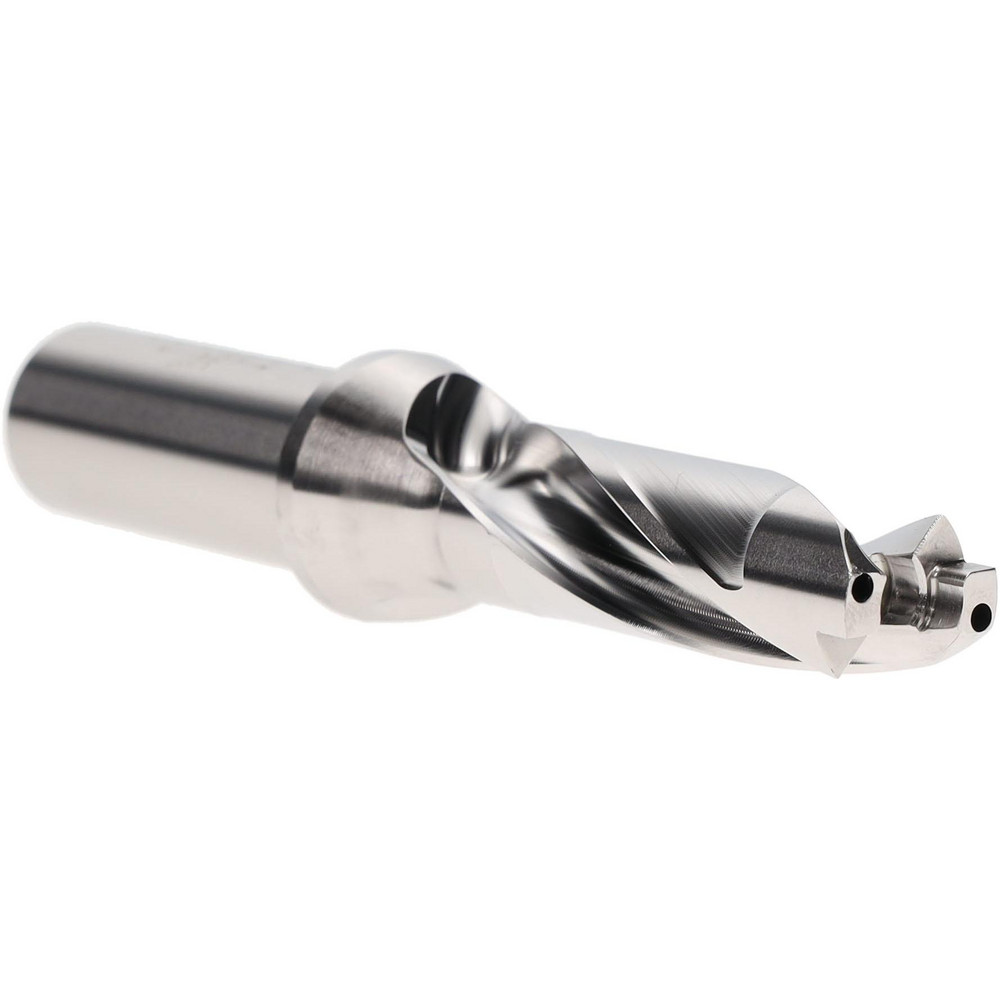

Uses KOMT/YAB/YBB Inserts, Seat Size 13, 3.98" OAL, Through Coolant

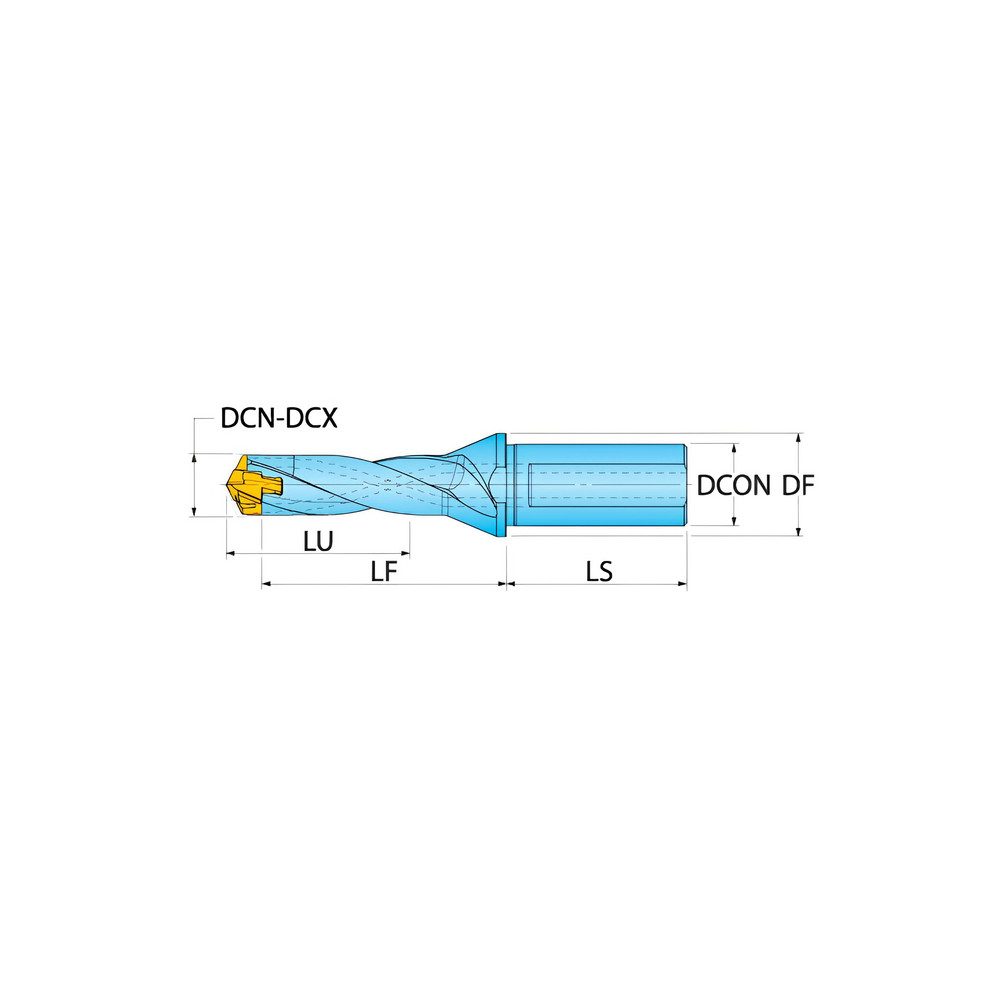

| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5472 |
| Maximum Drill Depth (Decimal Inch) | 2.0100 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Seat Size | 13 |
| Tool Material | Steel |
| Compatible Insert Style | KOMT; YBB; YAB |
| Overall Length (Decimal Inch) | 3.98 |
| Series | YC |
| Toolholder Style | YC |
| Flute Length (Decimal Inch) | 2.0100 |
| Body Length (Decimal Inch) | 2.01 |
| Shank Length (Decimal Inch) | 1.9700 |
| Tool Application | Drilling; Chamfering |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| MSC Number | MSC# 77813863 |
