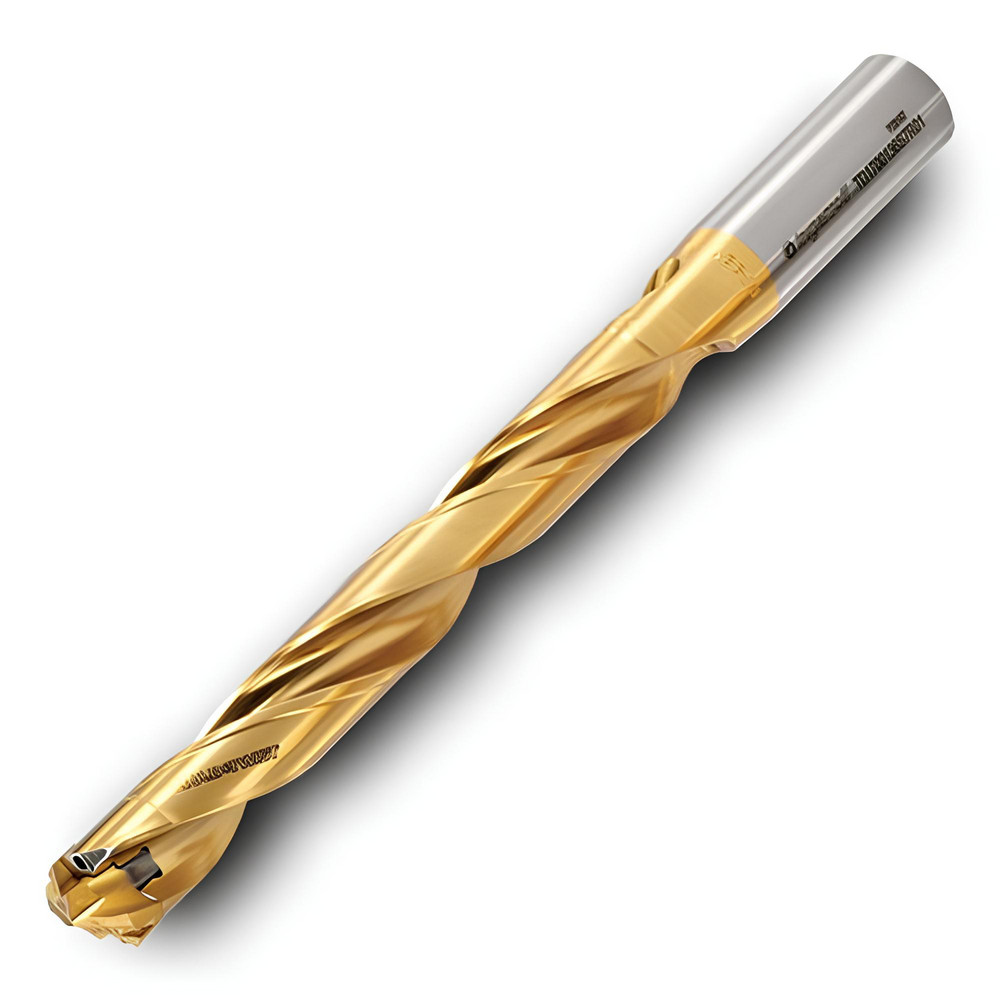

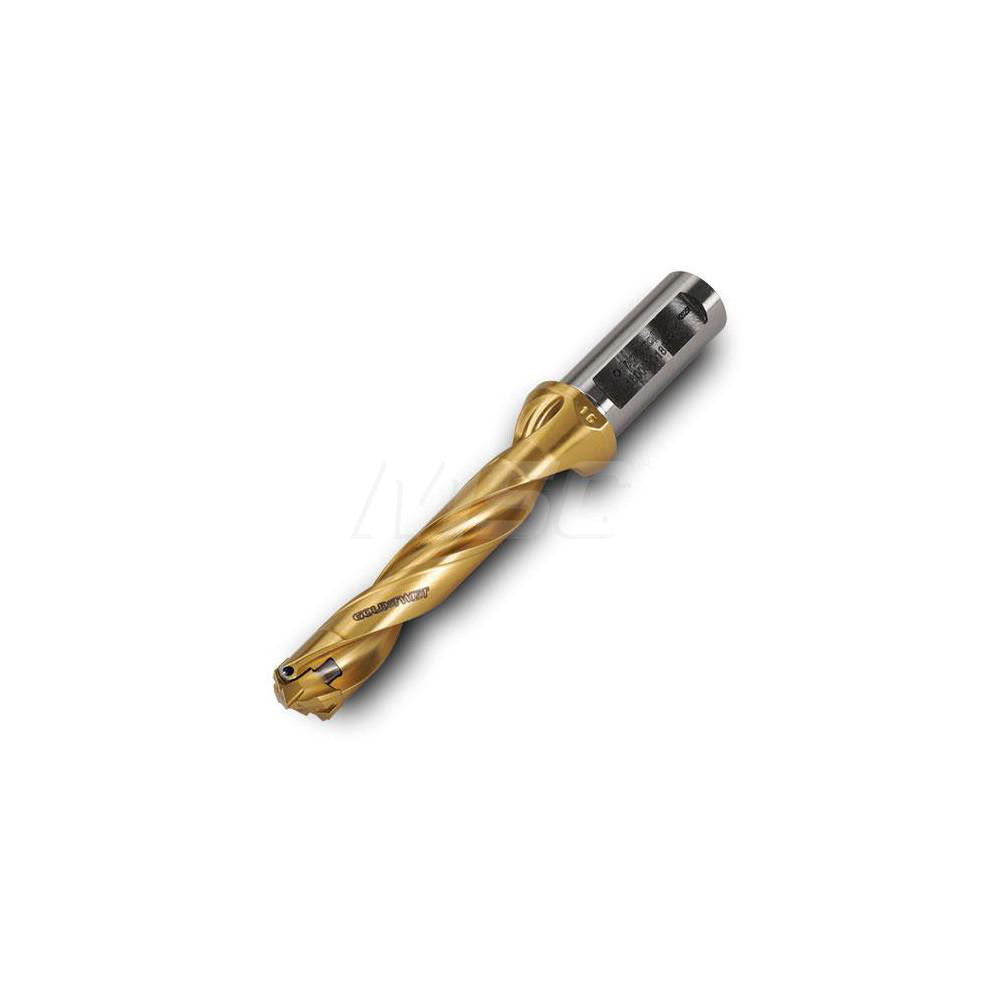

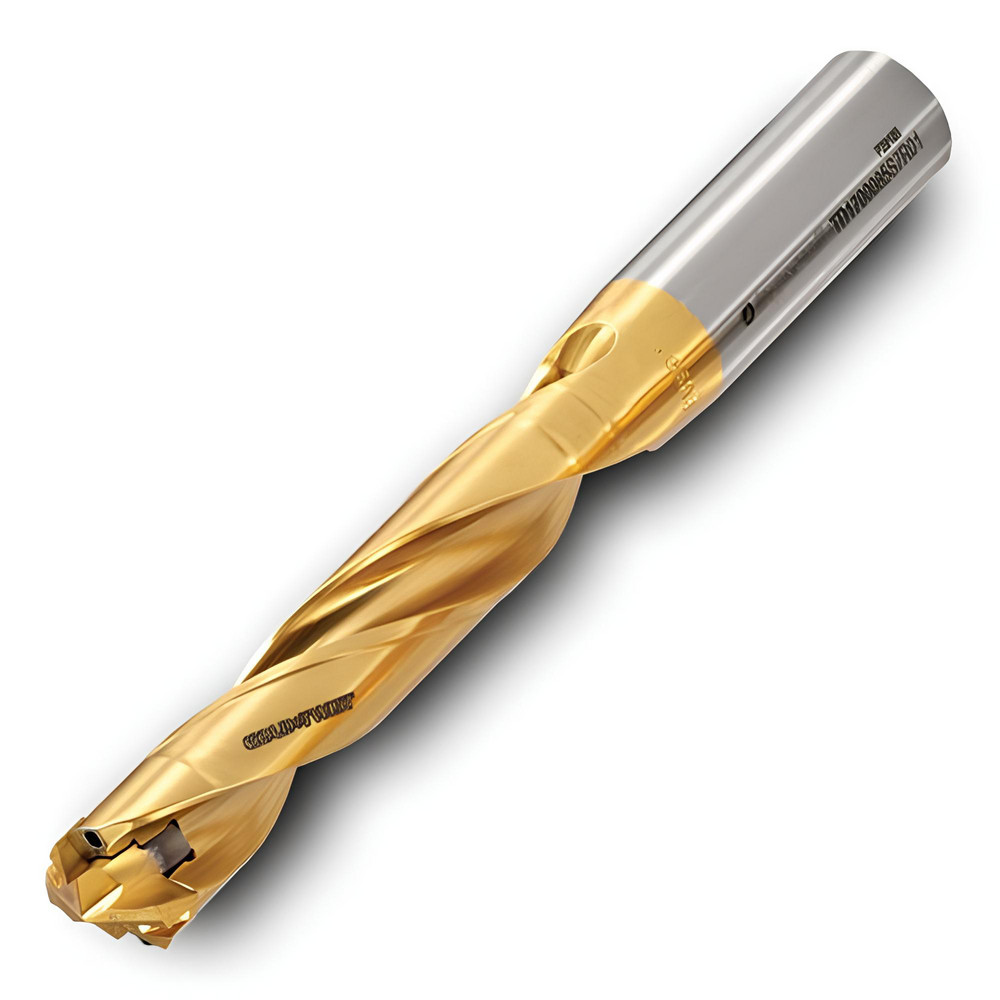

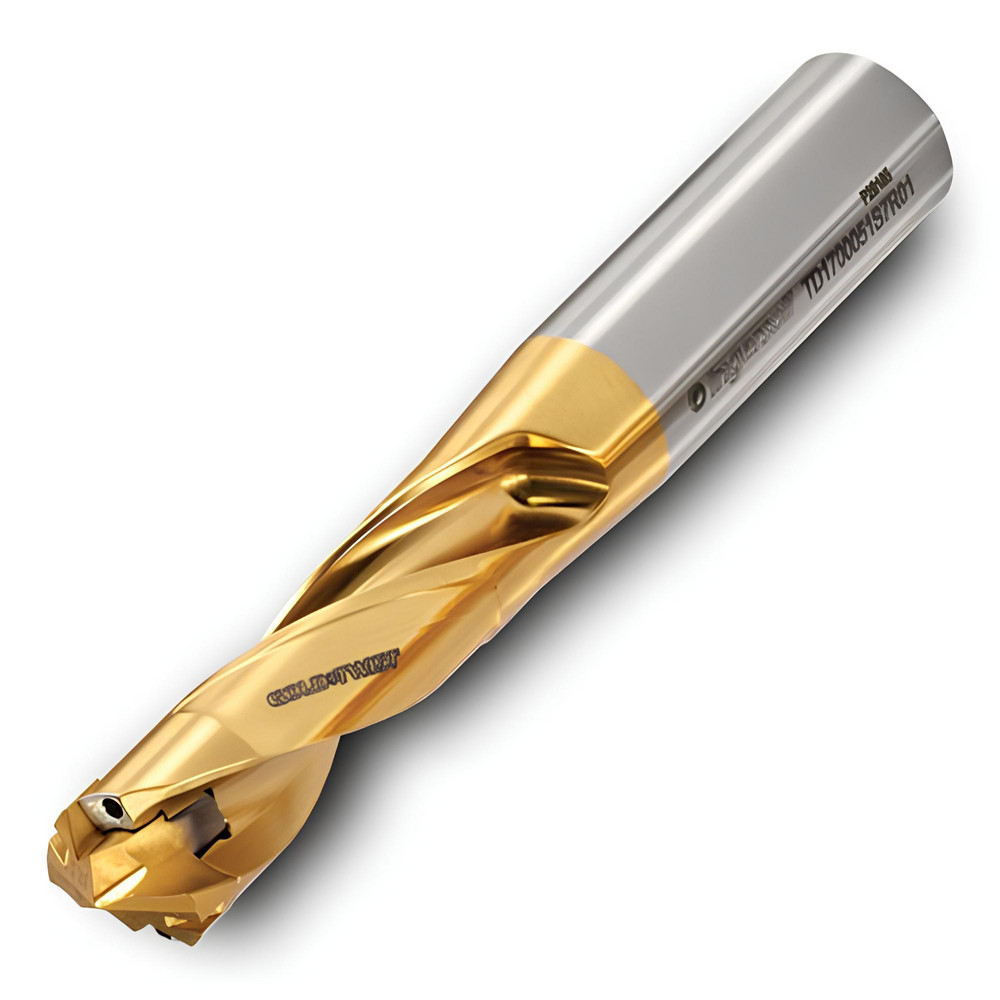

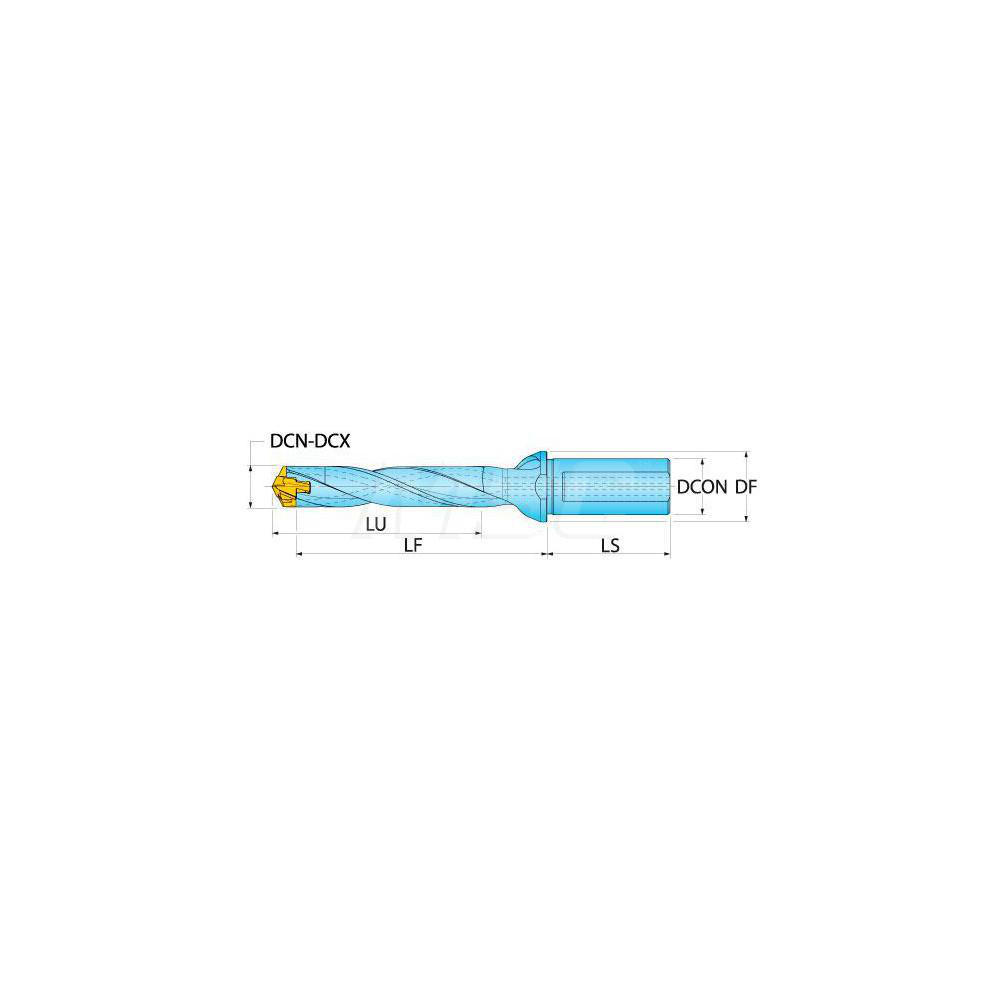

Uses YAB/YBB Inserts, Seat Size 14.5, 5.54" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5709 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5866 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.8700 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 14.5 |
| Tool Material | Steel |
| Compatible Insert Style | YBB; YAB |
| Overall Length (Decimal Inch) | 5.54 |
| Series | TD |
| Toolholder Style | SC T; SC HYDRO |
| Flute Length (Decimal Inch) | 2.8700 |
| Body Length (Decimal Inch) | 3.65 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 53672812 |
