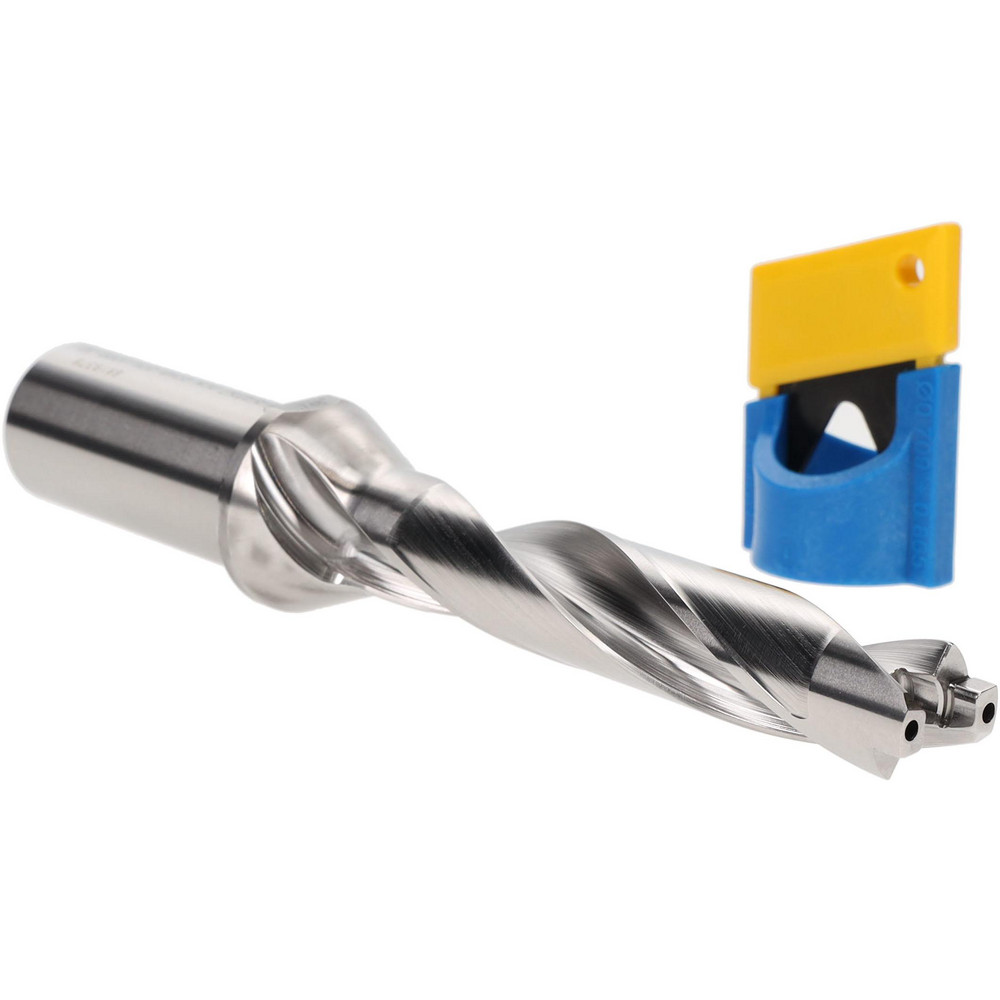

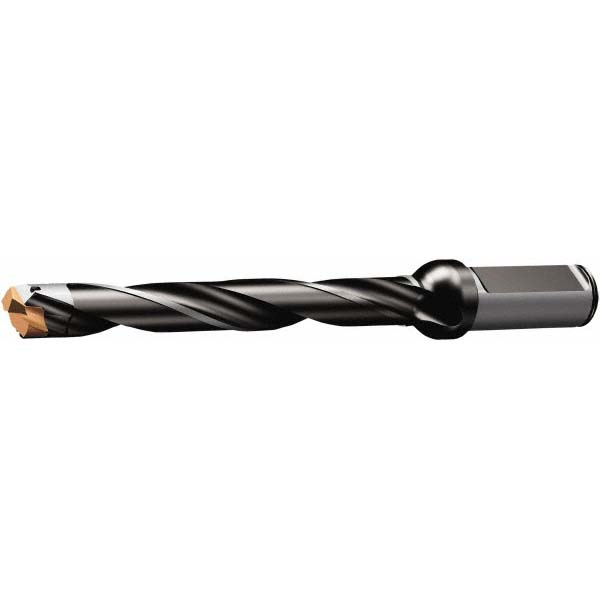

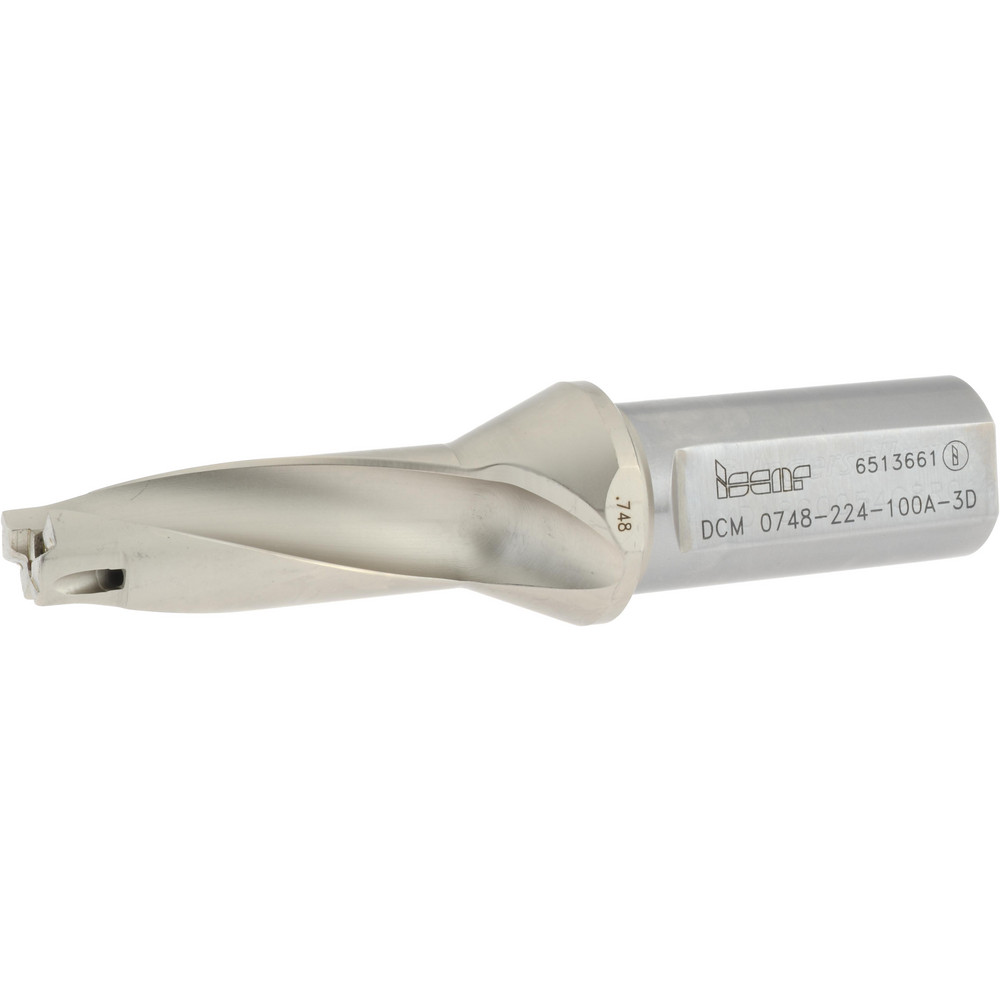

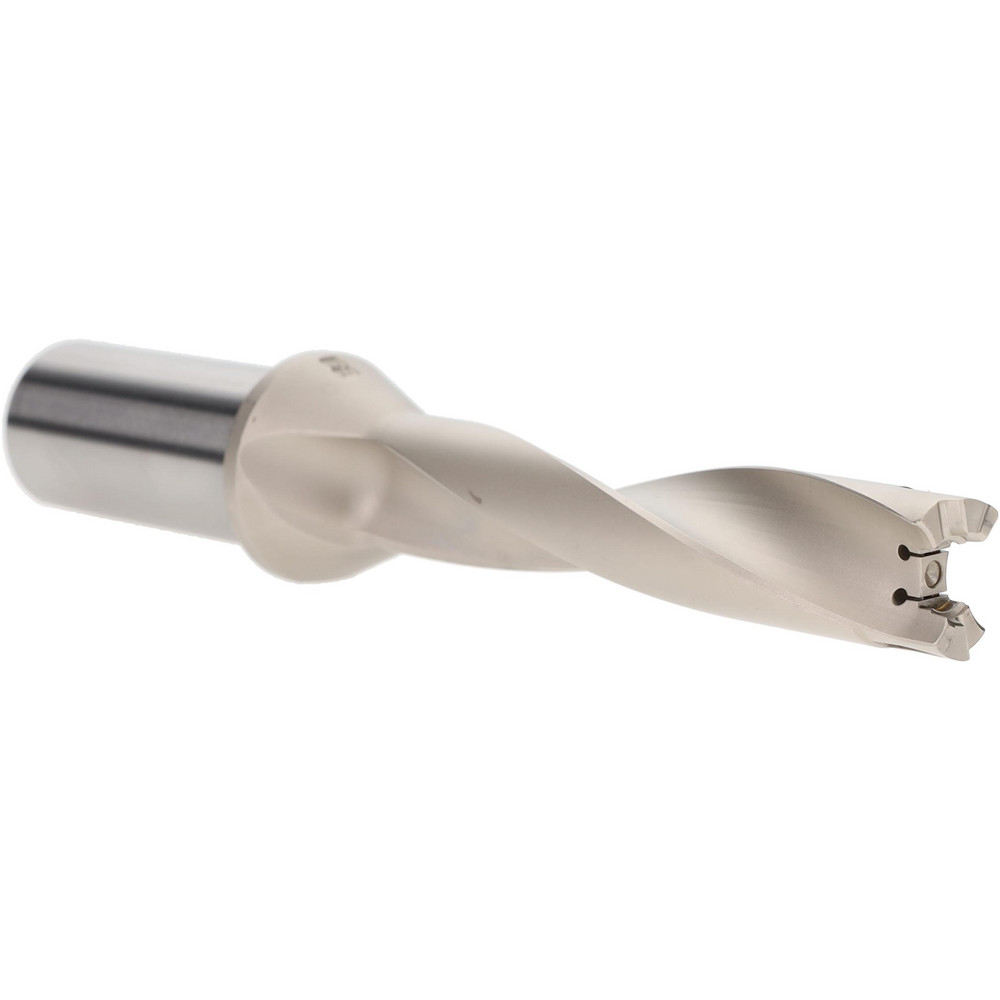

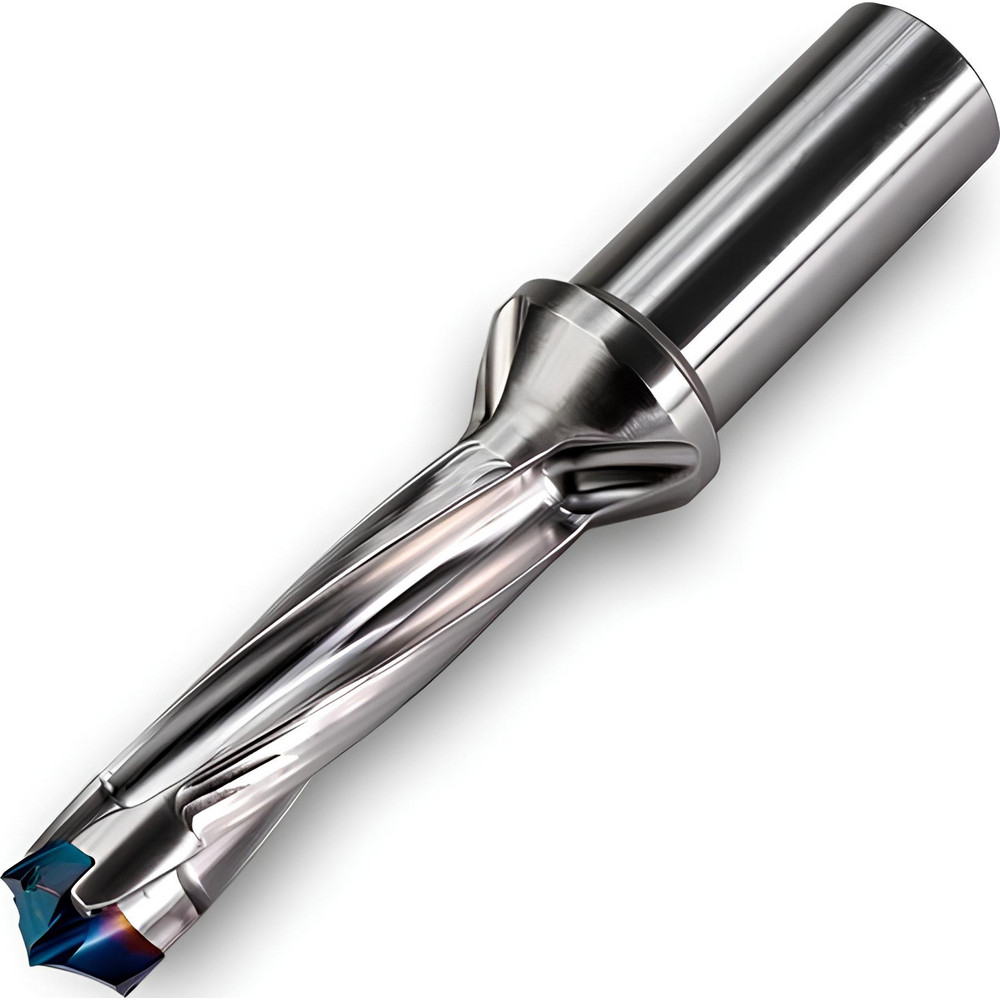

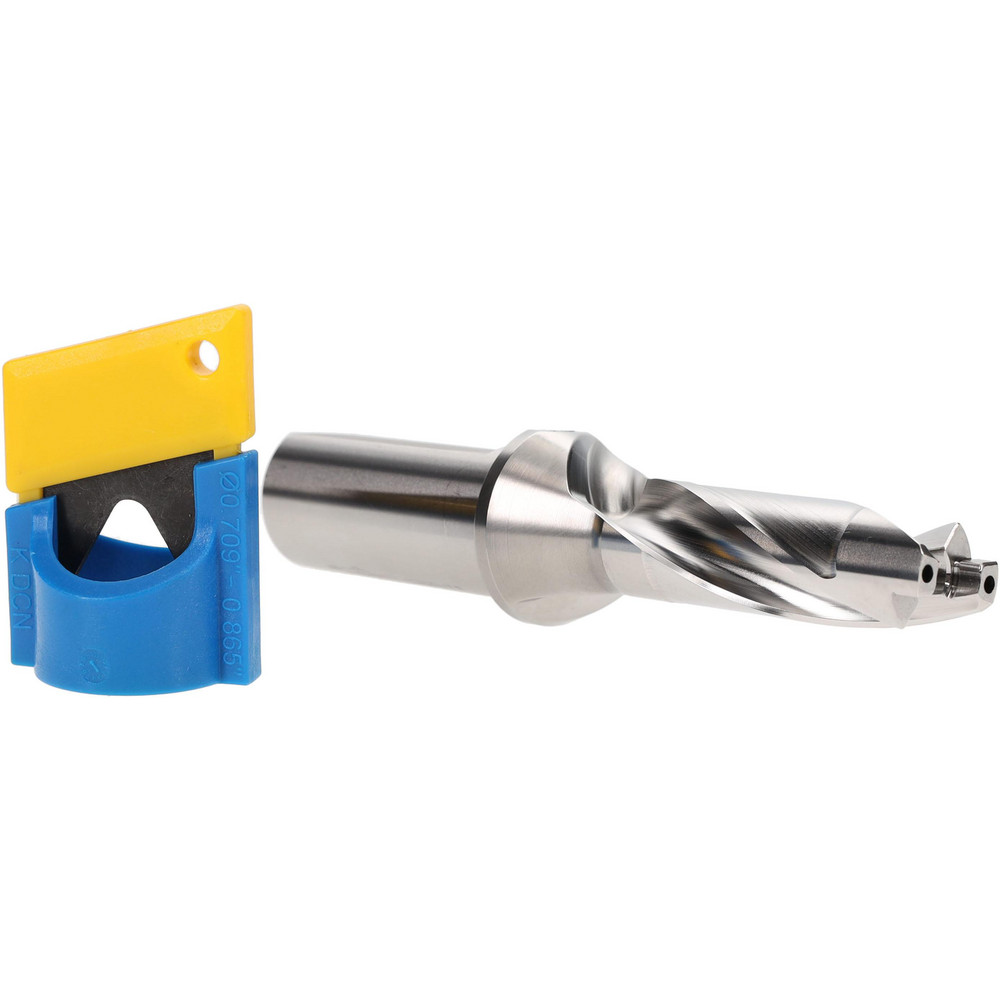

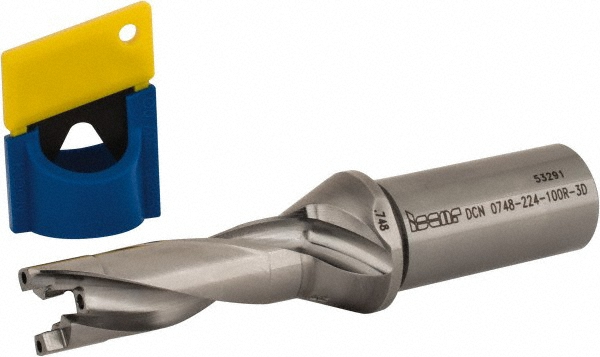

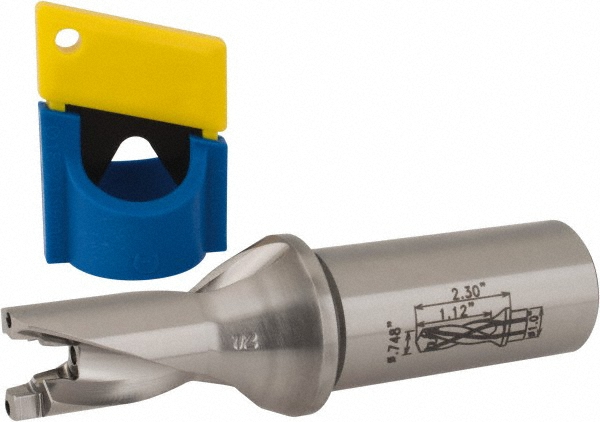

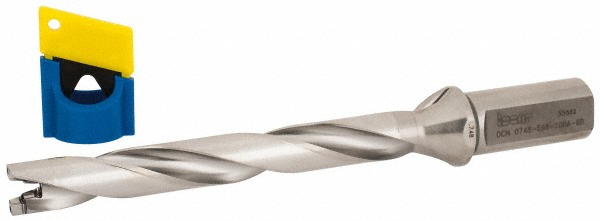

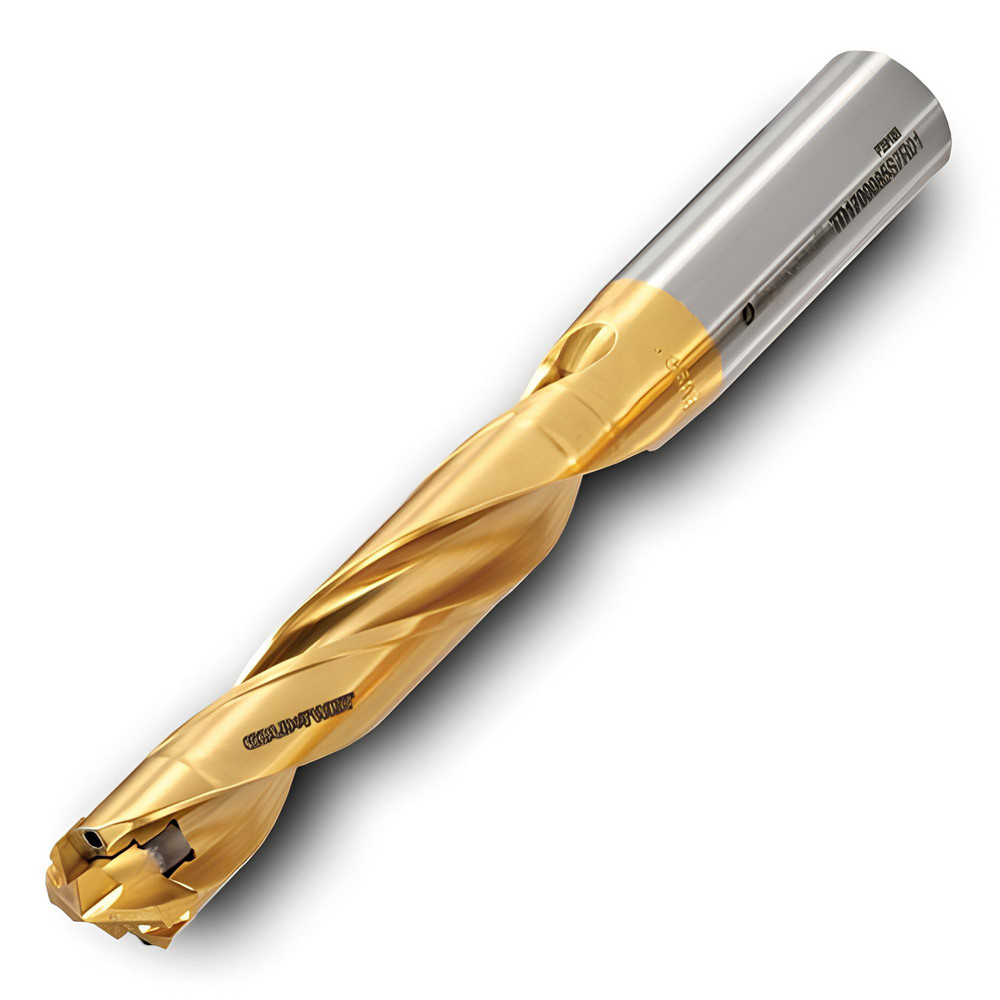

Uses FPC Inserts, Seat Size 19, 5.51" OAL, Through Coolant

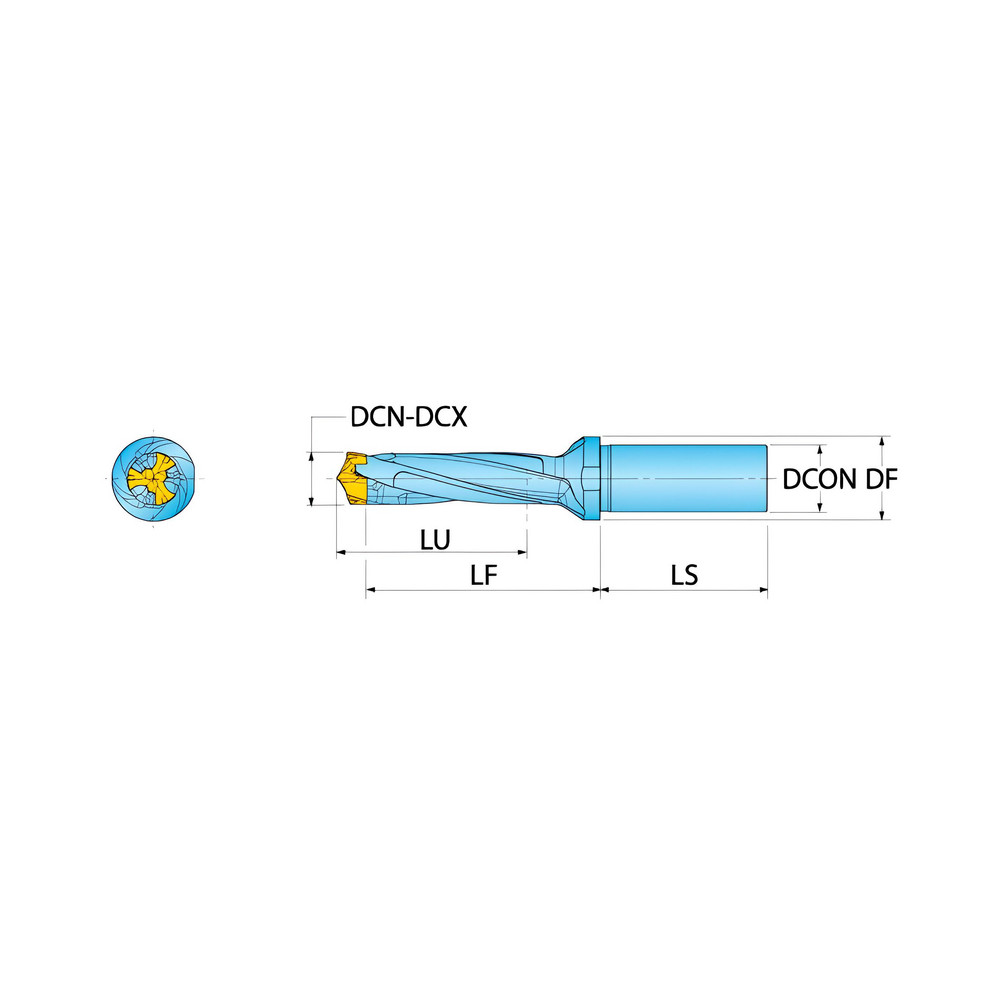

| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.7835 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.4000 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | 19 |
| Tool Material | Steel |
| Compatible Insert Style | FPC |
| Overall Length (Decimal Inch) | 5.51 |
| Series | FD |
| Toolholder Style | FD |
| Flute Length (Decimal Inch) | 3.3100 |
| Body Length (Decimal Inch) | 3.31 |
| Shank Length (Decimal Inch) | 2.2000 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 98738164 |
