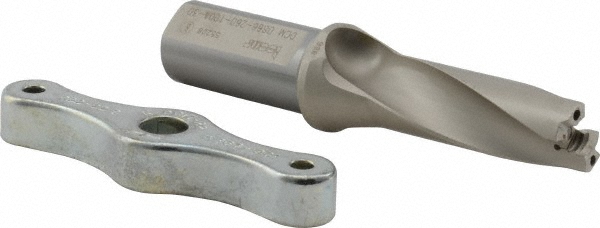

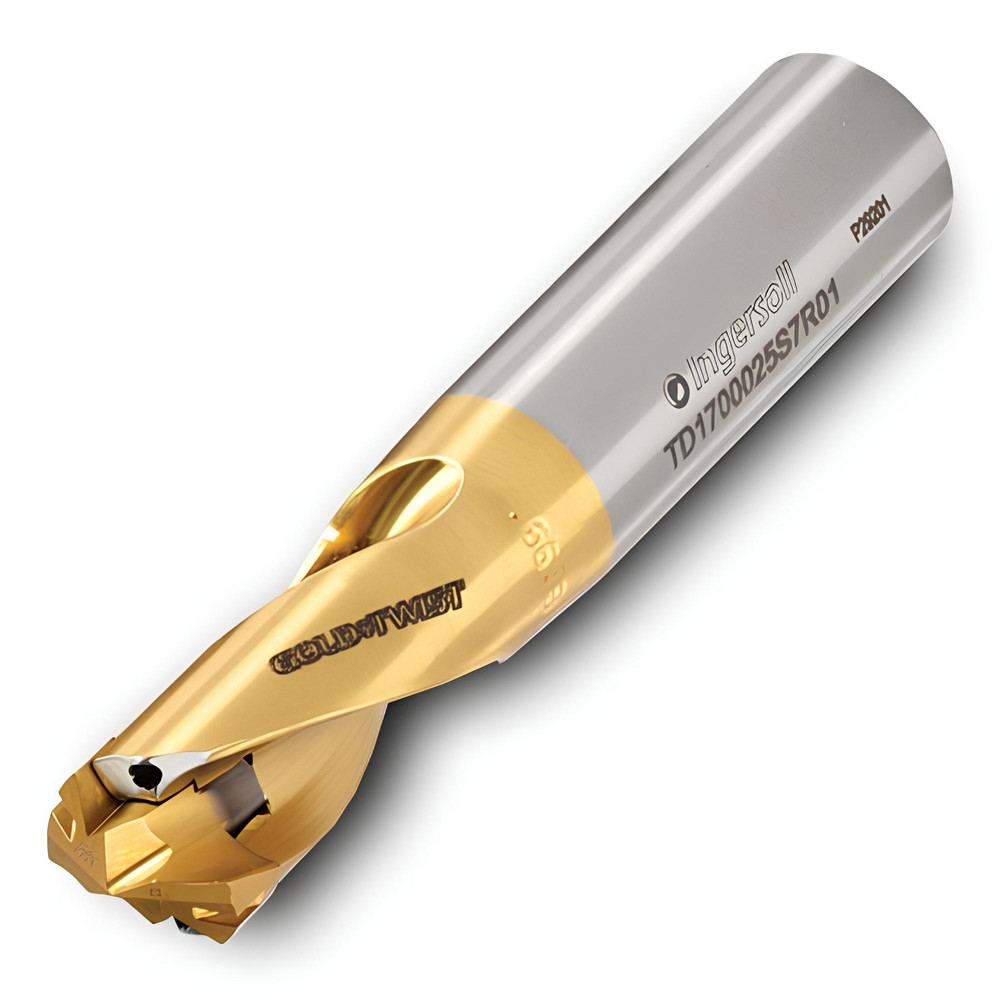

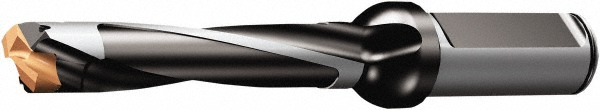

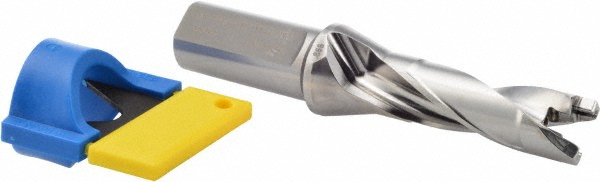

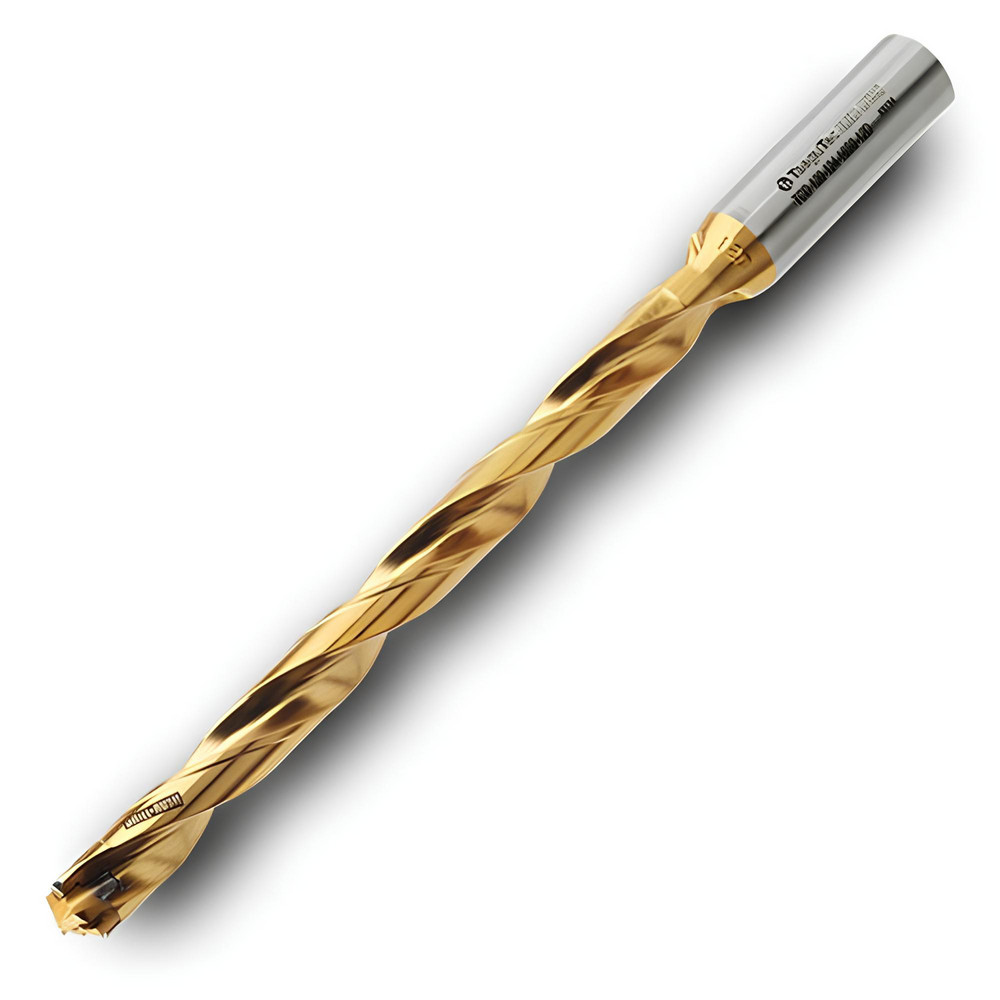

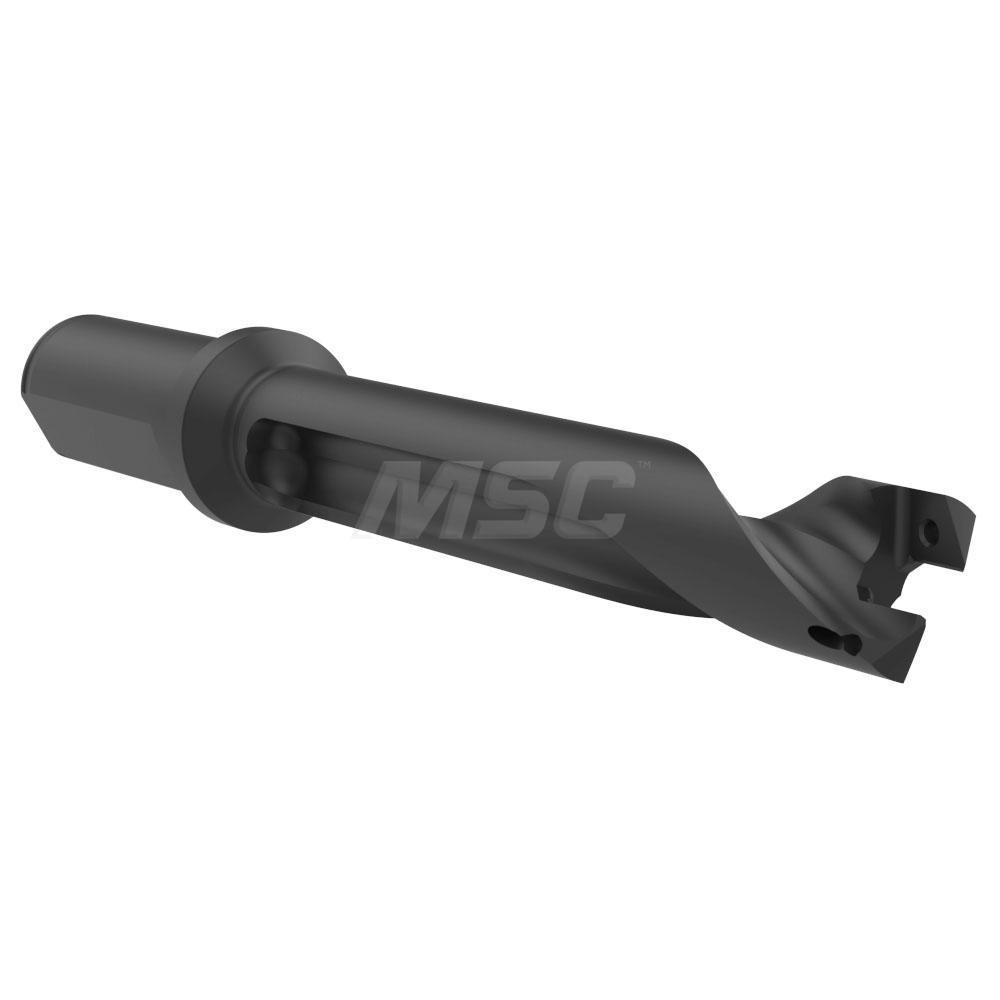

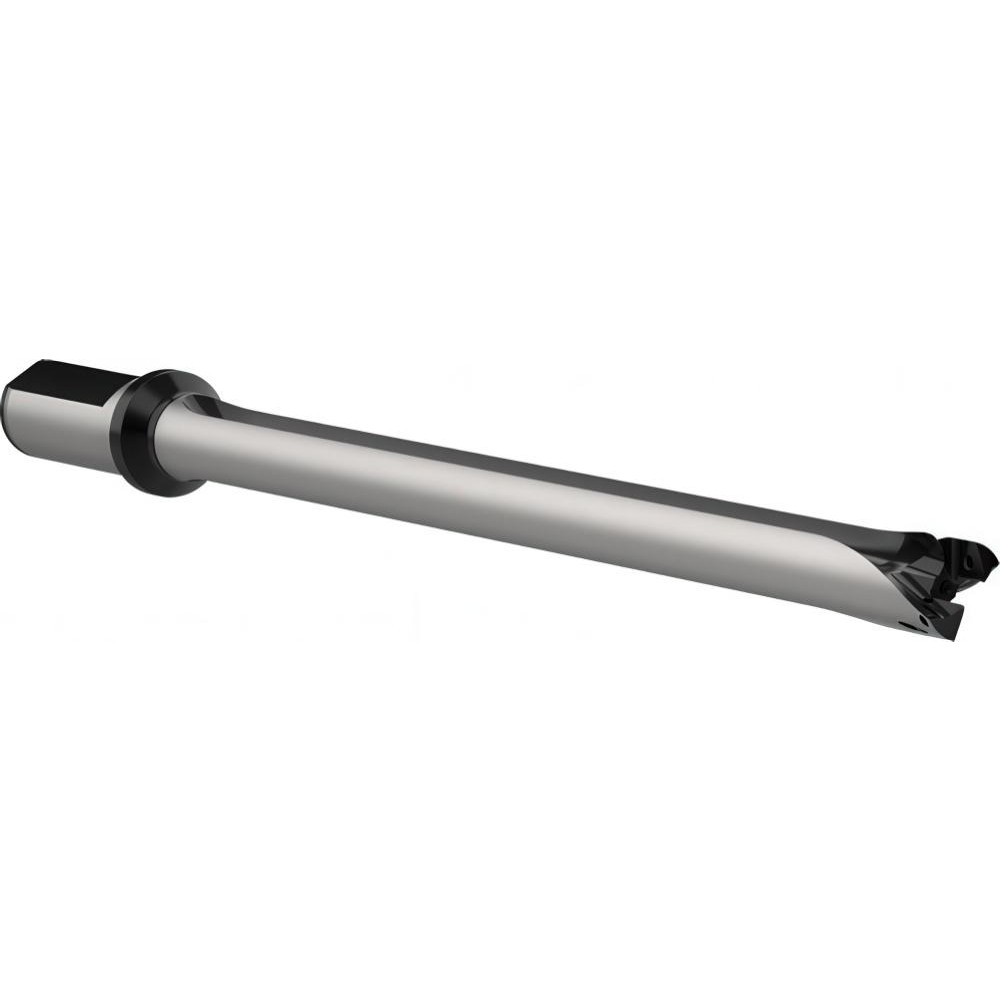

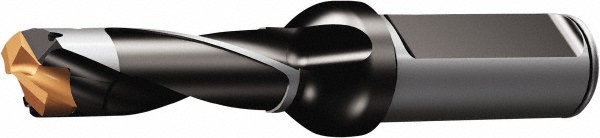

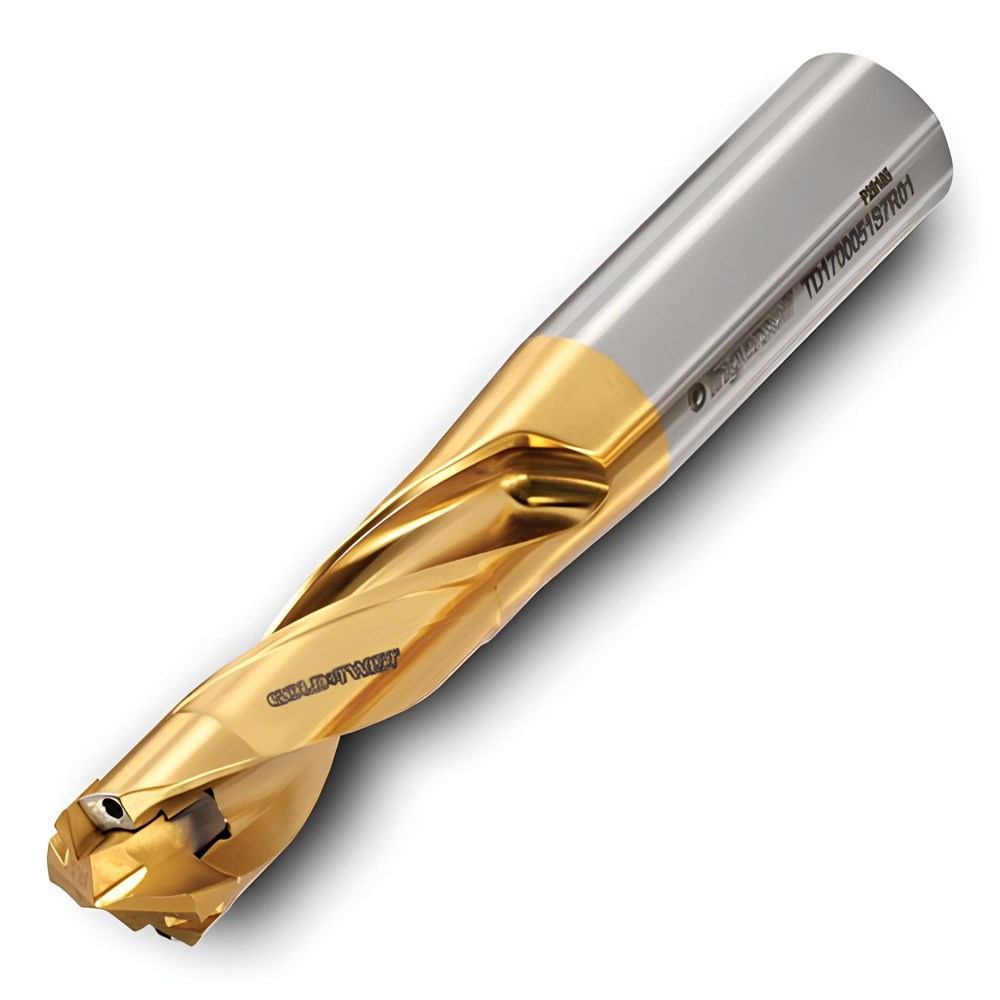

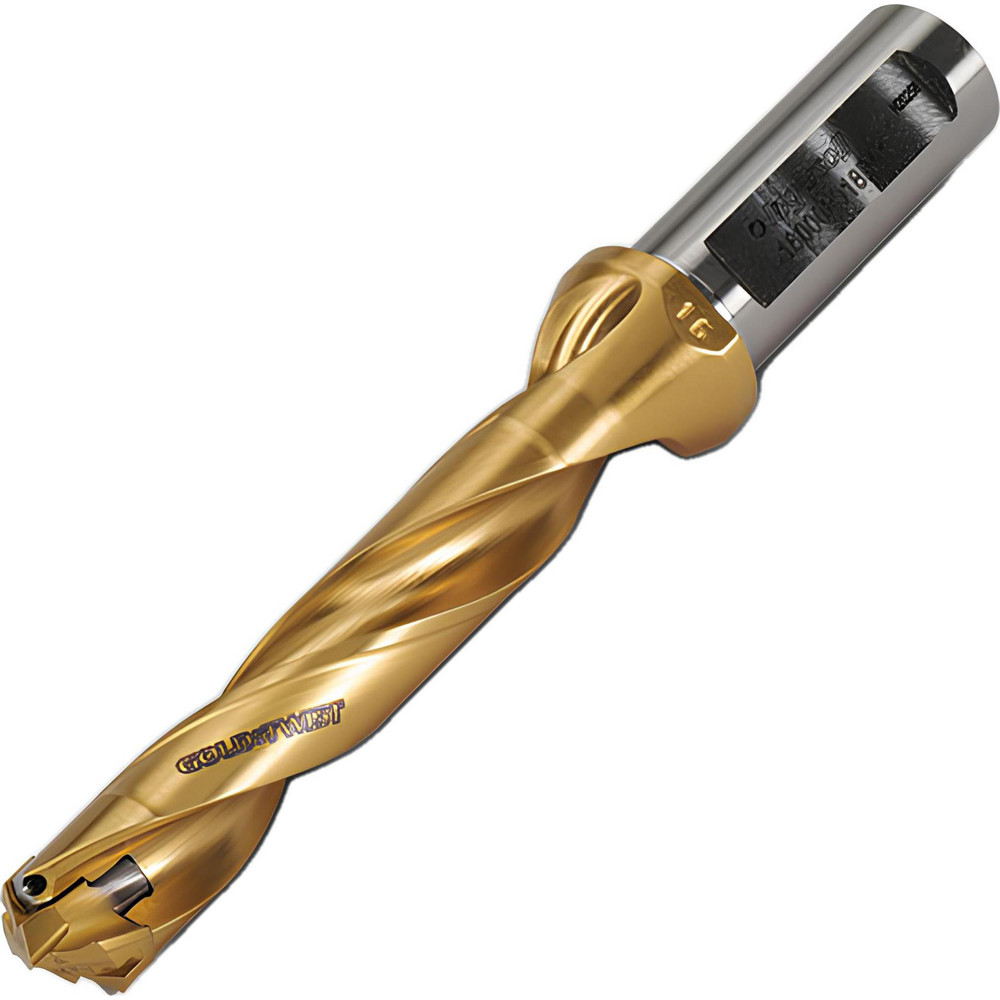

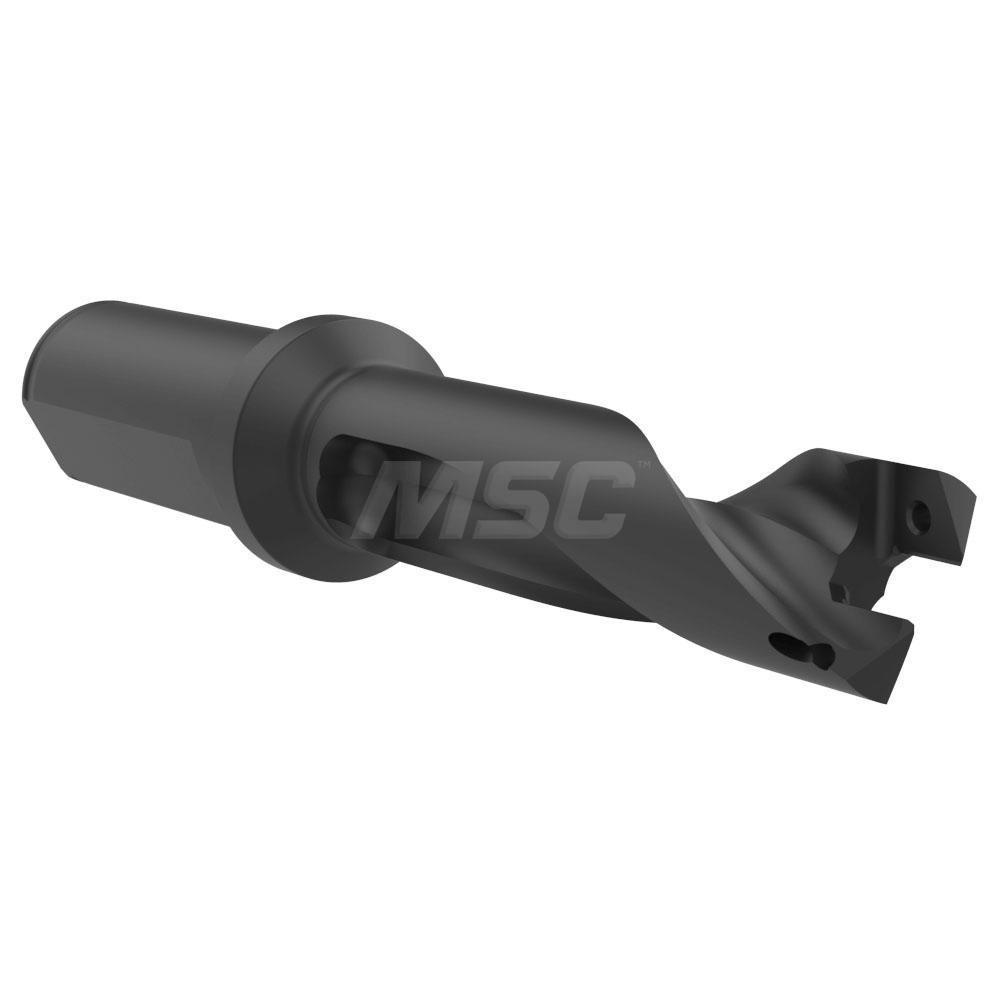

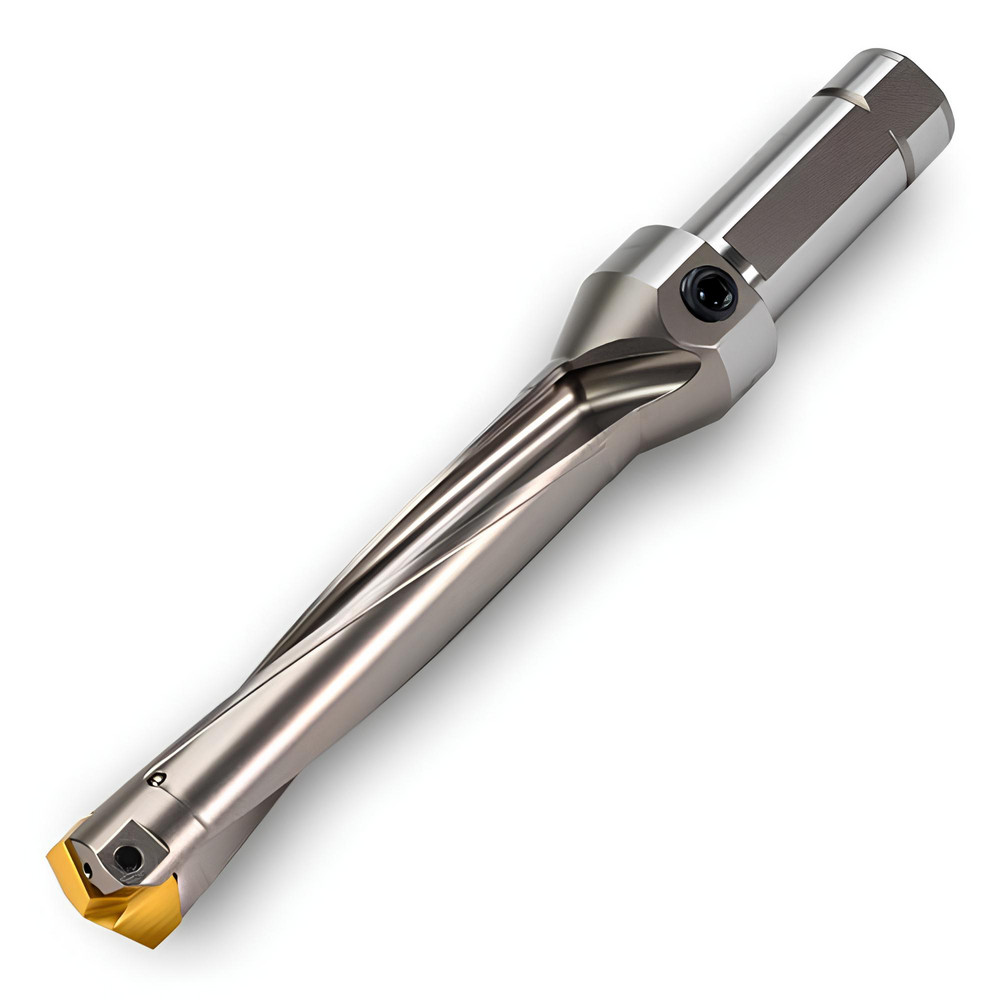

Uses TKA/TMA/TNA/TPA/TPC/TPF Inserts, Seat Size 22, 13.83" OAL, Through Coolant

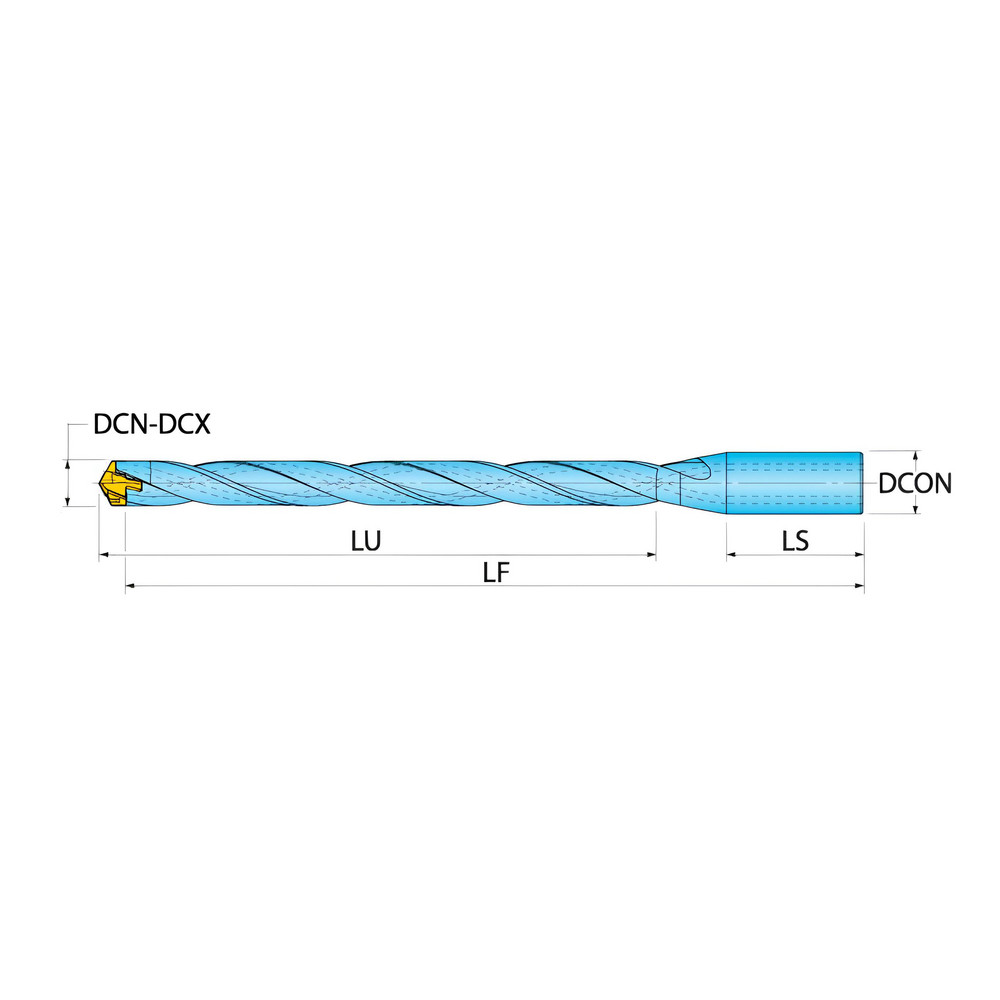

| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9016 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 10.3900 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | 22 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Overall Length (Decimal Inch) | 13.83 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (Decimal Inch) | 13.8300 |
| Body Length (Decimal Inch) | 13.83 |
| Shank Length (Decimal Inch) | 2.2000 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
| UNSPSC Code | 23291502 |
| MSC Number | MSC# 98789613 |
