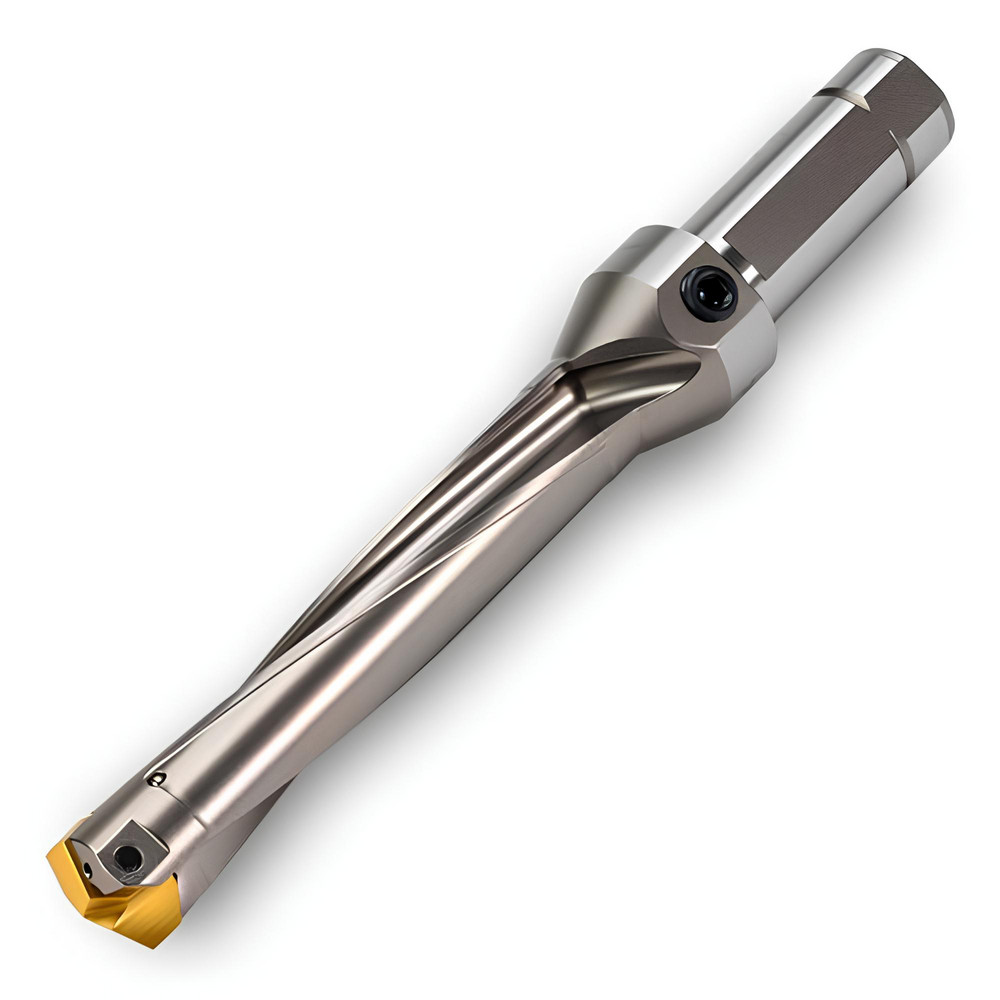

Uses LPA/LPF Inserts, Seat Size 22, 9.105" OAL, Through Coolant

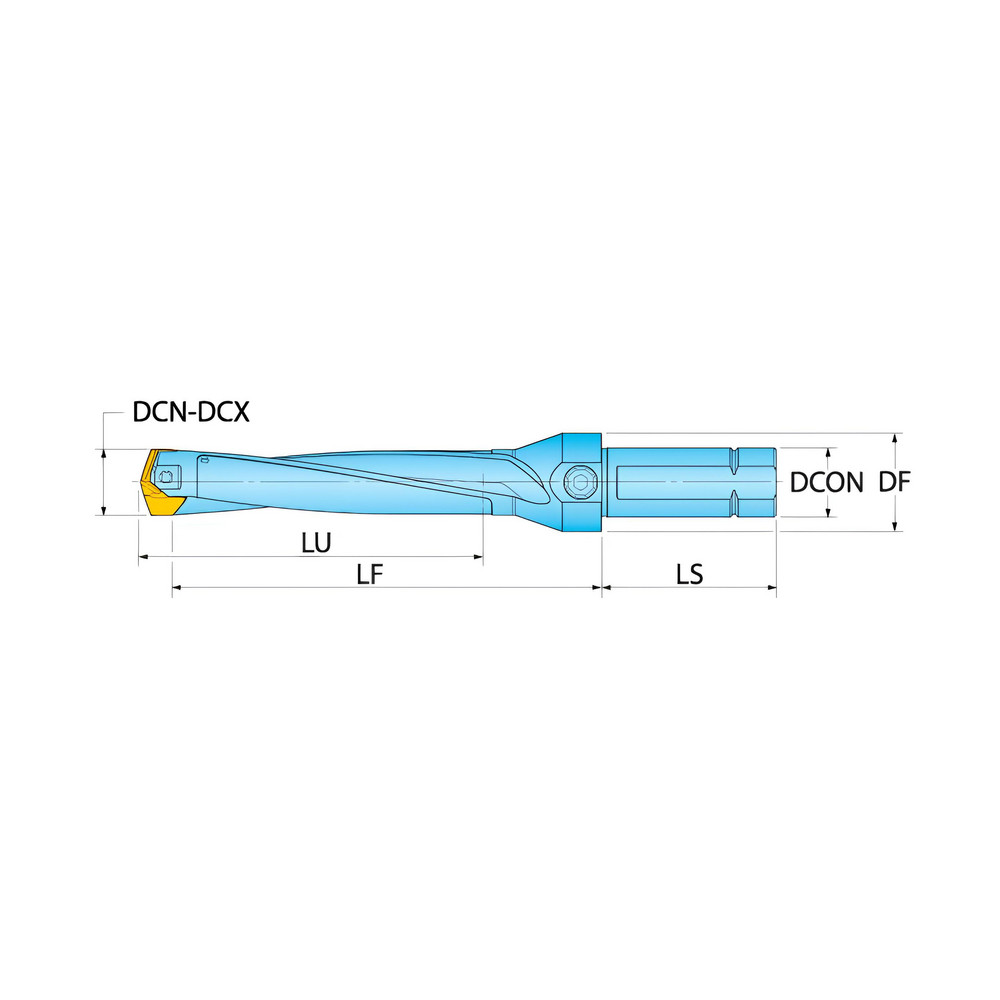

| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9016 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.4700 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | 22 |
| Tool Material | Steel |
| Compatible Insert Style | LPF; LPA |
| Overall Length (Decimal Inch) | 9.105 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 5.9450 |
| Body Length (Decimal Inch) | 5.945 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 98826464 |
