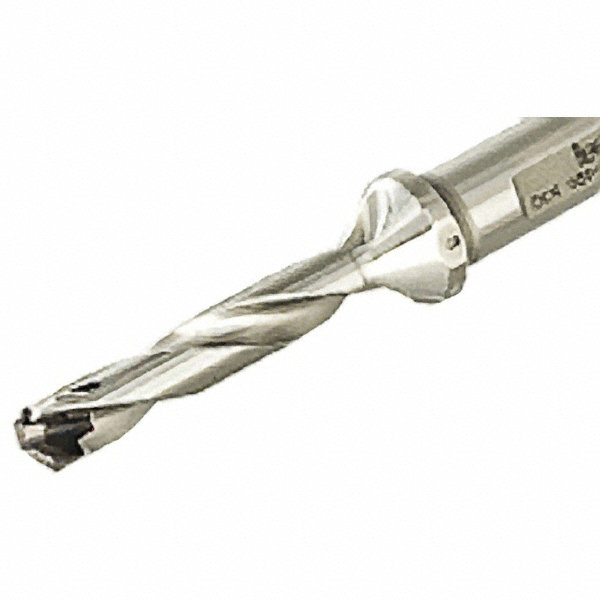

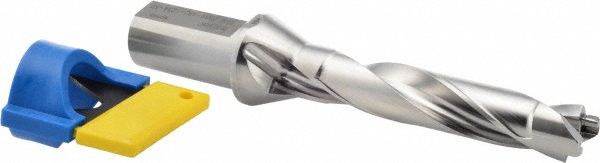

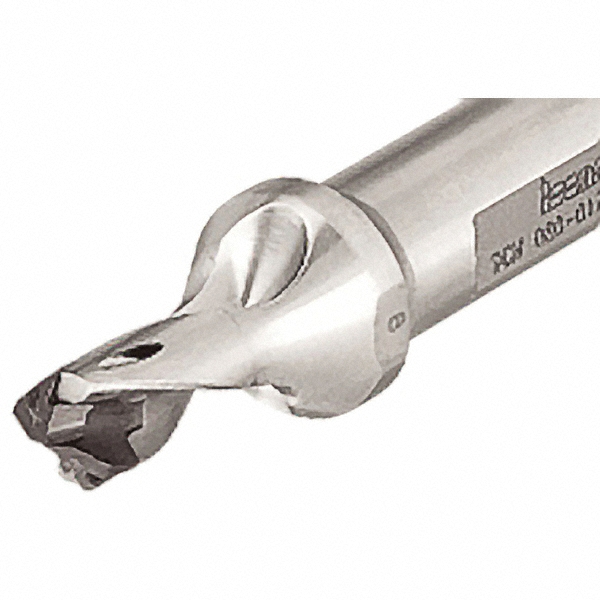

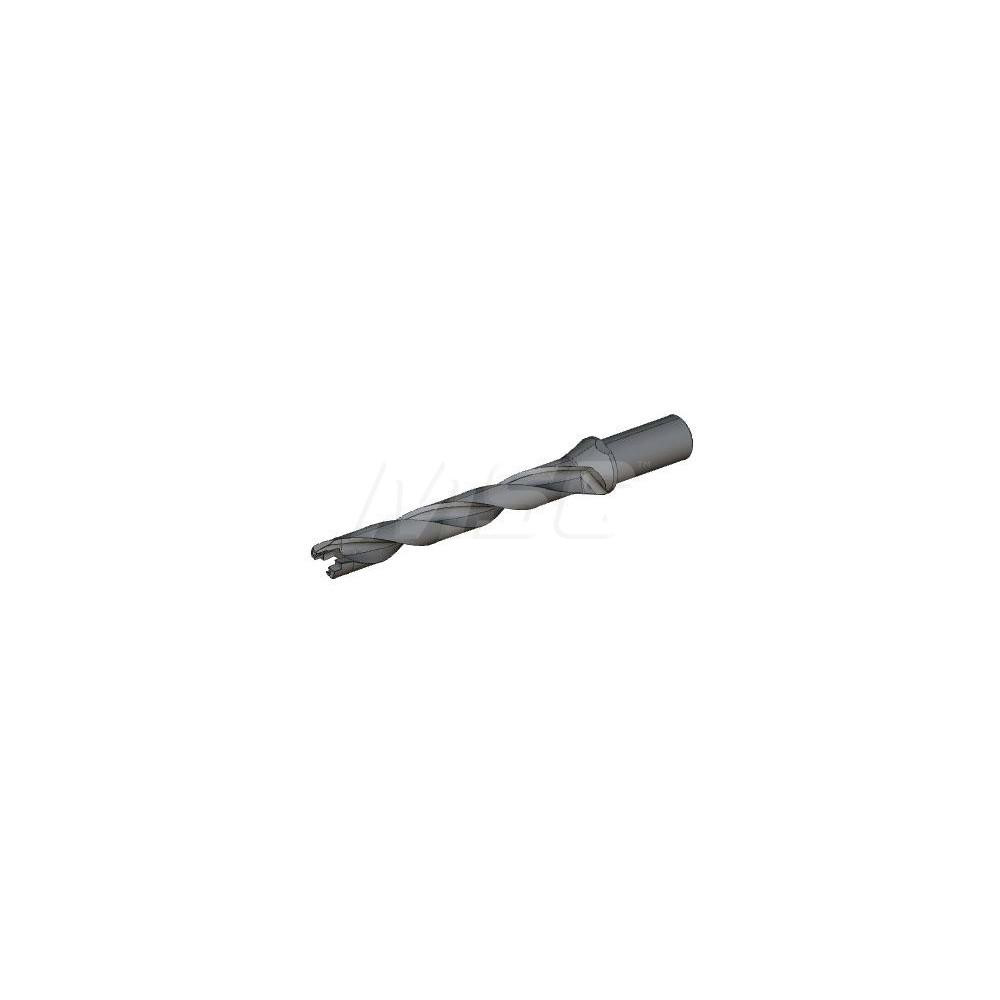

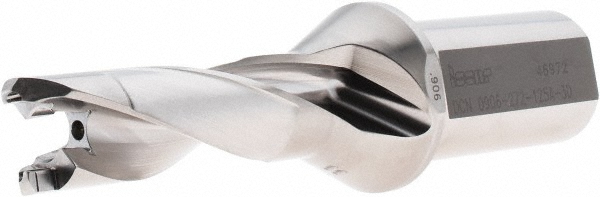

Uses TKA/TMA/TNA/TPA/TPC/TPF Inserts, Seat Size 23, 10.515" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.9055 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9409 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 7.2400 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 23 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Overall Length (Decimal Inch) | 10.515 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (Decimal Inch) | 8.1550 |
| Body Length (Decimal Inch) | 8.155 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
| UNSPSC Code | 23291502 |
| MSC Number | MSC# 73697989 |
