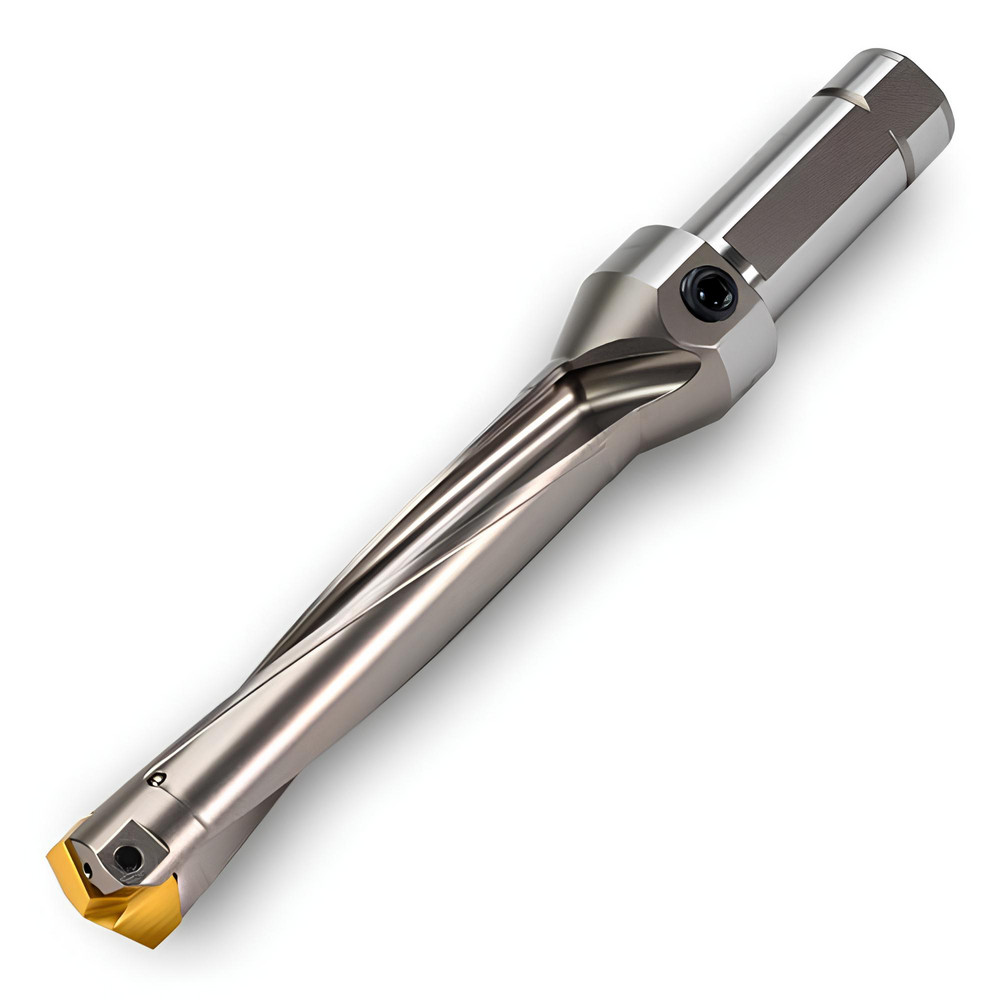

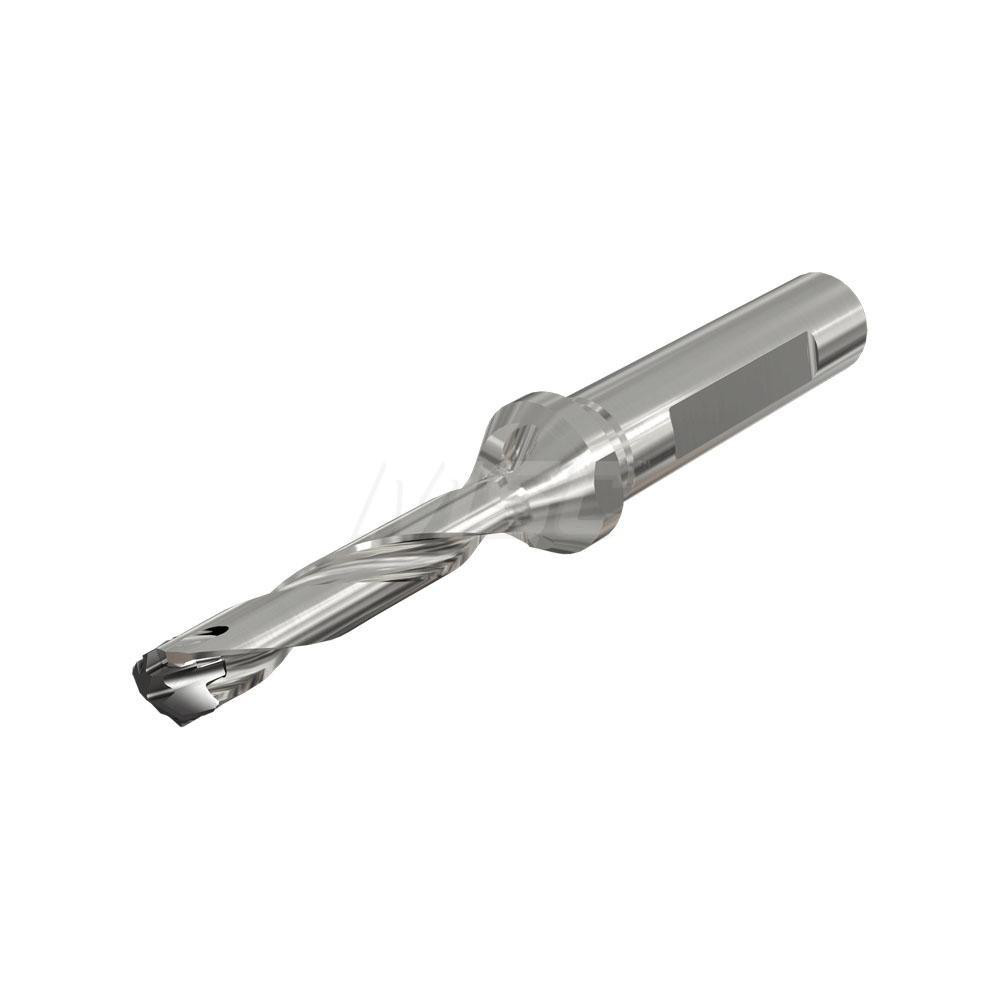

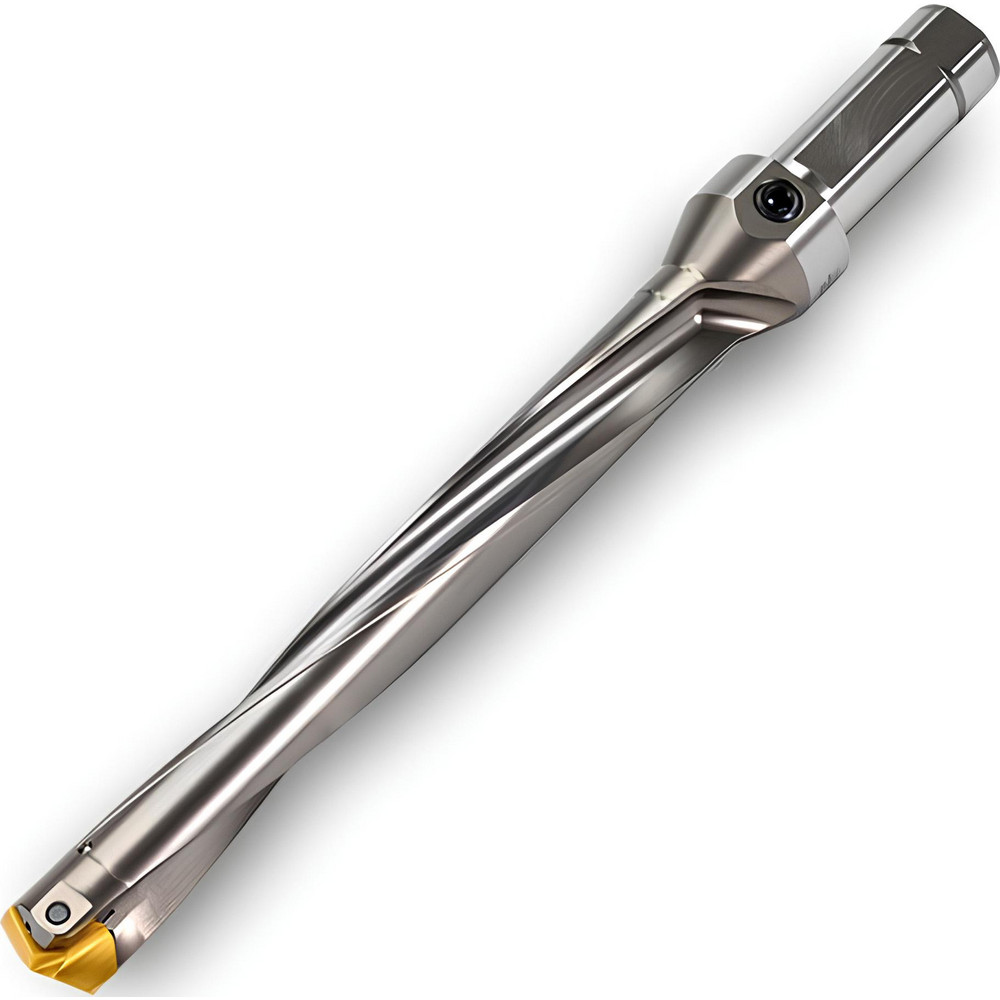

Uses LPA/LPF Inserts, Seat Size 28, 14.105" OAL, Through Coolant

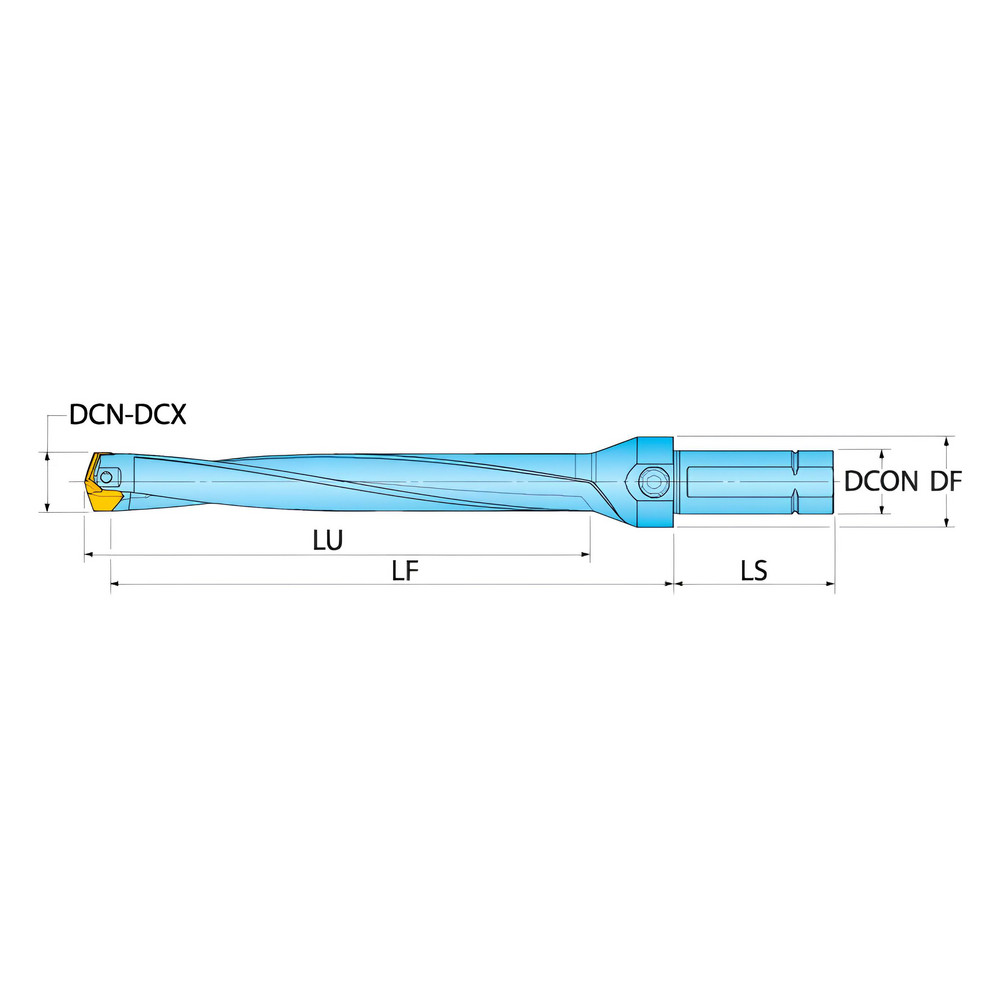

| Minimum Drill Diameter (Decimal Inch) | 1.1024 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.1378 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 8.9900 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 28 |
| Tool Material | Steel |
| Compatible Insert Style | LPF; LPA |
| Overall Length (Decimal Inch) | 14.105 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 10.9450 |
| Body Length (Decimal Inch) | 10.945 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 16791097 |
