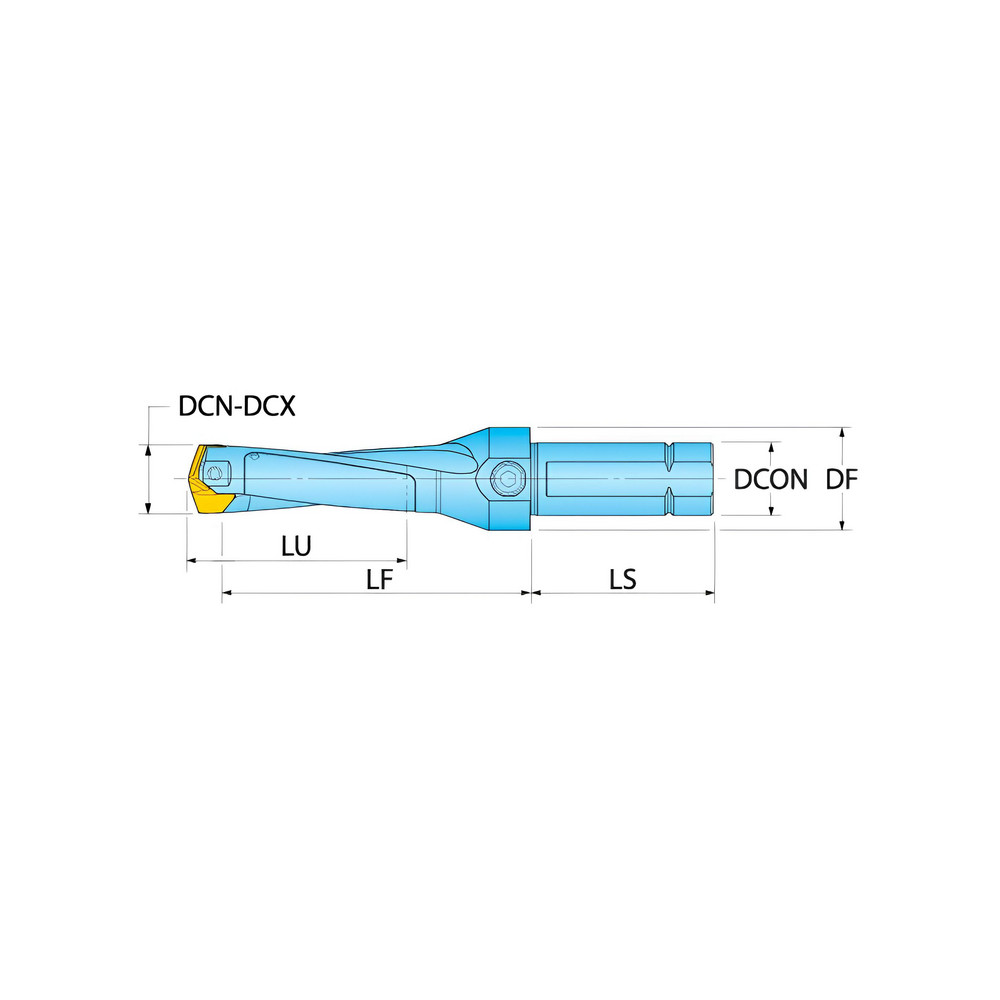

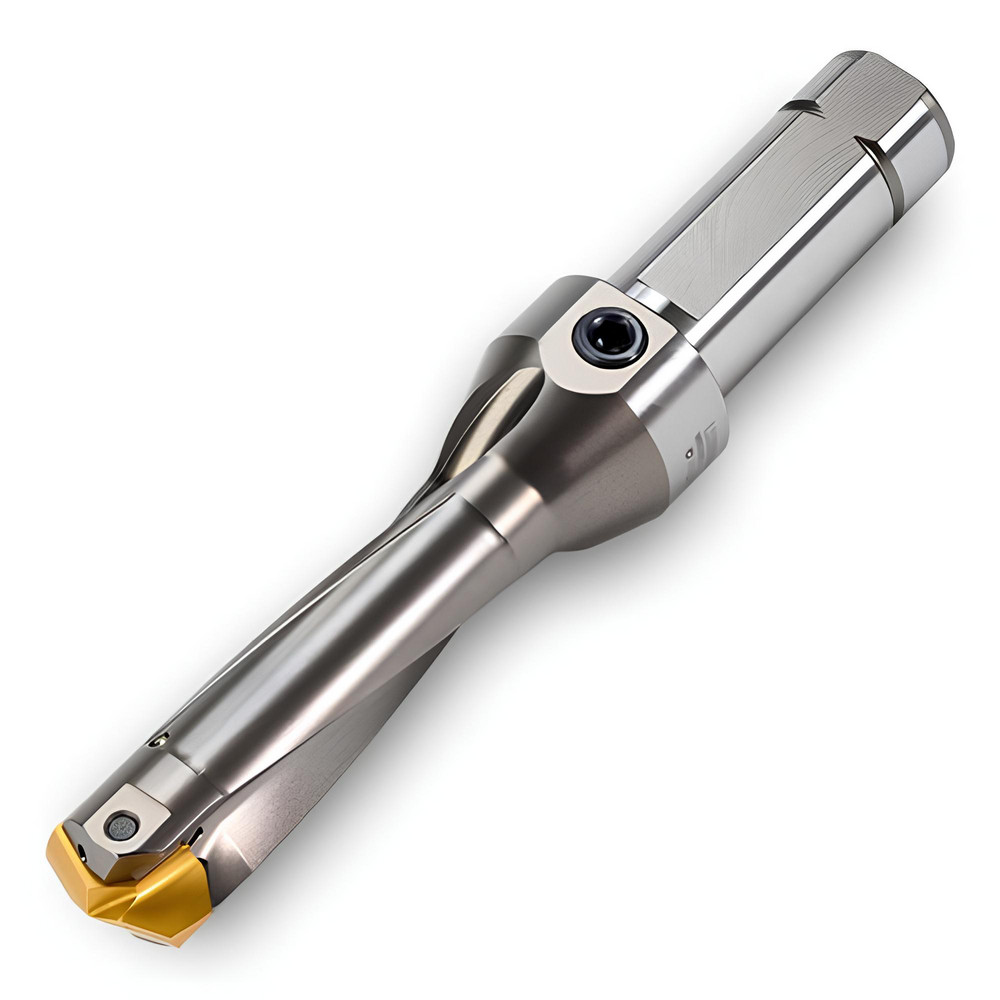

Uses LPA/LPF Inserts, Seat Size 30, 8.864" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.1811 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.2165 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.7300 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 30 |
| Tool Material | Steel |
| Compatible Insert Style | LPF; LPA |
| Overall Length (Decimal Inch) | 8.864 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 5.7040 |
| Body Length (Decimal Inch) | 5.704 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 98798895 |
