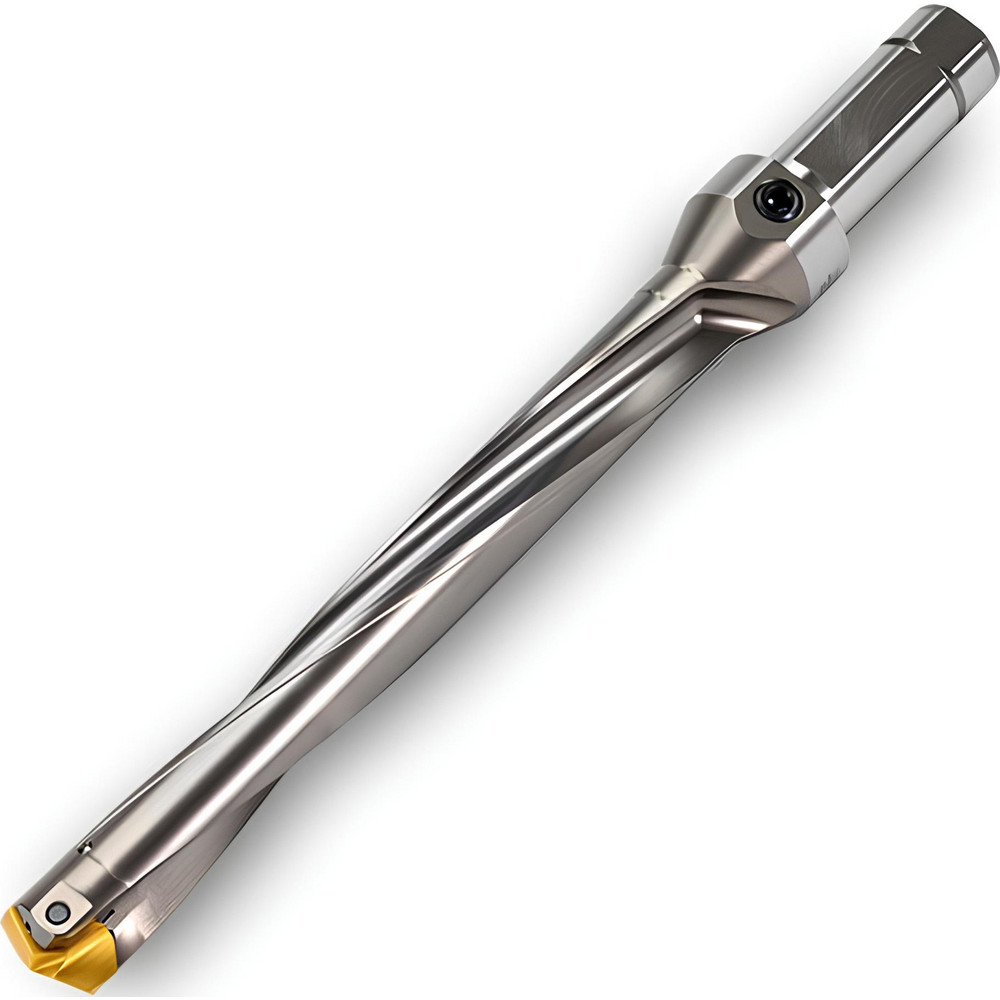

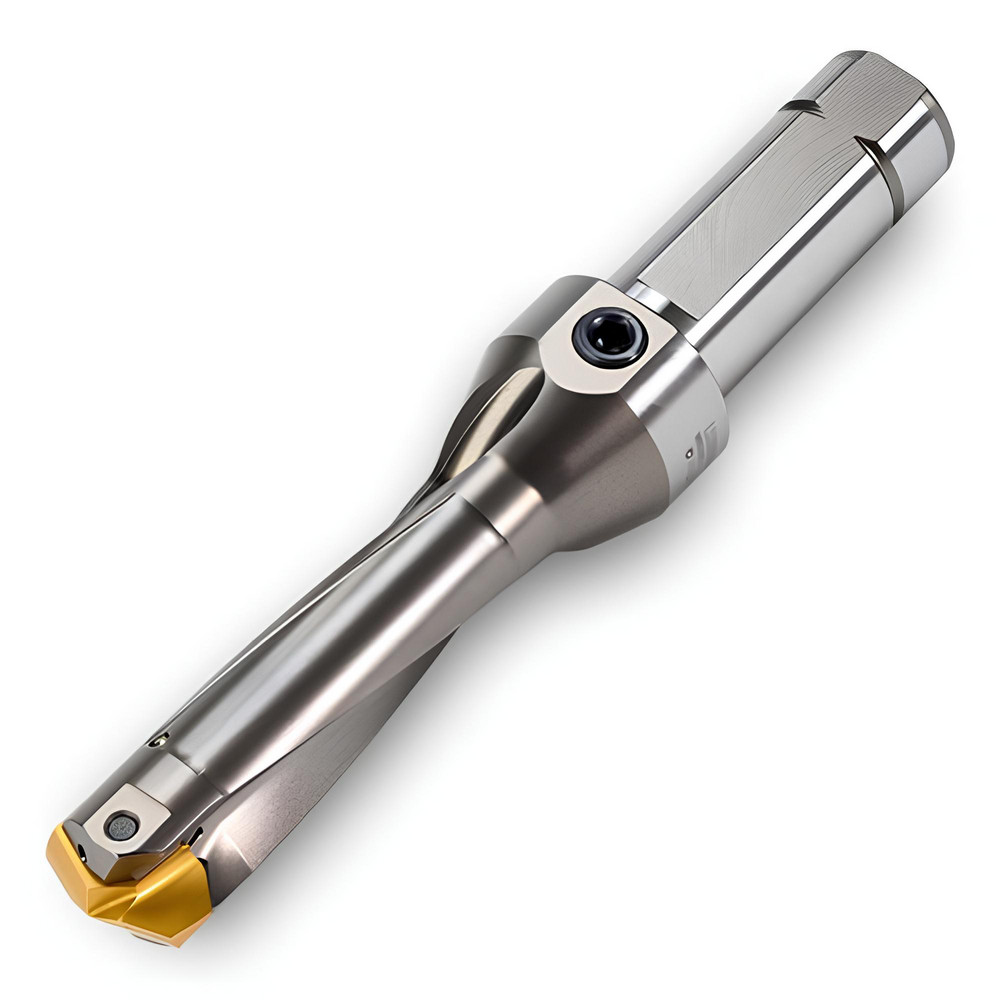

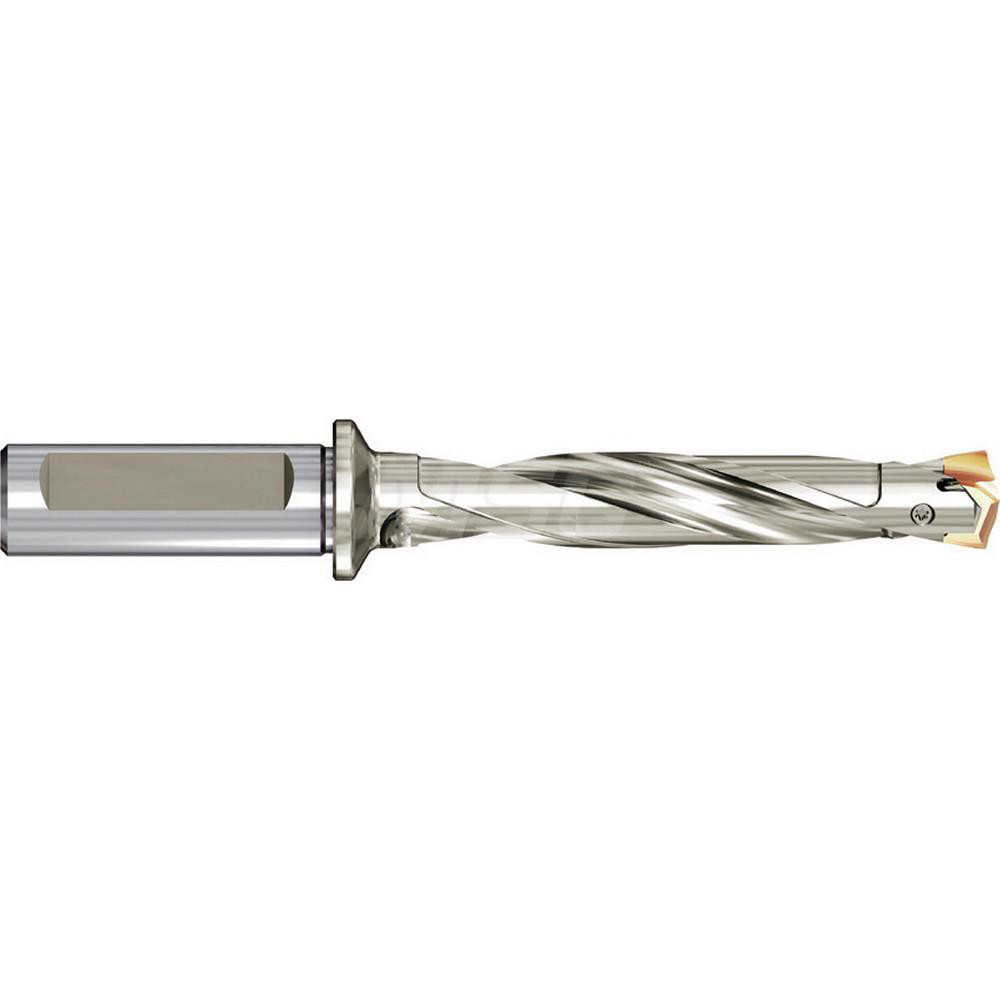

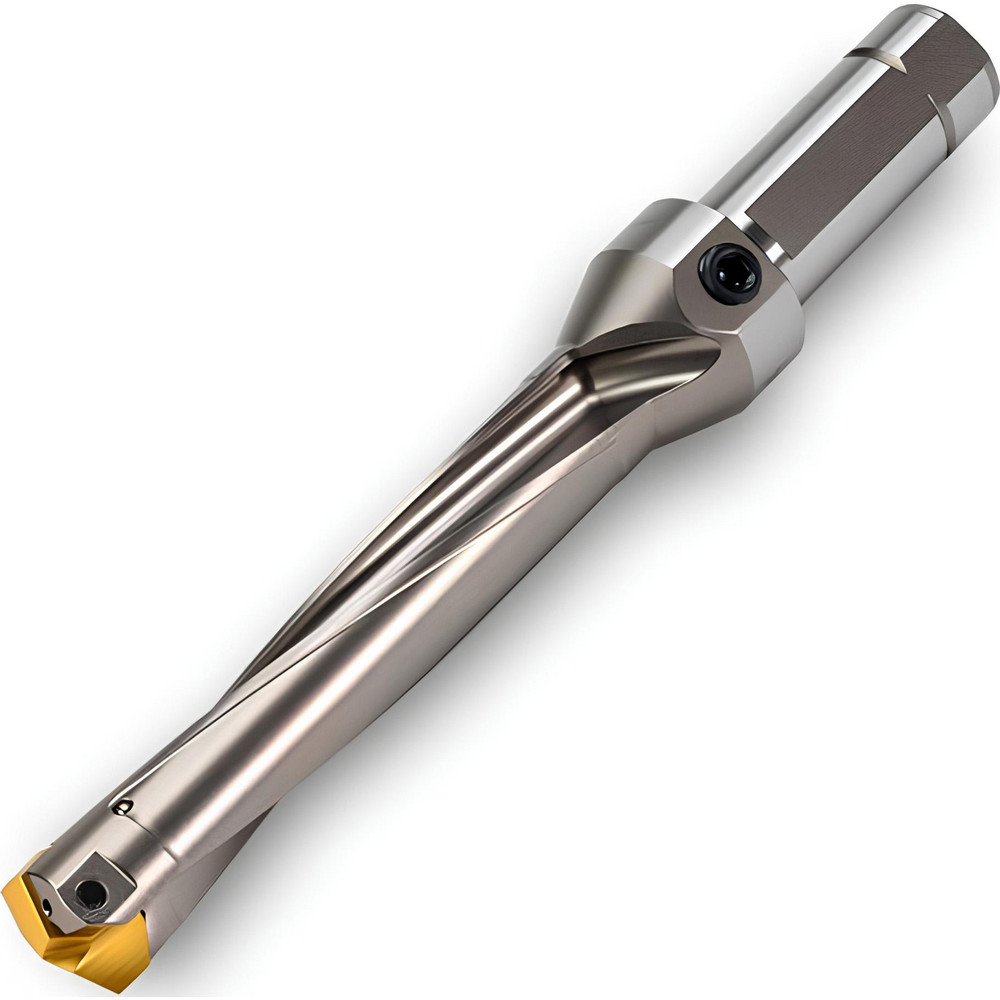

Uses LPA Inserts, Seat Size 31, 8.994" OAL, Through Coolant

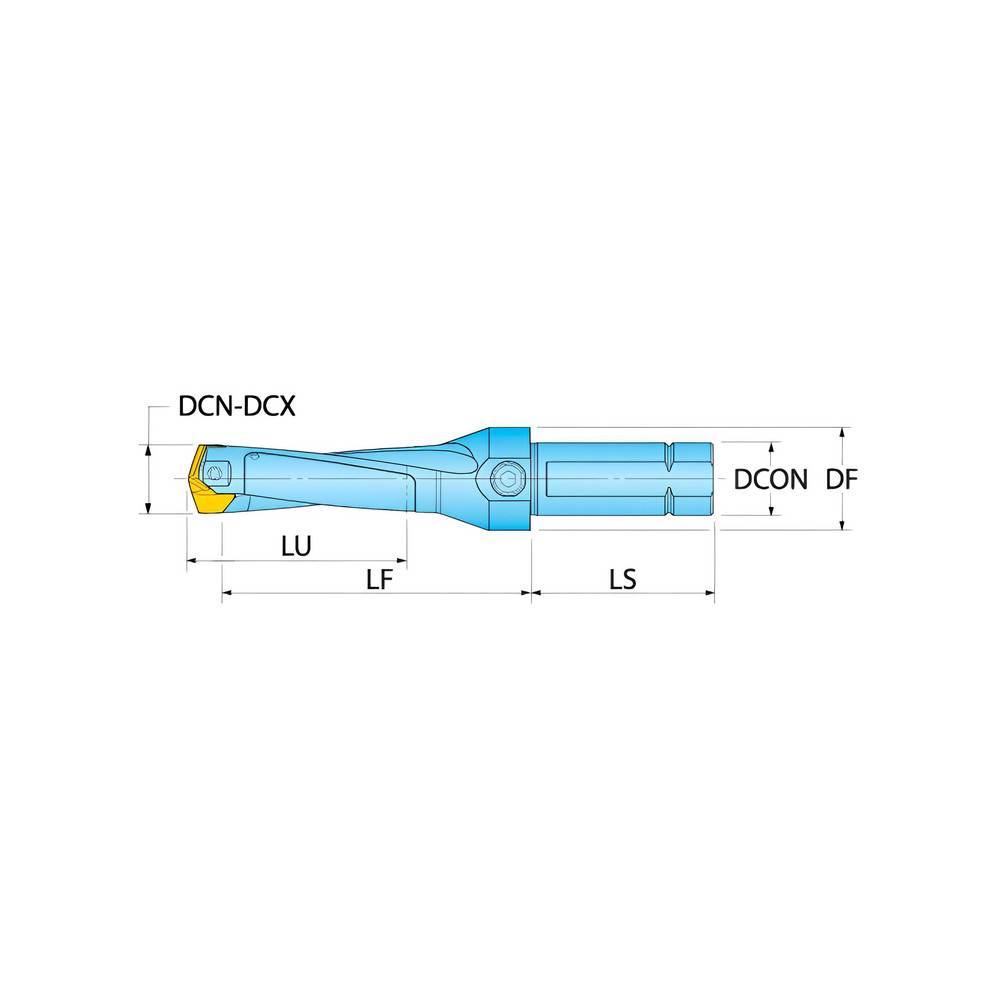

| Minimum Drill Diameter (Decimal Inch) | 1.2205 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.2559 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.8600 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 31 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Overall Length (Decimal Inch) | 8.994 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 5.8340 |
| Body Length (Decimal Inch) | 5.834 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 48939474 |
