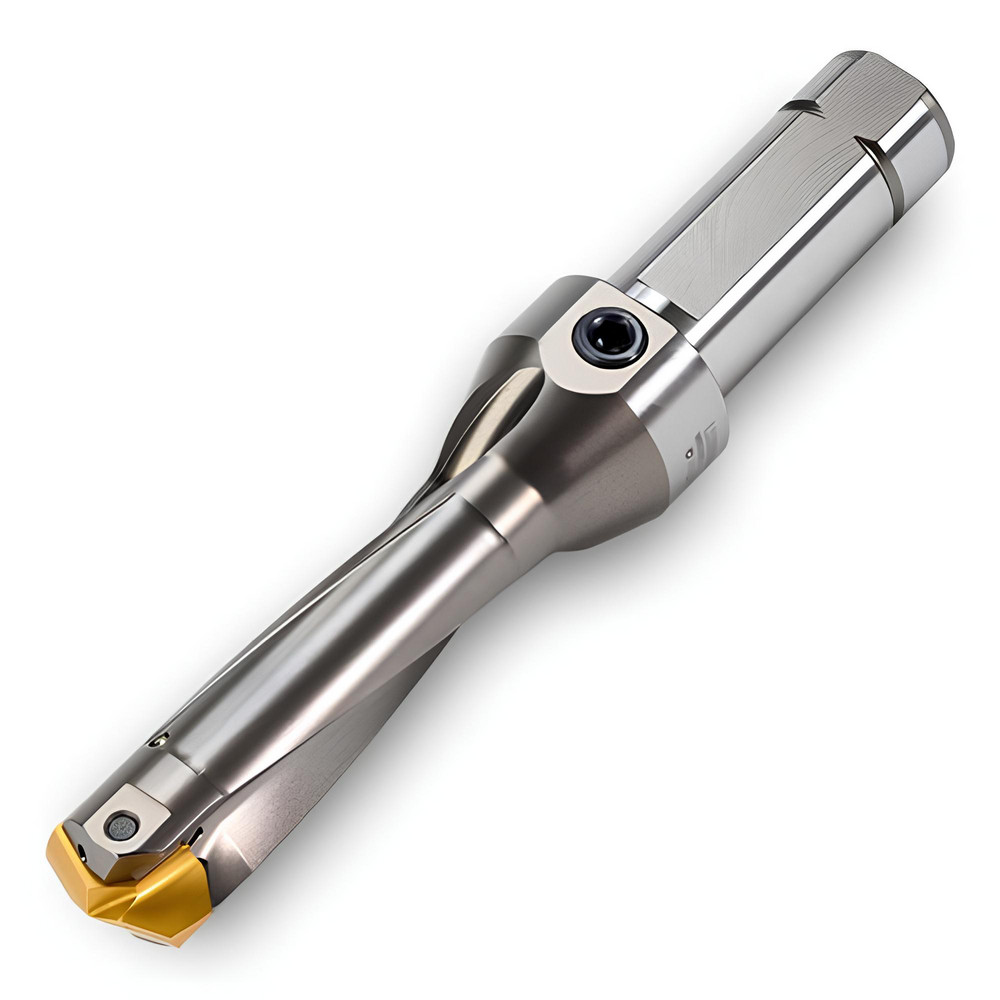

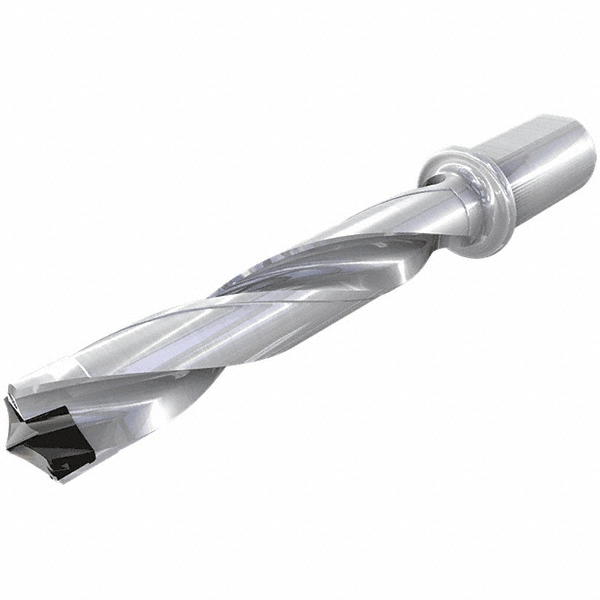

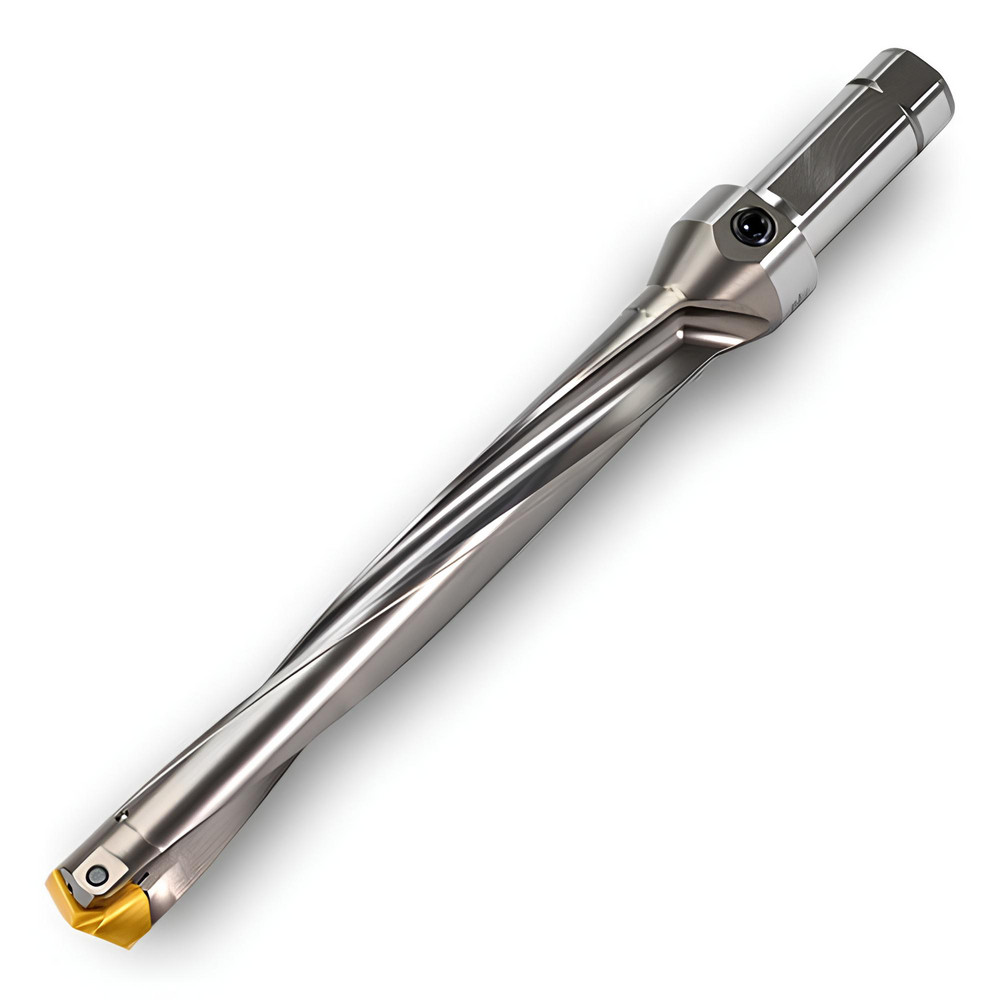

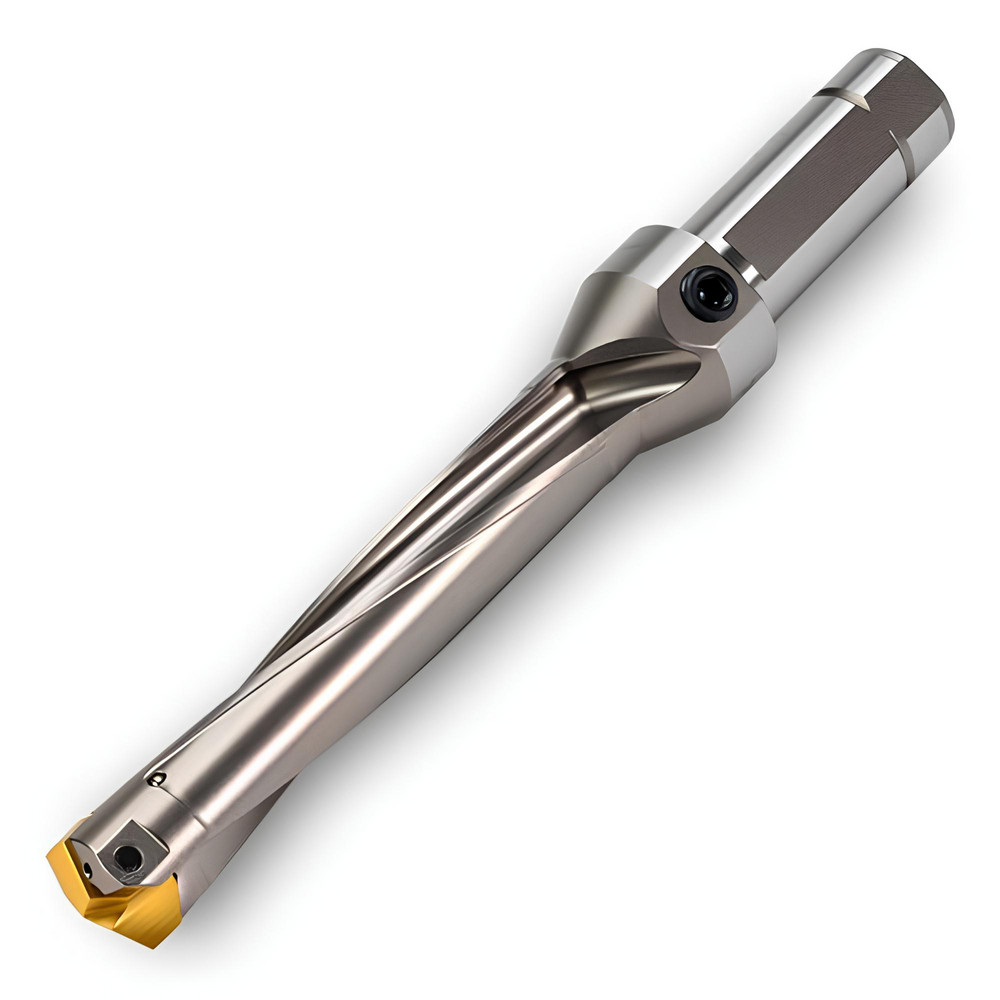

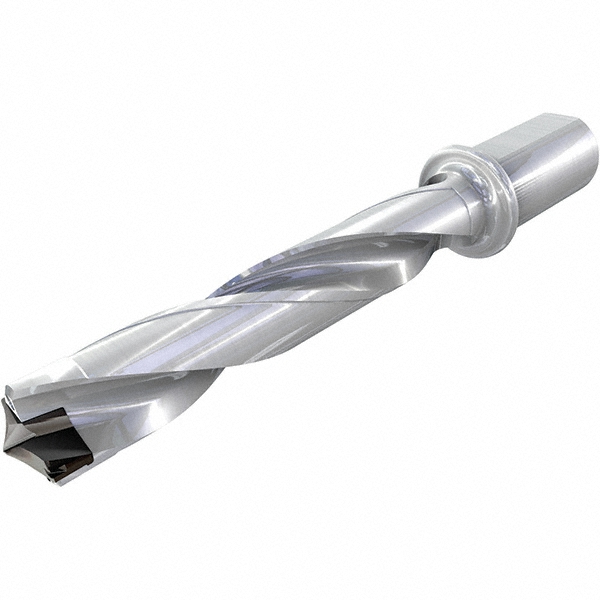

Uses LPA Inserts, Seat Size 33, 9.469" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.2992 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.3346 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 4.1100 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 33 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Overall Length (Decimal Inch) | 9.469 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 6.3090 |
| Body Length (Decimal Inch) | 6.309 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 95683843 |
