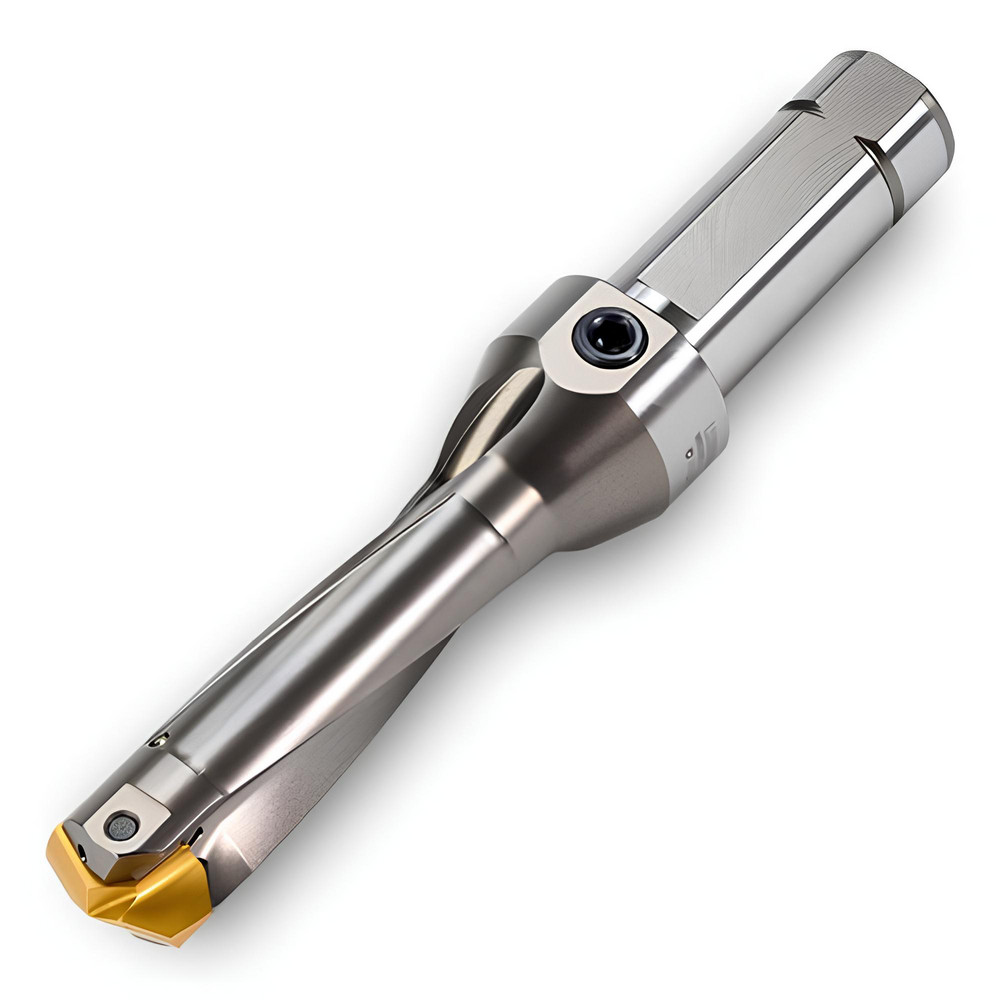

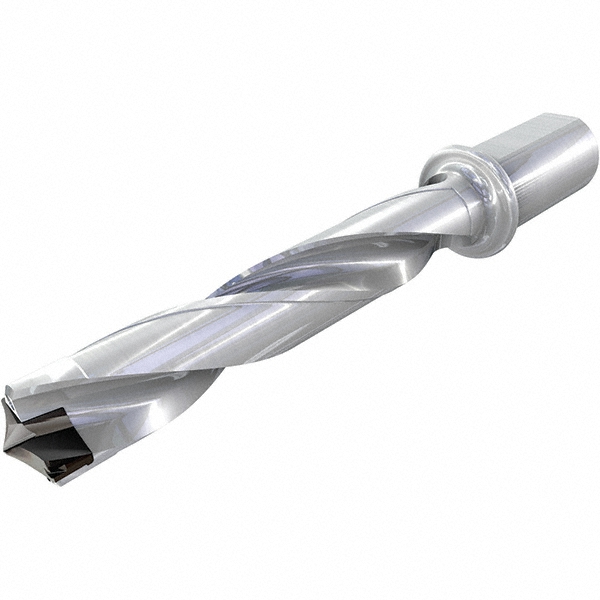

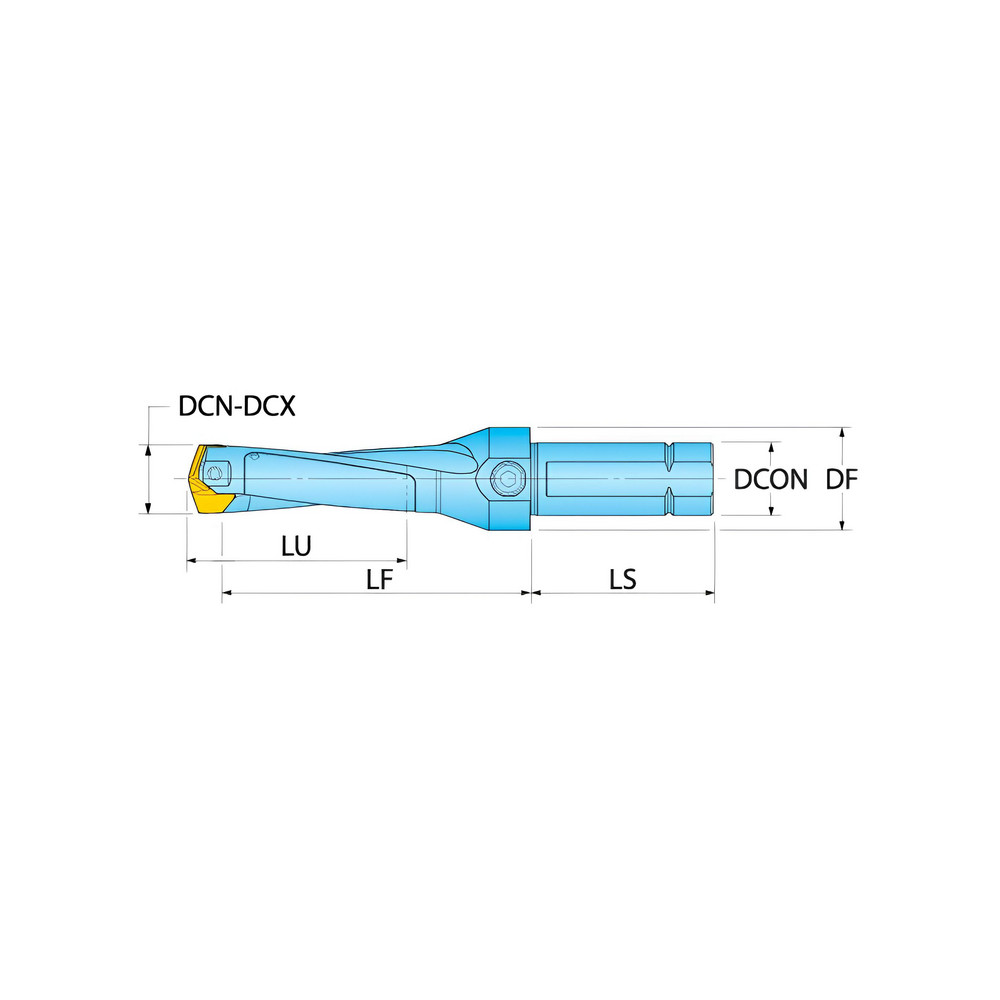

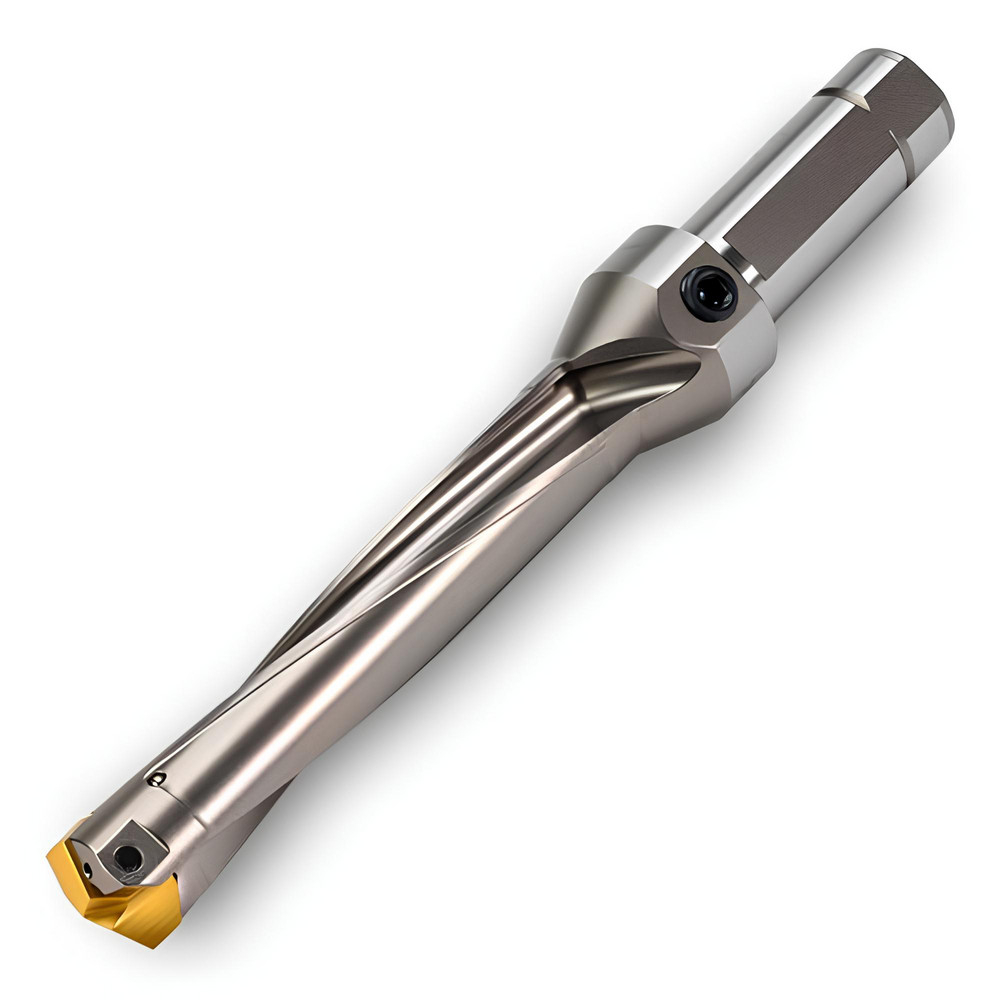

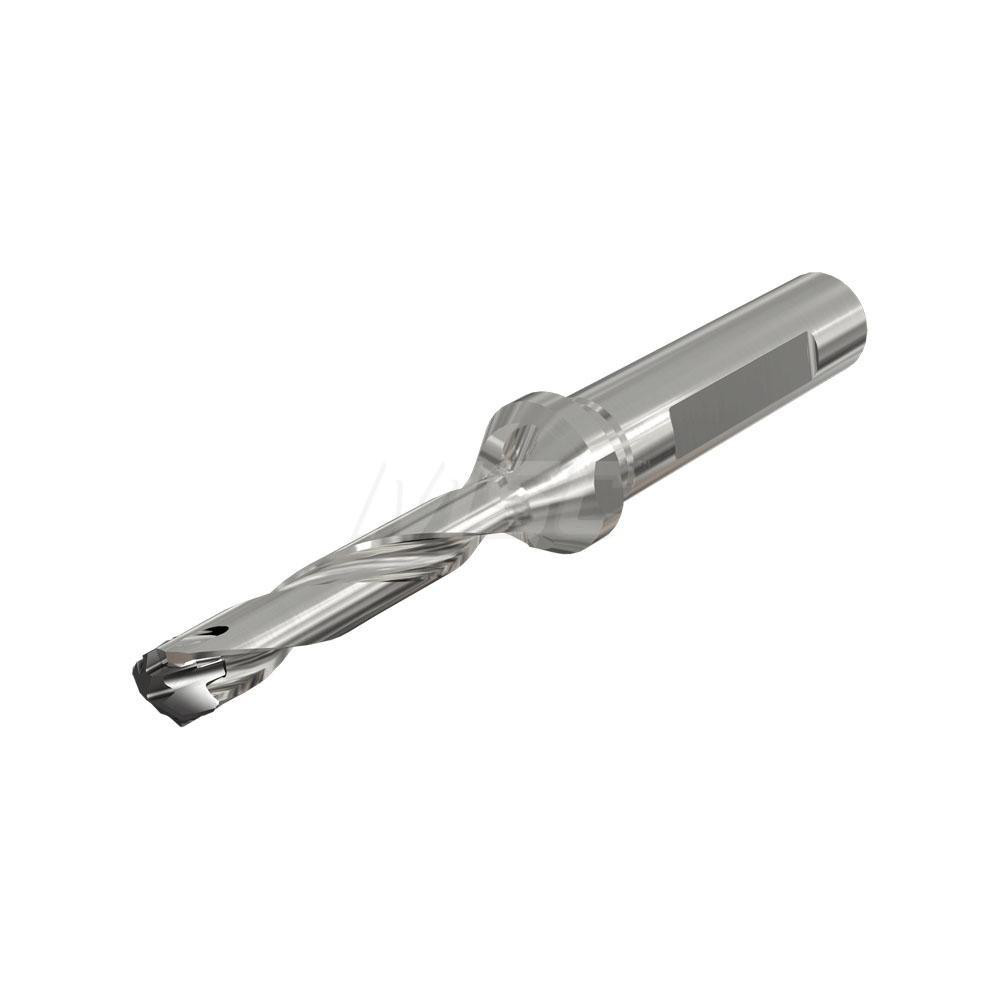

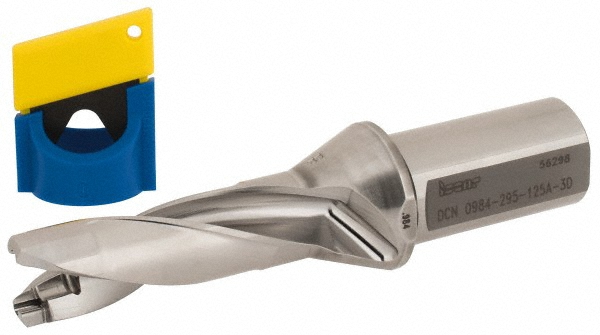

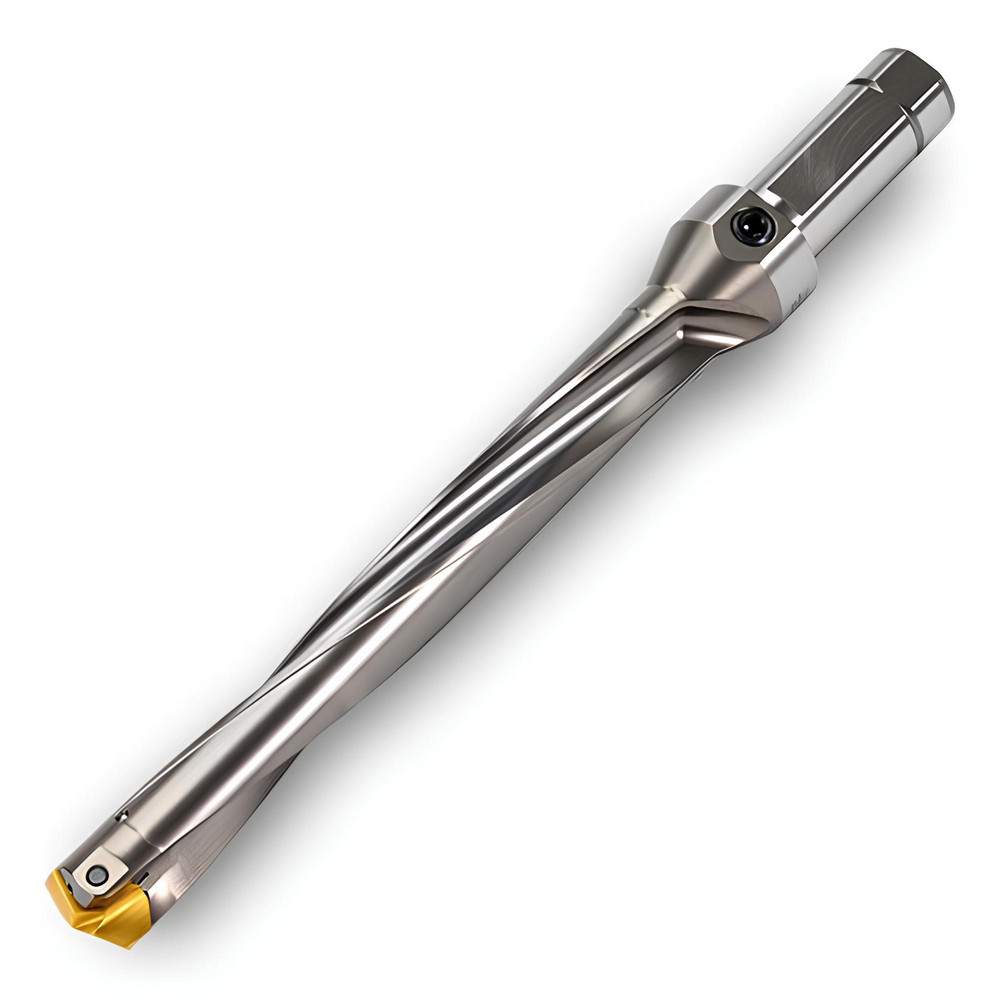

Uses LPA Inserts, Seat Size 36, 9.884" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.4173 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.4528 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 4.4800 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 36 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Overall Length (Decimal Inch) | 9.884 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 6.7240 |
| Body Length (Decimal Inch) | 6.724 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 98798903 |
