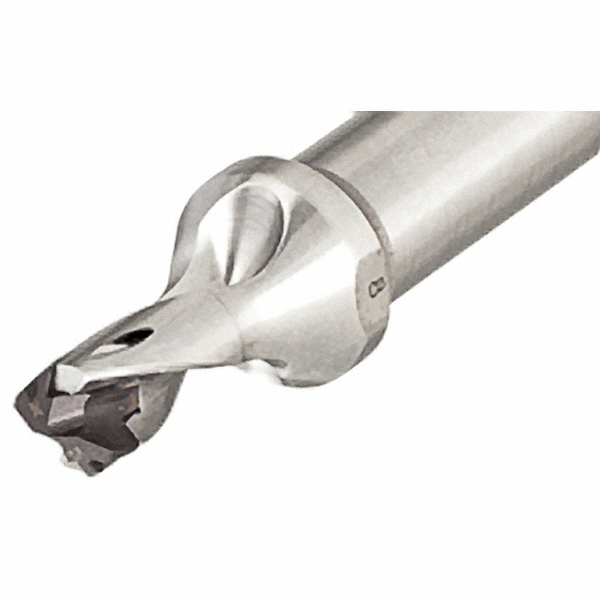

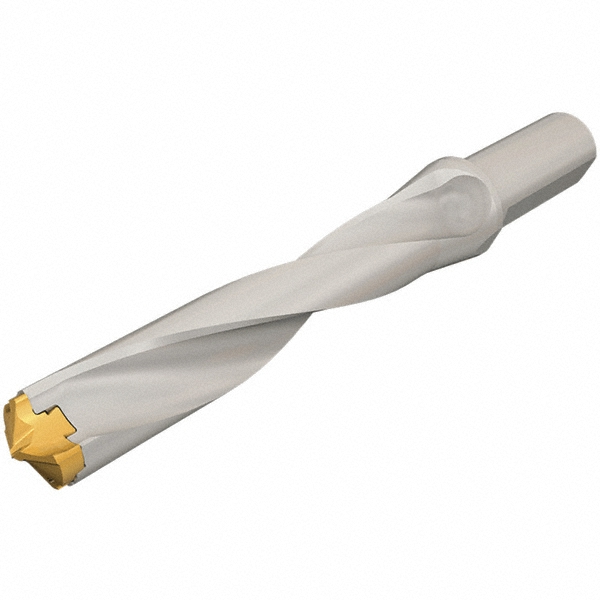

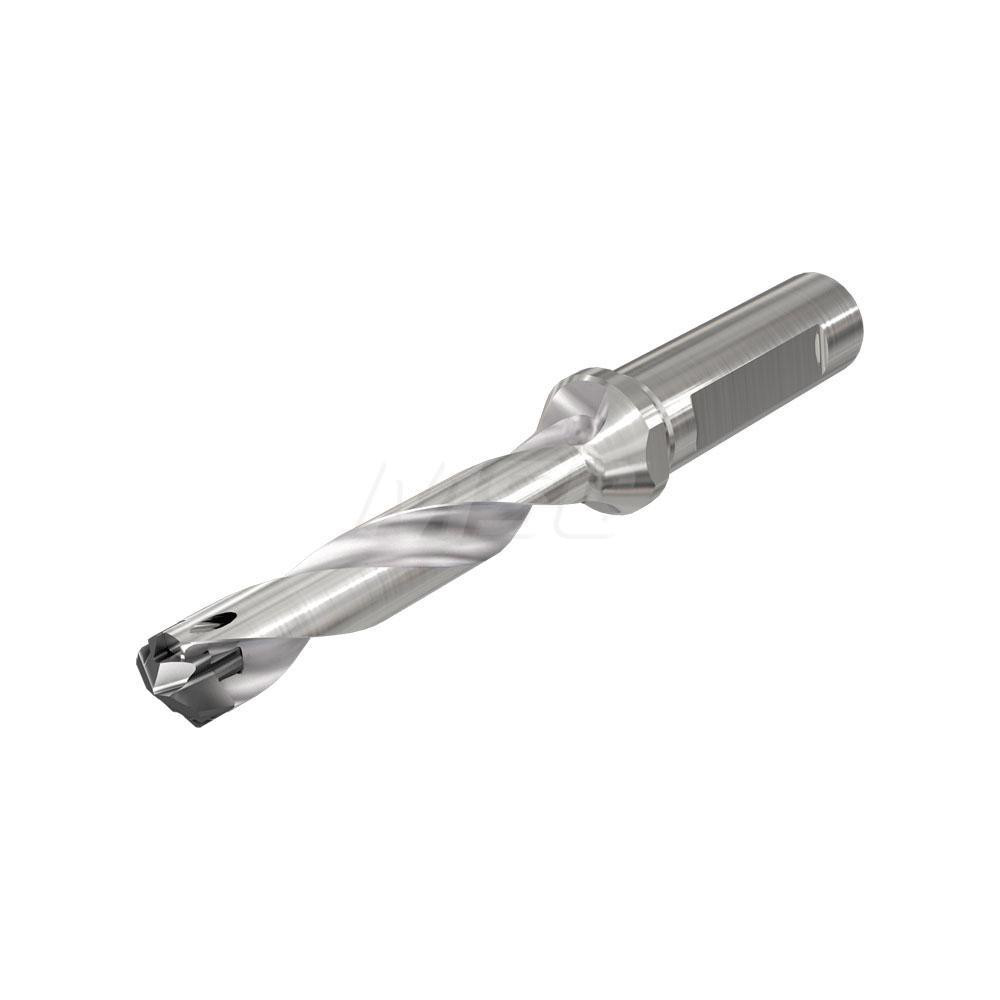

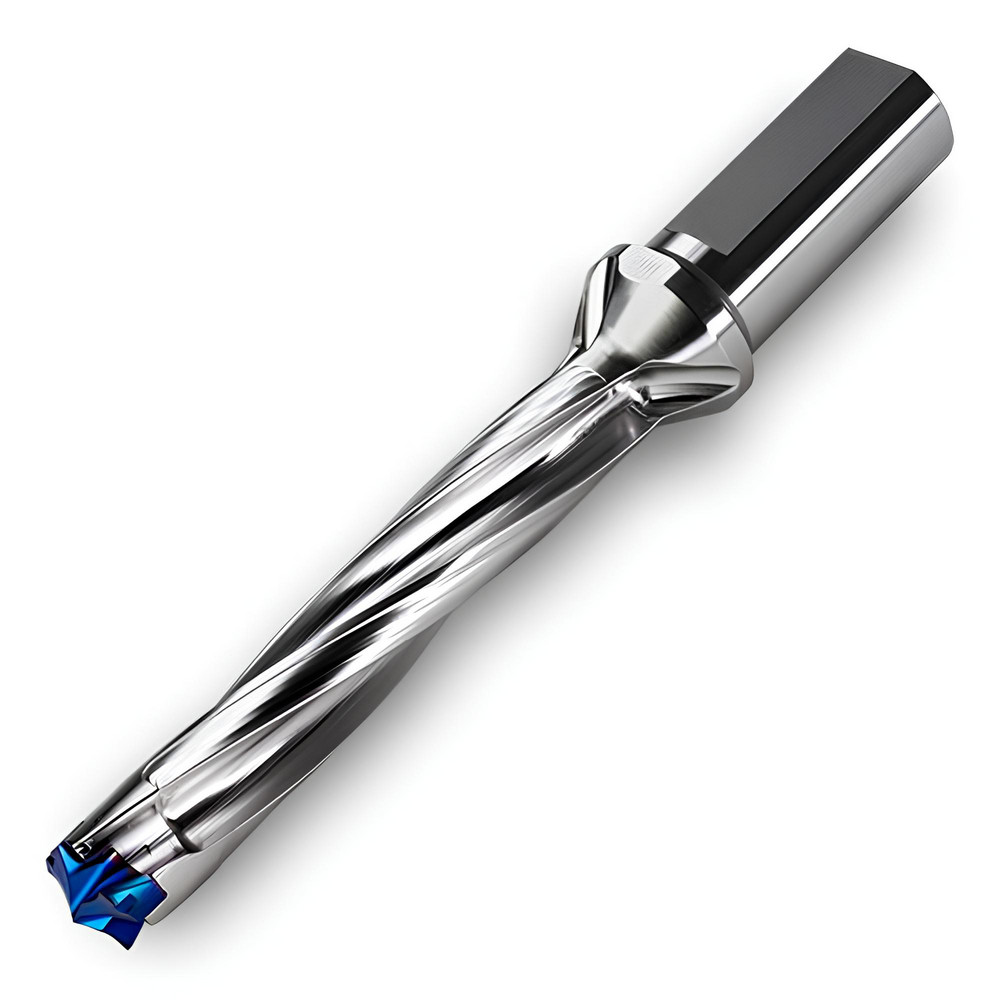

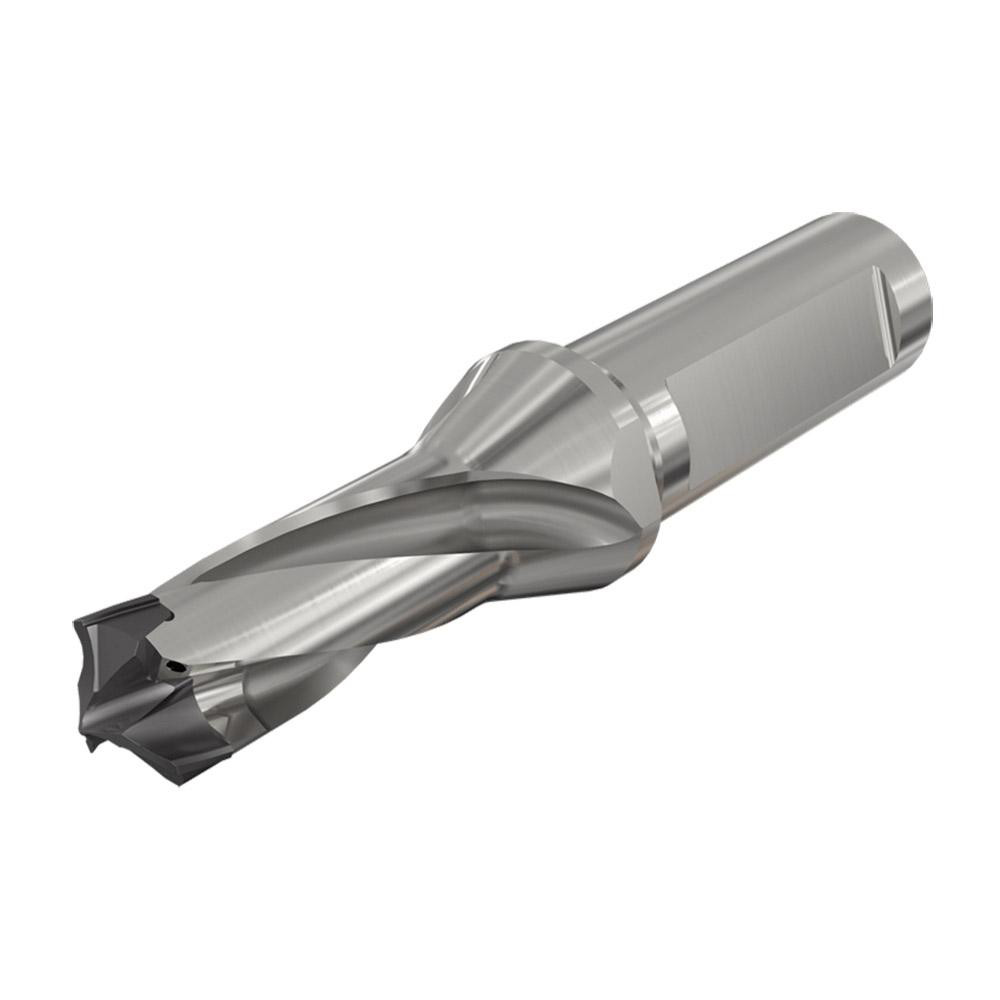

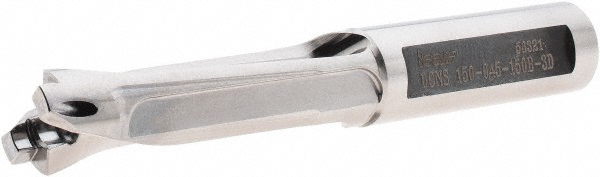

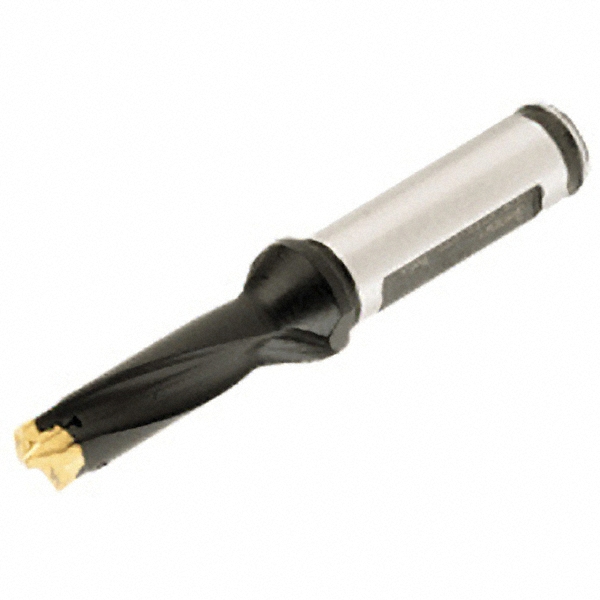

Uses FPC Inserts, Seat Size 15, 145.5 mm OAL, Through Coolant

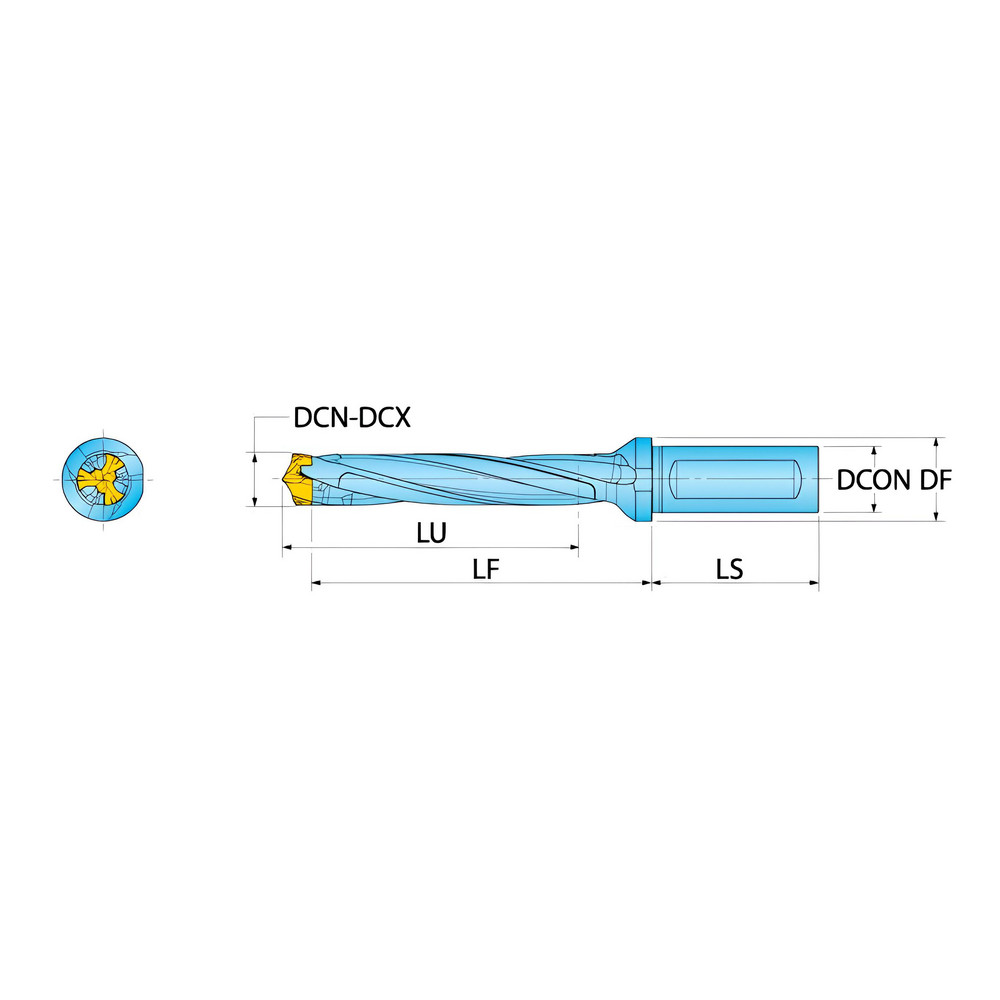

| Minimum Drill Diameter (mm) | 15.00 |
|---|---|
| Maximum Drill Diameter (mm) | 15.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 79.00 |
| Shank Type | Flatted |
| Insert Seat Size | 15 |
| Shank Diameter (mm) | 20.00 |
| Tool Material | Steel |
| Compatible Insert Style | FPC |
| Overall Length (mm) | 145.5 |
| Series | FD |
| Toolholder Style | FD |
| Flute Length (mm) | 95.50 |
| Body Length (mm) | 95.50 |
| Shank Length (mm) | 50.00 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 98764673 |
