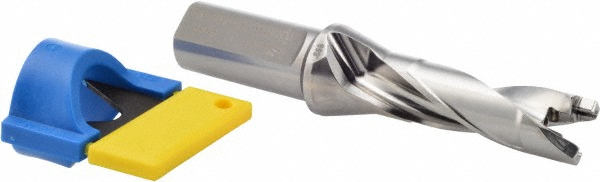

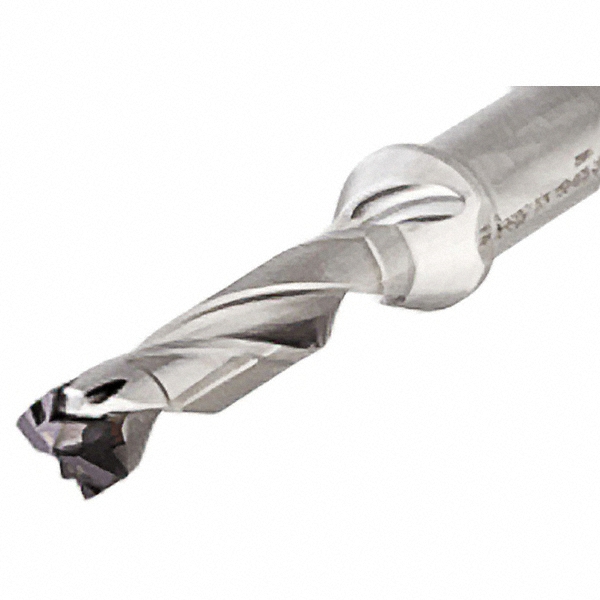

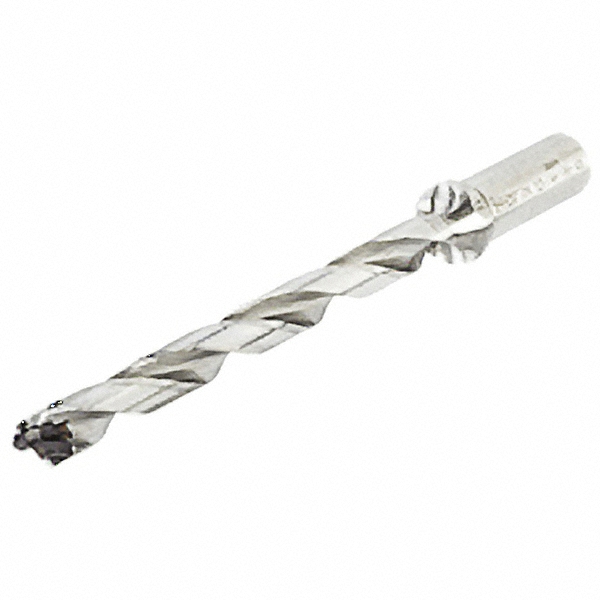

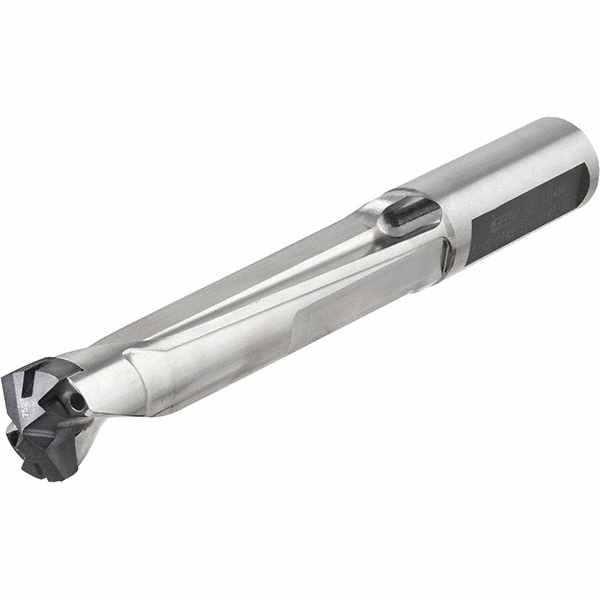

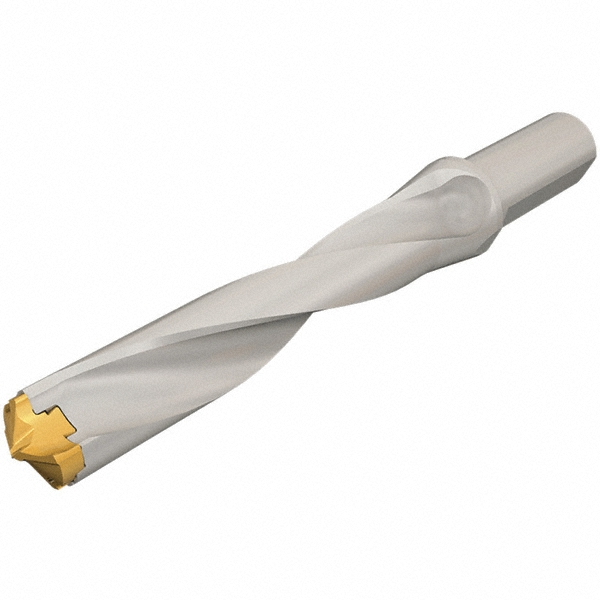

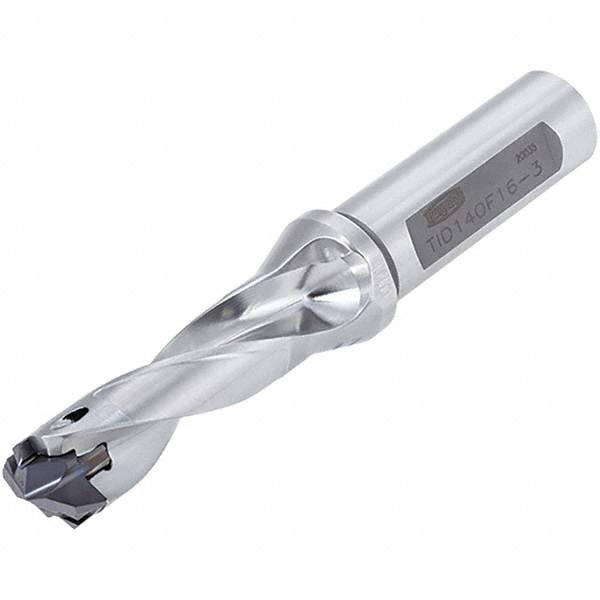

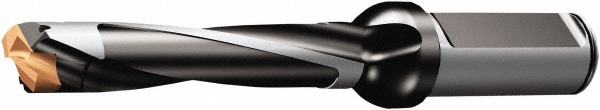

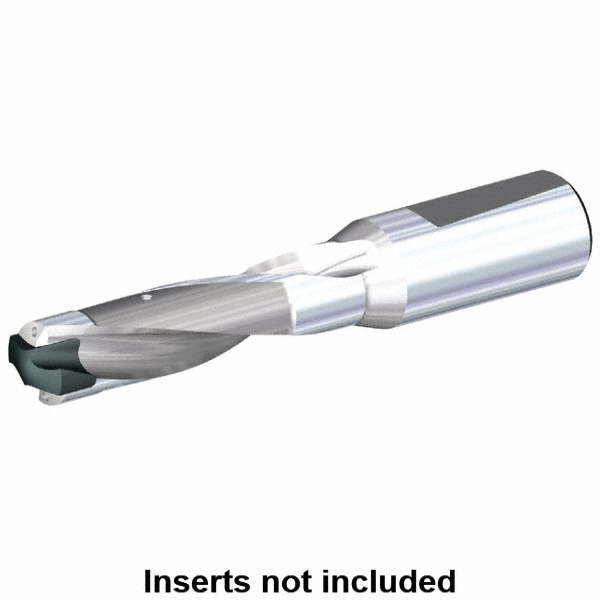

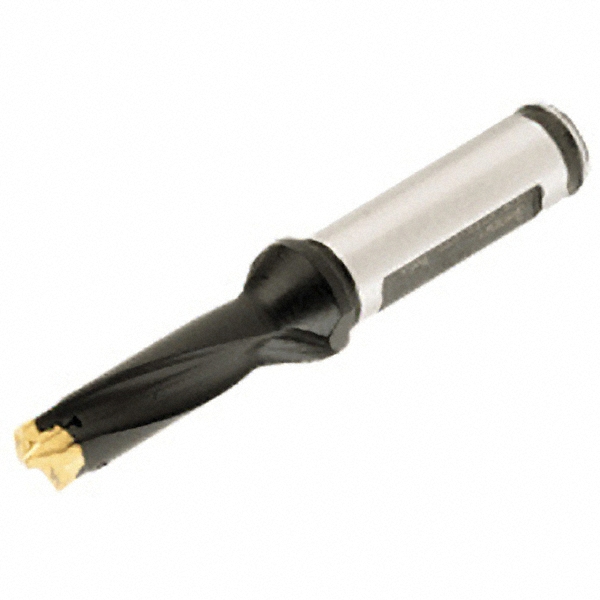

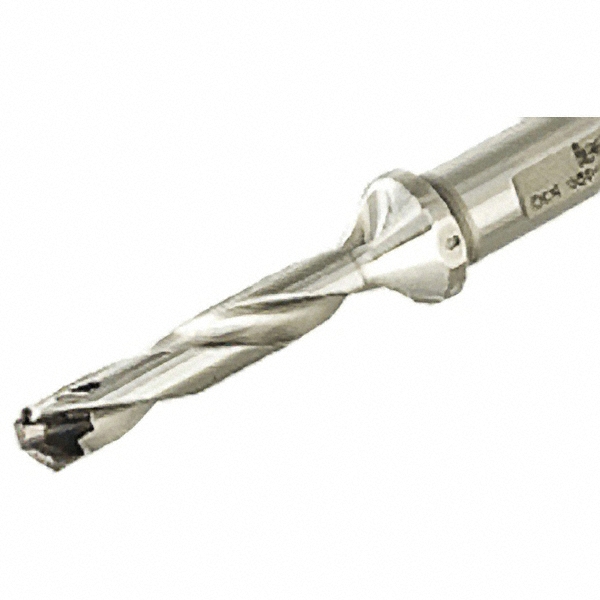

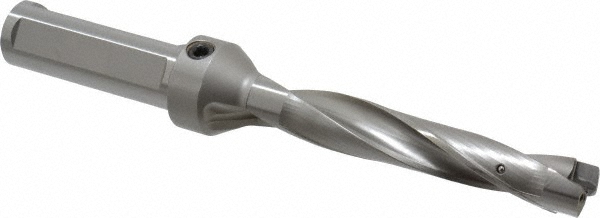

Uses TKA/TMA/TNA/TPA/TPC/TPF Inserts, Seat Size 22, 188.04 mm OAL, Through Coolant
| Minimum Drill Diameter (mm) | 22.00 |
|---|---|
| Maximum Drill Diameter (mm) | 22.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 110.00 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 22 |
| Shank Diameter (mm) | 25.00 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Overall Length (mm) | 188.04 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (mm) | 132.04 |
| Body Length (mm) | 132.04 |
| Shank Length (mm) | 56.00 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
| UNSPSC Code | 23291502 |
| MSC Number | MSC# 98819436 |
