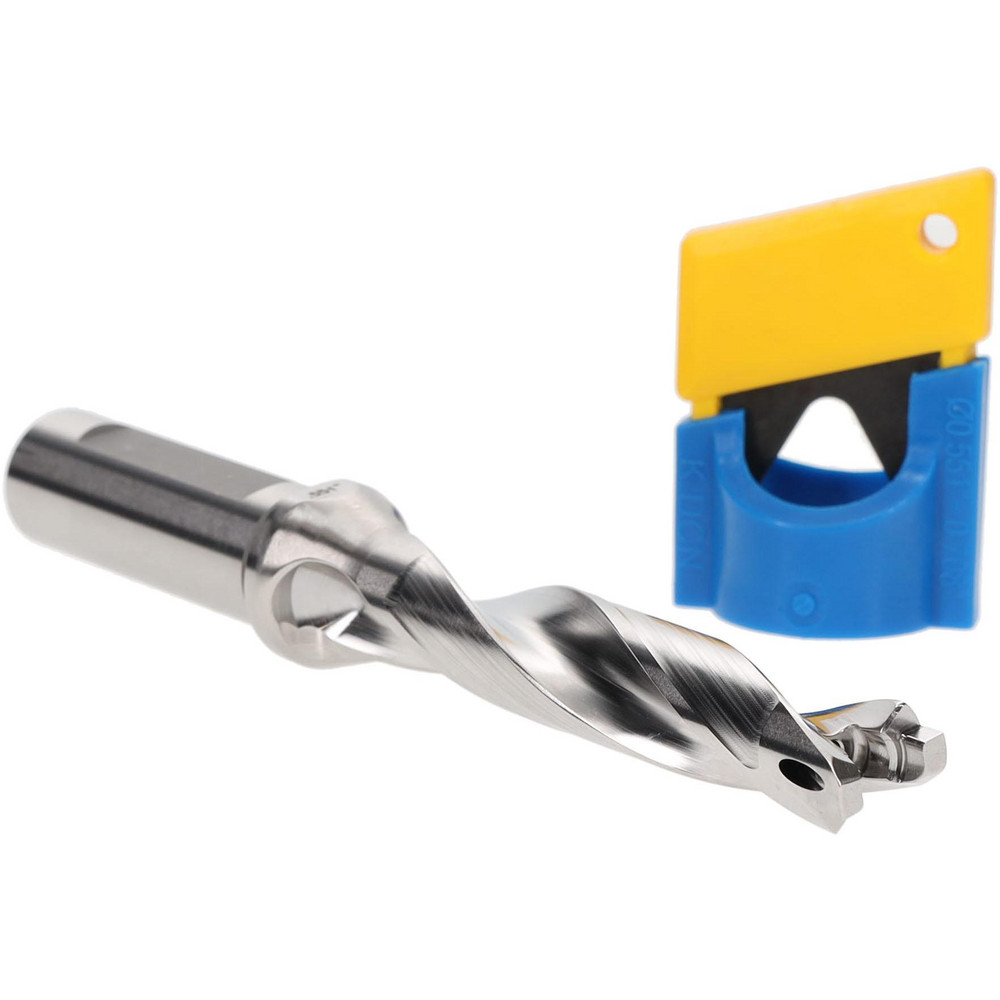

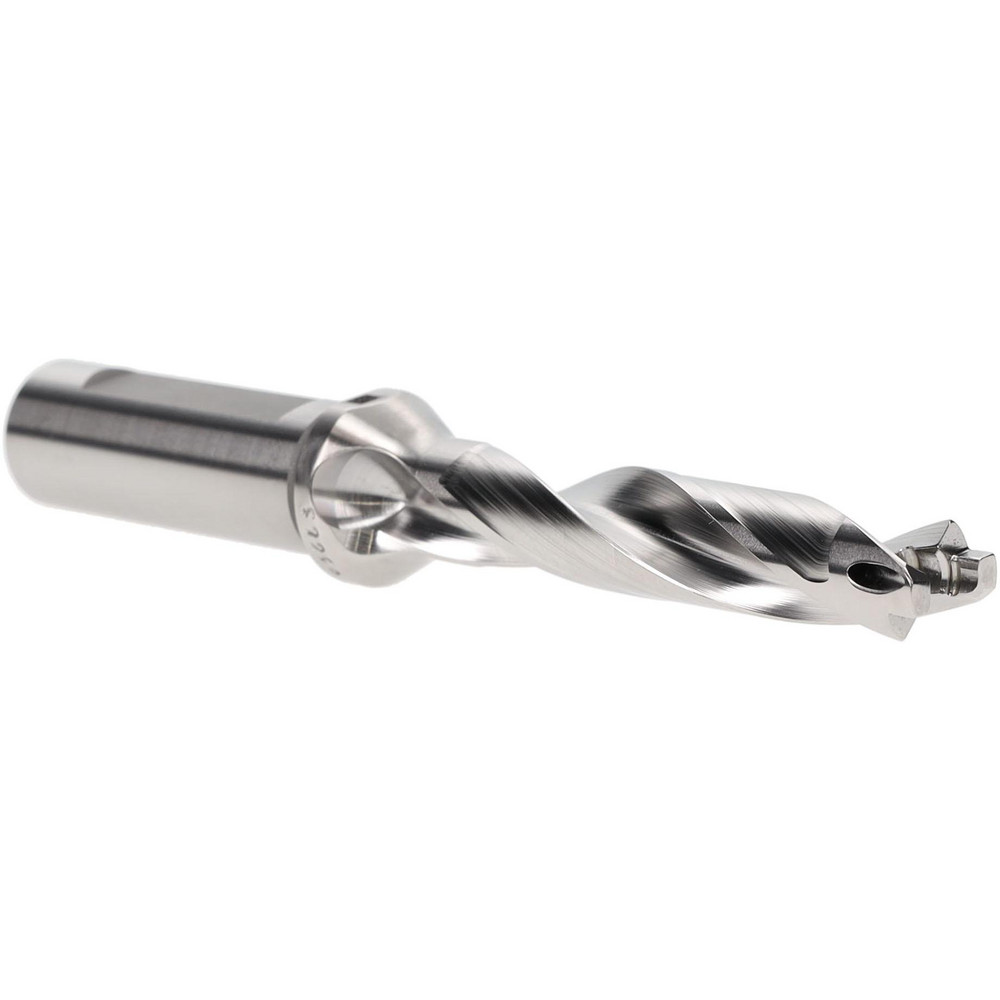

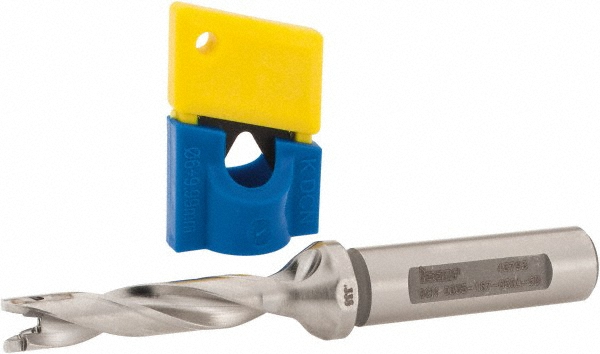

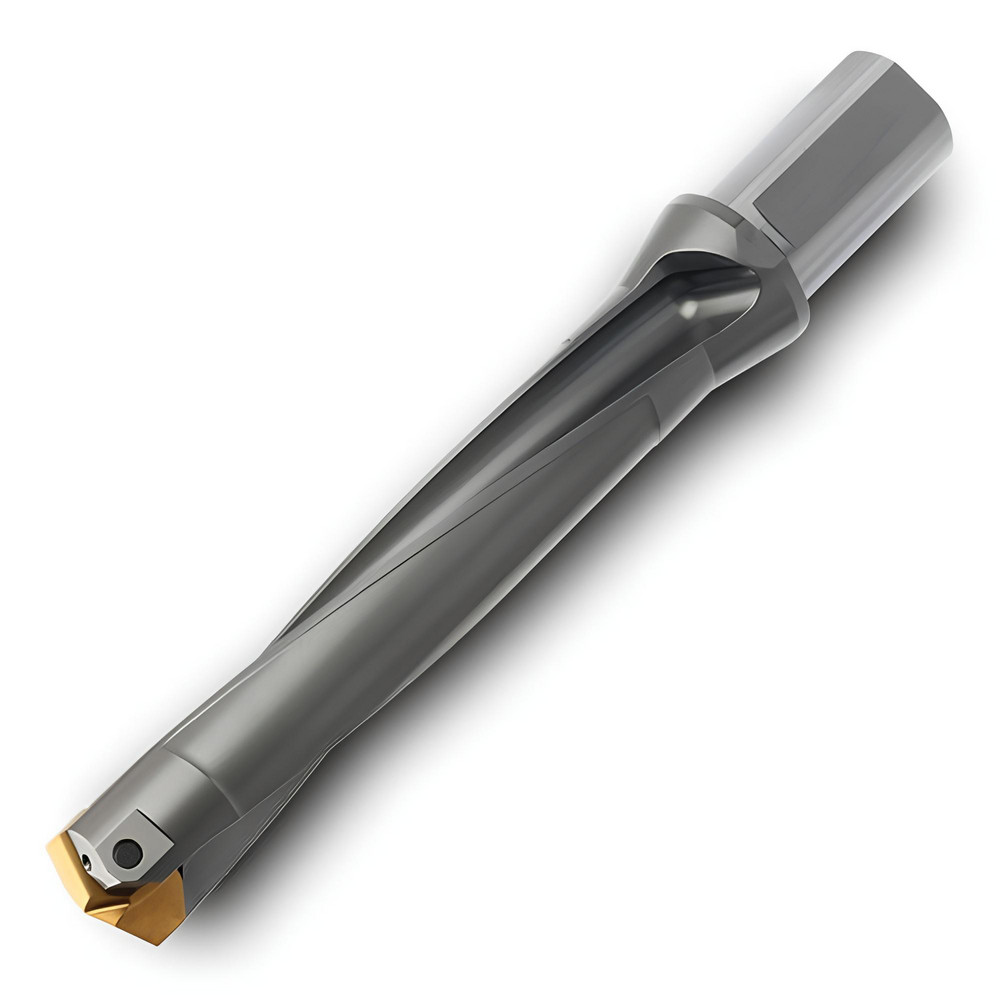

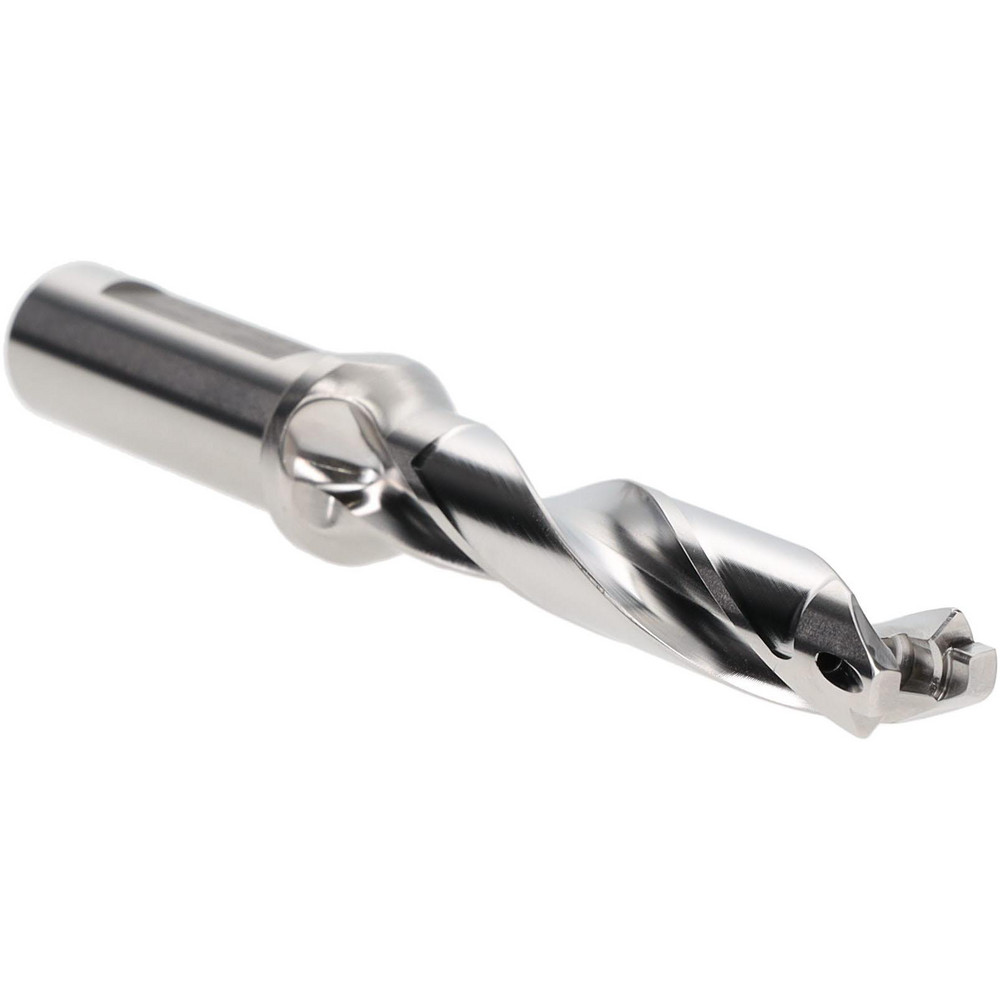

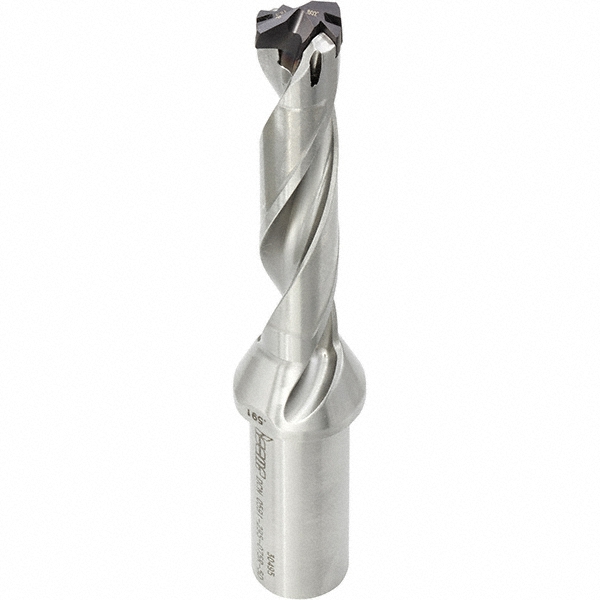

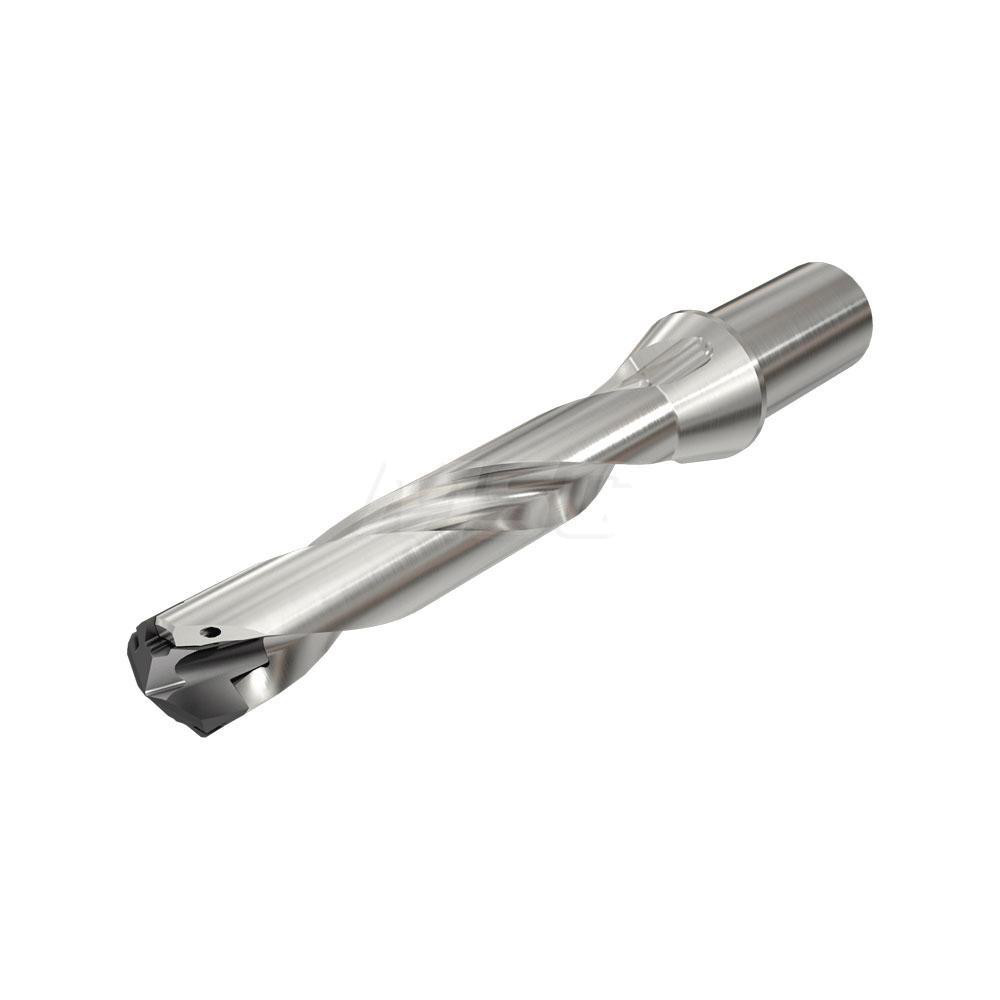

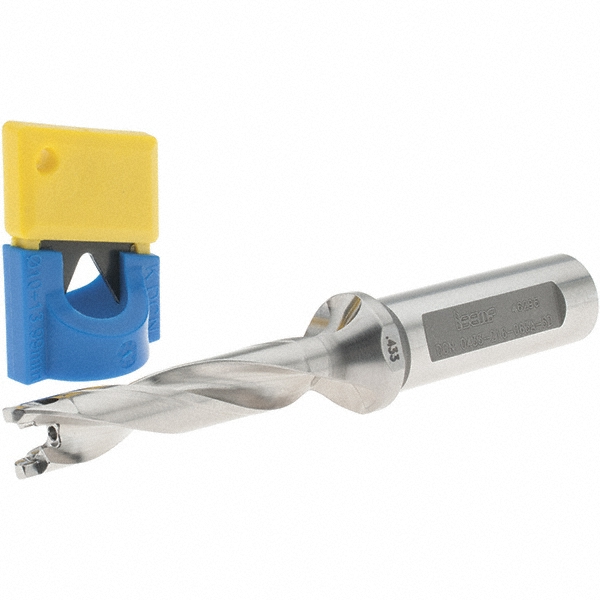

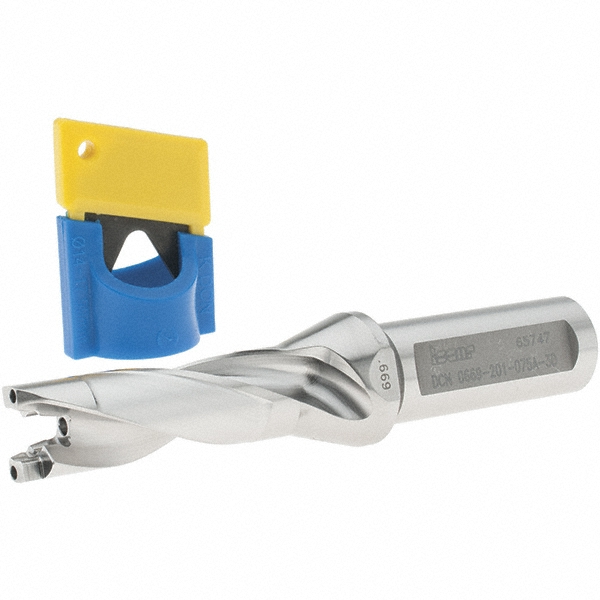

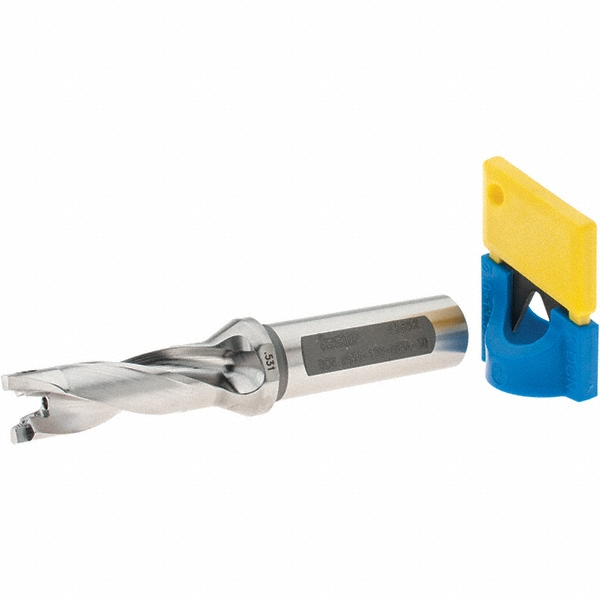

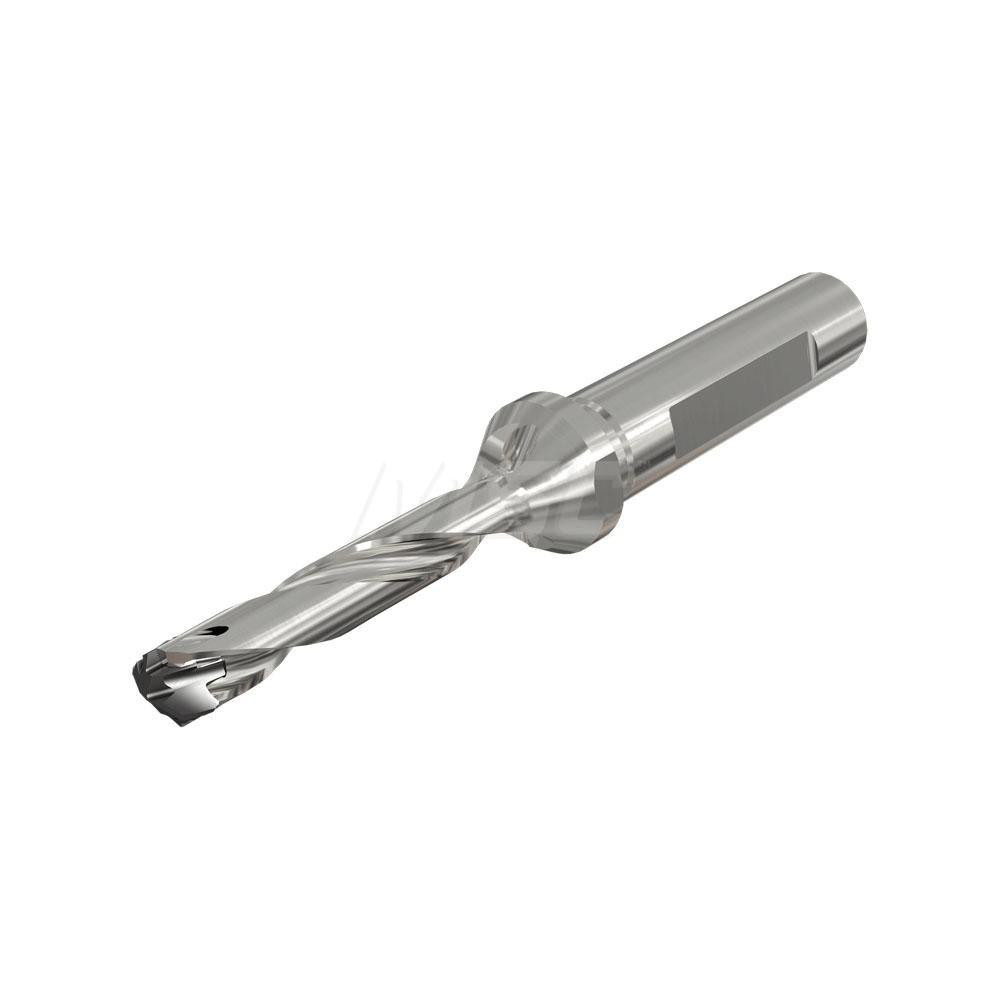

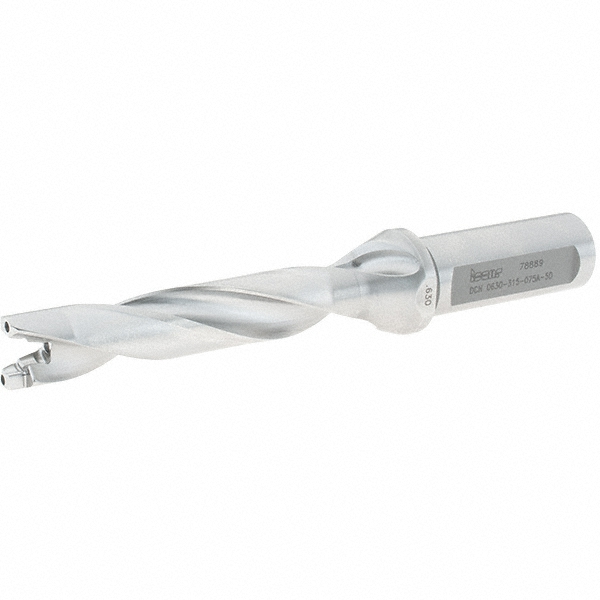

Uses LPA Inserts, Seat Size 40/41, 435 mm OAL, Through Coolant
| Minimum Drill Diameter (mm) | 40.00 |
|---|---|
| Maximum Drill Diameter (mm) | 41.00 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 326.27 |
| Shank Type | Flatted |
| Insert Seat Size | 40; 41 |
| Shank Diameter (mm) | 40.00 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |

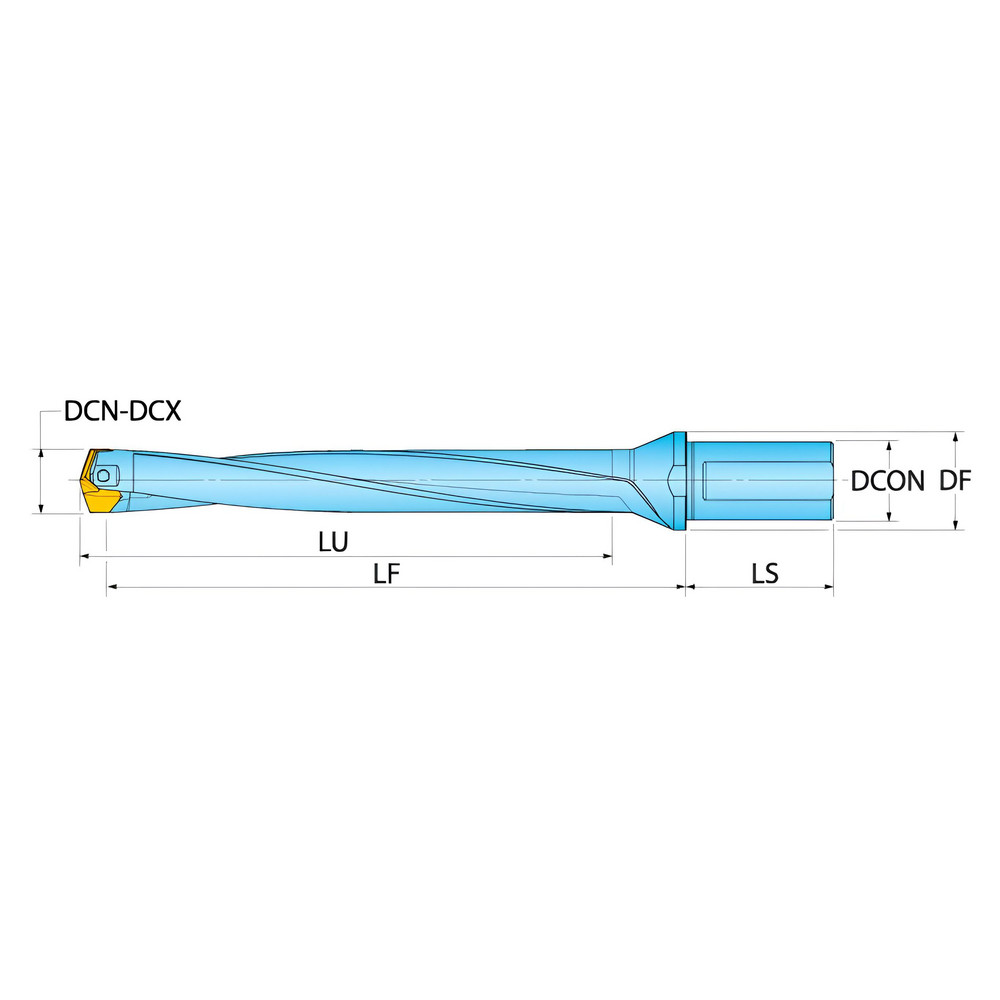

| Overall Length (mm) | 435 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (mm) | 367.00 |
| Body Length (mm) | 367.00 |
| Shank Length (mm) | 68.00 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| undefined | undefined |
| MSC Number | MSC# 98789100 |
