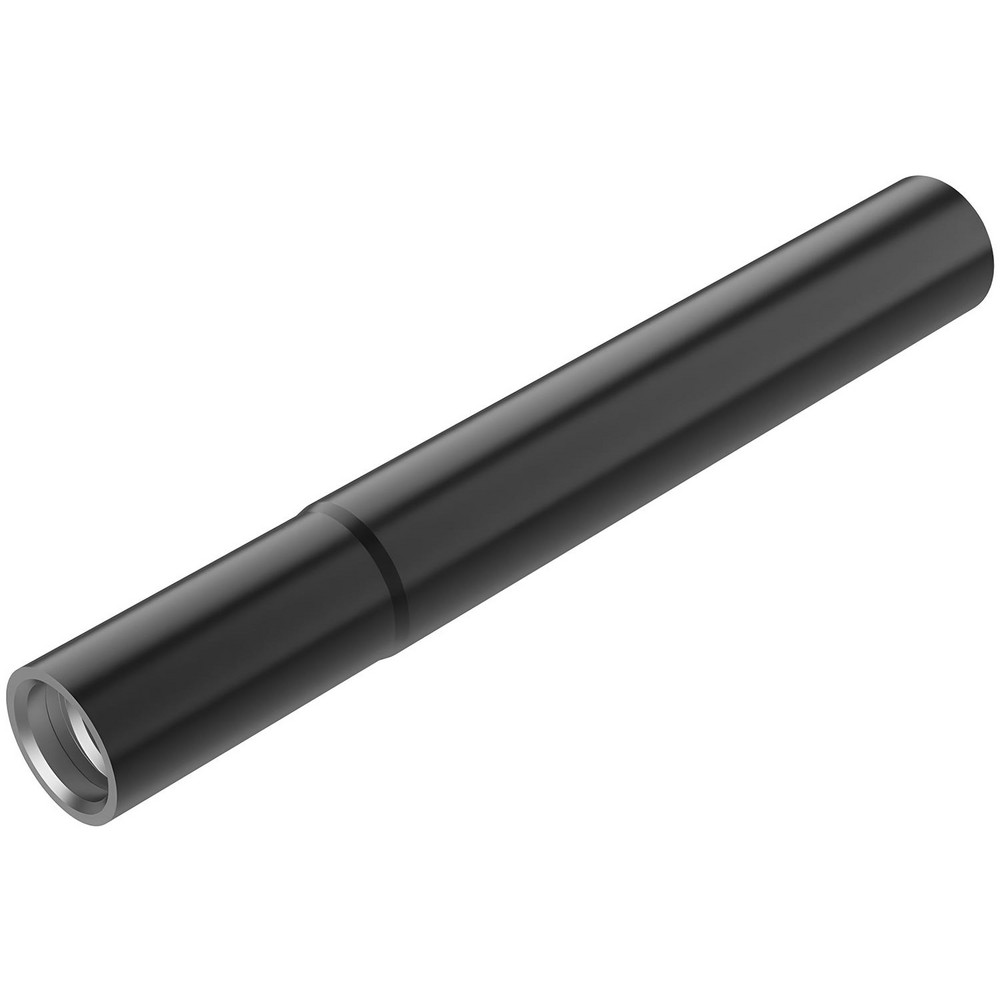

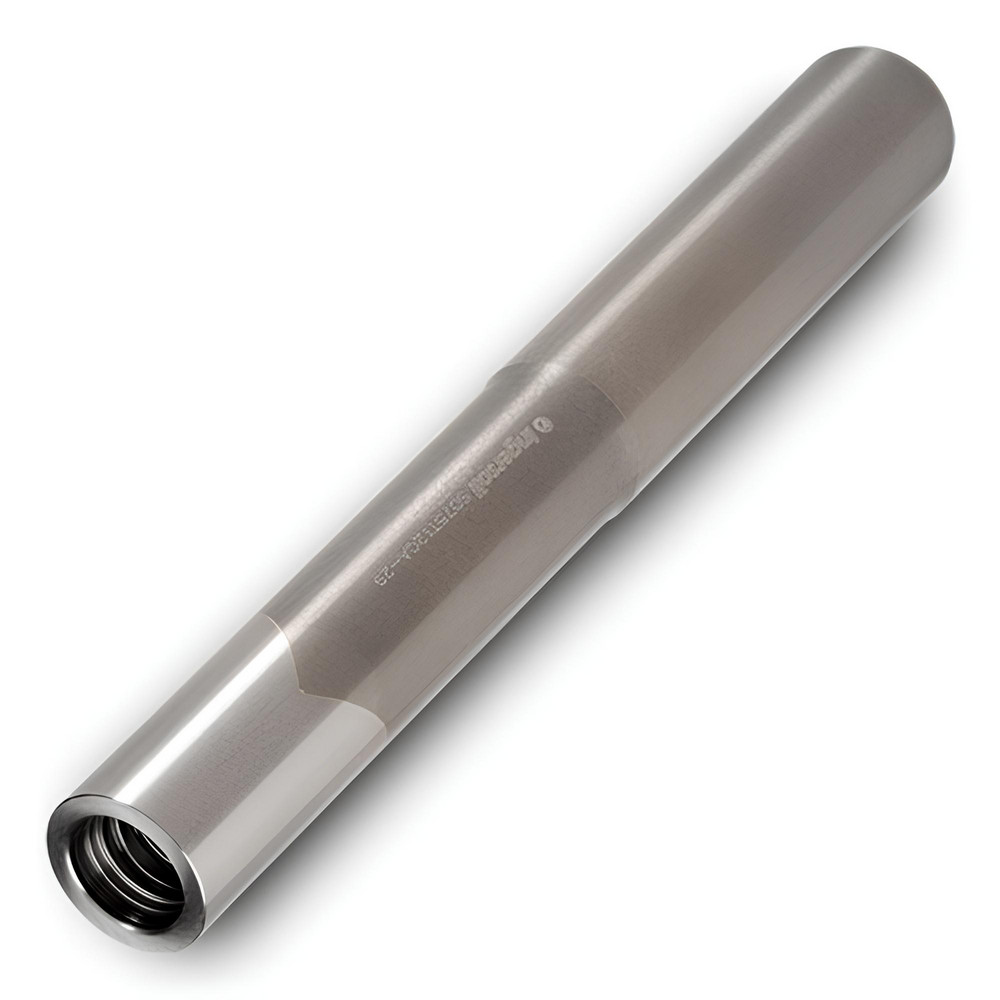

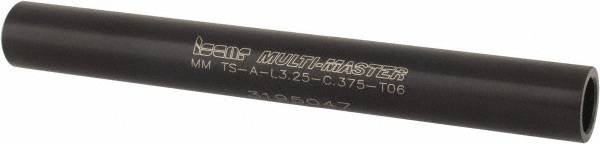

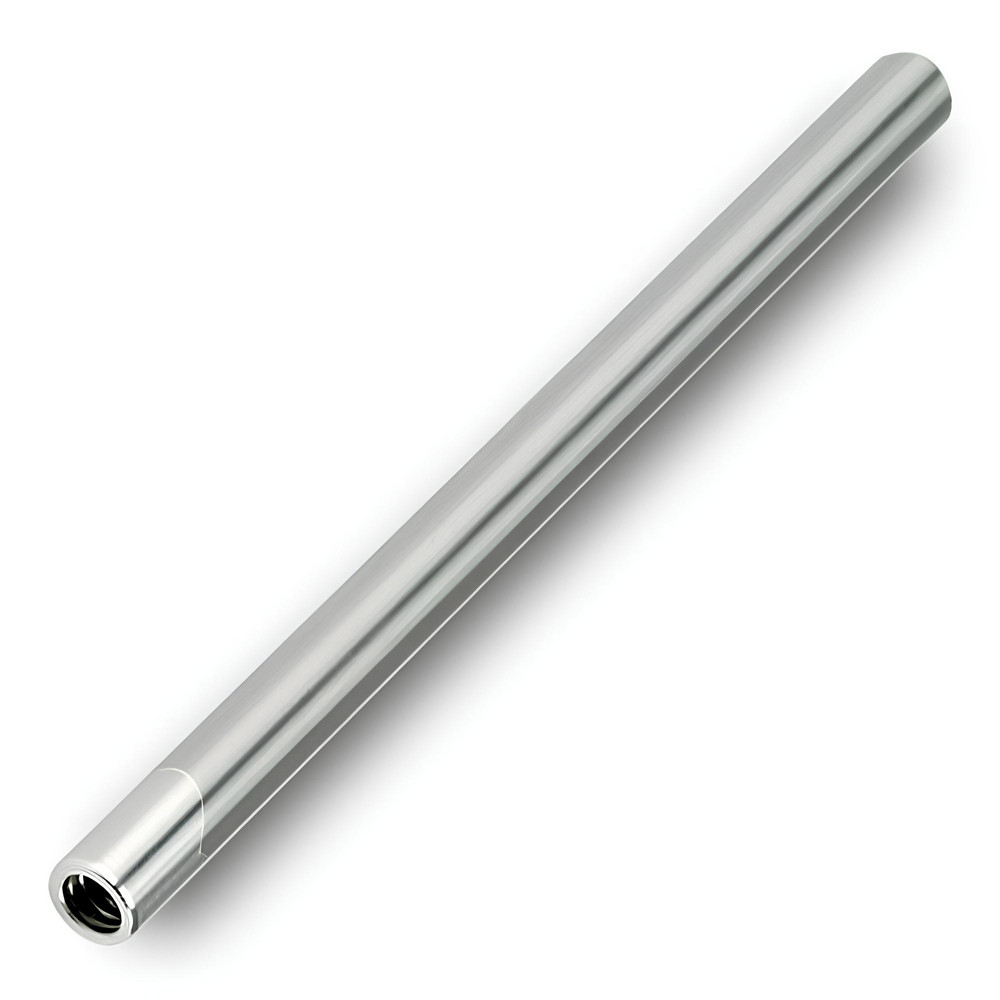

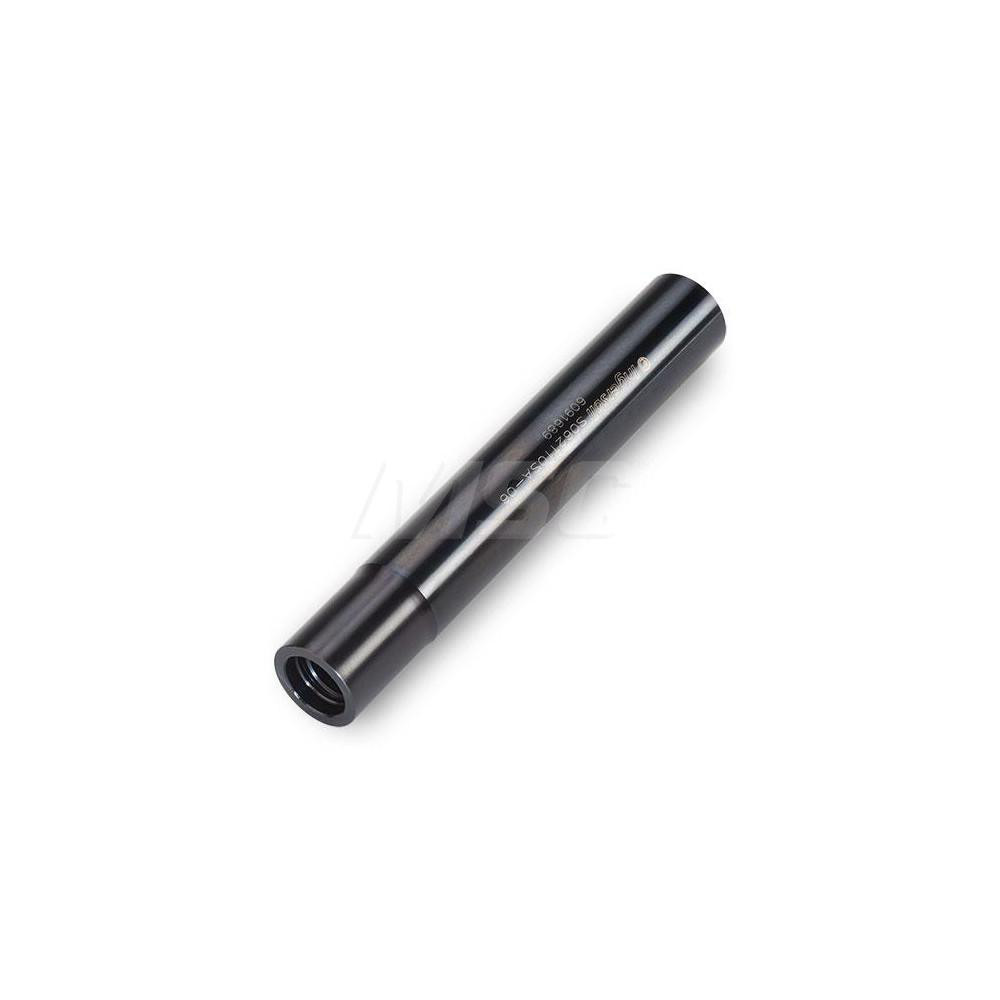

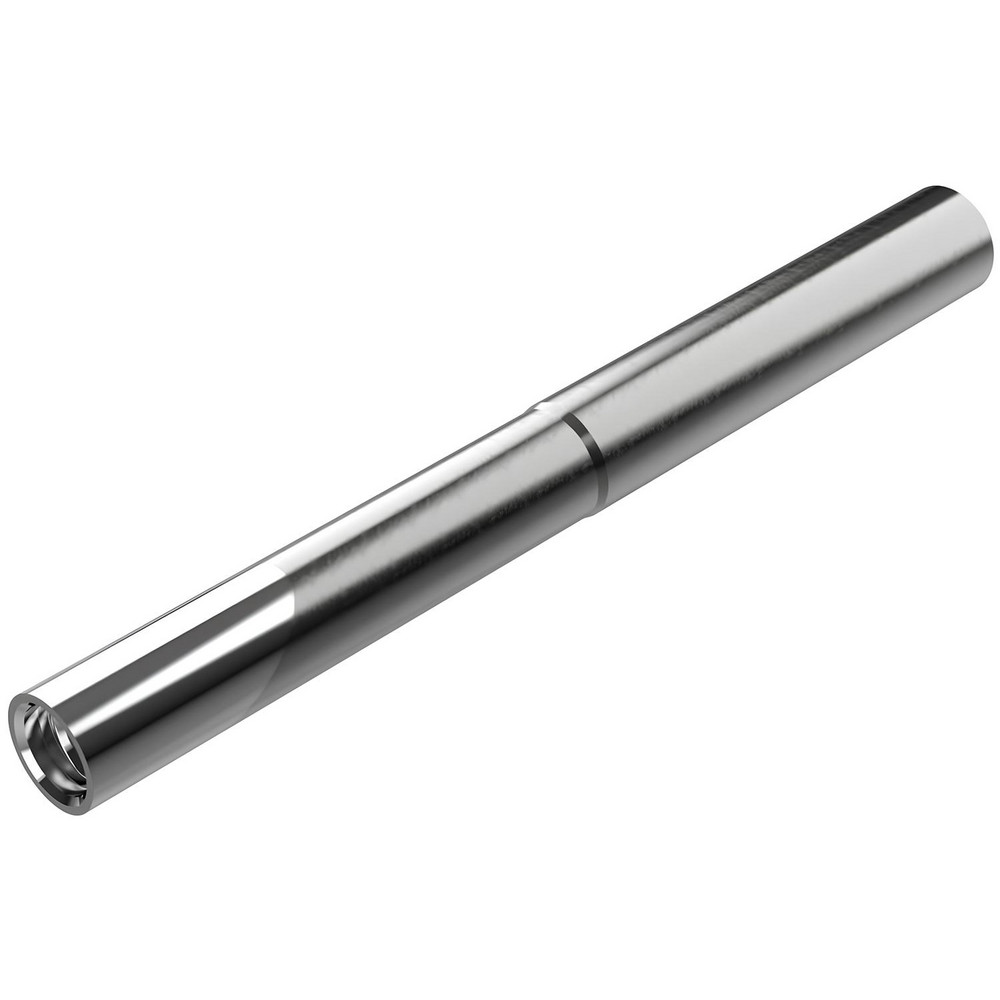

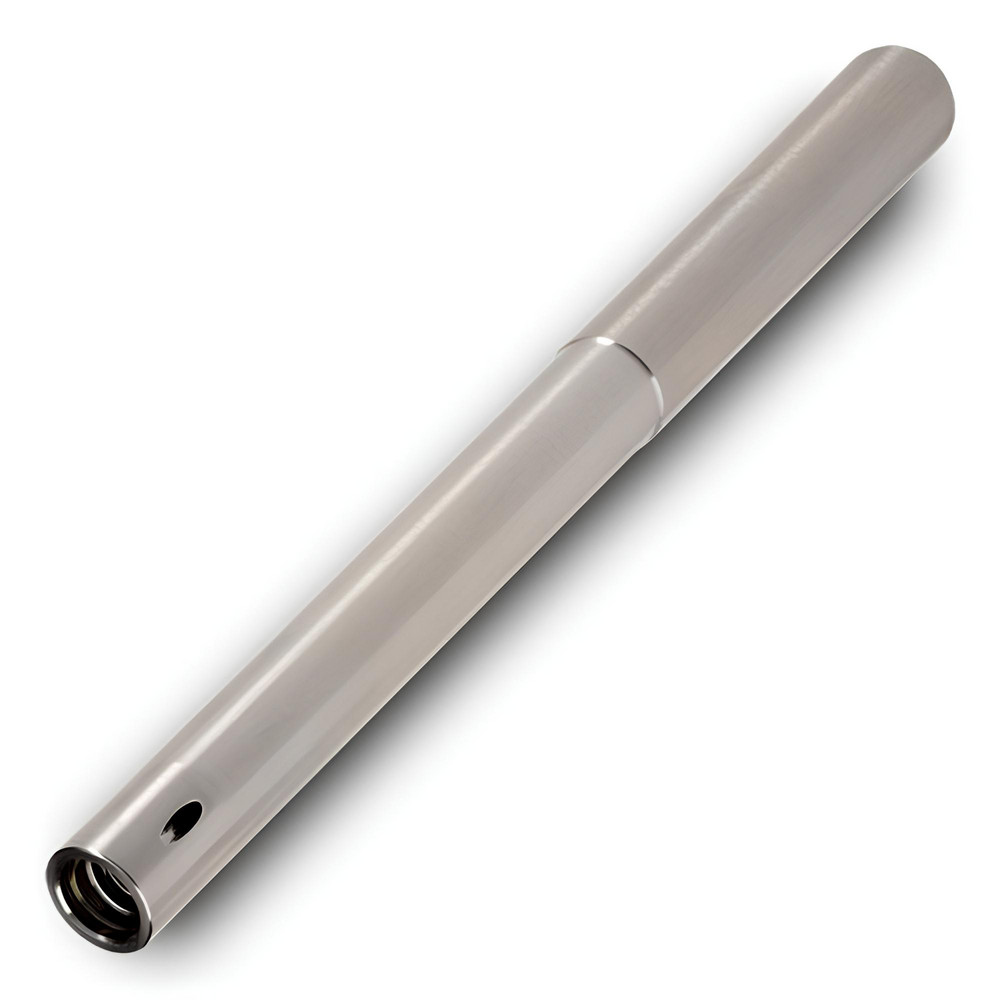

T06 Neck Thread, 9.6 mm Neck Dia, 70 mm OAL, Carbide
| Shank Type | Cylindrical |
|---|---|
| Shank Diameter (mm) | 10.0000 |
| Neck Thread Size | T06 |
| Overall Length (mm) | 70.0000 |
| Shank Shape | Round |
| Tool Material | Carbide |
| Neck Diameter (mm) | 9.600 |
| Coolant Through | No |
| Nose Diameter (Mm) ( - 2 Decimals) | 9.60 |
| Toolholder Style | S*T*CA |
| Series | S*T*CA |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | No |
| Effective Length (mm) | 18.50 |
| Extension Length (mm) | 20.00 |
| Thread Size Connection to Tip | T06 |
| Manufacturers Catalog Number | S010A020T06C |
| Type | "T" Style Thread Connection |
| Projection (mm) | 20.000 |
| UNSPSC Code | 23291600 |
| MSC Number | MSC# 99336497 |
