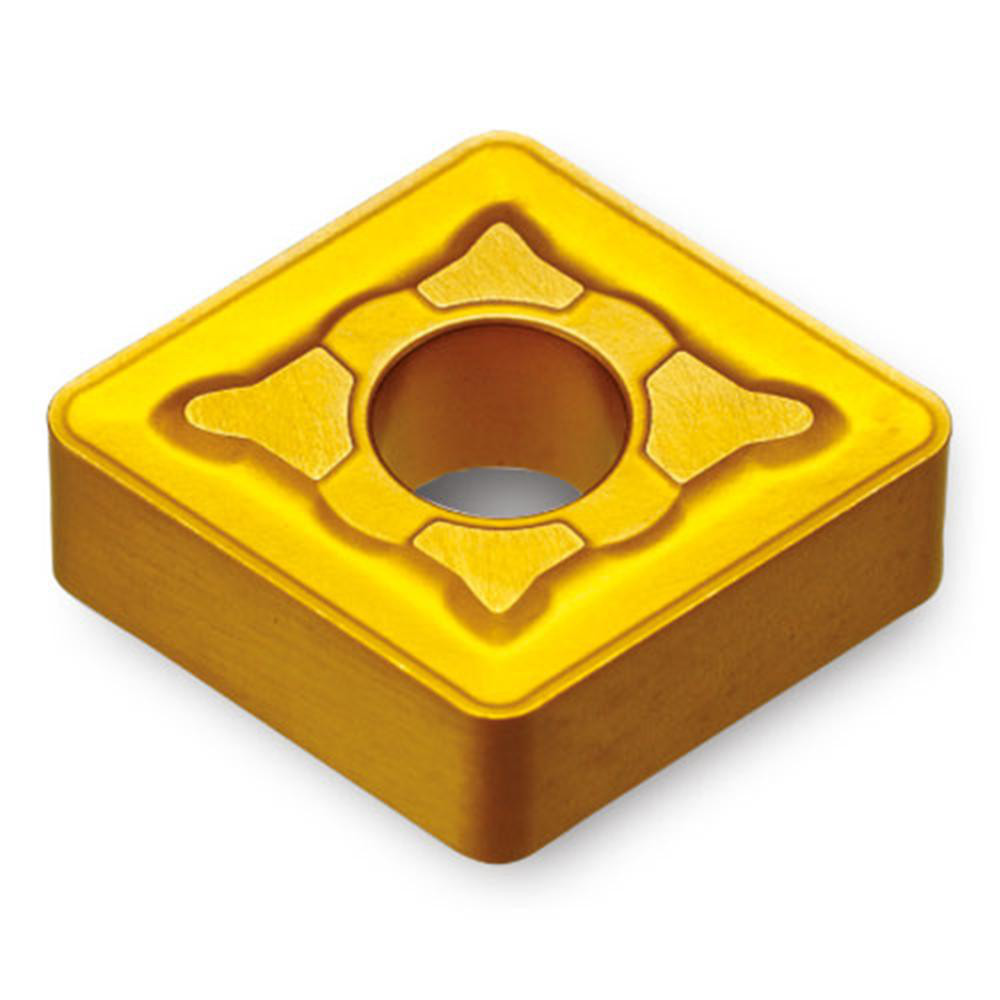

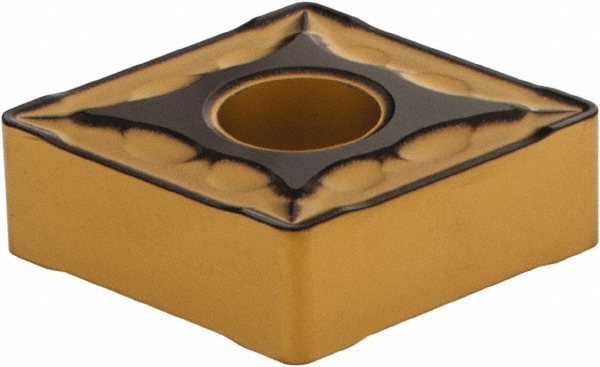

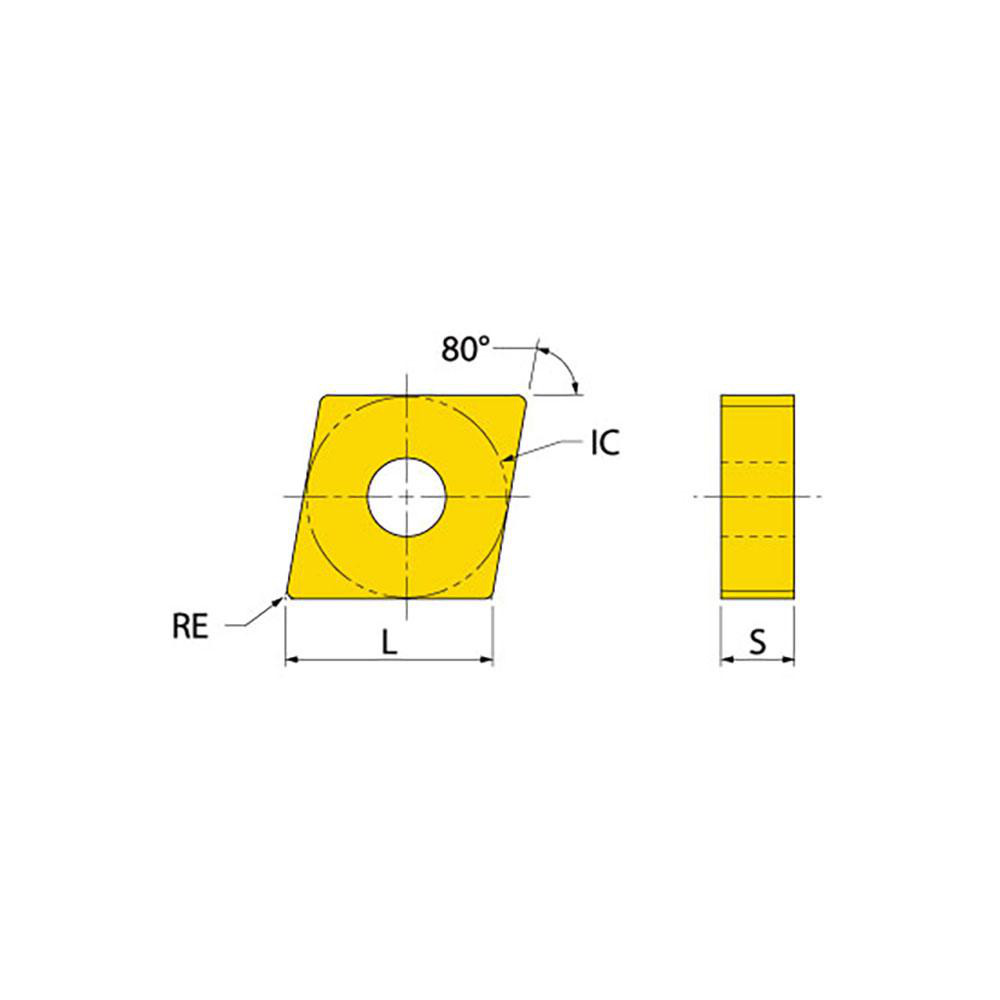

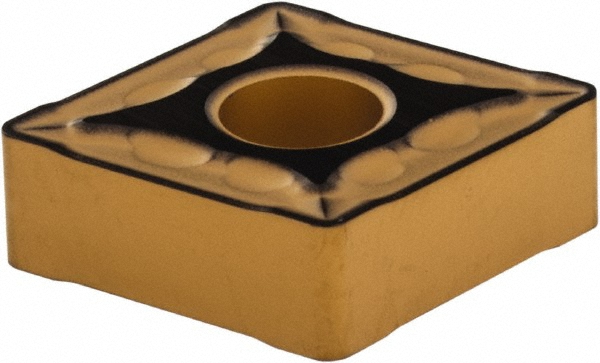

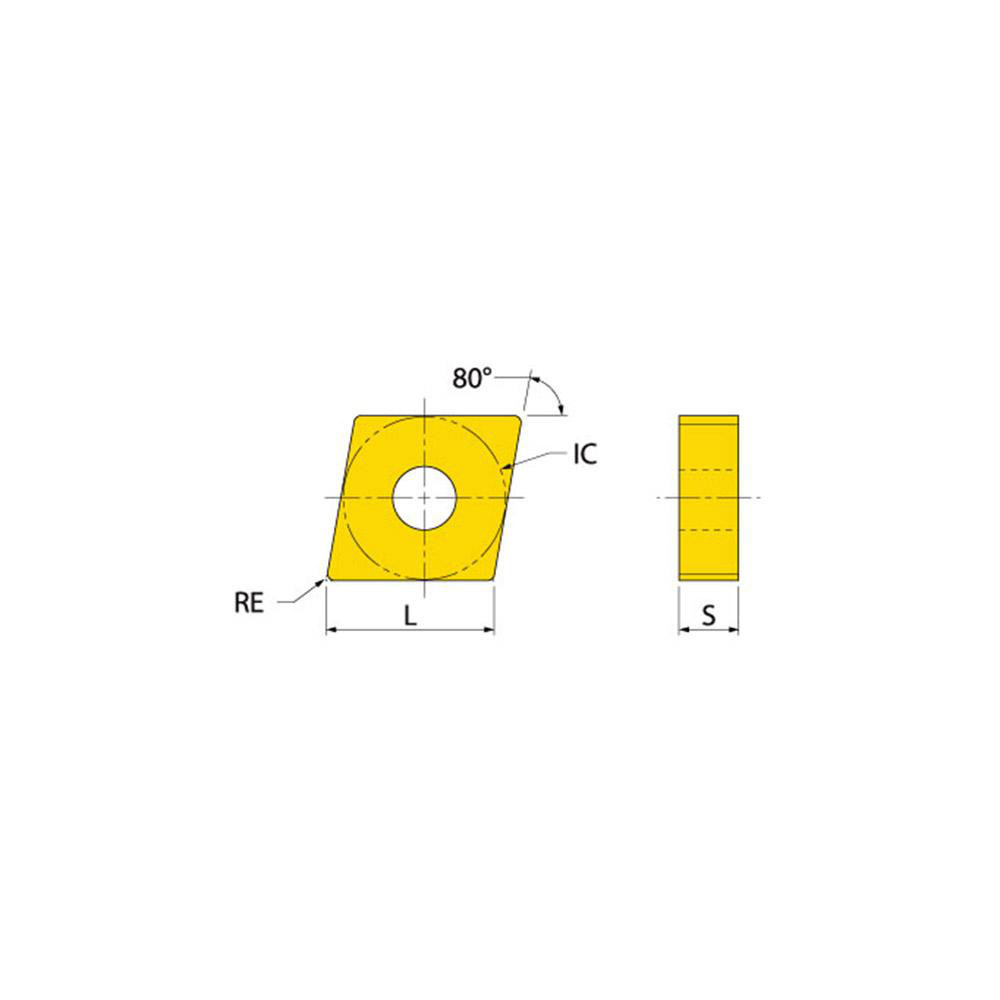

AlTiN & TiN Finish, Neutral, 0.5080" Long, 0.5000" Inscribed Circle, 0.0312" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CNMG
| Insert Style | CNMG |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Insert Material | Carbide |
| Manufacturer Grade | TT5080 |
| Coating/Finish | AlTiN; TiN |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | CNMG |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| ISO Insert Code | CNMG120408 |
| ANSI Insert Code | CNMG432 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium |
| Primary Workpiece Material Code | S; M |
| Iso Code | CNMG120408ET TT5080 |
| Standards | ISO |
| Chip Breaker | ET |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| undefined | undefined |
| MSC Number | MSC# 51606630 |
