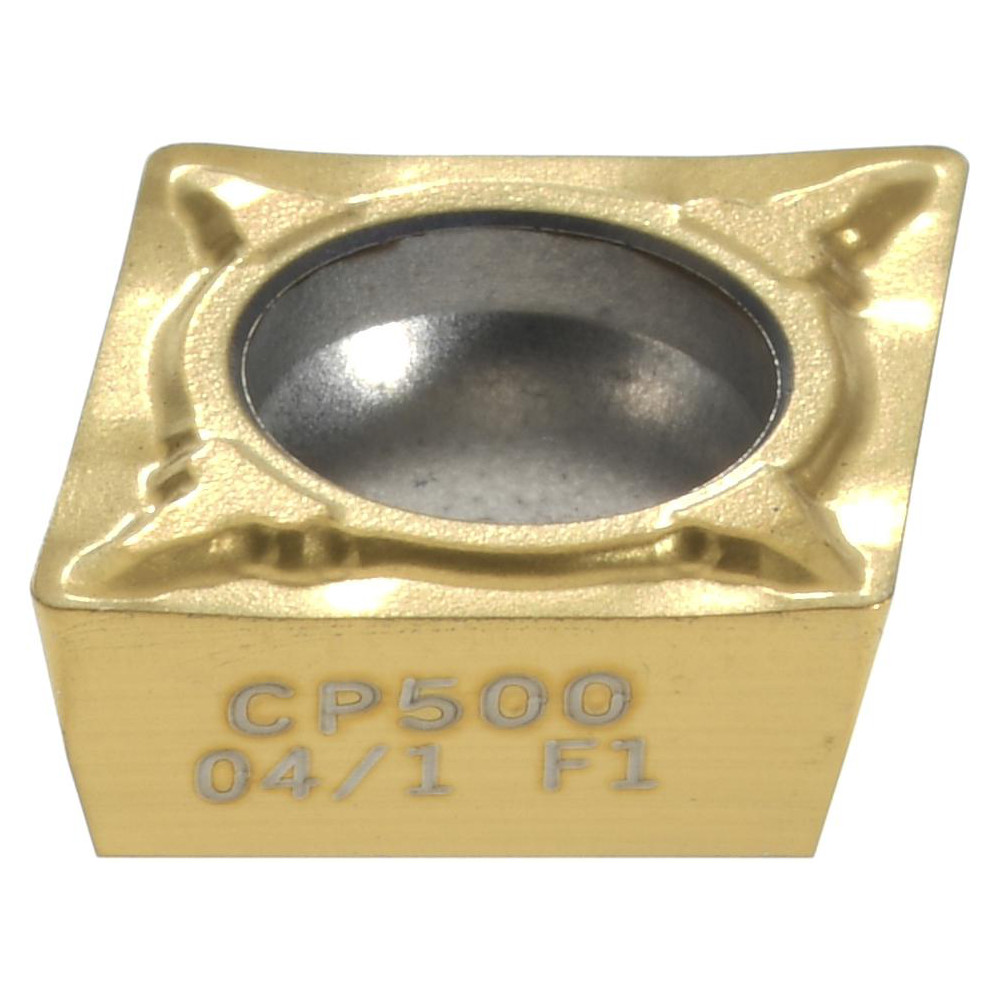

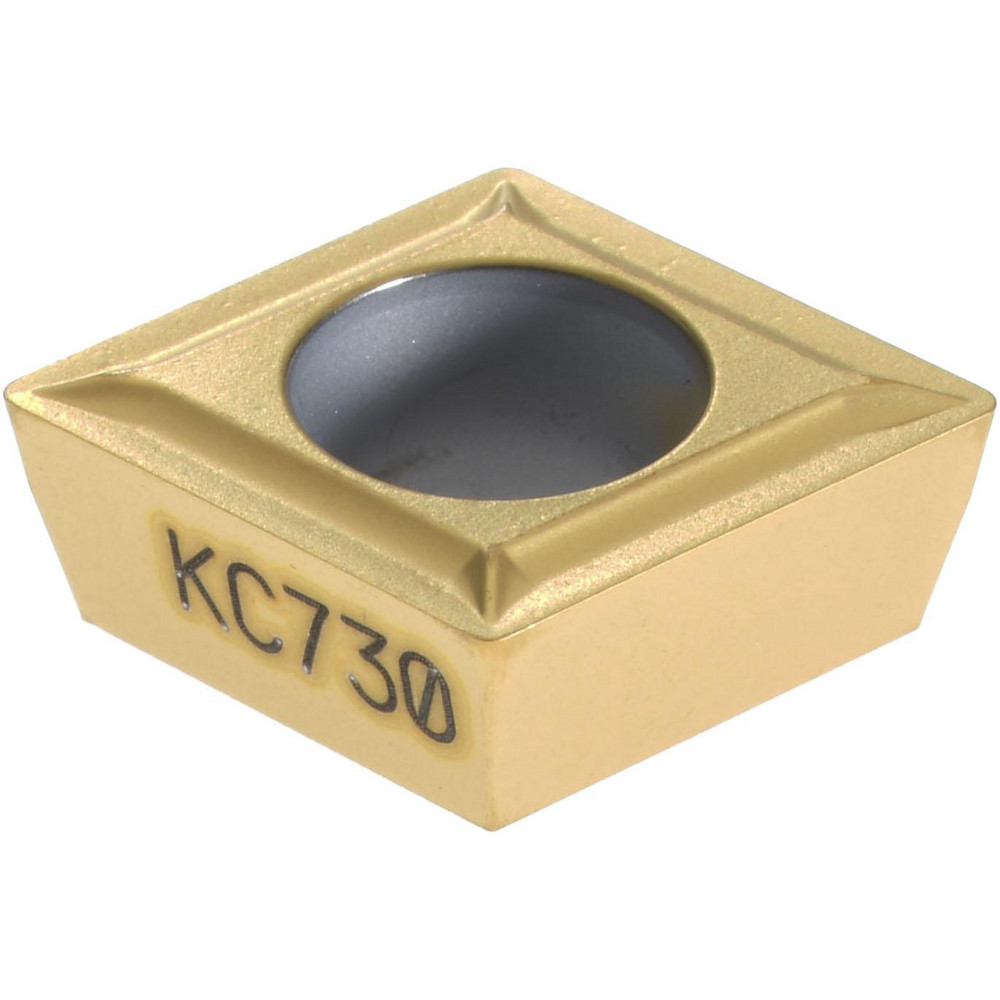

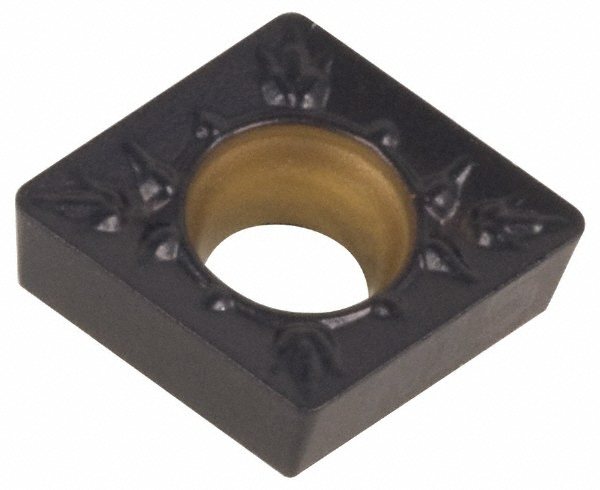

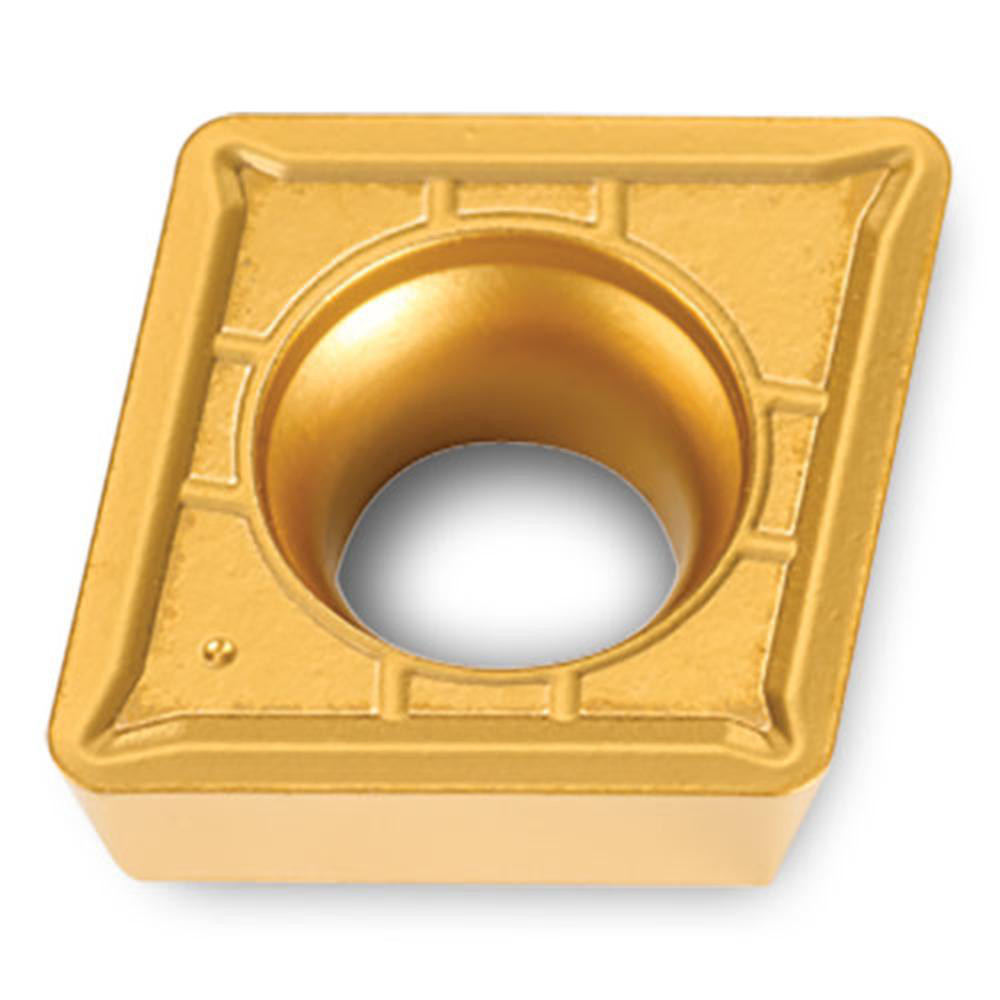

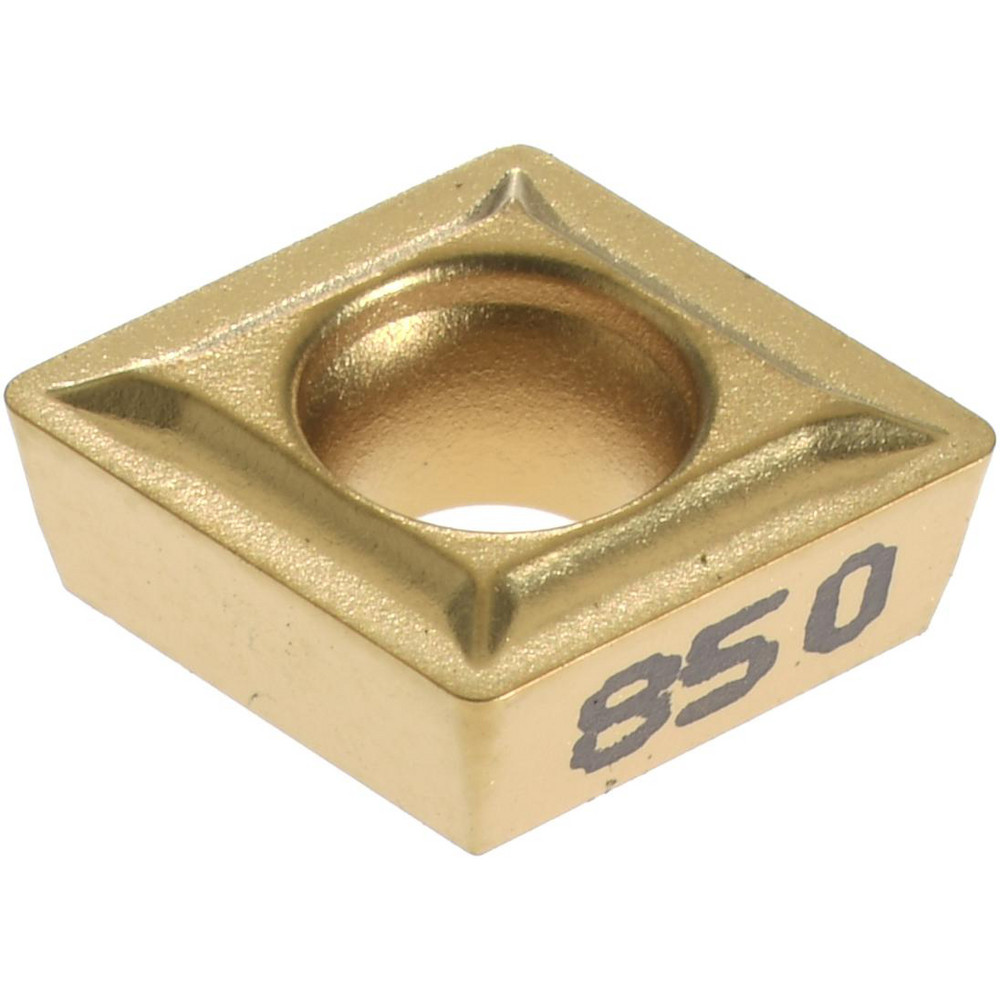

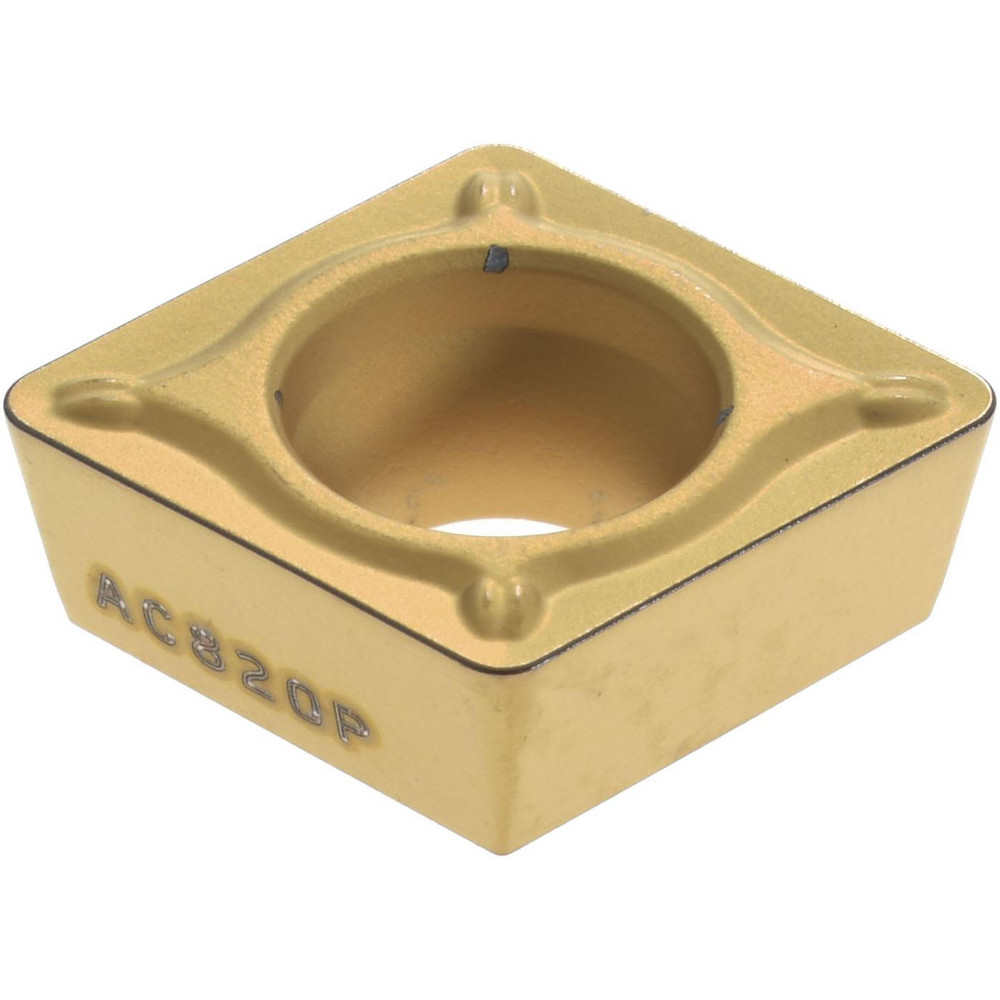

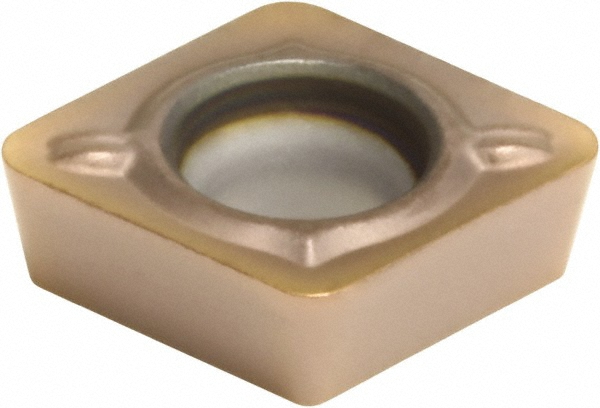

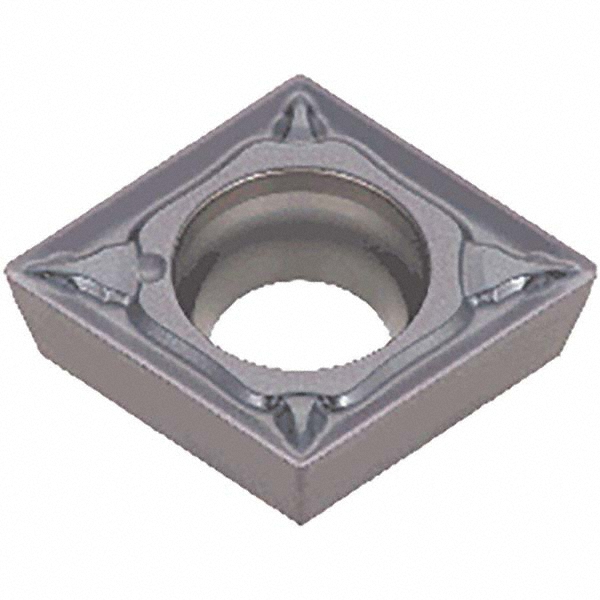

AlTiN & TiN Finish, Neutral, 0.3820" Long, 0.3750" Inscribed Circle, 0.0160" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CPMT
| Insert Style | CPMT |
|---|---|
| ISO Size Code | 09T304 |
| ANSI Size Code | 32.51 |

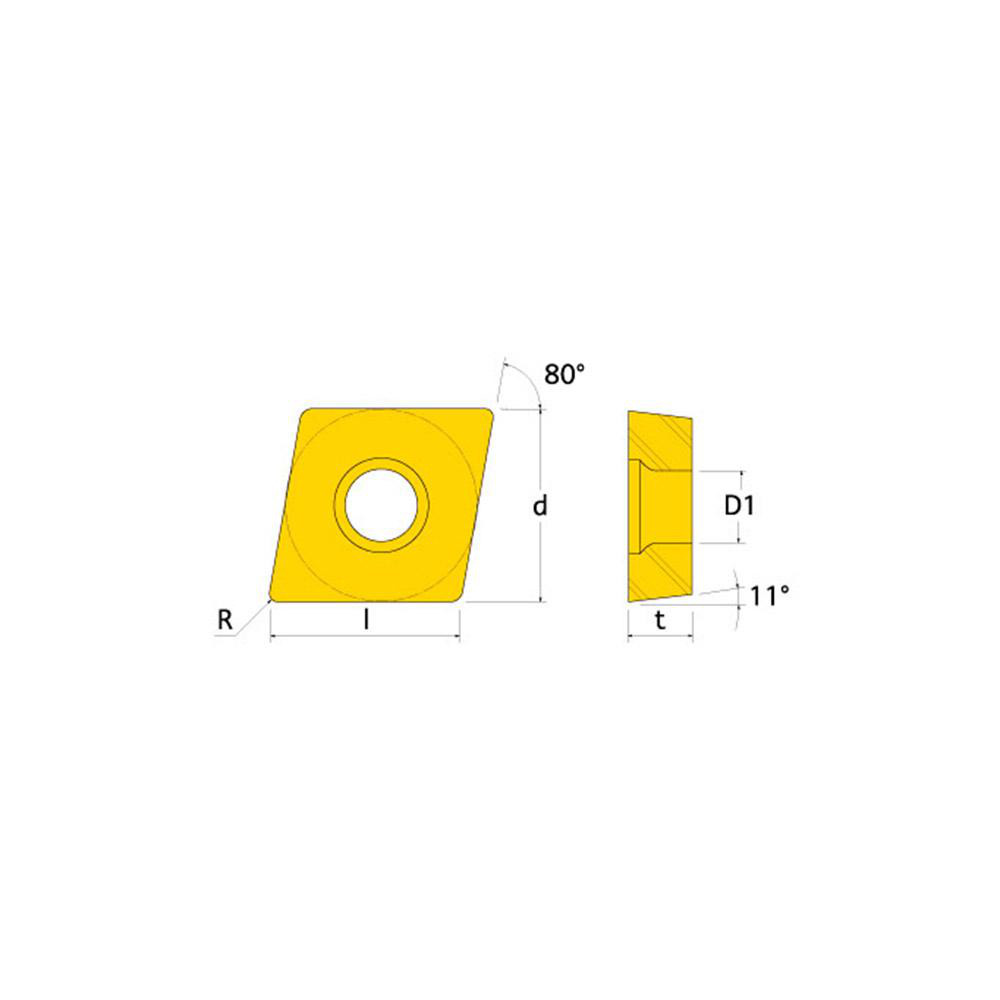

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Insert Material | Carbide |
| Manufacturer Grade | TT5080 |
| Coating/Finish | AlTiN; TiN |
| Relief Angle | 11 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Insert Hand | Neutral |
| Series | CPMT |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| ISO Insert Code | CPMT09T304 |
| ANSI Insert Code | CPMT32.51 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium |
| Primary Workpiece Material Code | S; M |
| Iso Code | CPMT09T304PC TT5080 |
| Chip Breaker | PC |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| undefined | undefined |
| MSC Number | MSC# 94225778 |
