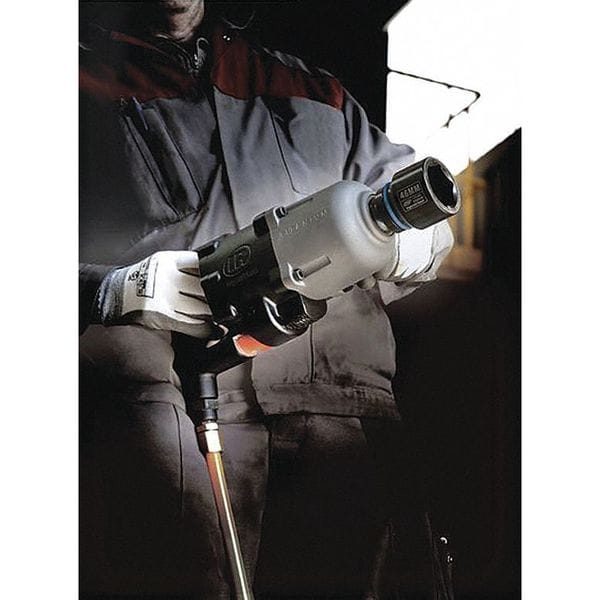

1" Air Impact Wrench, Super Duty, D-handle
| Item | Impact Wrench |
|---|---|
| Square Drive Size | 1 in |
| Free Speed | 5,000 rpm |
| Air Inlet | 1/2 in NPT |
| Handle Type | D-Handle |
| Min. Hose Size | 3/4 in |
| Average CFM @ 15 Second Run Time | 20 |
| Air Inlet Size - Air Tools | 1/2 in NPT |
| Blows per Minute | 850 |
| Duty Cycle - Air Tools | Industrial Duty |
| Item - Air Impact Wrenches | Air Impact Wrench |
| CFM @ Full Load | 80 |
| Max. Bolt Capacity | 1 in |
| Retainer Type - Air Impacts | Thru Hole |
| Anvil Type - Air Impacts | Standard |
| Torque Range | 1,000 to 1,950 ft-lb |
| Duty | General |
| Overall Length | 14-3/8 in |
| Max. Torque | 3,250 ft-lb |
| Features | Bronze End Plate, Twin Hammer Mechanism |
| Handle Material | Metal |
| Required Pressure | 90 psi |
| Body Style - Air Tools | D-Handle |
| Tool Weight | 22.6 lb |
| Housing Material | Metal |
| Retainer Type | Through Hole |
| Impact Sound Level | 99 dB |
| Tool Style | Full-Size |
| Clutch Style | Twin Hammer |
| Drive Size | 1 in (Square) |
| Impacts per Minute | 850 |
| Drive Type | Standard |
| Exhaust Location | Bottom |
| Fastening Torque | 1,950 ft-lb |
| Power Source | Air Powered |
| Breakaway Torque | 3,252 ft-lb |
| Vibration Level | 16.9 m/sq sec |
| Air Pressure | 90 psi |
| Duty Rating | Industrial Duty |
| Built-In Light | No |
| Standards | EN ISO 28927-2, EN ISO11148-6, EN ISO15744 |
| Min. Air Pressure | 90 psi |
| Power to Weight Ratio | 143.8 ft-lb/lb |
| Number of Speed Settings | Continuous |
| Air Consumption | 80 cfm |
| Max. Air Pressure | 100 psi |
| Impact Rated | Yes |
| Package Quantity | 1 |
