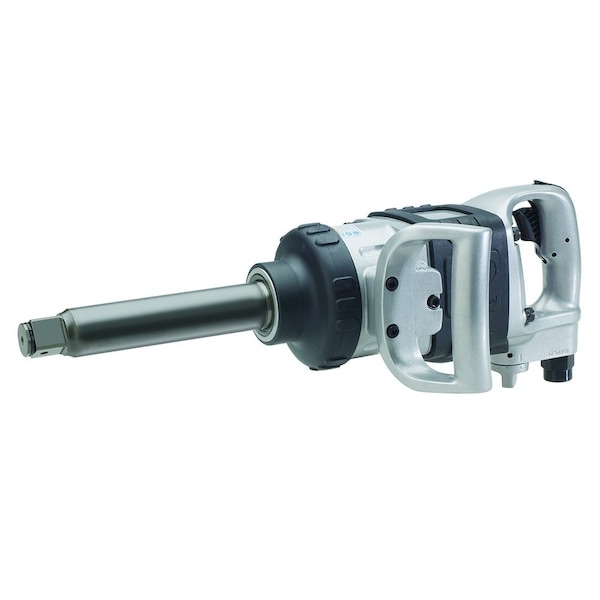

IMPACT WR AIR 1"DR W/ 6" EXT ANVIL 147
| Square Drive Size | 1 in |
|---|---|
| Free Speed | 5250 RPM |
| Air Inlet | 1/2 in NPT |
| Handle Type | D-Handle |
| CFM @ Full Load | 46 cfm |
| Style | Full Size |
| Duty | Heavy Duty |
| Overall Length | 20.4 in |
| Min. Hose Size | 3/4 in |
| Blows per Minute | 700 |
| Anvil Length - Air Impacts | 6 in |
| Throttle Type | Inside Trigger |
| Housing Material | Aluminum Core, Composite Sleeve |
| Required Pressure | 90 psi |
| Max. Bolt Capacity | 1-1/4 in |
| Retainer Type | Friction Ring and Thru-hole |
| Width | 8.1 in |
| Height | 7.2 in |
| Standards | ISO 11148-6, CAGI B186, ISO 28927-2, ISO 15744 |
| Power to Weight Ratio | 53 ft-lb/lb |
| Power Source | Air Powered |
| End Plate Material | Cast Iron |
| Impacting Sound Pressure/Power | 98.8 / 109.8 dBA |
| Exhaust Location | Bottom |
| Max Reverse Torque | 1,475 ft-lb |
| Drive Type | Square |
| Fastening Torque | 1,475 ft-lb |
| Vibration Level | 9 m/s2 |
| Side to Center Distance | 4.1 in |
| Free Speed Sound Pressure/Power | 103.4 / 114.4 dBA |
| Impact Mechanism | Rocking Dog |
| Motor | Equal Forward & Reverse Power |
| Number of Power Settings | 3 |
| Vanes | 6 |
| Hammer Case | Aluminum |
| Max Pressure | 6.2 bar |
| Average Air Consumption | 11 cfm |
| Package Quantity | 1 |
