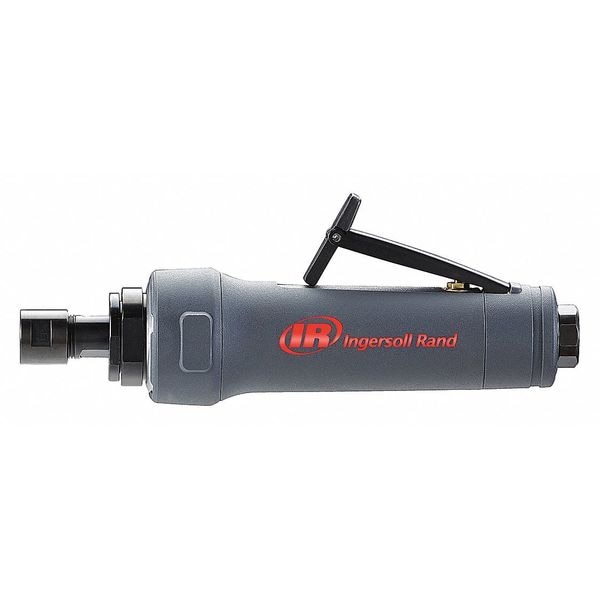

Straight Die Grinder, 3/8 in NPT Female Air Inlet, 3 mm, 1/8 in Collet, Heavy Duty, 25,000 RPM
| Item | Die Grinder |
|---|---|
| Overall Length | 8-3/8 in |
| Air Inlet | 3/8 in NPT Female |
| Horsepower | 1 |
| Free Speed | 25,000 rpm |
| Max. Speed | 25,000 rpm |
| Grinder Type | Straight |
| Includes | 1/4 in Collet, 6mm Collet, Piped Exhaust, Wrenches |
| Duty | Heavy Duty |
| Min. Hose Size | 3/8 in |
| Tool Weight | 1.7 lb |
| Variable Speed | No |
| Bearing Type | Ball |
| Characteristics | Lube Free Motor |
| Grinder Orientation | Straight |
| Throttle | Safety Lever |
| CFM @ Full Load | 45 |
| Collet | 3 mm, 1/8 in |
| Handle Material | Composite |
| Average CFM @ 15 Second Run Time | 10.5 |
| Housing Material | Steel |
| Safety Features | Locking Throttle Lever |
| Safety Stop Mechanisms | Not Applicable |
| Air Inlet Type | NPT |
| Air Pressure | 90 psi |
| Grip Style | Barrel Grip |
| Lock-Off Switch | Yes |
| Tether Style | Not Tether Capable |
| Tool Style | Straight |
| Features | Back Cap and Muffler with Easy Rear Access for Cleaning, Efficiency and Life of Abrasives, Ergonomic Handle Design for Enhanced Operator Comfort to Reduce Fatigue and to Improve Productivity, Lightweight and Ergonomic Body, Lube-Free for Reduced Maintenance, Motor Controller Prevents Over-Speeding and Manages Airflow for Efficient Use, Speed Governed to Maximize Productivity |
| Switch Location | Top |
| Kit Contents | Bare Tool |
| Exhaust Location | Rear |
| Application | Cleaning, Cutting, Heavier-Duty Grinding, Polishing |
| Air Inlet Gender | Female |
| Air Consumption | 25 cfm |
| Lock-On Switch | No |
| Air Inlet Connection Size | 3/8 in |
| Switch Type | Safety Lever |
| Collet Size | 1/4 in, 6 mm |
| Minimum Speed | 25,000 rpm |
| Standards | ISO 28927, ISO15744 |
| Accessory Free Tool Change | Yes |
| Power Source | Air Powered |
| Vibration Level | 0.7 m/sq sec, 2.3 m/sq sec |
| Series | M2 Series |
| Package Quantity | 1 |
