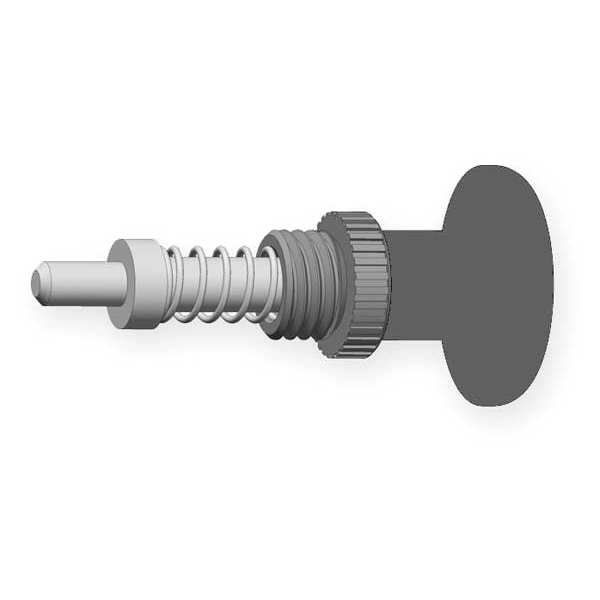

Pop Pin Weld On Barrel, 3/8" Tip Dia., 0.600"L, Pull Knob
| Finish | Zinc Plated |
|---|---|
| Knob Type | Pull Knob |
| Material | Steel |
| Style | Tip |
| Thread Size | 3/8-16 |
| Overall Length | 3.57 in |
| Tip Length | 0.6 in |
| Barrel Height | 1-1/2 in |
| Barrel Dia. | 1" |
| Item | Weld Mount Retractable Spring Plunger |
| Tip Dia. | 3/8 in |
| Handle Style | Knob |
| Pin Dia. | 3/8 in |
| System of Measurement | Inch |
| Type | Tip |
| Shank Material | Steel |
| Shank Finish | Zinc |
| Shank Material Grade | Ungraded |
| Body Finish | Zinc |
| Plunger Projection | 0.6 in |
| Flange Diameter | 0.615 in |
| Body Material | Steel |
| Handle Length | 1.16 in |
| Plunger Material Grade | Ungraded |
| Body Length | 1.81 in |
| Thread Pitch | 0.063 in |
| Drive Size | 3/8 |
| Body Diameter | 3/8 in |
| Plunger Material | Steel |
| Thread Length | 3/8 in |
| Includes Thread-Locking Element | Thread-Locking Element Included |
| Initial Nose Force | Not Applicable |
| Handle Material | Polypropylene |
| Handle Type | Pull Knob |
| Body Material Grade | 1022 |
| Includes Locking Plunger | Locking Plunger Not Included |
| Handle Diameter | 1-41/64 in |
| Flange Thickness | 0.24 in |
| Final Nose Force | Not Applicable |
| Ring Diameter | 0.4 in |
| Seal Material | Not Applicable |
| Measurement System | Inch |
| Plunger Finish | Zinc-Plated |
| Plunger Width | 3/8 in |
| Handle Color | Black |
| Nose Shape | Standard |
| Package Quantity | 1 |
