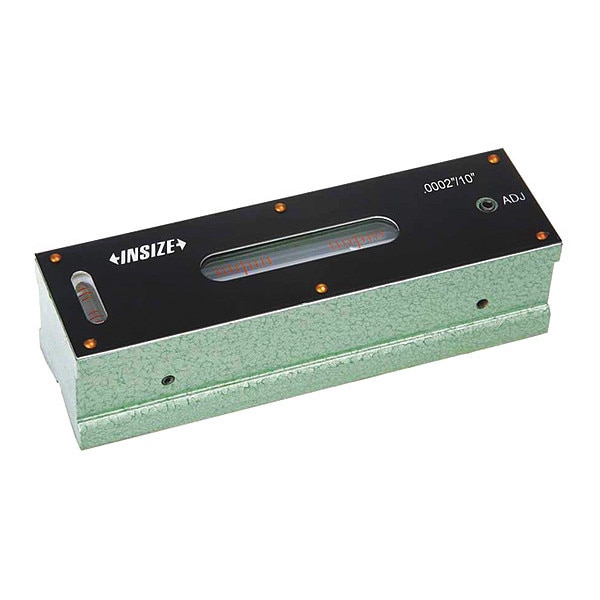

Block Level, 1-55/64" W, 8" L, Cast Steel
| Length | 8 in |
|---|---|
| Accuracy | 0.001 Degrees |
| Color | Green |
| Width | 1.86" |
| Features | With Transverse Vial. V-Groove on Bottom for Shafts (Shafts Diameter 0.63 to 2.76 in) |
| Includes | Case, Adjusting Wrench |
| Application | Check or Level Surfaces |
| Top Read | Top Read Window |
| Number of 45 Degree Vials | 0 |
| Number of Level Vials | 2 |
| Number of Plumb Vials | 0 |
| Length (In.) | 8 |
| Thickness (In.) | 1.85 |
| Characteristics | V-Groove on Bottom |
| Item | Block Level |
| Construction | Cast Steel |
| Height (In.) | 1.65 |
| Vial Material | Glass |
| Total Number of Vials | 2 |
| Number of Mounting Holes | 0 |
| Width (In.) | 1.86 |
| Type | Standard |
| Number of V-Grooves | 1 |
| Frame Material | Cast Steel |
| Mount Type | Not Applicable |
| Calibration Certificate | Not Certified |
| Sensitivity | 0.0002 in/ft |
| Overall Height | 1-5/8 in |
| Number of Cross Test Vials | 2 |
| Vial Shape | Block |
| Shape | Straight |
| Vial Graduations | ft, .00024 in |
| Overall Length | 8 in |
| Level Orientation | Horizontal |
| Overall Width | 1-7/8 in |
| Precision Vial Properties | Not Applicable |
| Finish | Satin |
| Package Quantity | 1 |
