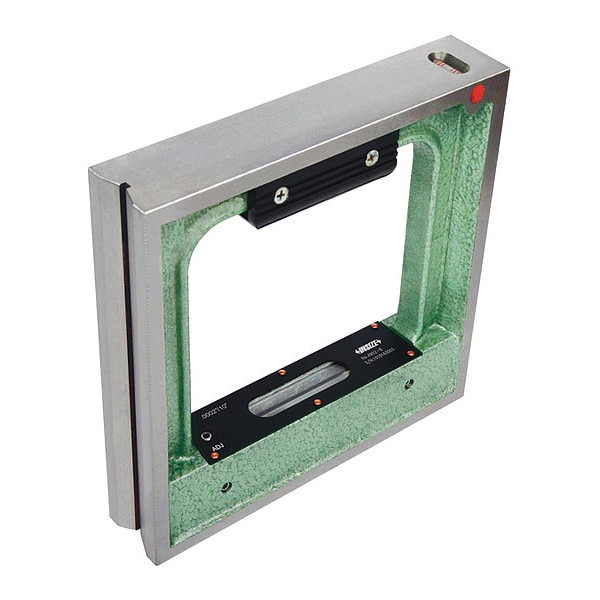

Frame Level, 1-49/64" W, 12" L, Cast Steel
| Item | Frame Level |
|---|---|
| Type | Standard |
| Length (In.) | 12 |
| Width (In.) | 1.77 |
| Total Number of Vials | 1 |
| Number of 45 Degree Vials | 0 |
| Characteristics | 140 Degrees V-Groove |
| Height (In.) | 12 |
| Construction | Cast Steel |
| Vial Material | Glass |
| Number of Plumb Vials | 0 |
| Thickness (In.) | 1.772 |
| Number of Mounting Holes | 0 |
| Number of Level Vials | 1 |
| Includes | Case, Adjusting Wrench |
| Accuracy | 0.001 Degrees |
| Finish | Satin |
| Frame Material | Cast Steel |
| Calibration Certificate | Not Certified |
| Number of Cross Test Vials | 2 |
| Top Read | Top Read Window |
| Number of V-Grooves | 2 |
| Features | With Transverse Vial. V-Groove on Bottom and Left for Shafts (Shafts Diameter 0.59 to 2.76 in) |
| Level Orientation | Horizontal |
| Mount Type | Not Applicable |
| Shape | Square |
| Vial Shape | Block |
| Overall Width | 1-3/4 in |
| Vial Graduations | 0.0002 in/ft |
| Overall Length | 12 in |
| Precision Vial Properties | Not Applicable |
| Color | Green |
| Sensitivity | 0.0002 in/ft |
| Overall Height | 12 in |
| Package Quantity | 1 |
