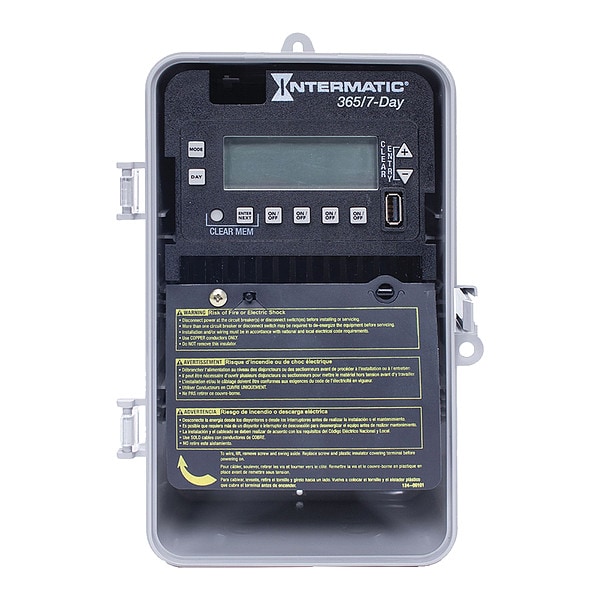

Temporizador electrónico, 7 días a la semana, 365 días al año, 30A.
| Item | Electronic Timer |
|---|---|
| Operation Mode | 7/365 Days |
| Number of Channels | 4 |
| Contact Form | SPST |
| Voltage | 120 to 277V AC |
| Amps | 30 A |
| HP @ 120V | 1 |
| HP @ 240V | 2 |
| Events Available - Electronic Timer | 96 |
| Available Actions - Electronic Timer | Pulse, On/Off |
| Enclosure | Plastic |
| Height | 10 in |
| Number of Poles | 2 |
| Max. Time Setting | 7 days |
| Description/Special Features | Outdoor |
| Backup Device | Capacitor |
| Min. Time Setting | 1 min |
| Pulse Duration | 2 sec |
| Mounting | Surface |
| Max. On/Off Cycles | 96 |
| Number of Pulse Events | 48 |
| Backup Time | 100 hr |
| Operating Temp. | -40 to 155 deg F |
| Event Allocation - Electronic Timer | 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event |
| Width | 6-1/2 in |
| Display Height | 1 in |
| NEMA Rating | 3R |
| Depth | 4 in |
| Standards | California Title 20 Listed, LED Listed, UL Listed |
| Display Width | 3 in |
| Color | Gray |
| Max. Ballast Amps | 10 A, 120/277 VAC |
| Features | 100-hour supercapacitor eliminates the need for batteries; Up to 96 set points or events; Up to 50 holiday blocks with schedule capabilities; Automatic input voltage selection from 120 to 277 VAC, 60 Hz; Additional mode of operation turns the ON/OFF buttons into 2-hour overrides; Configurable outputs allow the control of various voltages and applications; Relays incorporate zero-crossing technology to extend the life of the control; Non-volatile EEPROM memory protects programming indefinitely; LED compatible; USB port makes transferring and saving of schedules easy |
| Hz - Electrical | 60 Hz |
| Display | LED |
| Max. Wattage | 7 W |
| Enclosure Type | Indoor/outdoor type 3R plastic with see-through door |
| Switch Type | Pulse, 2xDPST, 4xSPST |
| Min. Wire Size | #14 AWG |
| Voltage Type | Auto Voltage |
| Application | Commercial, Industrial, Utility, Lighting Control, Energy Savings, Comfort & Convenience, Machinery & Pumps, Indoor Lighting Control, Timing/Scheduling ON/OFF, Machinery & Pump Controls, Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads |
| Max. Wire Size | #8 AWG |
| Adjustment Type | Automatic |
| Input Voltage Range(s) | 120-277 VAC, 60 Hz |
| Inductive Load Ratings NO Ranges | 30 A, 120-240 VAC |
| Application Compatibilities | LED |
| Backup Protection Time | 100 hr |
| Maximum Pulse Time | 2 sec |
| Maximum ON/OFF Operations | 96 |
| Backup Type | Supercapacitor |
| Minimum Pulse Time | 2 sec |
| Electronic Ballast Load Ratings NO Ranges | 10 A, 120/277 VAC |
| Minimum ON/OFF Times | 1 min |
| Product Width (in) | 6.5 |
| Maximum ON/OFF Times | Indefinite |
| Operation Features | Holiday |
| Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
| Electronic Series | ET2000 Series |
| Wire Size Min | #14 AWG |
| Wiring Option | Terminals |
| Applications | Indoor Lighting Control Machinery & Pump Controls Timing, OFF, Scheduling ON |
| Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
| Backup Restoration Time | 30 Minutes |
| Product Depth (in) | 4 |
| Motor Load Ratings NO Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC |
| Voltage Selection Type | Auto Voltage |
| Operating Temperature Max (°F) | 104 |
| Wire Size Max | #8 AWG |
| Magnetic Ballast (NO) Range(s) | 20 A, 120-277 VAC |
| Resistive (NO) Range(s) | 20 A, 28 VDC; 30 A, 120-240 VAC |
| Daylight Savings Adjustment | Automatic |
| Product Height (in) | 10 |
| Number Of Circuits | 4 |
| Tungsten (NO) Range(s) | 5 A, 120-277 VAC |
| Operating Temperature Min (°F) | -40 |
| Maximum Power Consumption (W) | 7 W |
| On Off Operations | 96 |
| UL Certification | CULUS |
| Operating Temperature Min (°F) | -40 |
| Operating Temperature Max (°F) | 104 |
| Package Quantity | 1 |
