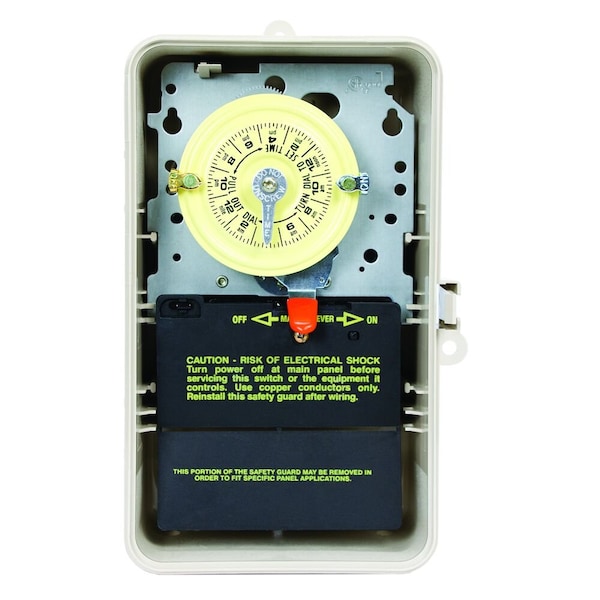

Interruptor de tiempo mecánico en caja de 24 horas.
| Item | Mechanical Time Switch in Enclos 24-Hour |
|---|---|
| Enclosure Type | Outdoor type 3R plastic; Outdoor type 3R metal |
| Operation Mode | 24 hr |
| Pilot Duty Load Ratings | 1000 VA, 120-240 VAC, 60 Hz |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Maximum On Off Operations | 12 |
| Applications | Heater Thermostat Control, Motor Control, Pump Control |
| Operating Temperature Min | -40°F |
| Knockout Dimensions Back | 1/2" and 3/4" combination |
| Product Height | 10 in |
| Resistive Load Ratings | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Electronic Ballast Load Ratings | 16 A, 120 VAC |
| Wiring Option | Terminals |
| Electronic Ballast Load Ratings Ranges | 16 A, 120 VAC |
| Lifecycle | Production |
| Tungsten Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Standard | cCSAus |
| Product Width | 6-1/2 in |
| Knockout Dimensions Bottom | (2) 1/2" and 3/4" |
| Switch type | SPST |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Operating Temperature Max | 54°F |
| Number Of Circuits | 1 |
| Tungsten Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz |
| Application Compatibilities | LED |
| Inductive Load Ratings | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Product Depth | 4 in |
| Solutions | Pool, Spa |
| Packaging Applications | Heaters; Lighting; Pumps |
| Power Consumption Max W | 3 W |
| UL Certification | cULus |
| Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Input Voltage Ranges | 120 VAC, 60 Hz |
| Heater Control Output | 10 A, 250 VAC MAX, 60 Hz |
| Motor Load Ratings | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Market | Commercial, Residential |
| Package Quantity | 1 |
