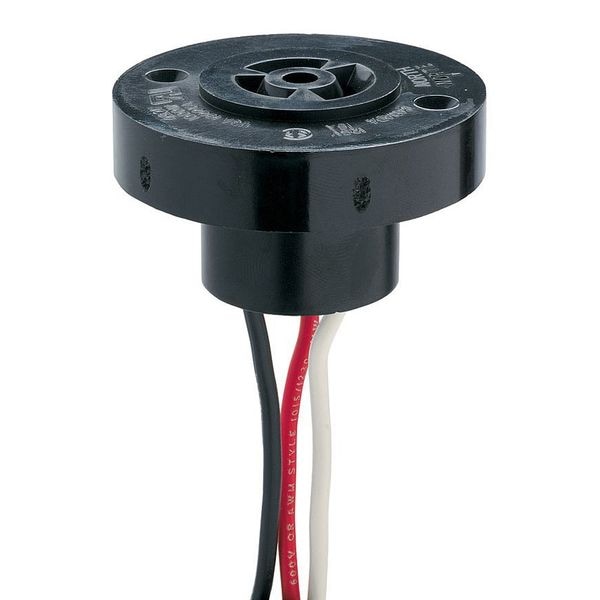

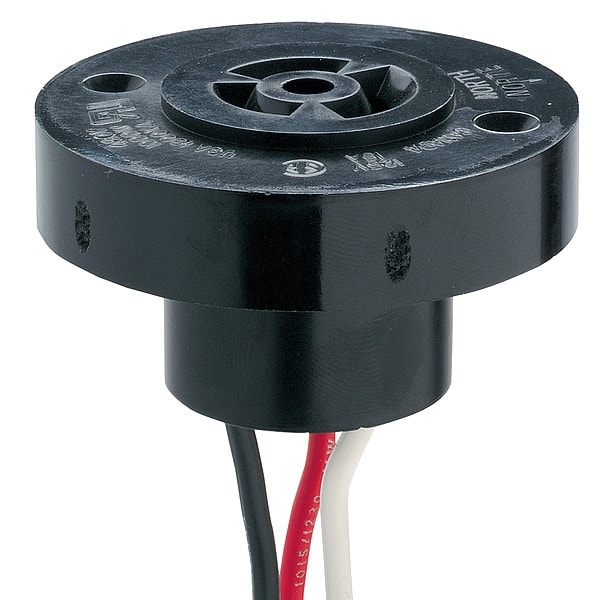

Receptáculo de control fotográfico, 30 pulgadas de cables.
| Item | Photo Control Receptacle with Wire Leads |
|---|---|
| For Use With | Intermatic Photo Controls |
| Color | Black |
| Overall Height | 1.52 in |
| Description/Special Features | 30 in Leads |
| Voltage | 120 to 480V AC |
| Amps | 15 A |
| Outside Dia. | 2.55 in |
| Power Contacts Rating | 480 V max, 15 A max |
| Operating Temperature Min | -40°C |
| CSA Certification | CSA C22 No. M1986 |
| Power Contacts Material | Brass/Phosphor Bronze |
| Product Height | 1.52 in, 38.6 mm |
| Base Material | Phenolic |
| Gasket | (Integrated) Thermal Elastomer |
| Packaging Applications | Parking Lots; Landscape Lighting; Exterior Lighting; Pedestrian Pathway Lighting; Street Lighting |
| Wire Leads | #14 AWG, 105°C, AWM3321 |
| Product Diameter | 2.55 in, 64.7 mm |
| Operating Temperature Max | 176°C |
| Operating Temperature Max (°F) | 176 |
| Product Height (in) | 1.52 |
| UL Standard | UL 772 |
| Features | NEMA receptacle with 3-prong sockets; Compliant to ANSI C136.10 specifications |
| Operating Temperature Min (°F) | -40 |
| Package Quantity | 1 |
