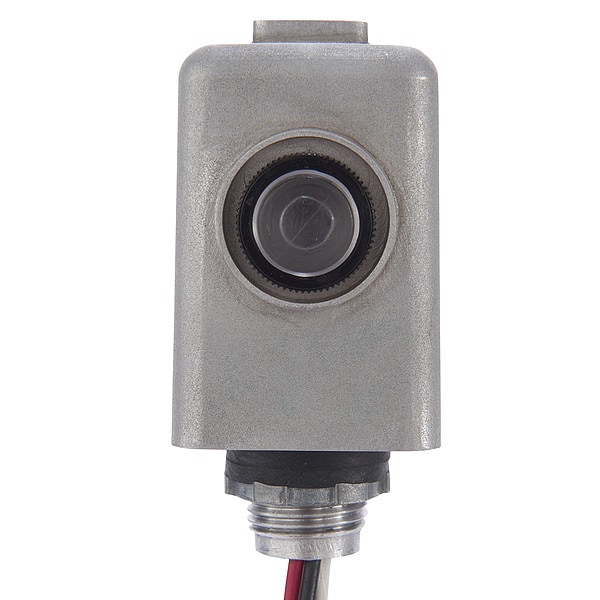

Fotocelda, 208 a 277VCA, 3100 a 4150W
| Item | Photocontrol |
|---|---|
| Mounting | Stem |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Voltage | 208 to 277V AC |
| Max. Wattage | 4,150 |
| Max. Incandescent Amps | 15 A |
| Max. Ballast Amps | 8.3 A |
| Foot Candles On | 1.0 to 5.0 |
| Foot Candles Off | 3 to 15 |
| Color | Gray |
| Temp. Range | -40 to 158 deg F |
| Depth | 1-9/16 in |
| Description/Special Features | Built-In Delay to Prevent Unwanted OFF Switching |
| Setting | Dusk to Dawn |
| Contact Form | SPST |
| Enclosure Type | Raintight |
| Includes | Locking Nut, Washer Gasket |
| Width | 1-9/16 in |
| Housing Material | Die-Cast |
| Manufacturers Warranty Length | 2 yr |
| Length | 3 in |
| Standards | CSA, UL |
| Length (Straight Wireway) | 3 in |
| Operating Temperature Min | -40 °C |
| Other Certifications | Title 20 |
| Wire Lead Length | 9 in, 228.6 mm |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Wiring Option | Wire leads |
| Expected Lifetime Operations | 3,650 |
| Fail Mode | ON |
| Market | Commercial, Industrial, Residential |
| Photocontrol Style | Stem Mount |
| Activation On | 1 to 5 fc |
| Usage Environments | Outdoor |
| Product Width | 1-9/16 in, 39.7 mm |
| Photocontrol Type | Thermal |
| CSA Certification | CSA |
| Magnetic Ballast Load Ratings Ranges | 8.3 A, 1700-2300 VA |
| Product Height | 3 in, 76.2 mm |
| Solutions | Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators |
| Cover Color | Gray |
| Expected Lifetime Years | 5 |
| Tungsten Load Ratings Ranges | 15 A, 3100-4150 W |
| Packaging Applications | Exterior Lighting, Landscape Lighting, Street Lighting, Pedestrian Pathway Lighting, Parking Lot Lighting |
| Product Depth | 1-9/16 in, 39.7 mm |
| Sensor Time Delay | 30 to 90 sec |
| Tungsten Load Ratings | 15 A, 3100-4150 W |
| Activation Off | 3 to 15 fc |
| Wire Size Max | #18 AWG |
| Operating Temperature Max | 158°C |
| Photocontrol Switch Type | Mechanical Bimetal |
| Applications | Outdoor Lighting Control |
| Magnetic Ballast Load Ratings | 8.3 A, 1700-2300 VA |
| Application Compatibilities | HID, Incandescent, Fluorescent |
| UL Certification | UL |
| Photocontrol Sensor Location | Side |
| Input Voltage Ranges | 208-277 VAC, 50/60 Hz |
| Operating Temperature Min (°F) | -40 |
| Product Width (in) | 1.5625 |
| Photocell Type | Cadmium Sulfide |
| Features | Mechanical bimetal switch with Cadmium Sulfide photocell; Delay feature prevents unwanted OFF switching; Die-cast metal housing; 1â„2"-14 NPSM threaded stem; Washer gasket and locking nut included; #18 AWG, 9" wire leads |
| Magnetic Ballast Range(s) | 8.3 A, 1700-2300 VA |
| Input Voltage Range(s) | 208-277 VAC, 50/60 Hz |
| Magnetic Ballast (NO) | 8.3 A, 1700-2300 VA |
| Photo Control Switch Type | Mechanical Bimetal |
| Tungsten (NO) | 15 A, 3100-4150 W |
| Tungsten Range(s) | 15 A, 3100-4150 W |
| Product Height (in) | 3 |
| Product Depth (in) | 1.5625 |
| Operating Temperature Max (°F) | 158 |
| Operating Temperature Max (°F) | 158 |
| Operating Temperature Min (°F) | -40 |
| Package Quantity | 1 |
