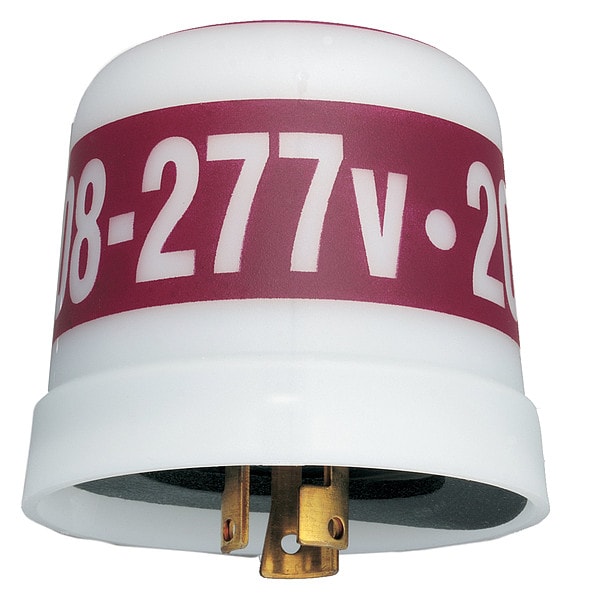

Fotocontrol, Twist Lock, 208 a 277VCA
| Item | Photocontrol |
|---|---|
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Mounting | Turn-Lock |
| Voltage | 208 to 277V AC |
| Max. Wattage | 4,155 |
| Max. Incandescent Amps | 15 A |
| Max. Ballast Amps | 8.3 A |
| Foot Candles On | 0.5 |
| Foot Candles Off | 15 |
| Color | Translucent, Red |
| Temp. Range | -20 to 104 deg F |
| Width | 3 in |
| Manufacturers Warranty Length | 2 yr |
| Setting | Dusk to Dawn |
| Description/Special Features | 2400 Volt Open Type Spark Gap Arrester, UV Protection Keeps Moisture Out And Esnures Long Life |
| Depth | 3 in |
| Length | 2-3/4 in |
| Contact Form | SPST |
| Housing Material | Polypropylene |
| Standards | ANSI C136.10 |
| Enclosure Type | Raintight |
| Length (Straight Wireway) | 2-3/4 in |
| CSA Certification | cCSAus |
| Photocontrol Style | Locking type |
| Operating Temperature Max | 158 °C |
| Activation Off | 15 fc |
| Market | Commercial, Industrial, Utility |
| Photocontrol Sensor Location | Side |
| Photocontrol Switch Type | Mechanical Bimetal |
| Expected Lifetime Years | 5 |
| Tungsten Load Ratings | 15 A, 3100-4150 W |
| Usage Environments | Outdoor |
| Activation On | 5 fc |
| UL Certification | UL |
| Magnetic Ballast Load Ratings Ranges | 8.3 A, 1700-2300 VA |
| Photocontrol Type | Thermal |
| Product Height | 2-3/4 in, 69.9 mm |
| Operating Temperature Min | -40 °C |
| Tungsten Load Ratings Ranges | 15 A, 3100-4150 W |
| Magnetic Ballast Load Ratings | 8.3 A, 1700-2300 VA |
| Applications | Outdoor Lighting Control |
| Cover Color | White with Band |
| Input Voltage Ranges | 208-277 VAC, 50/60 Hz |
| Expected Lifetime Operations | 3,650 |
| Product Diameter | 3 in, 76.2 mm |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Other Certifications | Title 20, Ansi C136.10 |
| Surge Protection Technology | Spark Gap Surge Arrestor |
| Sensor Time Delay | 30 to 90 sec |
| Packaging Applications | Exterior Lighting, Landscape Lighting, Street Lighting, Pedestrian Pathway Lighting, Parking Lot |
| Fail Mode | ON |
| Solutions | Lighting Control; Panel Integrators |
| Application Compatibilities | HID, Incandescent |
| Operating Temperature Max (°F) | 158 |
| Tungsten (NO) | 15 A, 3100-4150 W |
| Features | Mechanical bimetal switch with Cadmium Sulfide photocell; Integral high impact thermoplastic housing; Locking type plug for quick installation and changeover; Delay feature prevents unwanted OFF switching; Complies with ANSI C136.10 standard; Tested to 3,650 ON/OFF cycles |
| Operating Temperature Min (°F) | -40 |
| Tungsten Range(s) | 15 A, 3100-4150 W |
| Magnetic Ballast (NO) | 8.3 A, 1700-2300 VA |
| Photo Control Switch Type | Mechanical Bimetal |
| Photocell Type | Cadmium Sulfide |
| Magnetic Ballast Range(s) | 8.3 A, 1700-2300 VA |
| Input Voltage Range(s) | 208-277 VAC, 50/60 Hz |
| Product Height (in) | 2.75 |
| Package Quantity | 1 |
