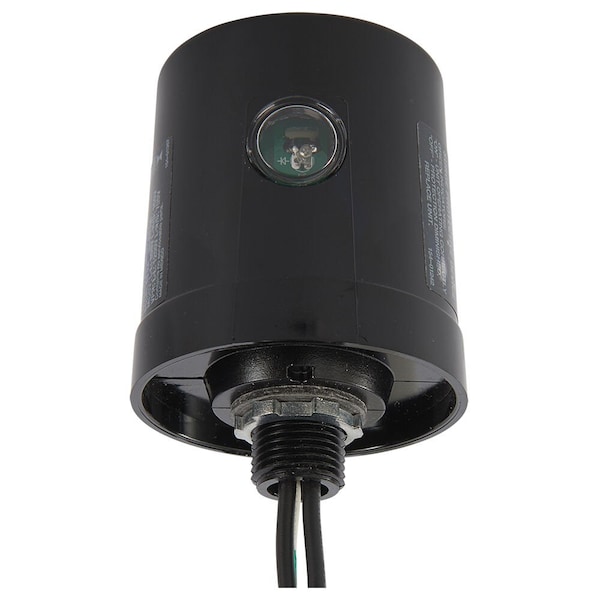

Surge Protection Device, 1 Phase, 120/240V, 3 Wires, 50 kA
| Item | Surge Protection Device |
|---|---|
| Phase | 1 |
| Voltage | 120/240V |
| Voltage Protection Rating | 1200V (L-L), 700V (L-G, N-G) |
| Number of Wires | 3 Wires |
| Max. Surge Current per Mode | 50 kA |
| Max. Surge Current per Phase | 50 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 50 kA |
| Enclosure NEMA Rating | NEMA 4X |
| Depth | 4-3/16 in |
| Features | Six modes of protection; TPMOV® surge protection technology; Green LED protection indicator; Type 4X watertight, plastic enclosure for outdoor installations; UV-resistant polycarbonate housing; 1â„2" threaded nipple for 7â„8" nominal conduit knockout; 1-year product warranty; CSA certified to ANSI/UL 1449 5th edition |
| Includes Surge Counter | No |
| Wire Lead Length | 18 in; 457.2 mm |
| Units Per Pallet | 720 |
| Maximum Continuous Operating Voltage LN | 150 |
| Market | Commercial; Industrial; Residential |
| UL Certification | UL |
| Product Diameter | 3 in; 76.2 mm |
| Surge Protection Technology | TPMOV® |
| CSA Certification | CSA; cCSAus; cCSAus SPD Type 1; cCSAus SPD Type 2 |
| Solutions | Surge Protection |
| Applications | Distribution Panel; Service Entrance |
| Voltage Protection Rating LG | 700 |
| Maximum Continuous Operating Voltage LL | 300 |
| LED Surge Protection Indicator | Green |
| Wiring Option | Wire leads |
| Maximum Continuous Operating Voltage L1 L2 | 300 |
| Operating Temperature Min | -31°C |
| Operating Temperature Max | 185°C |
| Modes Of Protection | 3 |
| Surge Protection Types | 1; 2 |
| Wire Size Max | #12 AWG |
| Maximum Continuous Operating Voltage LG | 150 |
| Packaging Applications | Light Commercial; Outdoor Applications; 3-Phase Rooftop HVAC Units |
| Surge Protection LED Indicator | Green |
| Operating Temperature Min (°F) | -31 |
| Operating Temperature Max (°F) | 185 |
| Surge Protection Type | 1, 2 |
| Maximum Continuous Operating Voltage (L-G) | 150 |
| Maximum Continuous Operating Voltage (L-L) | 300 |
| UL Standard | ANSI/UL 1449 5th Edition |
| Maximum Continuous Operating Voltage (L1-L2) | 300 |
| Maximum Continuous Operating Voltage (L-N) | 150 |
| Operating Temperature Max (°F) | 185 |
| Operating Temperature Min (°F) | -31 |
| Package Quantity | 1 |
