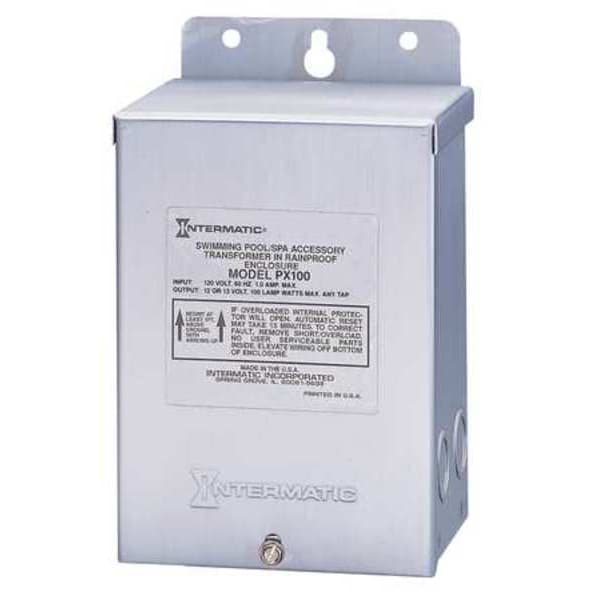

Transformer, NEMA 3R, 12/13/14V AC, 120V AC
| Item | Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Hz - Electrical | 60 |
| IP Rating | Not Applicable |
| Color | Silver |
| Height | 7-1/4 in |
| Standards | cCSAus, NEC Code 680.23 |
| Width | 5-1/4 in |
| Max. Wattage | 100 W |
| Enclosure Material | Stainless Steel |
| Depth | 4-1/2 in |
| Manufacturers Warranty Length | 1 yr |
| Output Voltage - Transformer | 12/13/14V AC |
| Enclosure Rating | NEMA 3R |
| Amps | 1 |
| Knockout Size - Transformer | Ten combination of 1/2"-3/4" knockouts: (2) back, (4) bottom, (2) left, (2) right |
| Maximum Power Consumption (W) | 100 W |
| Applications | Landscape Lighting Underwater Lighting |
| Features | Mounting brackets on the top and bottom; Built-in circuit protection disconnects power temporarily in case of overload; Complies with NEC Code 680.23 requirements forunderwater luminaries |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
