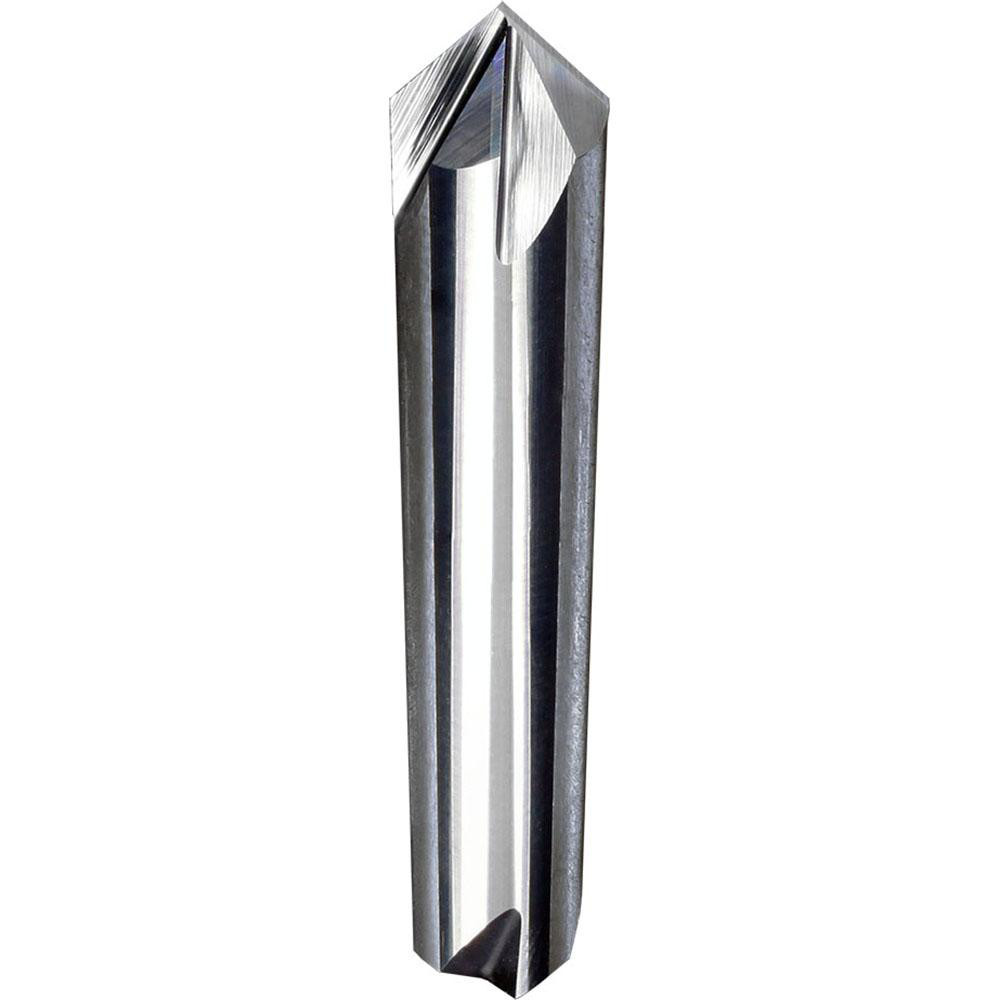

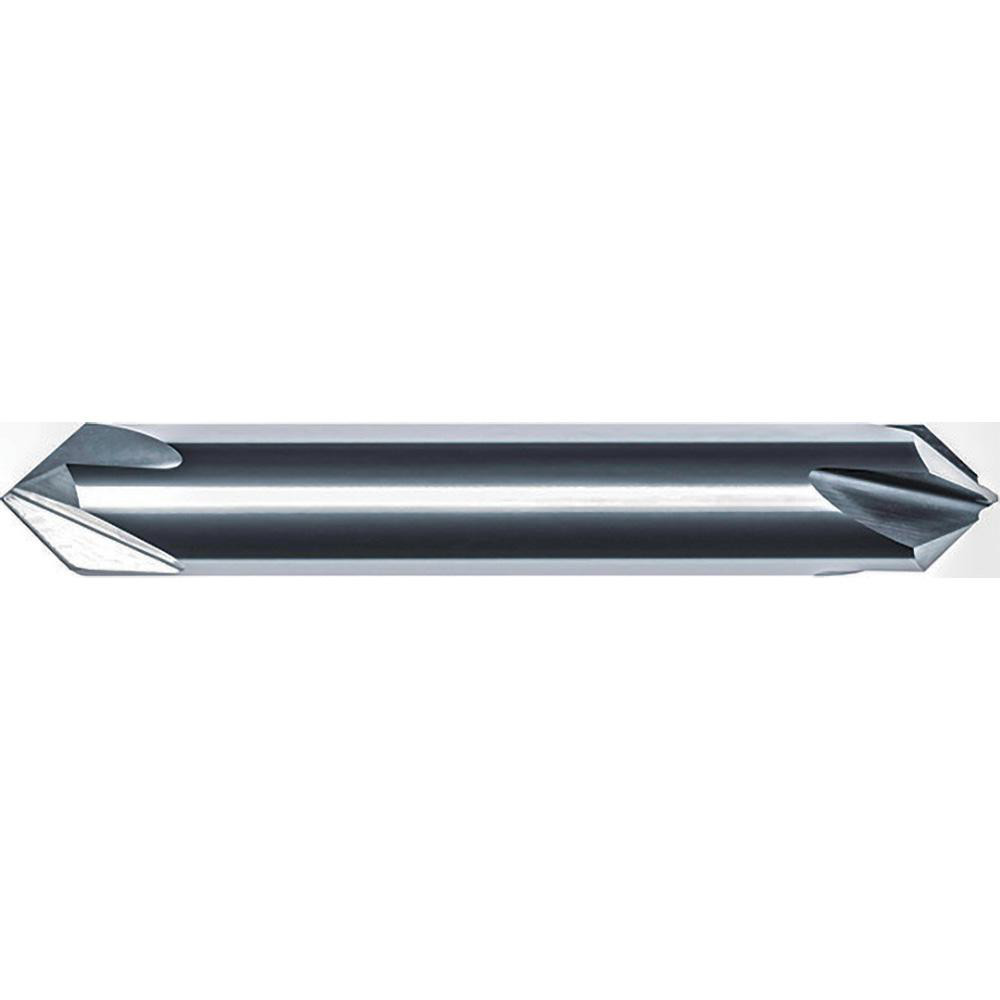

2-1/2" OAL, Bright/Uncoated
| Included Angle | 120 |
|---|---|
| Chamfer Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Cutter Head Diameter (Fractional Inch) | 3/16 |
| Cutter Head Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 4 |
| End Type | Double |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0500 |
| Overall Length (Inch) | 2-1/2 |
| Shank Length (Decimal Inch) | 2.4000 |
| Tool Application | Chamfering; Countersinking |
| Cutting Direction | Right Hand |
| Series | 64 |
| Tapered | No |
| Coolant Through | No |
| Material Application | Bronze; Low-Carbon Steel; Monel; Aluminum; Brass; Aluminum Alloy; Iron; Plastic; Nickel Base Alloy; Medium-Carbon Steel; Steel; Molybdenum; High-Nickel Steel; Magnesium Alloy; Stainless Steel; Cast Iron; Titanium; Magnesium; Copper; Copper Alloy |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 75823823 |
