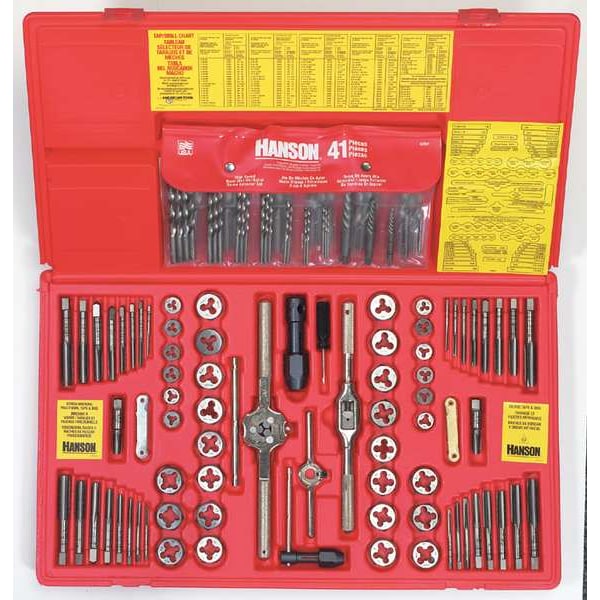

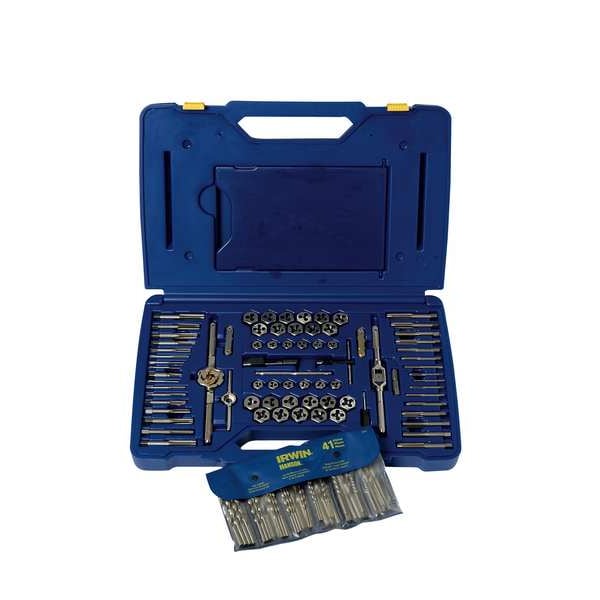

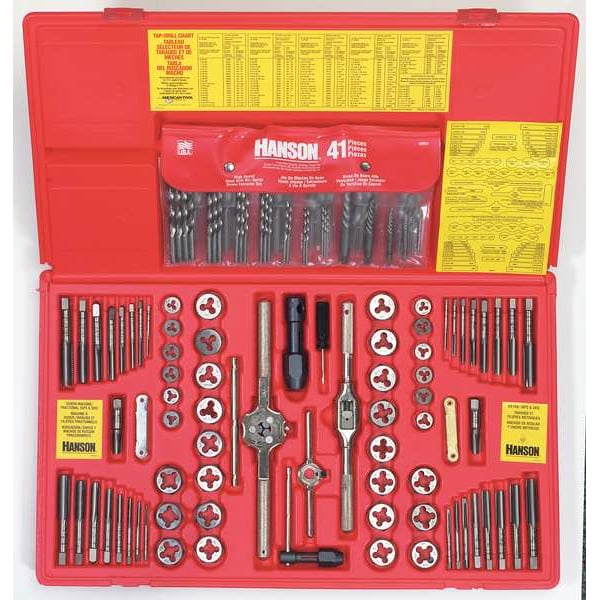

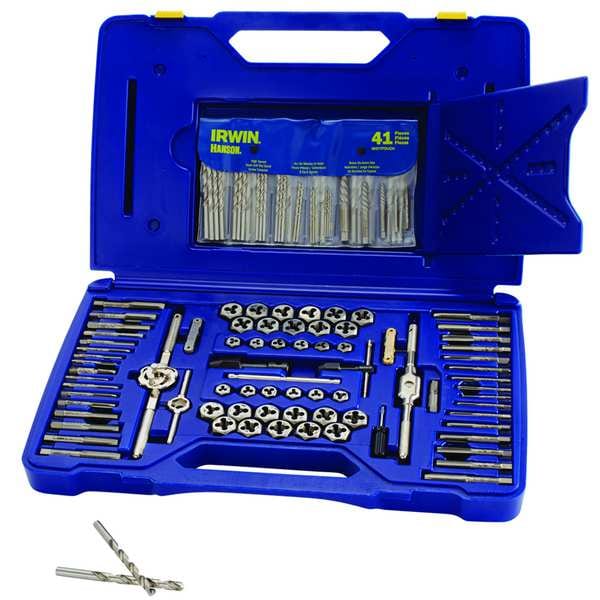

Drill Bit, Tap, and Die Set, 117 Pieces, 36 Drills, 34 Taps, 34 Dies in Set, Hex, High Carbon Steel
| Item | Drill Bit, Tap, and Die Set |
|---|---|
| Sizes Included | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, M3x0.5, M4x0.7, M4x0.75, M5x0.8, M5x0.9, M6x1, M7x1, M8x1, M8x1.25, M9x1, M9x1.25, M10x1.25, M10x1.5, M11x1.5, M12x1.5, M12x1.75, 1/8"-27 NPT, 1/8"-28 BSP |
| Number of Pieces | 117 |
| Material | Carbon Steel |
| Thread Direction | Right Hand |
| Finish | Plain |
| Cutting Sizes | 34 |
| Thread Type | NC, NPT, NF, Metric, BSP |
| Tap Chamfer | Plug |
| Die Shape | Hex |
| Tap Wrench Number | 12450, 12473, 311088 |
| SAE or Metric | SAE, Metric |
| Size Range | 4 to 1/2" to M12, M3 |
| Tap Dimension Type | Inch, Machine, Metric |
| Die Material | Carbon Steel |
| Includes | Adjustable/Nonadjustable T-Handle Tap Wrench, Adjustable and Plain Die Stock, 2-in-1 Tap Wrench, 16 Leaf Metric Thread Gauge, 18 Leaf Standard Thread Gauge, Plastic Case |
| Tap Material | High Speed Steel |
| Size/Range | #4 to 1/2", M3 to M12, 1/8" NPT, 1/8" BSP |
| Standards | Taps and Dies Meet ASME/ANSI B94.9-1987, Drills Meet ASME/ANSI B94.11M-1979 |
| Die Type | Solid |
| Max. Tap Thread Size | 3/8"-16 |
| Threads per Inch | 13, 14, 16, 18, 20, 24, 27, 28, 32, 40 |
| Drill Bit Material | Carbon Steel |
| Drill Sizes | #16, #19, #20, #21, #25, #29, #3, #30, #36, #39, #43, #7, #9, 0, 1/4 in, 13/32 in, 19/64 in, 21/64 in, 25/64 in, 27/64 in, 29/64 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/64 in, B, F, H, J, l, Q, R, S, U, Z |
| Number Of Drills | 36 |
| Number of Dies in Set | 34 |
| Case Type | Plastic |
| Dimensions Standard | Fractional Inch, Metric, Machine |
| Smallest Thread Size | #4-40 |
| Drill Bit Dia. Included | #0, #16, #19, #20, #21, #25, #29, #3, #30, #36, #39, #43, #7, #9, 1/4 in, 13/32 in, 19/64 in, 21/64 in, 25/64 in, 27/64 in, 29/64 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/64 in, B, F, H, J, l, Q, R, S, U, Z |
| Largest Drill Bit Dia. | U |
| Die Thread Sizes Included | #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6- 32 NC, #8-32 NC, 1/2"-13 NC, 1/2"-20 NF, 1/4"-20 NC, 1/4"-28 NF, 1/8"-27 NPT, 1/8"-28 BSP, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 7/16"-14 NC, 7/16"-24 NF, M10x1.25, M10x1.50, M11x1.50, M12x1.50, M12x1.75, M3x0.50, M4x0.70, M4x0.75, M5x0.80, M5x0.90, M6x1.00, M7x1.00, M8x1.00, M8x1.25, M9x1.00, M9x1.25 |
| Max. Die Thread Size | 1/2"-20 |
| Die OD | 5/8 in, 1 in |
| Measurement System | Fractional Inch |
| Thread Pitch Included | 0.50mm, 0.70mm, 0.75mm, 0.80mm, 0.90mm, 1.00mm, 1.25mm, 1.50mm, 1.75mm |
| Thread Standard | NPT, Metric, BSP, NC, NF |
| Drill Bit Finish | Bright (Uncoated) |
| Number Of Taps | 34 |
| Largest Thread Size | 3/8"-16 |
| Tap Length Standard | ANSI |
| Tap Type | Straight Flute |
| Package Quantity | 1 |
