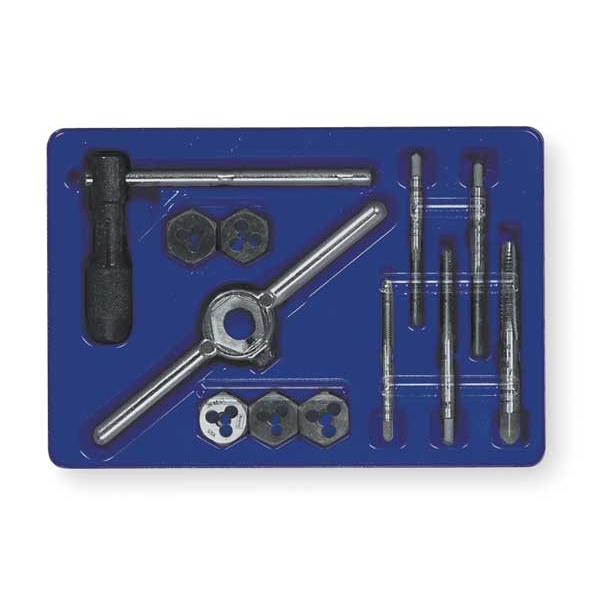

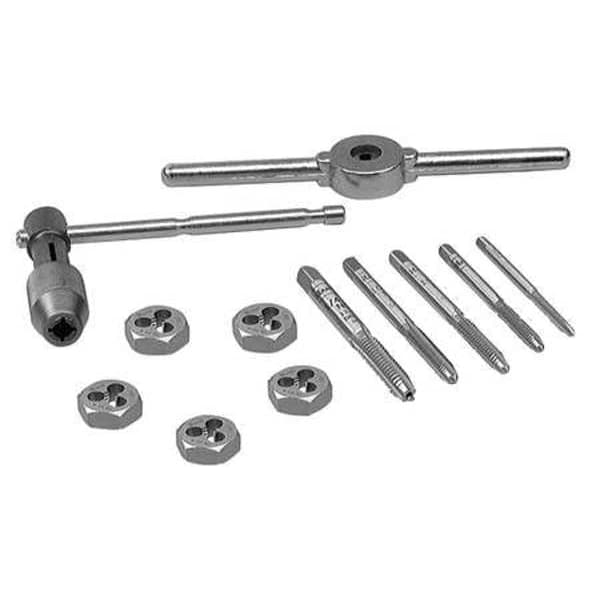

Tap and Die Set, 12 pc, High Carbon Steel
| Item | Tap and Die Set |
|---|---|
| Sizes Included | #6-32, #8-32, #10-24, #10-32, 1/4"-20 NPT |
| Number of Pieces | 12 |
| Material | Carbon Steel |
| Thread Direction | Right Hand |
| Type | Fractional |
| Tap Wrench Number | 12401 |
| Tap Chamfer | Plug |
| SAE or Metric | SAE |
| Tap Dimension Type | Inch, Machine |
| Standards | ASME/ANSI B94.9-1987 |
| Tap Material | High Speed Steel |
| Die Type | 5/8 in Hex |
| Size Range | #6 to #10 |
| Size/Range | #6 to #10, 1/4" NPT |
| Finish | Plain |
| Die Shape | Hex |
| Cutting Sizes | 5 |
| Includes | T-Handle Tap Wrench, Die Stock, Plastic Case |
| Die Material | High Speed Steel |
| Thread Type | NC, NF |
| Number of Flutes | 3, 4 |
| 75% Thread Drill Size | # 21, # 25, #36, # 7, 3.40mm |
| Threads per Inch | 20, 24, 32 |
| Measurement System | Fractional Inch, Wire |
| Tap Type | Straight Flute |
| Min. Bore Dia. | #10-32 NF |
| Number Of Taps | 5 |
| Die Finish | Bright (Uncoated) |
| 55% Thread Drill Size | # 21, # 3, # 32, 3.60mm, 4.25mm |
| Die Material Grade | Carbon Steel |
| Die Thread Sizes Included | #10-24 NC, #10-32 NF, #6-32 NC, #8-32 NC, 1/4"-20 NC |
| Max. Die Thread Size | 1/4"-20 |
| Helix Angle | 0 Degrees |
| Thread Sizes Included | #10-24, #10-32, #6-32, #8-32, 1/4"-20 |
| Max. Tap Thread Size | 1/4"-20 |
| Class of Fit | 2B |
| Tap Sizes Included | #10-24 NC, #10-32 NF, #6-32 NC, #8-32 NC, 1/4 in -20 NC |
| Drill Bit Size | #21, #25, #29, #36, #7 |
| Die Hex Size | 5/8 in |
| 65% Thread Drill Size | # 23, # 34, # 5, 3.50mm, 4.15mm |
| Material - Machining | High Speed Steel |
| Thread Standard | UNC, UNF |
| Tap Series | Hanson |
| Spiral Direction | Neutral |
| Number of Dies in Set | 5 |
| Min. Tap Thread Size | #10-32 |
| Die Series | Hanson |
| Package Quantity | 1 |
