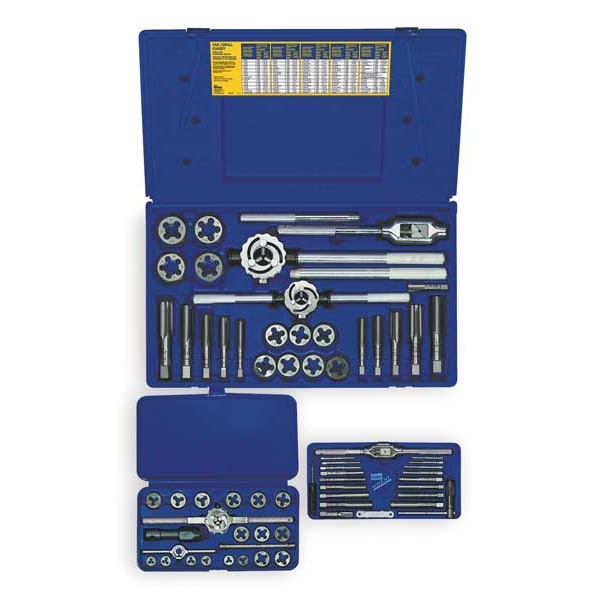

Tap and Die Set, 66 pc, High Carbon Steel
| Item | Tap and Die Set |
|---|---|
| Sizes Included | M3x0.5, M4x0.7, M4x0.75, M5x0.8, M5x0.9, M6x1, M7x1, M8x1, M8x1.25, M9x1, M9x1.25, M10x1.25, M10x1.5, M11x1.5, M12x1.5, M12x1.75, M14x1.25, M14x1.5, M14x2, M16x1.5, M16x2, M18x1.5, M18x2.5, M20x2.5, M22x1.5, M24x2, M24x3, 1/8"-28 NPT |
| Number of Pieces | 66 |
| Material | Carbon Steel |
| Thread Direction | Right Hand |
| Type | Metric |
| SAE or Metric | Metric |
| Die Shape | Hex |
| Thread Type | Metric, BSP |
| Size/Range | M3 to M24, 1/8" NPT |
| Size Range | M3 to M24 |
| Tap Wrench Number | 12450, 12473, 12498, 311088 |
| Includes | Adjustable/Nonadjustable T-Handle Tap Wrench, Adjustable and Plain Die Stock, 2-in-1 Tap Wrench, 16 Leaf Metric Thread Gauge, Plastic Case |
| Cutting Sizes | 28 |
| Die Material | High Speed Steel |
| Die Type | Adjustable |
| Tap Material | High Speed Steel |
| Finish | Plain |
| Tap Chamfer | Plug, Taper |
| Tap Dimension Type | Metric |
| Standards | ASME/ANSI B94.9-1987 |
| Features | 4-Flute Design Ensures Fast, Easy Chip Clearance |
| Number of Flutes | 4 |
| Number of Dies in Set | 27 |
| Threads per Inch | 28 |
| Case Type | Plastic |
| Min. Tap Thread Size | M3x0.5 |
| Max. Die Thread Size | M24x3 |
| 65% Thread Drill Size | #38, 1/2 in, 10.50mm, 11/32 in, 13/64 in, 14.70mm, 18.75mm, 21/32 in, 27/32 in, 27/64 in, 3.40mm, 31/64 in, 4.30mm, 45/64 in, 5/8 in, 7/8 in, 8.90mm, 9/16 in, 9/32 in, C, I |
| Min. Bore Dia. | M3 x 0.50 |
| Tap Series | Hanson |
| Thread Pitch | Metric Plug Tap and 1 in Hexagon Dies in sizes: 1.00mm, 1.00mm, 1.25mm, 1.00mm, 1.25mm, 1.25mm, 1.50mm, 1.50mm, 1.50mm, 1.75mm, Metric Plug Tap and 1-13/16 in Hexagon Dies in sizes: 2.50mm, 1.50mm, 2.00mm, 3.00mm, Metric Plug Tap and 1-7/16 in Hexagon Dies in sizes: 1.50mm, 2.00mm, 1.50mm, 2.00mm, 1.50mm, 2.50mm, Metric Plug Tap and 5/8 in Hexagon Dies in sizes: 0.50mm, 0.70mm, 0.75mm, 0.80mm, 0.90mm, 1.00mm |
| Material - Machining | High Speed Steel |
| Primary Material Application ISO Code | M, H, K, N, P, S |
| Measurement System | Metric |
| Thread Standard | Metric, BSP |
| Die Hex Size | 5/8 in, 1 in, 1-7/16 in, 1-13/16 in |
| Die Thread Sizes Included | M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00, M3 x 0.50, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25, Pipe: 1/8"- 28 BSP |
| Die Material Grade | Carbon Steel |
| Tap Sizes Included | M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00, M3 x 0.50, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25, Pipe: 1/8 in - 28 BSP |
| Number Of Taps | 27 |
| 75% Thread Drill Size | 10.30mm, 10.50mm, 11/32 in, 12.00mm, 12.50mm, 14.00mm, 14.50mm, 15.50mm, 16.50mm, 17.50mm, 2.50mm, 20.50mm, 22.00mm, 3.30mm, 4.20mm, 5.00mm, 53/64 in, 6.00mm, 7.00mm, 8.50mm, H |
| Drill Bit Size | #19, #20, #30, 11/16 in, 11/32 in, 12.0mm, 13.0mm, 13/32 in, 15/64 in, 17/64 in, 2.50mm, 21/32 in, 3/8 in, 35/64 in, 37/64 in, 5.0mm, 53/64 in, 7.0mm, 7/8 in, 8.0mm, 9.50mm, R |
| Primary Material Application | All Materials |
| Dimensions Standard | Metric |
| 55% Thread Drill Size | #37, 10.90mm, 12.50mm, 14.90mm, 16.90mm, 18.20mm, 20.90mm, 22.50mm, 27/64 in, 3.50mm, 4.40mm, 5.25mm, 55/64 in, 7.10mm, 8.90mm, 9.10mm, D |
| Max. Tap Thread Size | M24x3.00 |
| Thread Sizes Included | M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00, M3 x 0.50, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25, Pipe: 1/8"- 28 BSP |
| Package Quantity | 1 |
