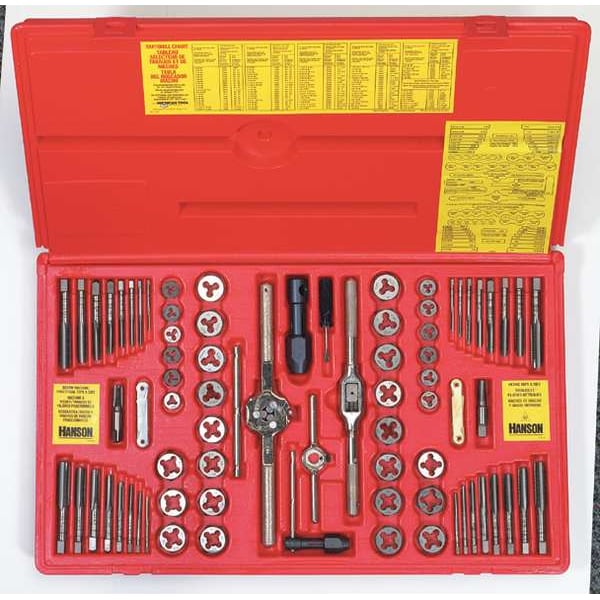

Tap and Die Set, 76 pc, High Carbon Steel
| Item | Tap and Die Set |
|---|---|
| Sizes Included | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, M3x0.5, M4x0.7, M4x0.75, M5x0.8, M5x0.9, M6x1, M7x1, M8x1, M8x1.25, M9x1, M9x1.25, M10x1.25, M10x1.5, M11x1.5, M12x1.5, M12x1.75, 1/8"-27 NPT, 1/8"-28 BSP |
| Number of Pieces | 76 |
| Material | Carbon Steel |
| Thread Direction | Right Hand |
| Type | Fractional, Metric |
| Size/Range | #4 to 1/2", M3 to M12, 1/8" NPT, 1/8" BSP |
| Tap Material | High Speed Steel |
| Finish | Plain |
| Includes | Adjustable/Nonadjustable T-Handle Tap Wrench, Adjustable and Plain Die Stock, 2-in-1 Tap Wrench, 16 Leaf Metric Thread Gauge, 18 Leaf Standard Thread Gauge, Plastic Case |
| Cutting Sizes | 34 |
| Tap Dimension Type | Inch, Machine, Metric |
| Die Shape | Hex |
| Tap Chamfer | Plug |
| Standards | ASME/ANSI B94.9-1987 |
| SAE or Metric | SAE, Metric |
| Die Type | Solid |
| Size Range | 4 to 1/2" to M12, M3 |
| Thread Type | NC, NPT, NF, Metric, BSP |
| Die Material | High Speed Steel |
| Tap Wrench Number | 12450, 12473, 311088 |
| Number of Flutes | 3, 4 |
| Min. Tap Thread Size | #4-40 |
| 65% Thread Drill Size | # 24, # 34, # 38, #23, #5, 10.00mm, 10.50mm, 11.00mm, 11.60mm, 11/32 in, 13/64 in, 17/64 in, 2.30mm, 27/64 in, 3.40mm, 3.50mm, 4.15mm, 4.30mm, 4.60mm, 7/32 in, 8.90mm, 9/32 in, C, I, J, P, R, V |
| Tap Series | Hanson |
| Thread Standard | NPT, Metric, BSP, NC, NF |
| Tap Type | Straight Flute |
| Material - Machining | High Speed Steel |
| Tap Sizes Included | #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 1/8 in - 27, 1/8"-27, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20, M 7 x 1.00, M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M3 x 0.50, M4 x 0.70, M4 x 0.75, M4 x 0.80, M5 x 0.90, M6 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25 |
| 55% Thread Drill Size | # 13, # 32, # 37, #21, #3, 10.20mm, 10.90mm, 11.30mm, 11.80mm, 11/32 in, 27/64 in, 3.50mm, 3.60mm, 3/32 in, 4.25mm, 4.40mm, 5.25mm, 5.70mm, 5/32 in, 7.10mm, 7.25mm, 8.40mm, 8.90mm, 9.10mm, 9/32 in, D, I, W |
| 75% Thread Drill Size | # 25, #36, #21, #25, #7, 10.30mm, 10.50mm, 11.40mm, 11/32 in, 2.20mm, 2.50mm, 27/64 in, 3.30mm, 3.40mm, 4.20mm, 4.45mm, 5.00mm, 5.45mm, 5/16 in, 6.00mm, 7.00mm, 8.50mm, 9.95mm, F, H, I, U |
| Number Of Taps | 34 |
| Die Material Grade | Carbon Steel |
| Min. Bore Dia. | #4 - 40 NC |
| Case Type | Plastic |
| Number of Dies in Set | 34 |
| Max. Die Thread Size | 1/2"-20 |
| Die Thread Sizes Included | #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 1/8"- 27, 1/8"-27, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20, M 7 x 1.00, M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M3 x 0.50, M4 x 0.70, M4 x 0.75, M4 x 0.80, M5 x 0.90, M6 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25 |
| Thread Sizes Included | #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 1/8"-27, 1/8"-28, 10mm-1.25, 10mm-1.50, 11mm-1.50, 12mm-1.50, 12mm-1.75, 3/8"-16, 3/8"-24, 3mm-0.50, 4mm-0.70, 4mm-0.75, 5/16"-18, 5/16"-24, 5mm-0.90, 6mm-1.00, 7/16"-14, 7/16"-20, 7mm-1.00, 8mm-1.00, 8mm-1.25, 9mm-1.00, 9mm-1.25, mm-0.80 |
| Max. Tap Thread Size | 1/2"-20 |
| Spiral Direction | Neutral |
| Die Hex Size | 5/8 in |
| Helix Angle | 0 Degrees |
| Drill Bit Size | #16, #19, #20, #21, #25, #29, #3, #30, #36, #39, #43, #7, #9, 1/4 in, 13/32 in, 19/64 in, 21/64 in, 25/64 in, 27/64 in, 29/64 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/64 in, B, F, H, I, J, O, Q, R, S, U, Z |
| Package Quantity | 1 |
