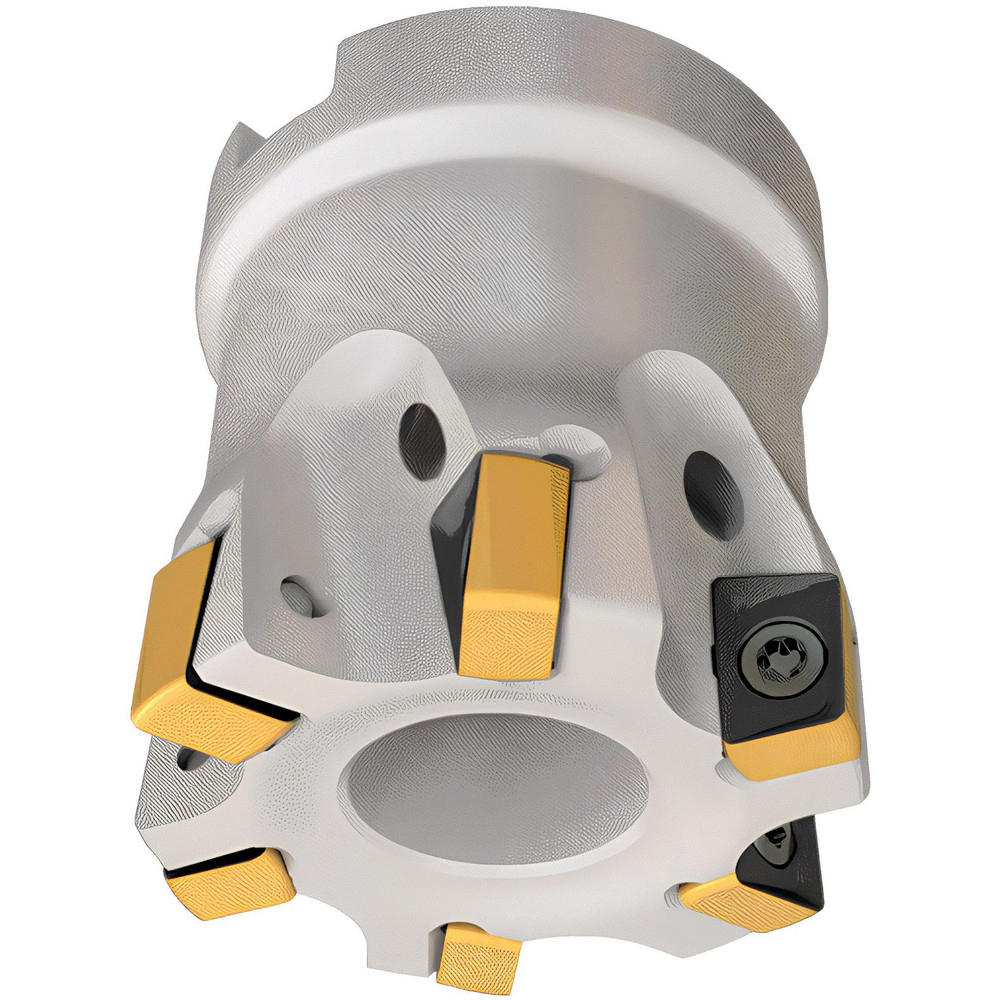

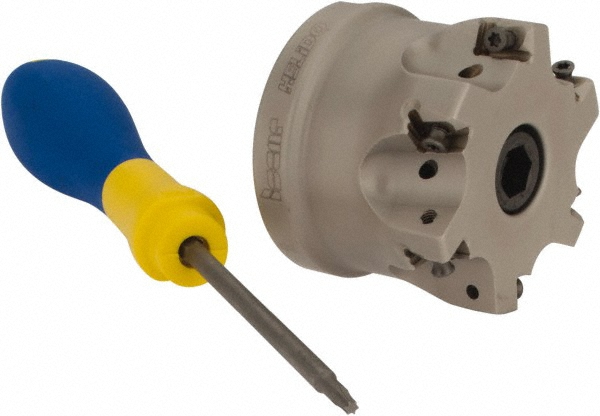

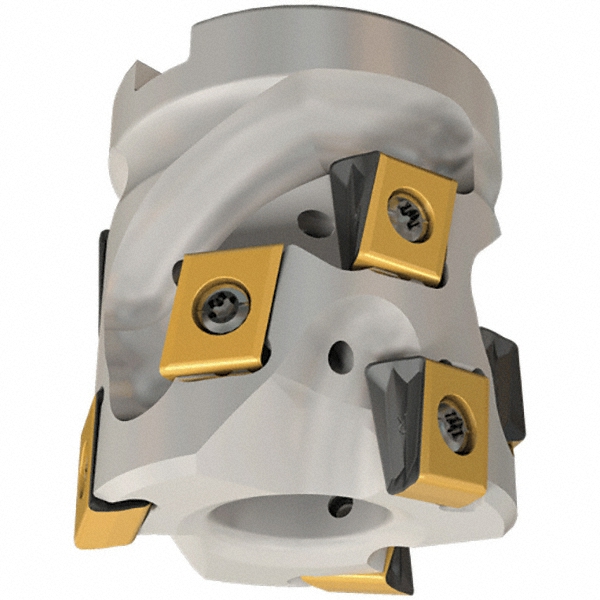

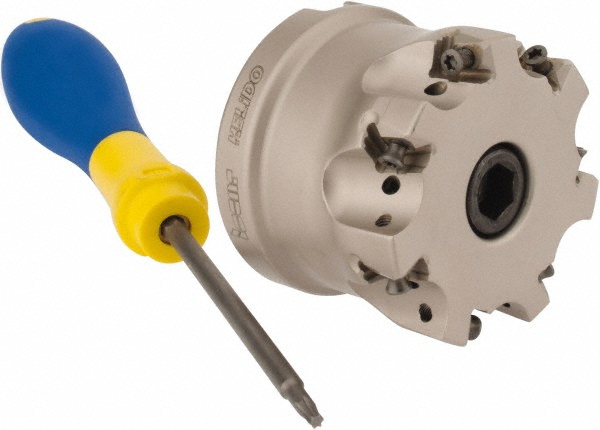

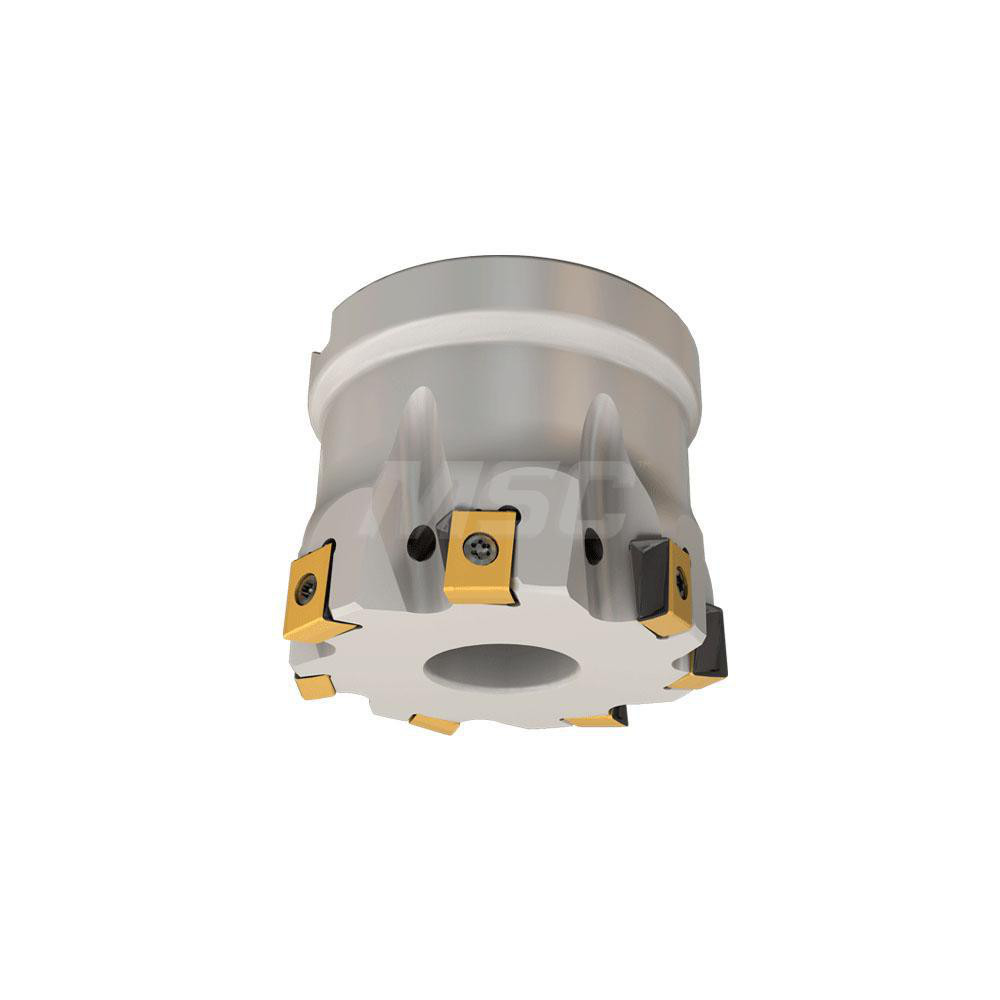

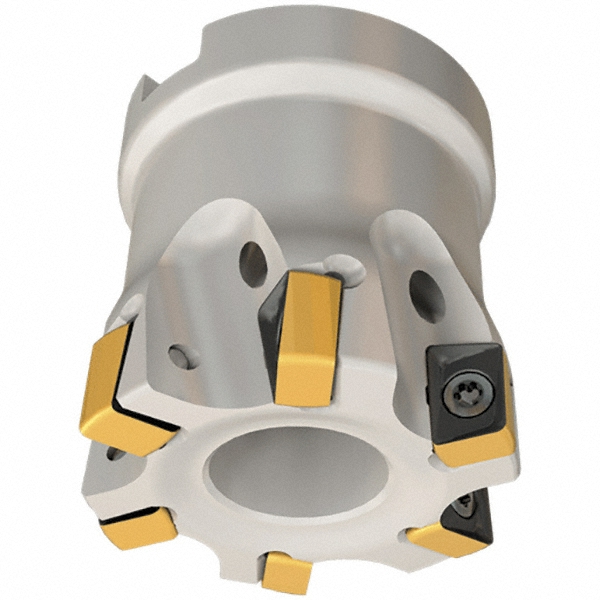

Takes 5 Inserts, 0/90° Lead Angle, 1.57" High, H490 AN.X 09 Insert Style, Through Coolant, Series Helido

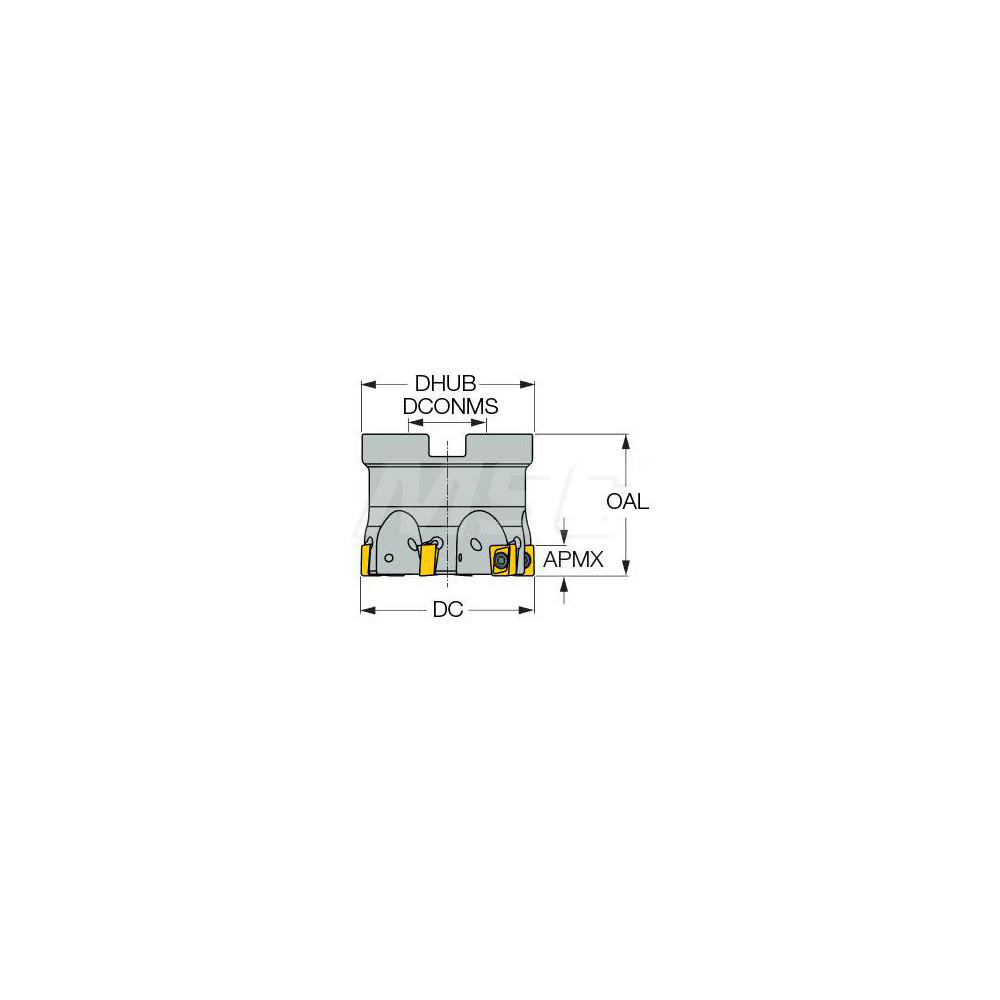

| Maximum Cutting Diameter (Inch) | 1-1/2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | H490 AN.X09 |
| Cutter Style | H490 F90AX-09 |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Helido |
| Overall Height (Decimal Inch) | 1.5700 |
| Hub Diameter (Decimal Inch) | 1.4400 |
| Standards | ISO |
| Cutting Edge Length (Decimal Inch) | 0.3150 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | H490 ANKX/ANCX-09; H490 ANKX 0904-FF |
| UNSPSC Code | 27112803 |

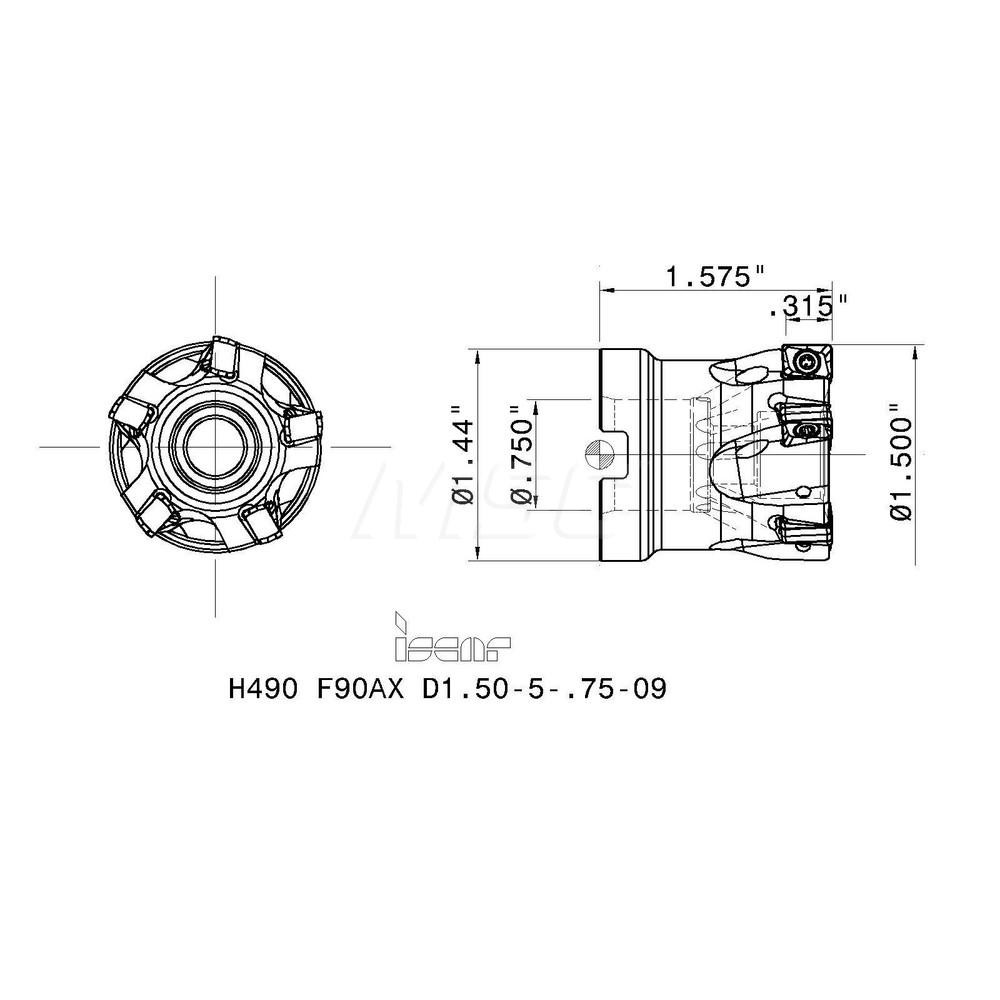

| Manufacturers Catalog Number | H490 F90AX D1.50-5-.75-09 |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Israel |
| MSC Number | MSC# 40859977 |
