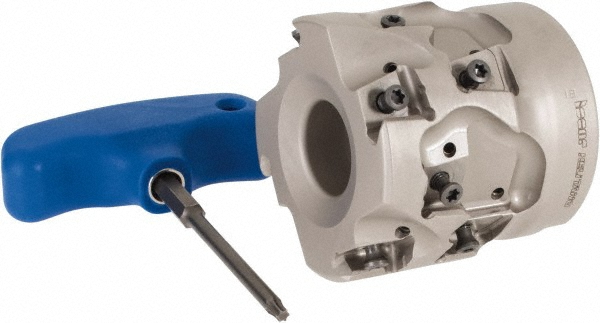

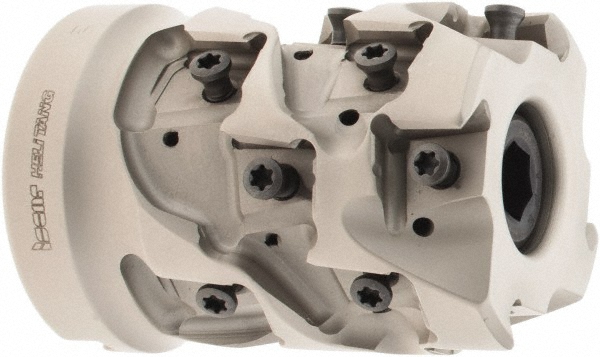

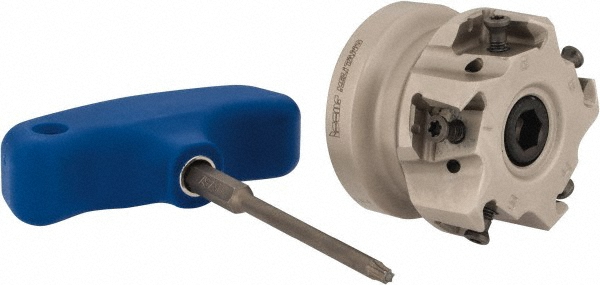

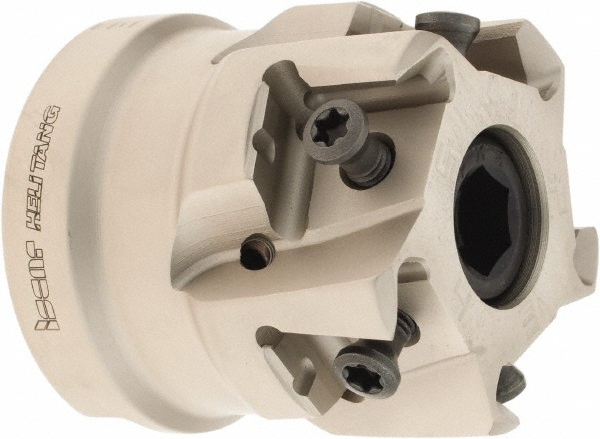

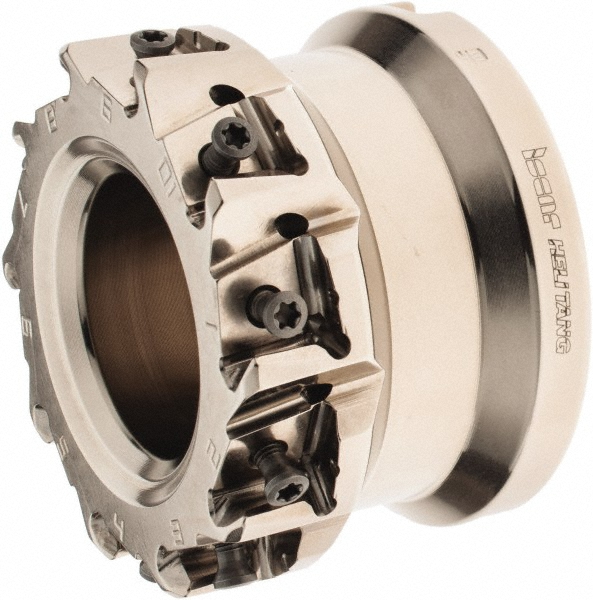

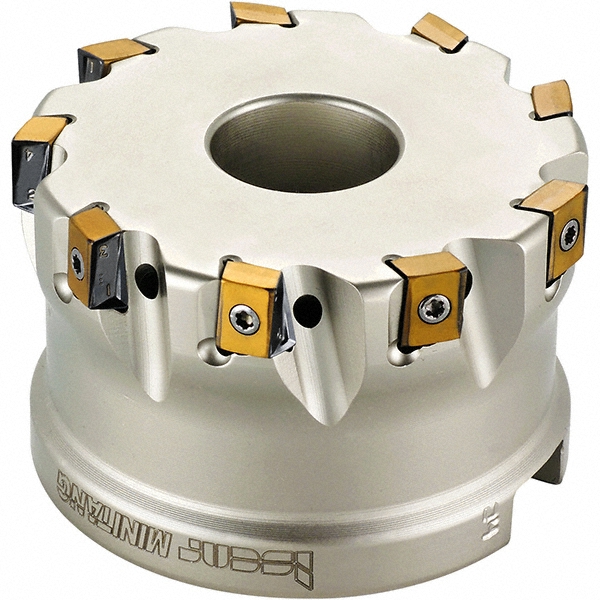

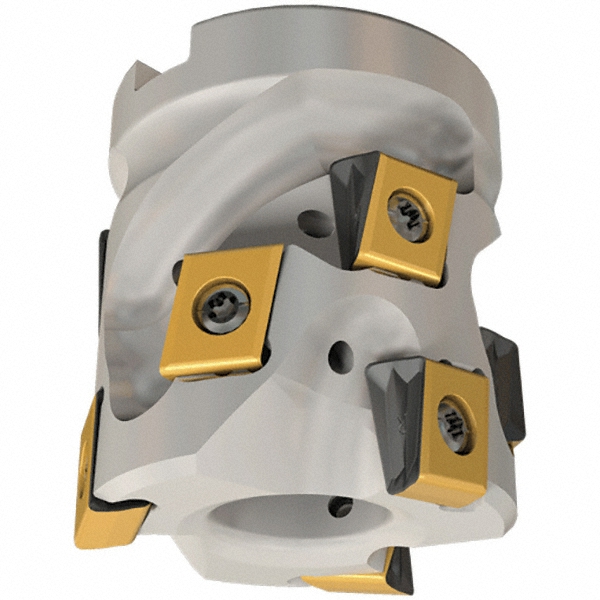

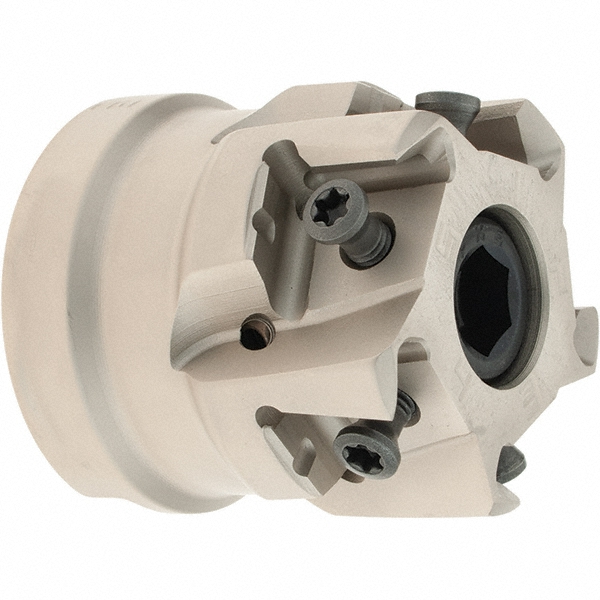

Takes 6 Inserts, 0/90° Lead Angle, 2.44" High, T490 LN.. 1306 Insert Style, Through Coolant, Series Helitang

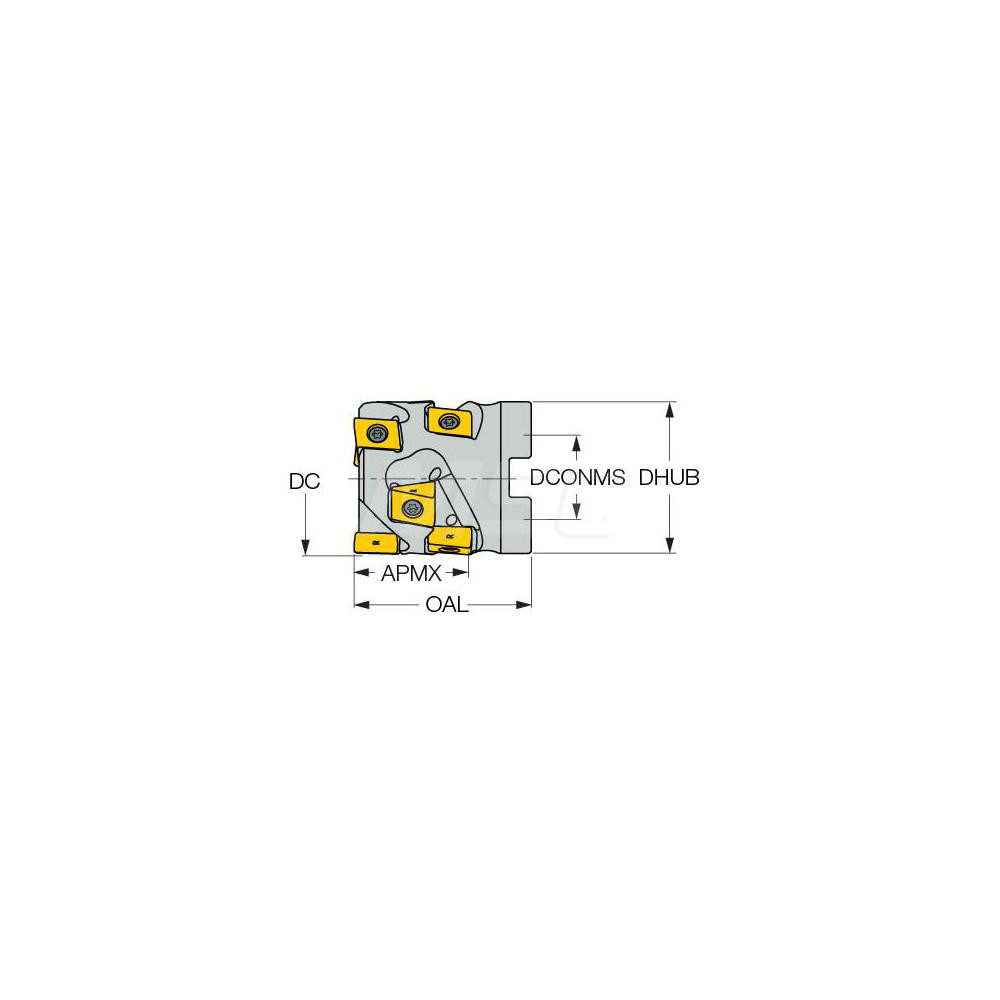

| Maximum Cutting Diameter (Inch) | 1-1/2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.4300 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | T490 LN 1306 |
| Cutter Style | T490 SM-13 |

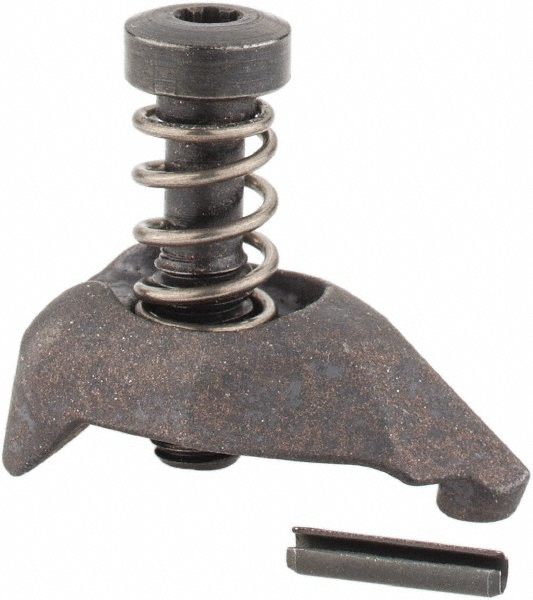

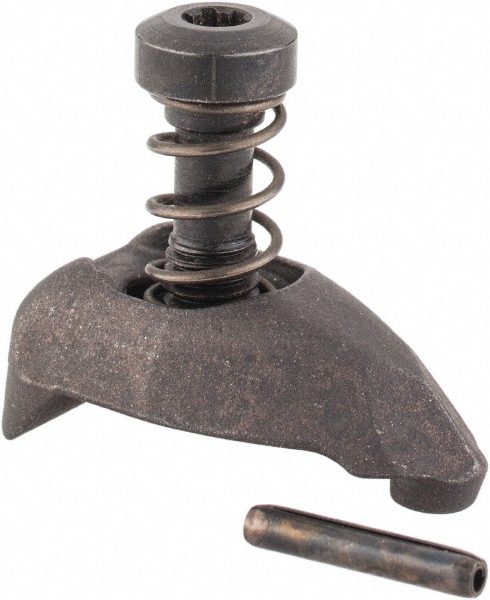

| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Helitang |

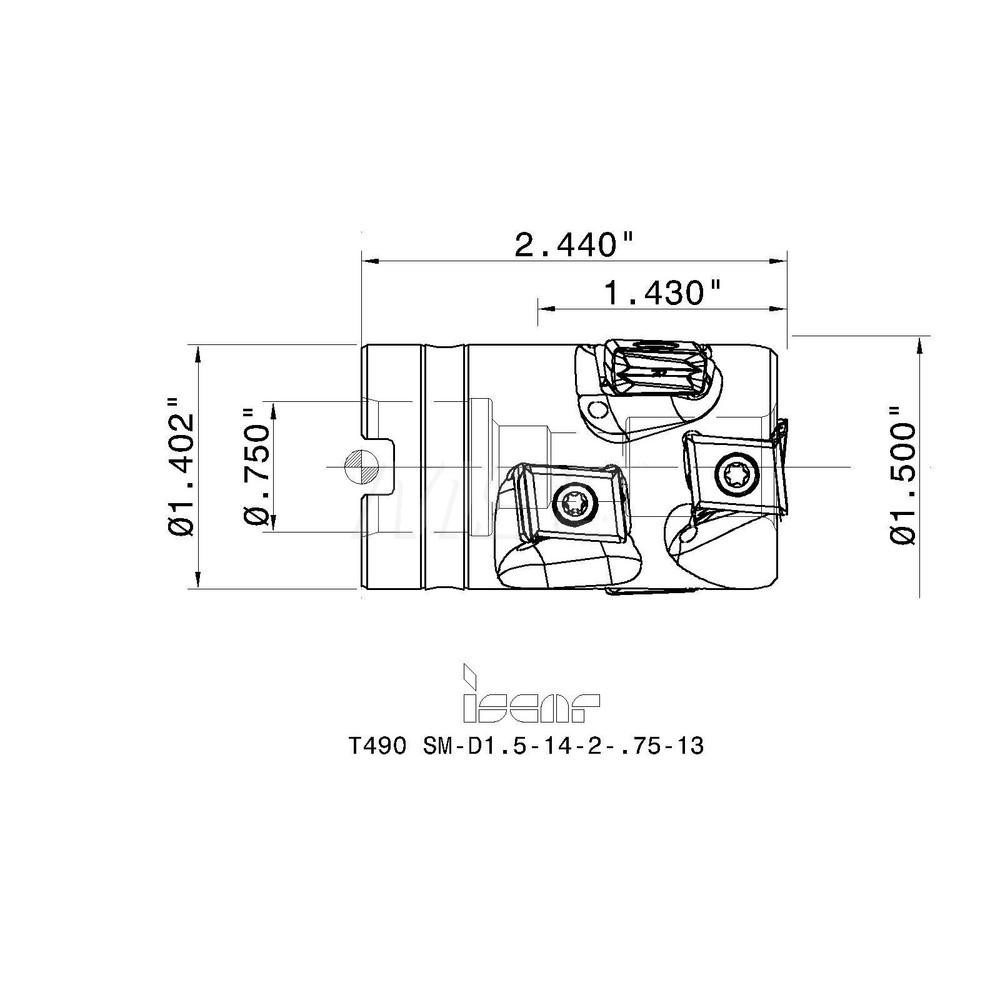

| Overall Height (Decimal Inch) | 2.4400 |
| Hub Diameter (Decimal Inch) | 1.4000 |
| Standards | ISO |
| Cutting Edge Length (Decimal Inch) | 1.4300 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |

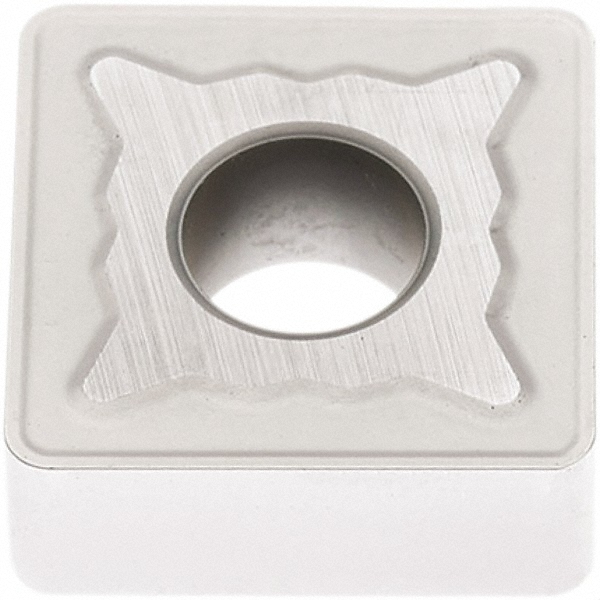

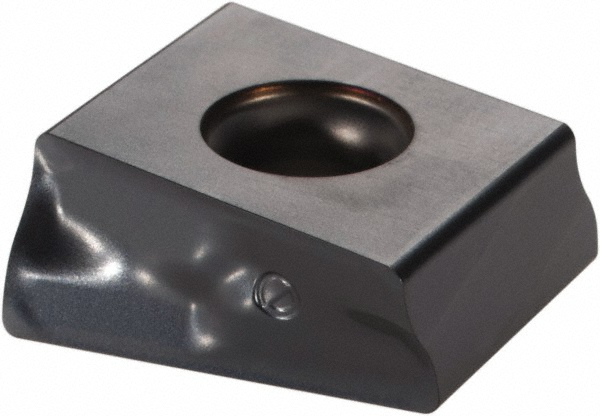

| Complete Insert Compatibility | T490 LNAR 1306; T490 LNMT/LNHT 1306 |
| UNSPSC Code | 27112803 |
| Maximum Insert Radius (Decimal Inch) | 0.2500 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 2 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91166462 |
