Takes 14 Inserts, 0° Lead Angle, 63mm High, LN.. 1106.. Insert Style, Through Coolant, Series AluTang

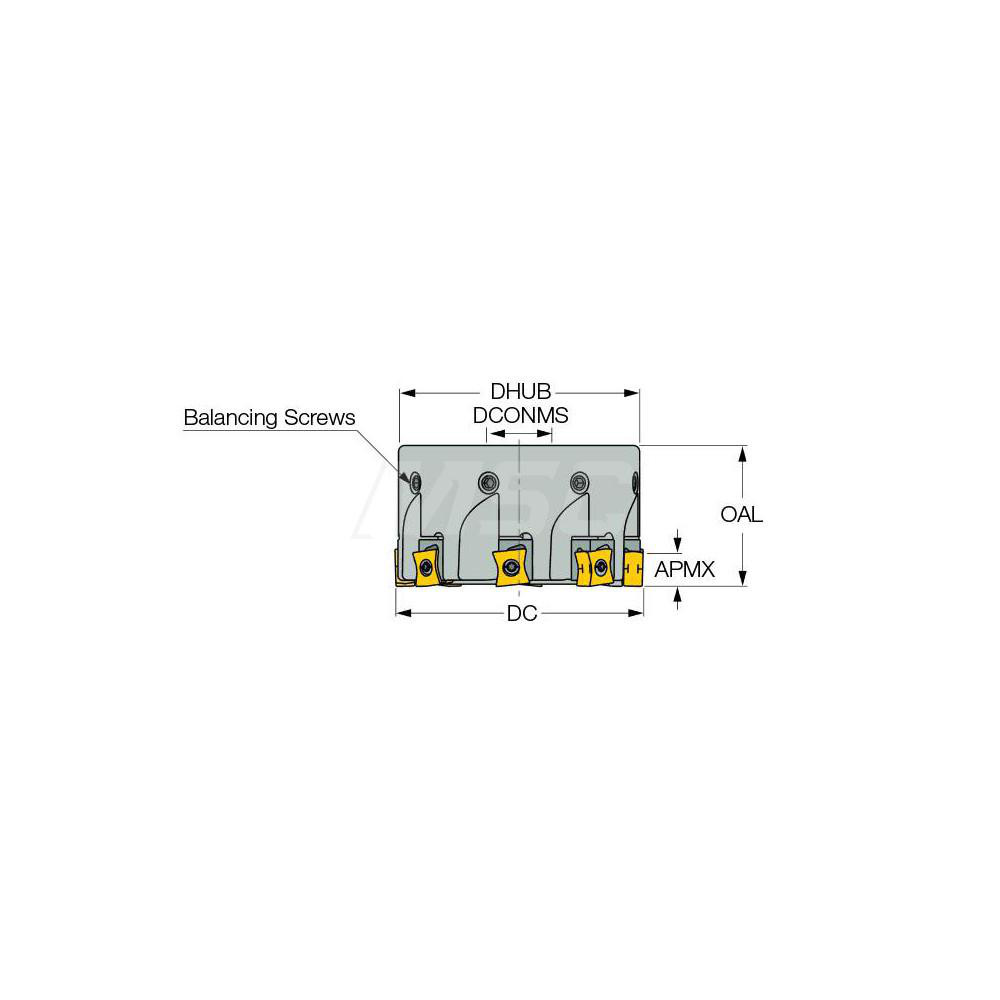

| Maximum Cutting Diameter (Decimal Inch) | 6.2992 |
|---|---|
| Maximum Cutting Diameter (mm) | 160.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Compatible Insert Size Code | LN 1106 |

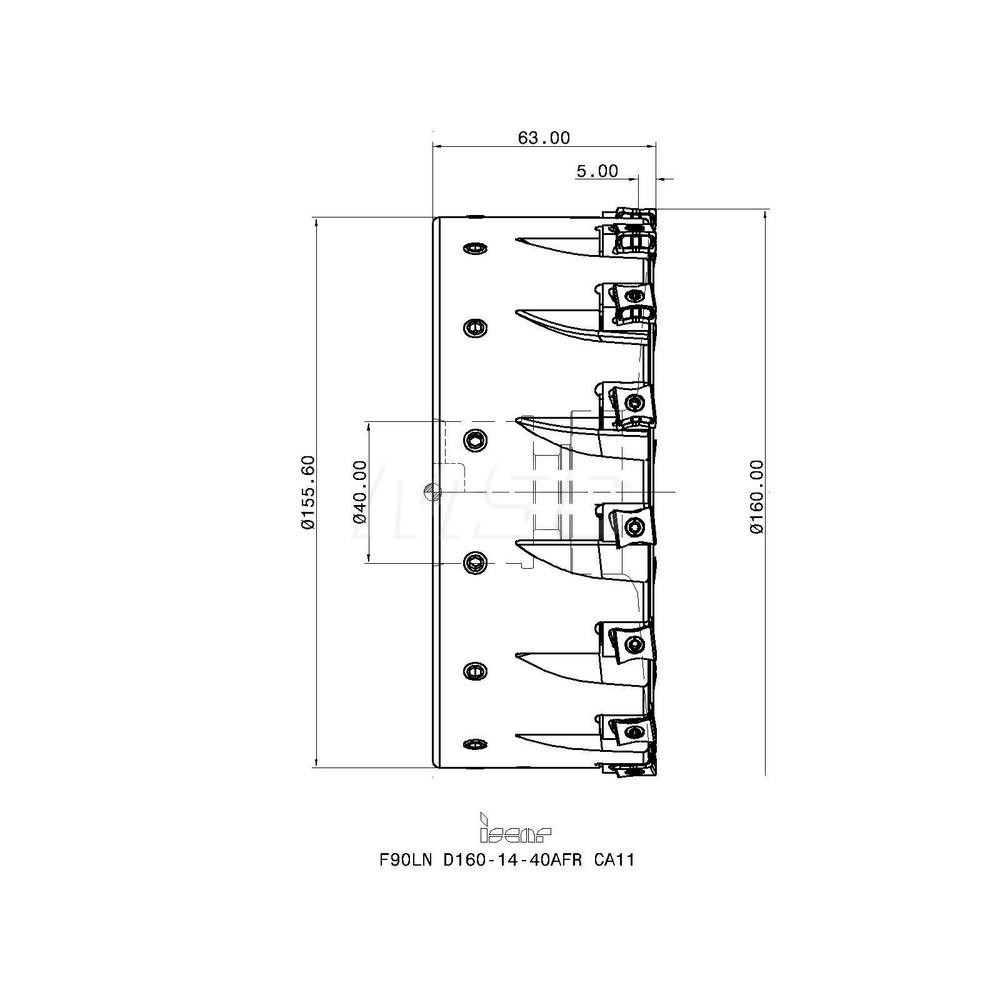

| Cutter Style | F90LN-FR CA11 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | AluTang |
| Overall Height (Decimal Inch) | 2.4803 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Hub Diameter (mm) | 157.00 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 2.6260 |
| Complete Insert Compatibility | LNHT 1106PN-R HT; LNMT 1106PN-N MM; LNAR 1106 PN-N-P; LNAR 1106 PN-N; LNAR 110620X75PN-R-S; LNHT 1106PN-N HT; LNAR 110604X45PN-R-S; LNKX 1106PNTN MM; LNAR 110604PN-R-S; LNKX 1106PN-N MM |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 14 |
| Number Of Flutes | 14 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30707723 |
