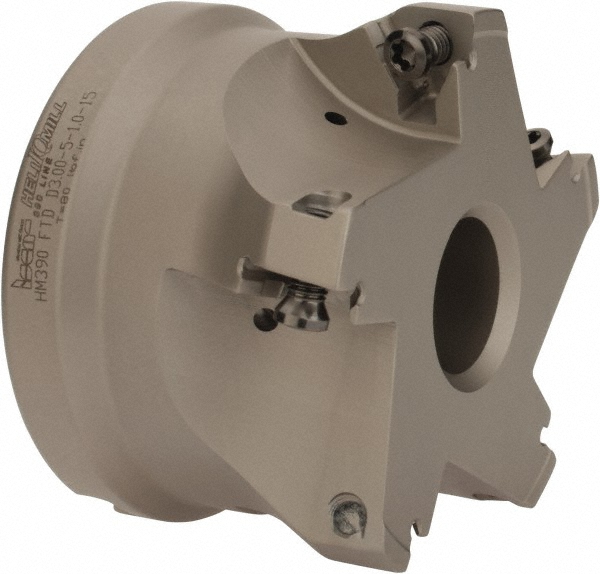

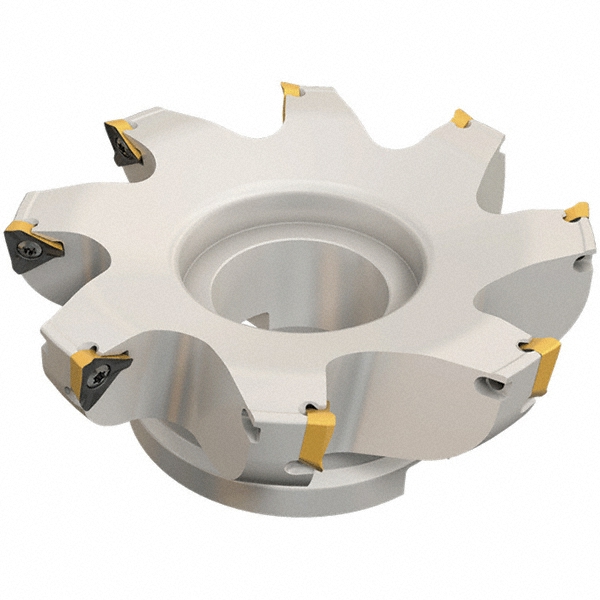

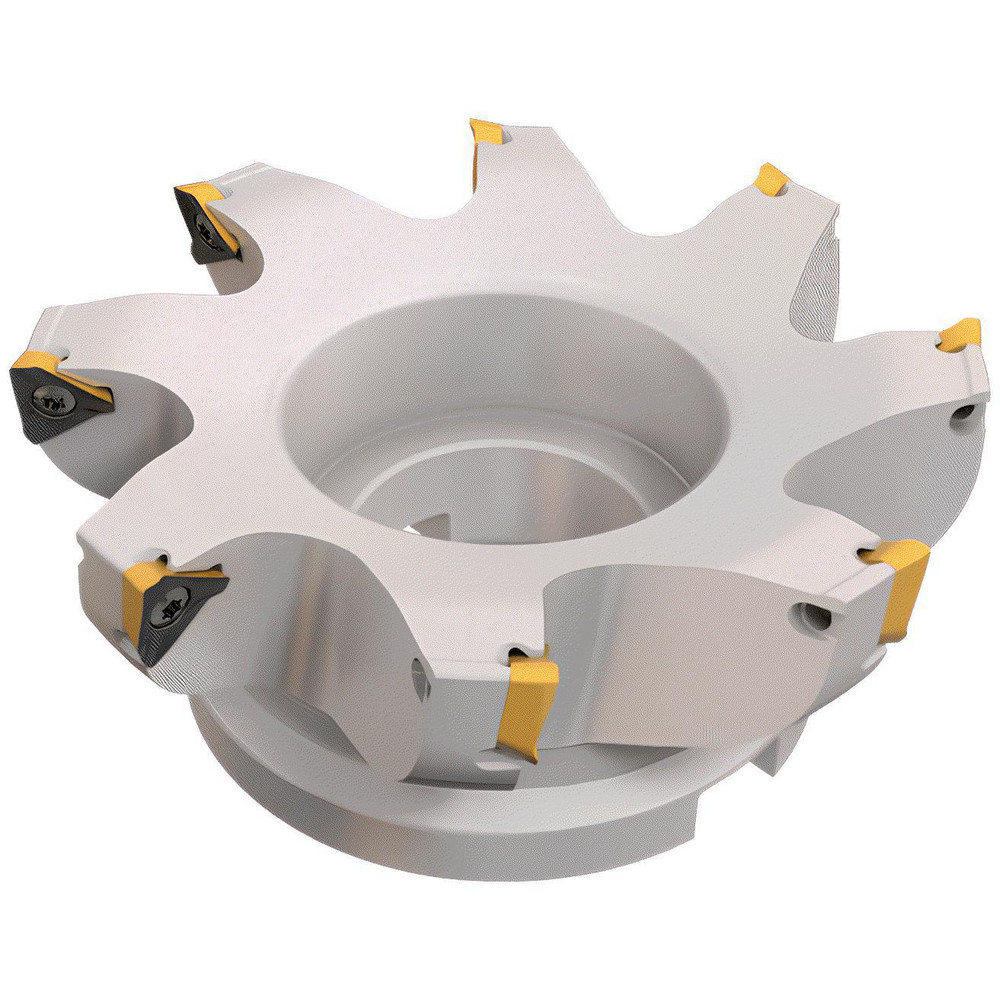

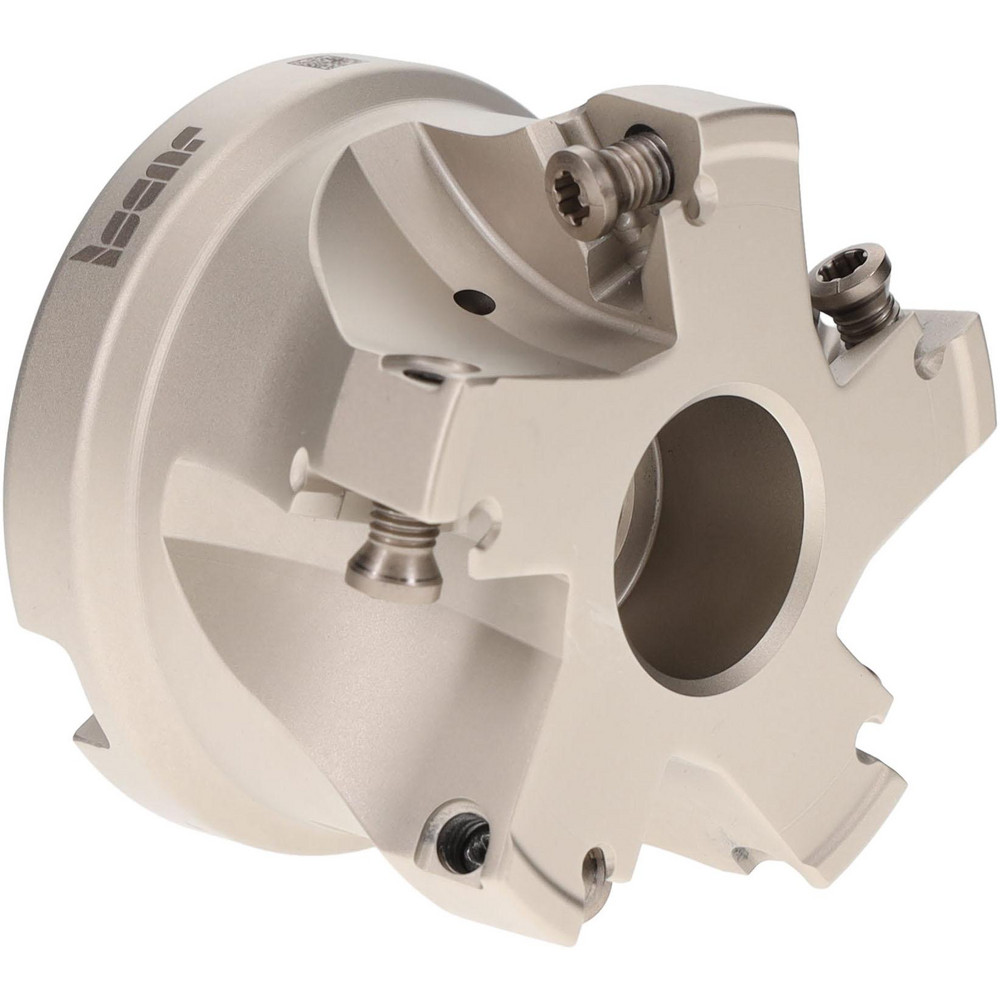

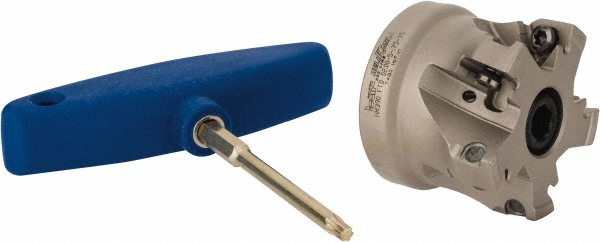

Takes 8 Inserts, 0° Lead Angle, 63mm High, HM390 TDKT 1505.. Insert Style, Series HeliIQMill

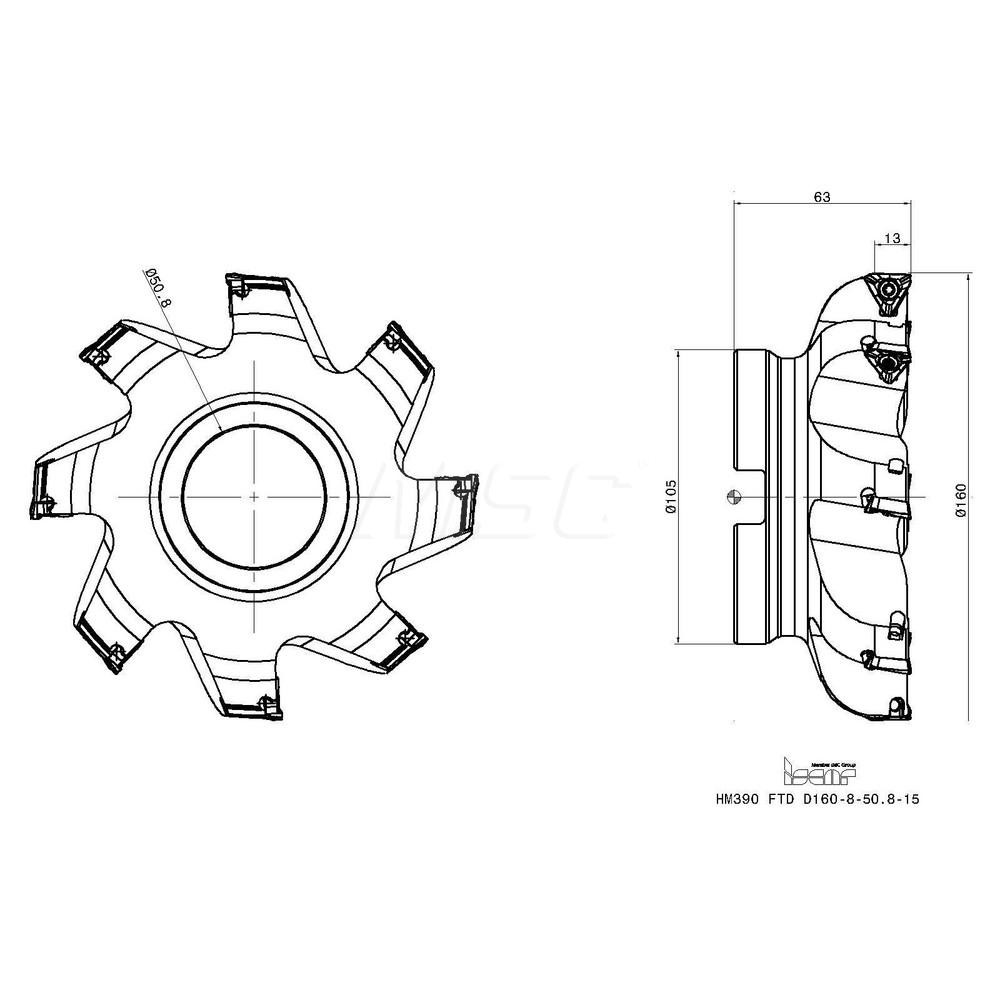

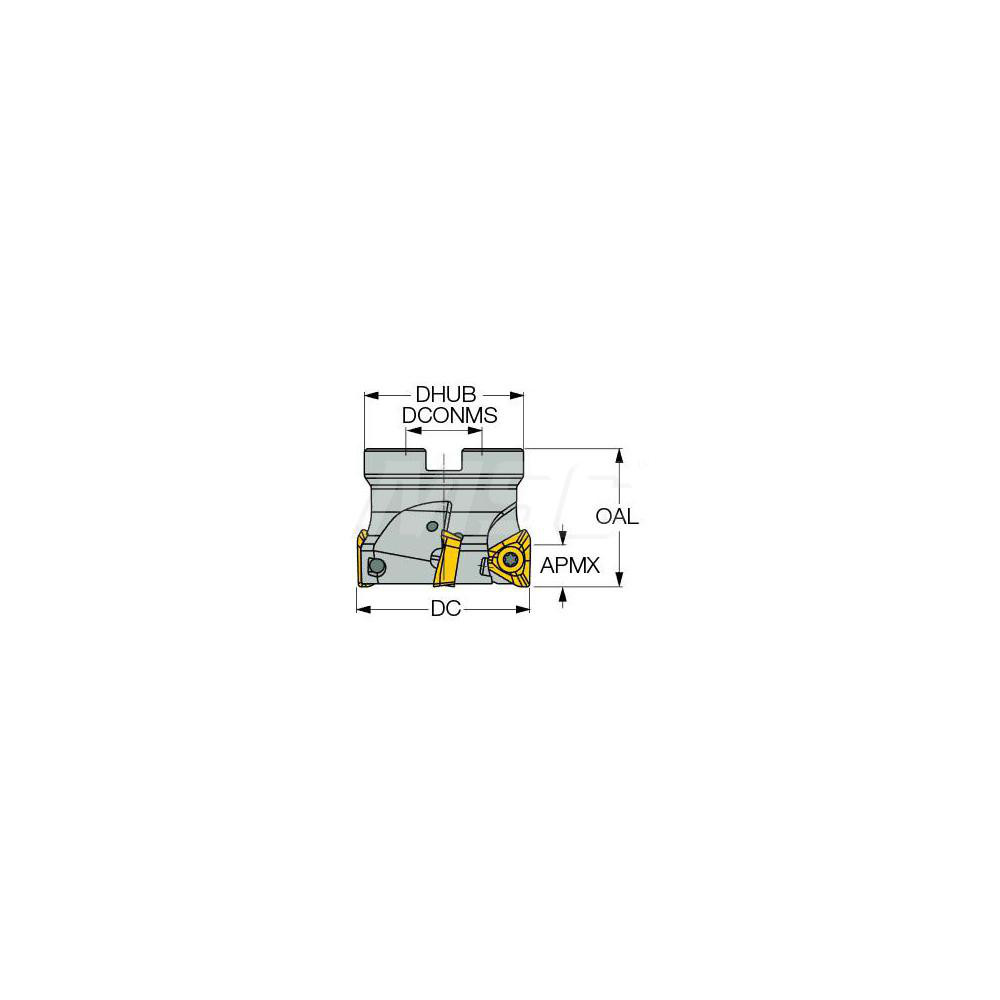

| Maximum Cutting Diameter (Decimal Inch) | 6.2992 |
|---|---|
| Maximum Cutting Diameter (mm) | 160.00 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Arbor Hole Diameter (mm) | 50.80 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Compatible Insert Size Code | HM390 TDKT 1505 |
| Cutter Style | HM390 FTD-15 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | HeliIQMill |
| Maximum Ramping Angle | 0.30 |
| Overall Height (Decimal Inch) | 2.4803 |
| Hub Diameter (mm) | 105.00 |
| Hub Diameter (Decimal Inch) | 4.1339 |
| Standards | ISO |

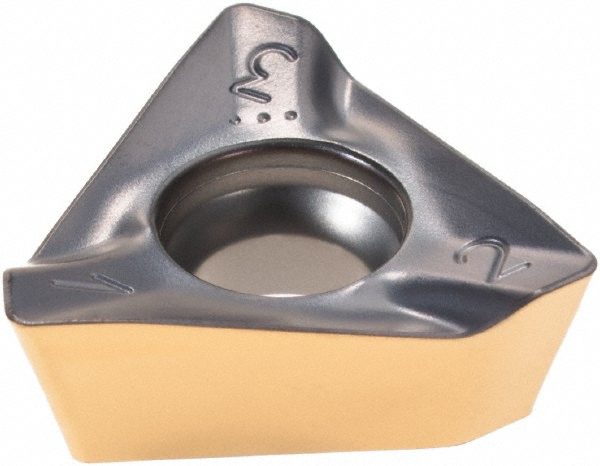

| Complete Insert Compatibility | HM390 TDKT 150516-PDR; HM390 TDKT 150524PDR; HM390 TDKT 150532PDR; HM390 TDKT 1505PDR |
| Product Service Code | 3455 |
| UNSPSC Code | 27112803 |
| Coolant Through | No |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30708739 |
