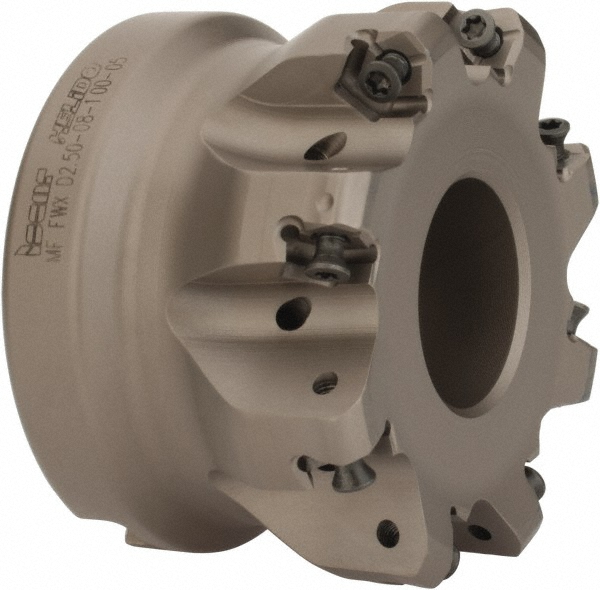

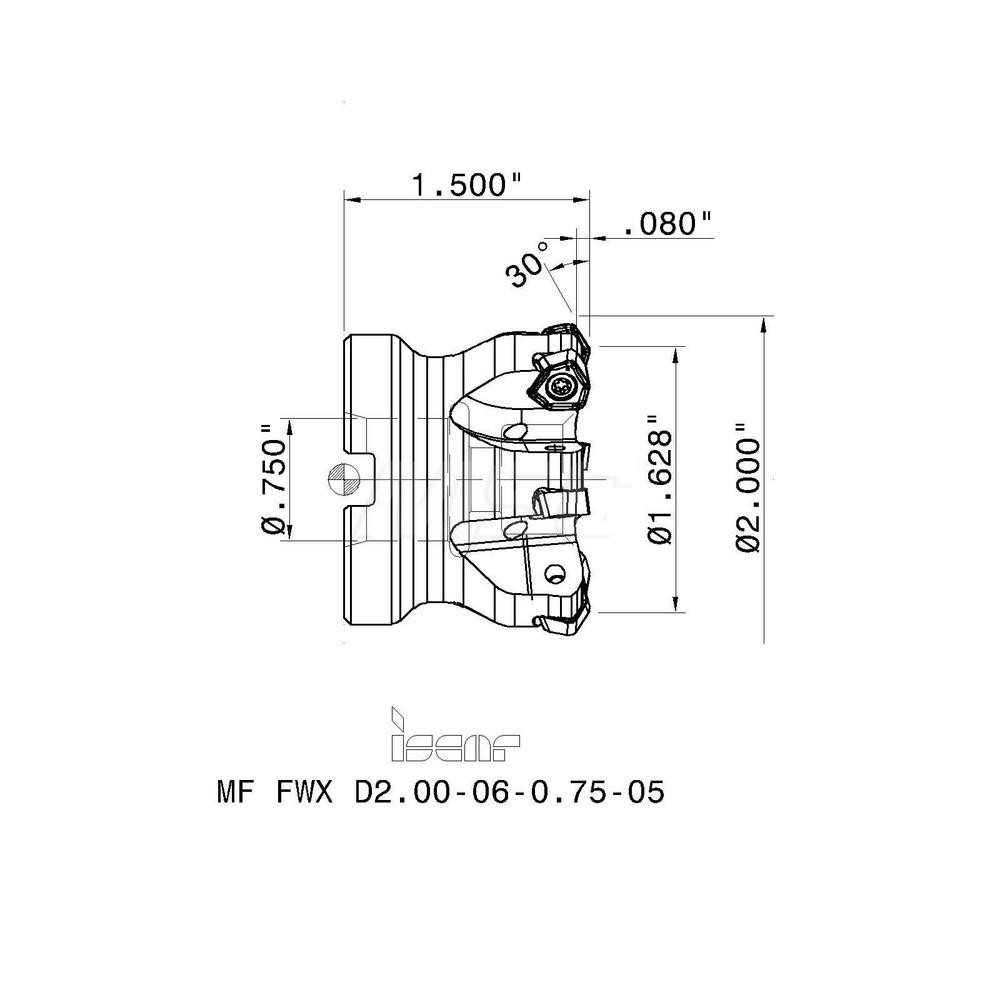

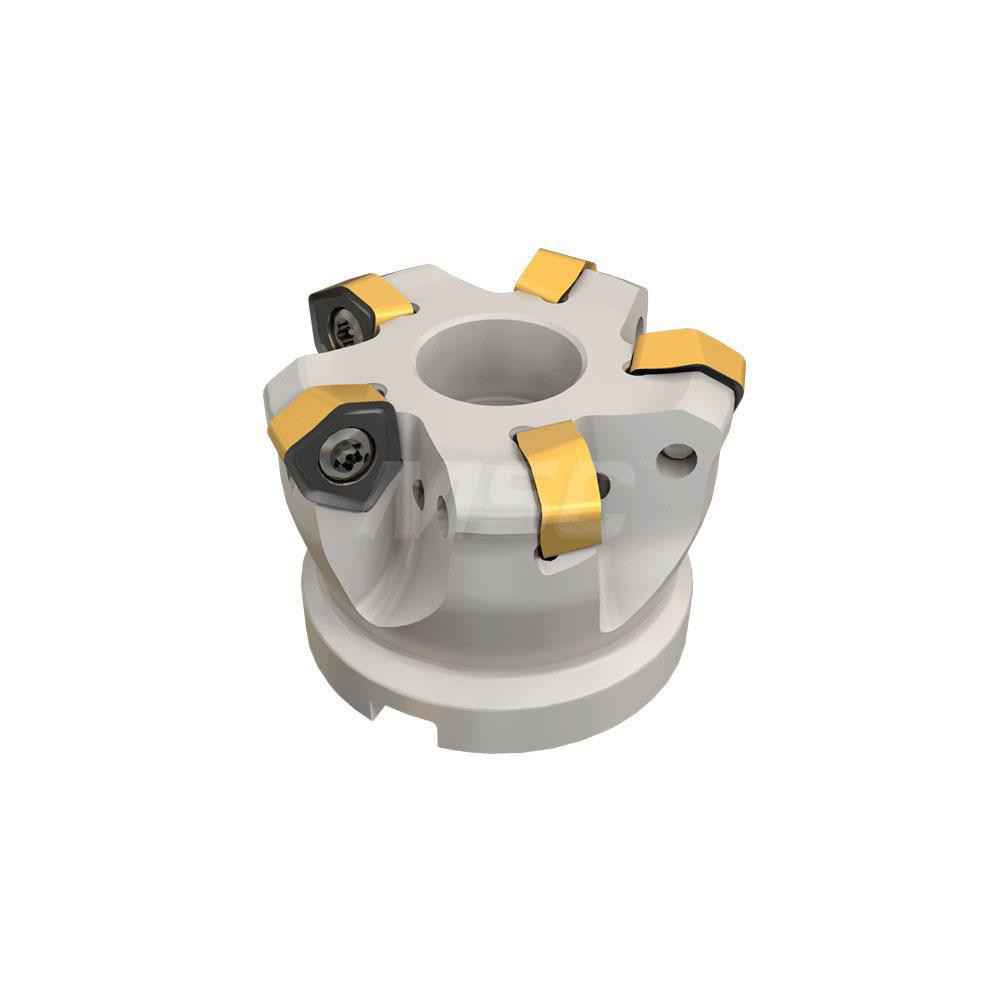

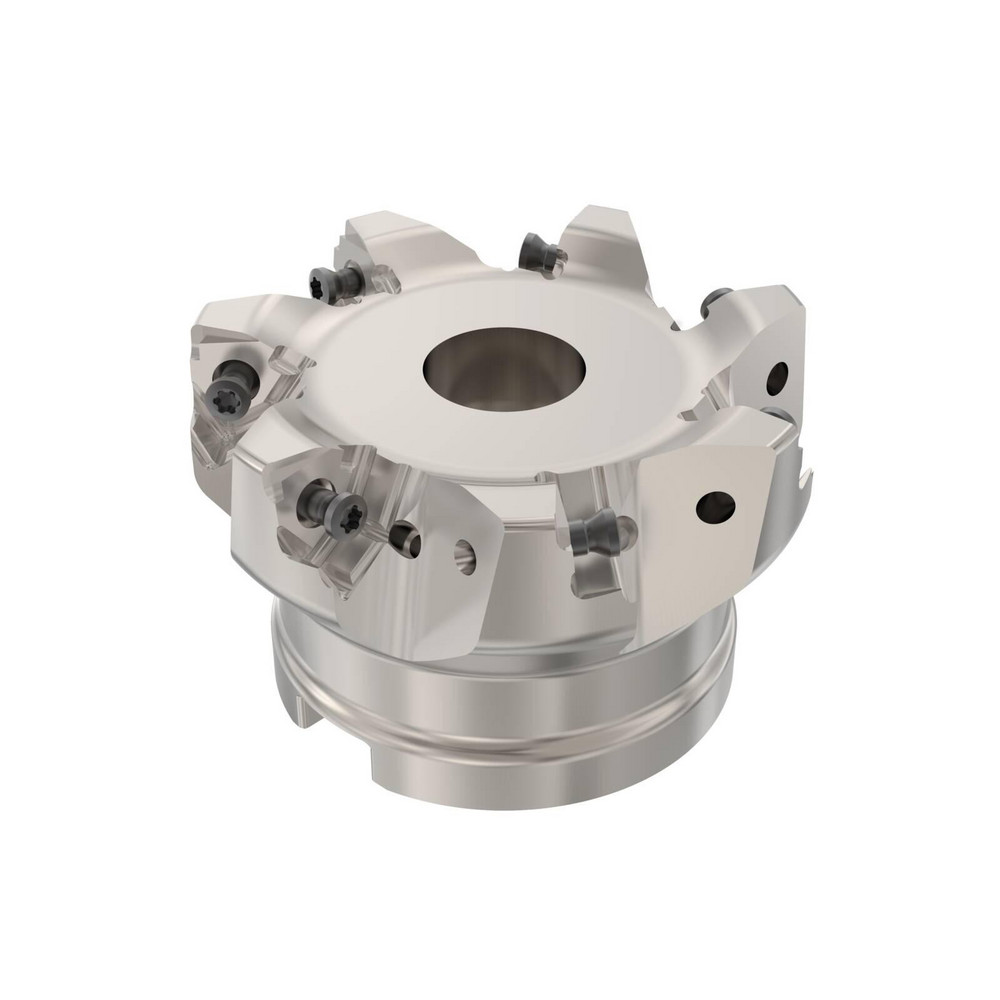

Takes 6 Inserts, H600 WXCU 05 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Helido

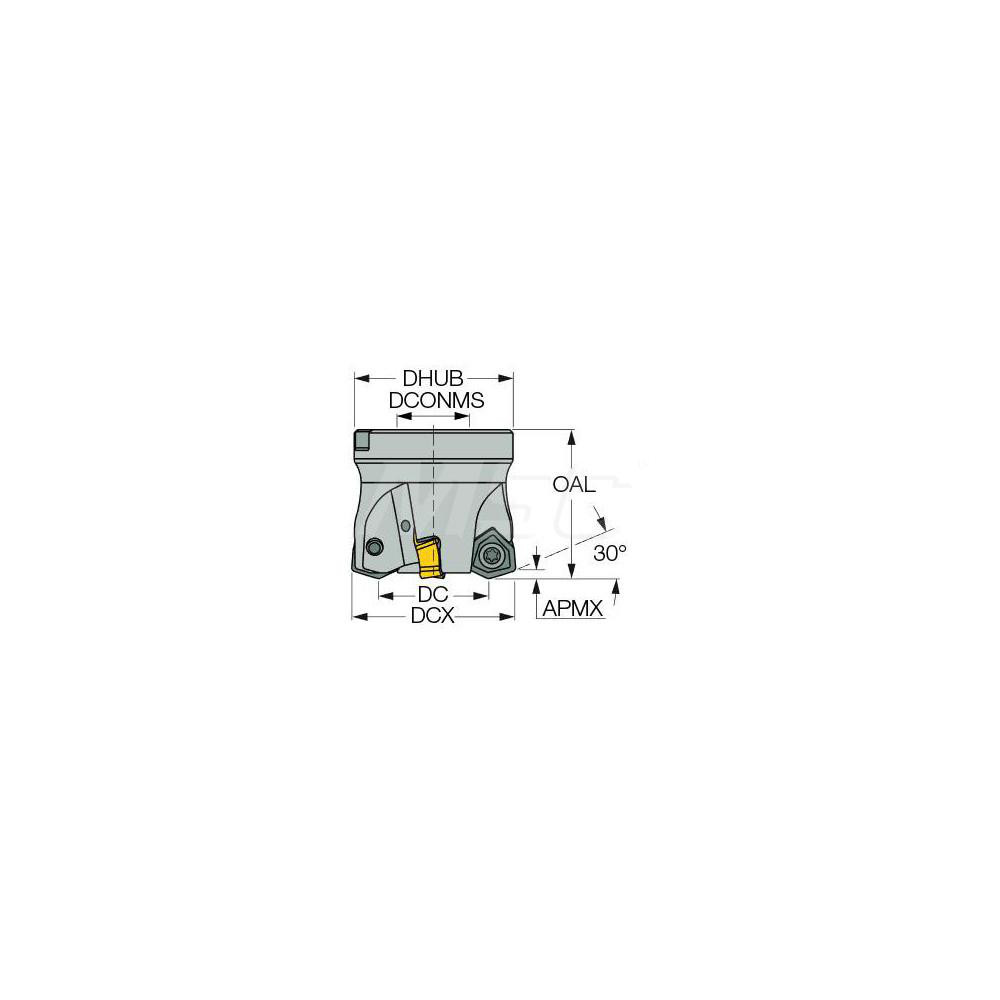

| Minimum Cutting Diameter (Decimal Inch) | 1.6280 |
|---|---|
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |

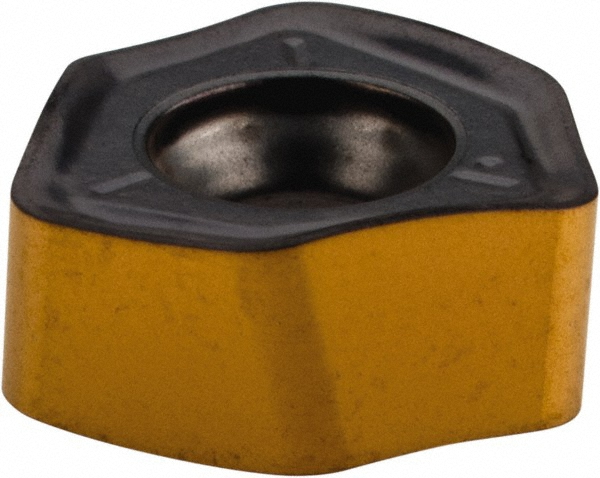

| Compatible Insert Size Code | H600 WXCU 05 |
| Cutter Style | MF FWX-05 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | Helido |
| Hub Diameter (Decimal Inch) | 1.7720 |
| Overall Height (Decimal Inch) | 1.5000 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0470 |
| Complete Insert Compatibility | H600 WXCU 05 |
| Manufacturers Catalog Number | MF FWX D2.00-06-0.75-05 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| Number Of Flutes | 6 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 63085757 |
