Takes 22 Inserts, ONH.. Insert, Right Hand Cut, 22 Flutes, Series 16Mill

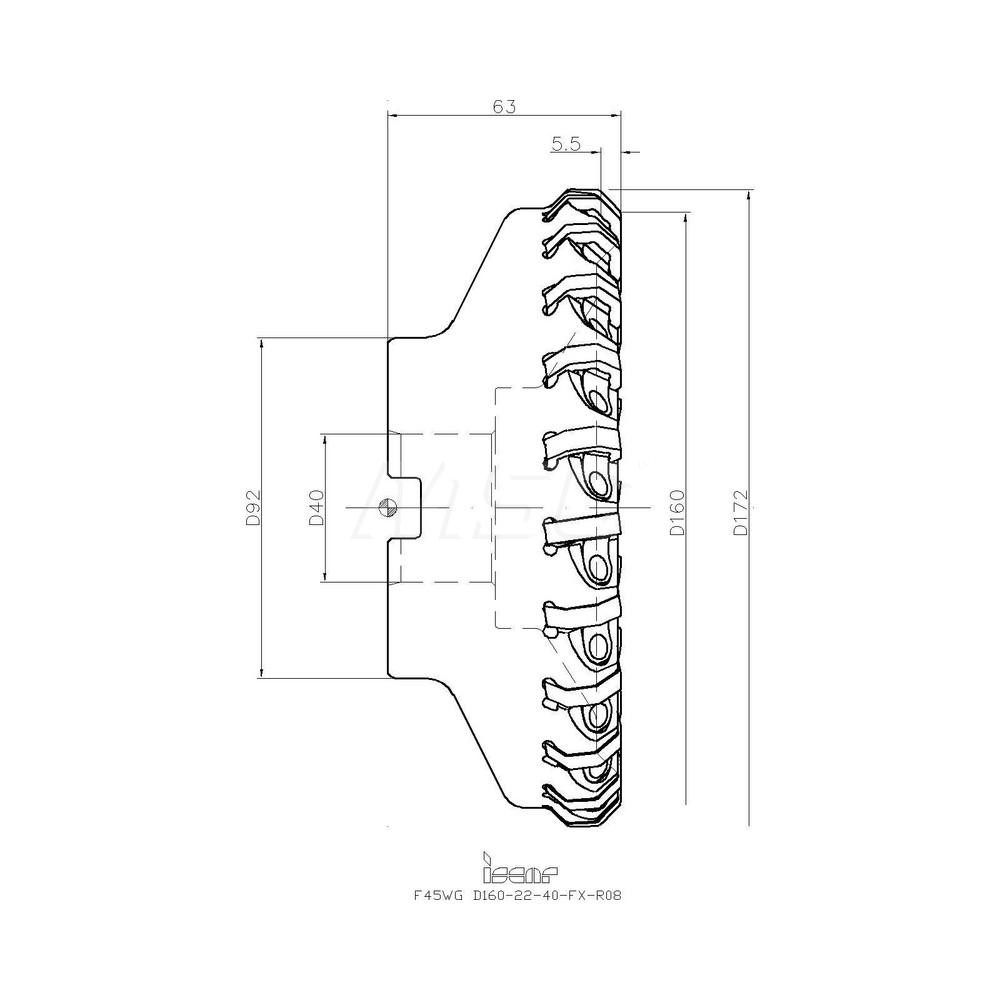

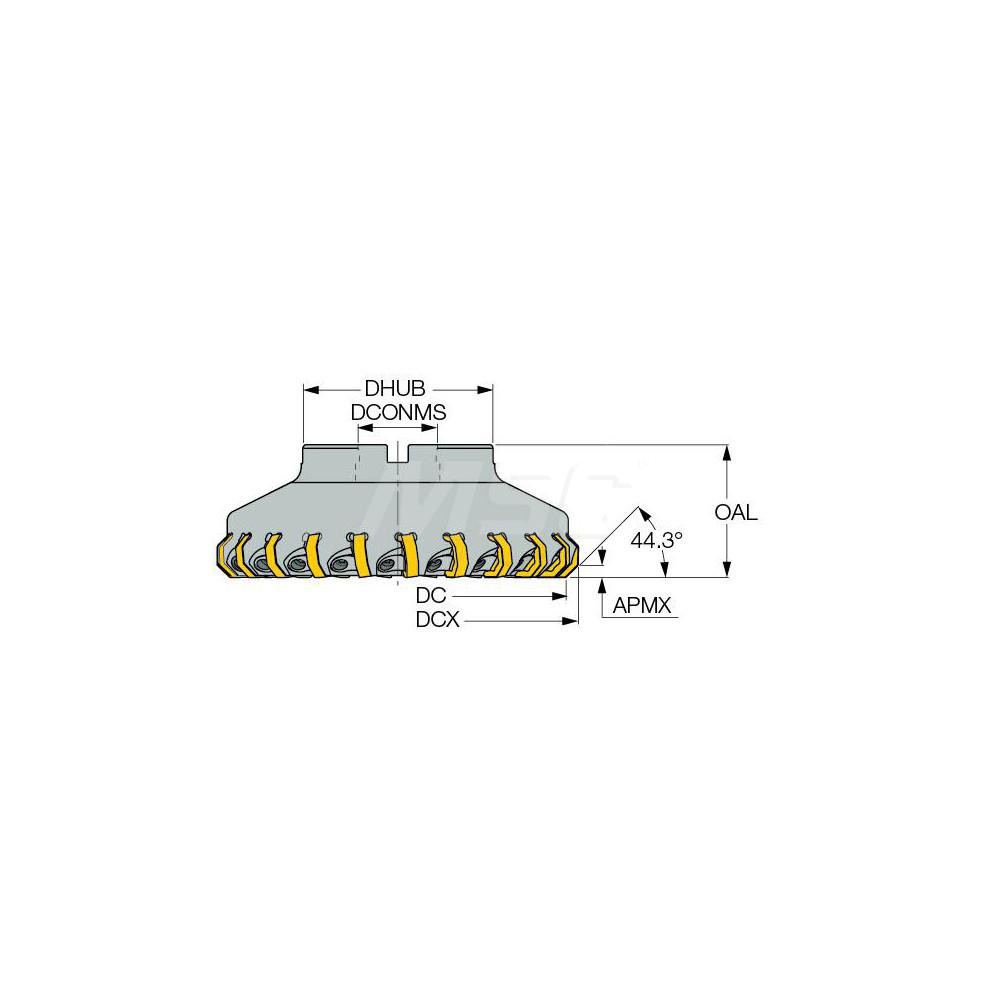

| Minimum Cutting Diameter (mm) | 160.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 172.00 |
| Maximum Depth of Cut (mm) | 5.50 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | ONH |
| Cutter Style | F45WG |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | 16Mill |
| Hub Diameter (mm) | 92.00 |
| Keyway Width (mm) | 16.40 |
| Overall Height (Decimal Inch) | 63.00 |
| Maximum Body Diameter (Decimal Inch) | 6.2990 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0510 |
| Counterbore Diameter (Decimal Inch) | 2.1650 |
| Complete Insert Compatibility | ONHU 0806-N-PL; ONHU/ONMU-08-TN/HL; ONHU/ONMU-08-TN-MM; ONHU/ONMU 080608 AN-N-HP; ONHQ-TN; ONHU 0806AN-W |
| Number Of Cutter Inserts | 22 |
| Coolant Through | No |
| Number Of Flutes | 22 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| MSC Number | MSC# 91122358 |
