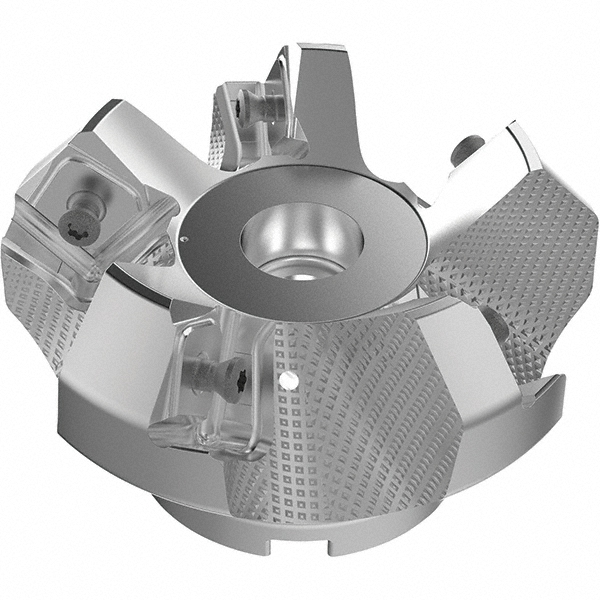

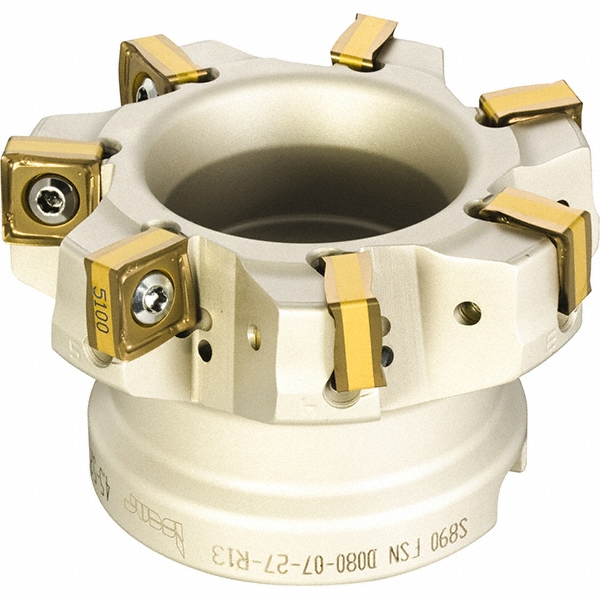

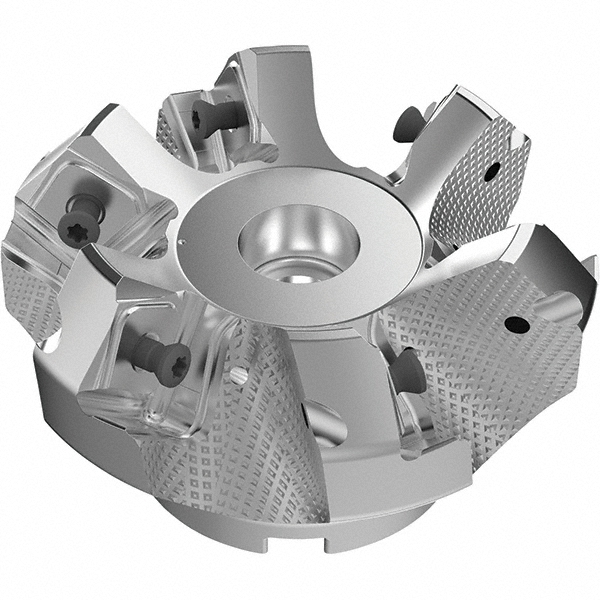

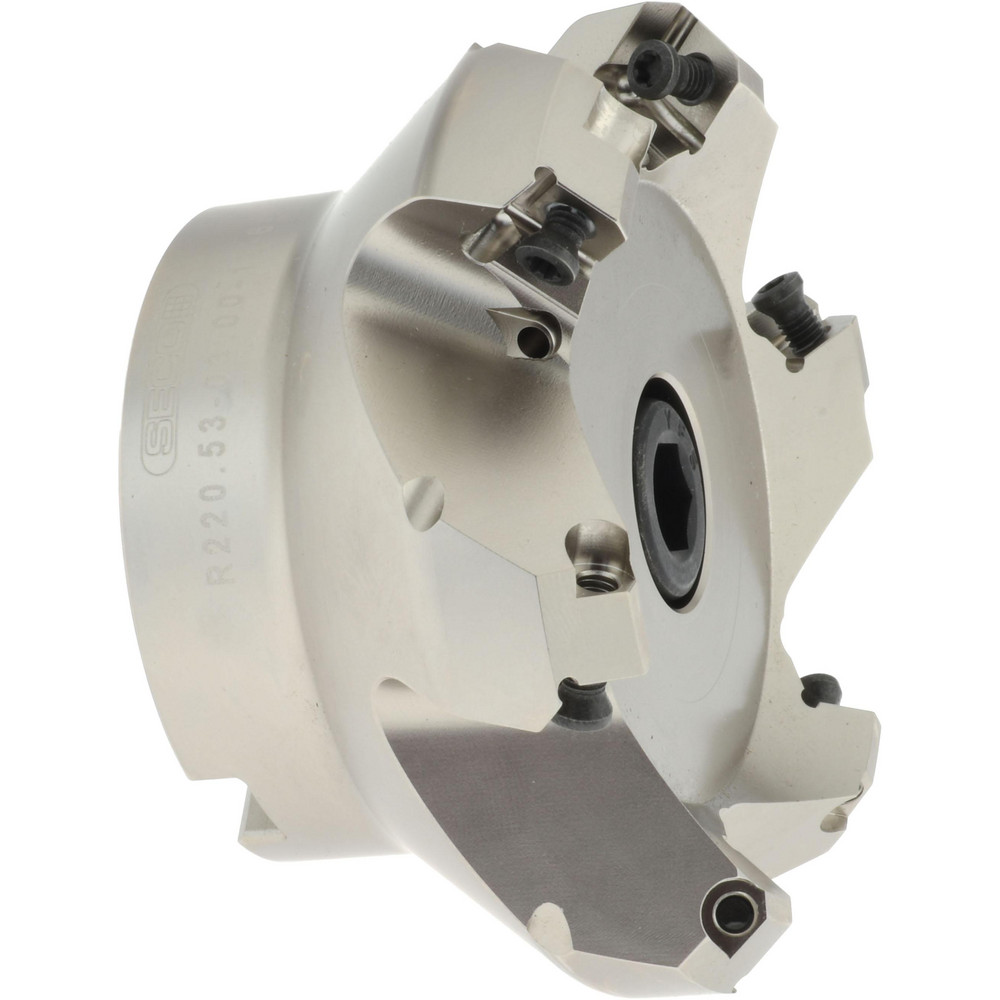

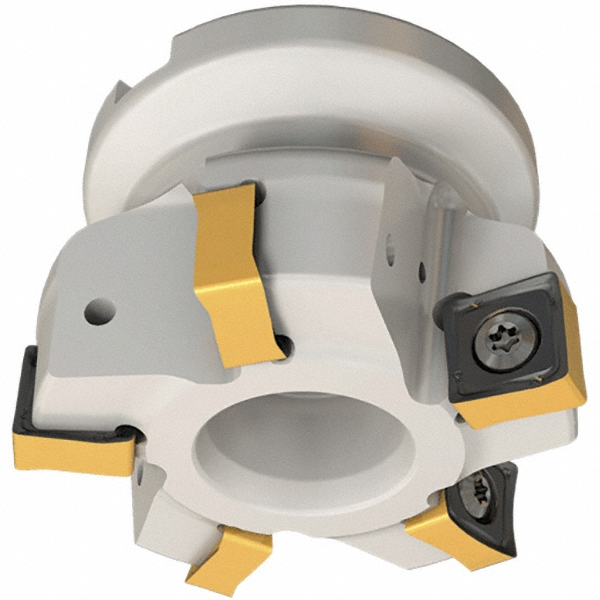

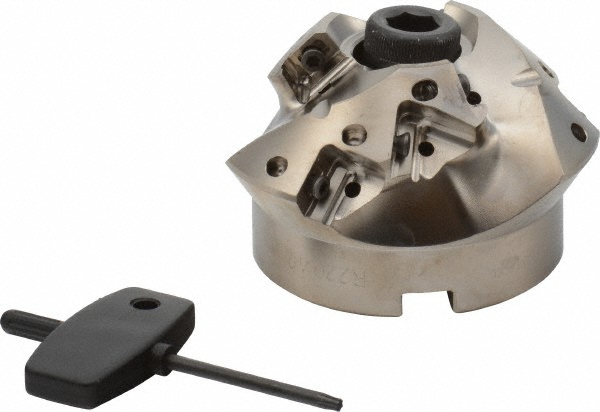

Takes 7 Inserts, OXMT 0507\xB6S890 SN.U 1305 Insert, Right Hand Cut, 7 Flutes, Series Helido
| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | xB6S890; SNMU 1305; OXMT 0507 |
| Cutter Style | S890 FSN-13 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | Helido |
| Hub Diameter (Decimal Inch) | 2.2200 |
| Overall Height (Decimal Inch) | 1.7500 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | OXMT 050705-R-HP; S890 SNHU 1305PN-R-W; S890 SNMU 1305PNR-MM; OXMT 0507R08-FF; S890 SNMU 1305PNTN; S890 SNMU 1305PNTR |
| Number Of Cutter Inserts | 7 |
| Coolant Through | No |
| Number Of Flutes | 7 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| MSC Number | MSC# 35480441 |
