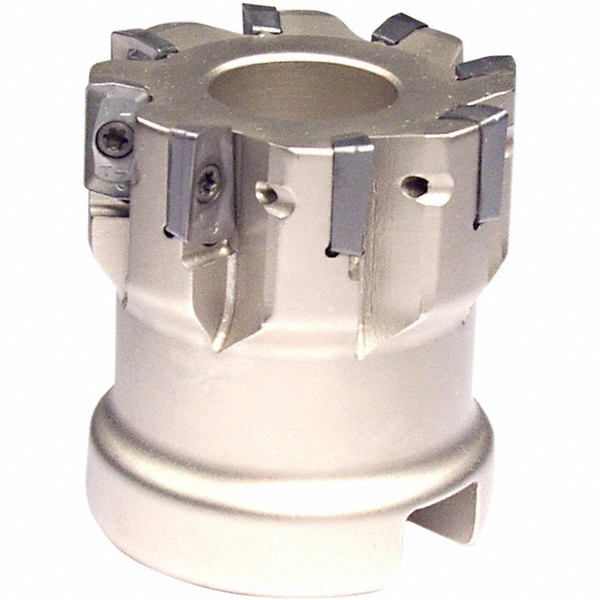

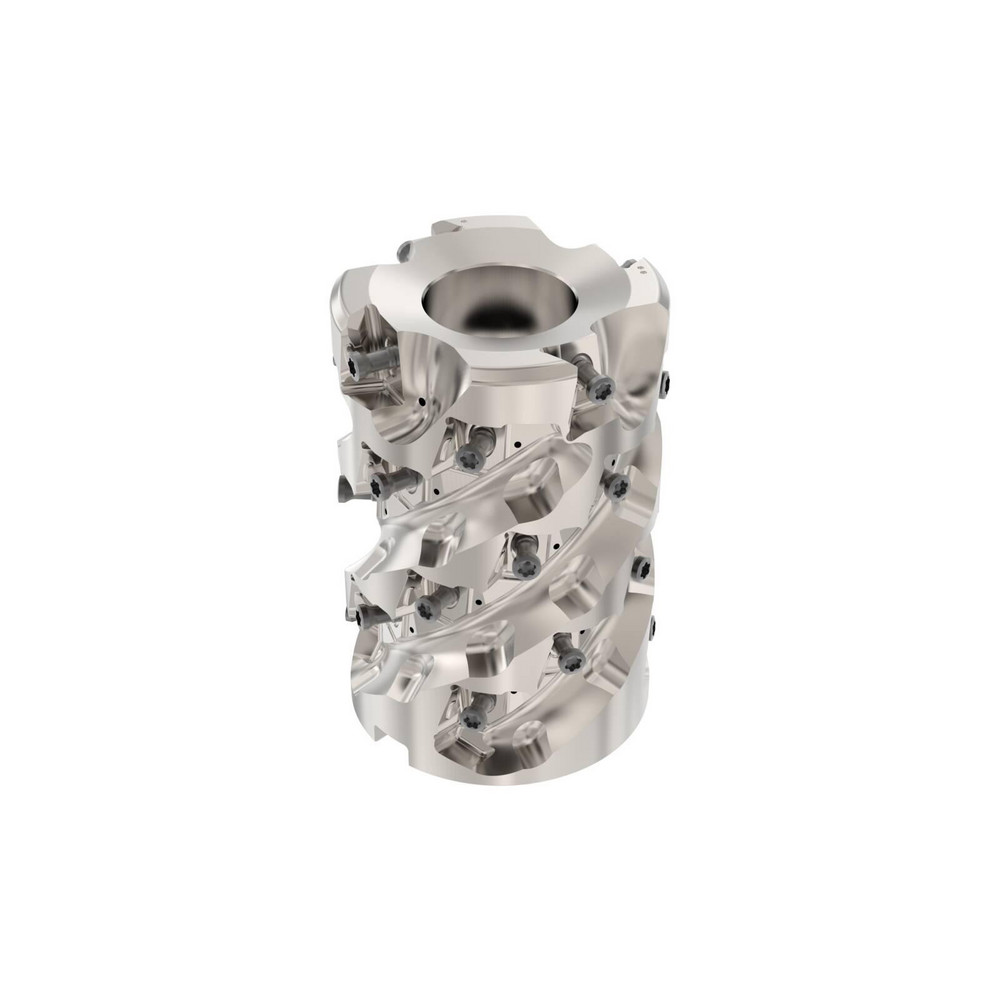

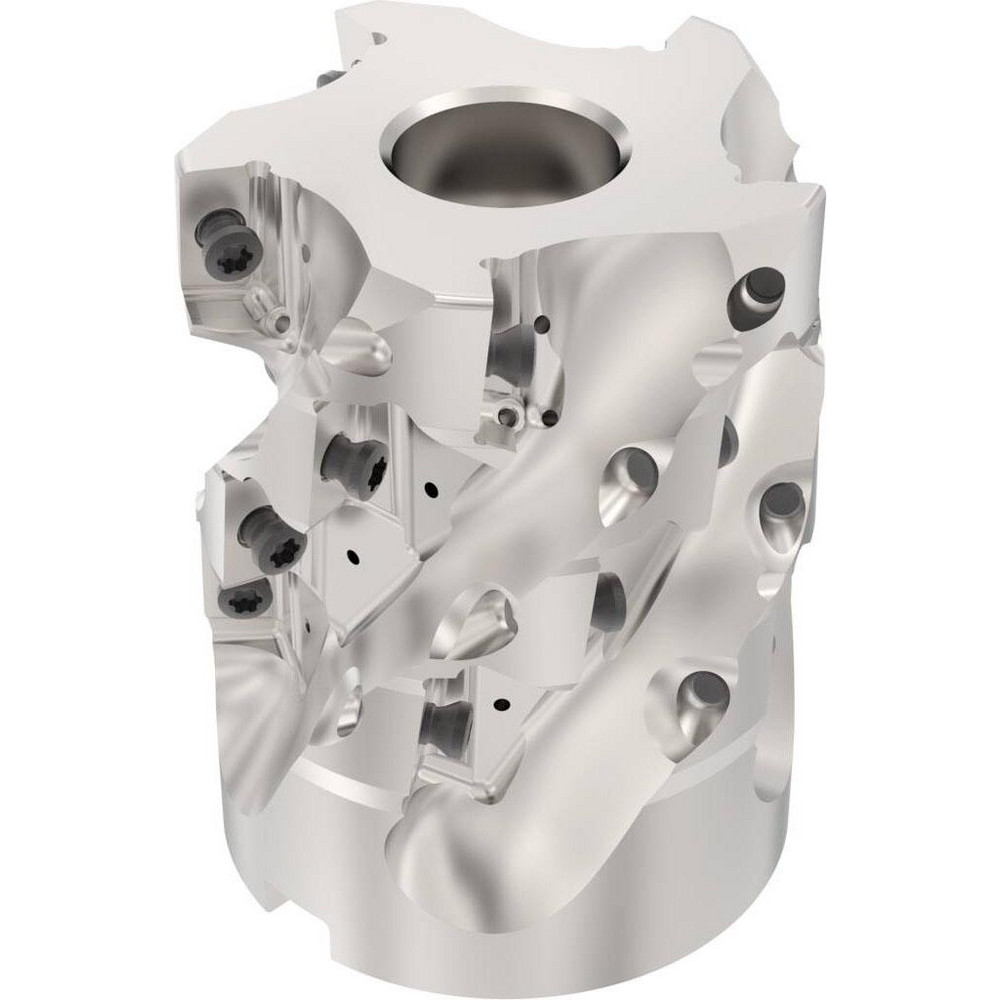

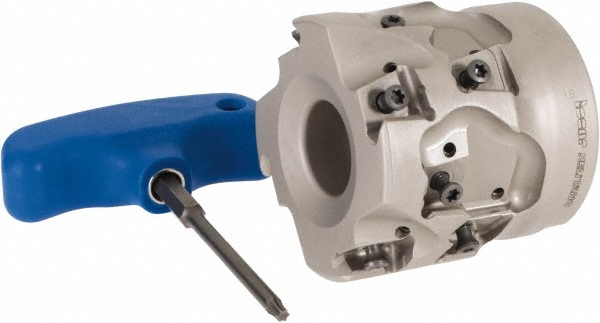

Takes 12 Inserts, 0° Lead Angle, 1-3/4" High, HP AN.. 07.. Insert Style, Series Heliplus
| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3030 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | HP AN 07 |
| Cutter Style | HP F90AN-07 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | Heliplus |
| Maximum Ramping Angle | 0.60 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 2.4200 |
| Pitch Type | Fine |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 1.3800 |
| Complete Insert Compatibility | HP ANCT 070202 PN-R; HP ANKT 070202PNTR; HP ANKW 070204PNTR; HP ANCT 070204PN-R; HP ANCR 070204PNFR-P; HP ANKT 0702 PN-R; HP ANKT 0702PNTR; HP ANCR 070204PNFR |
| UNSPSC Code | 27112803 |
| Coolant Through | No |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30707475 |
