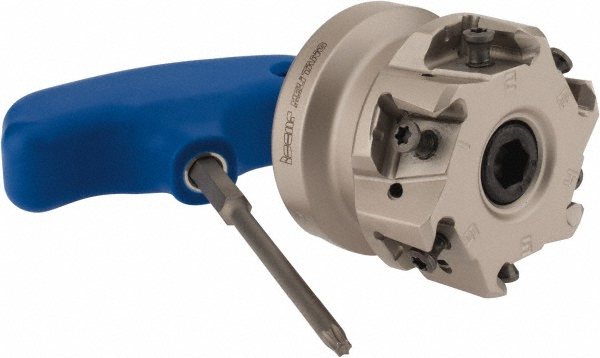

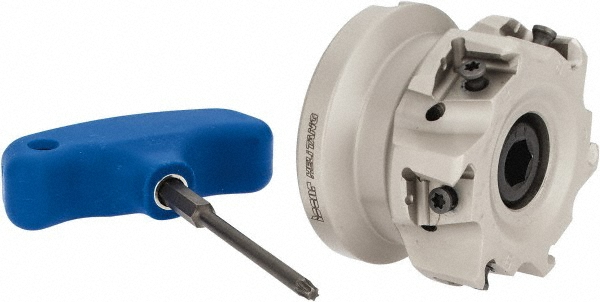

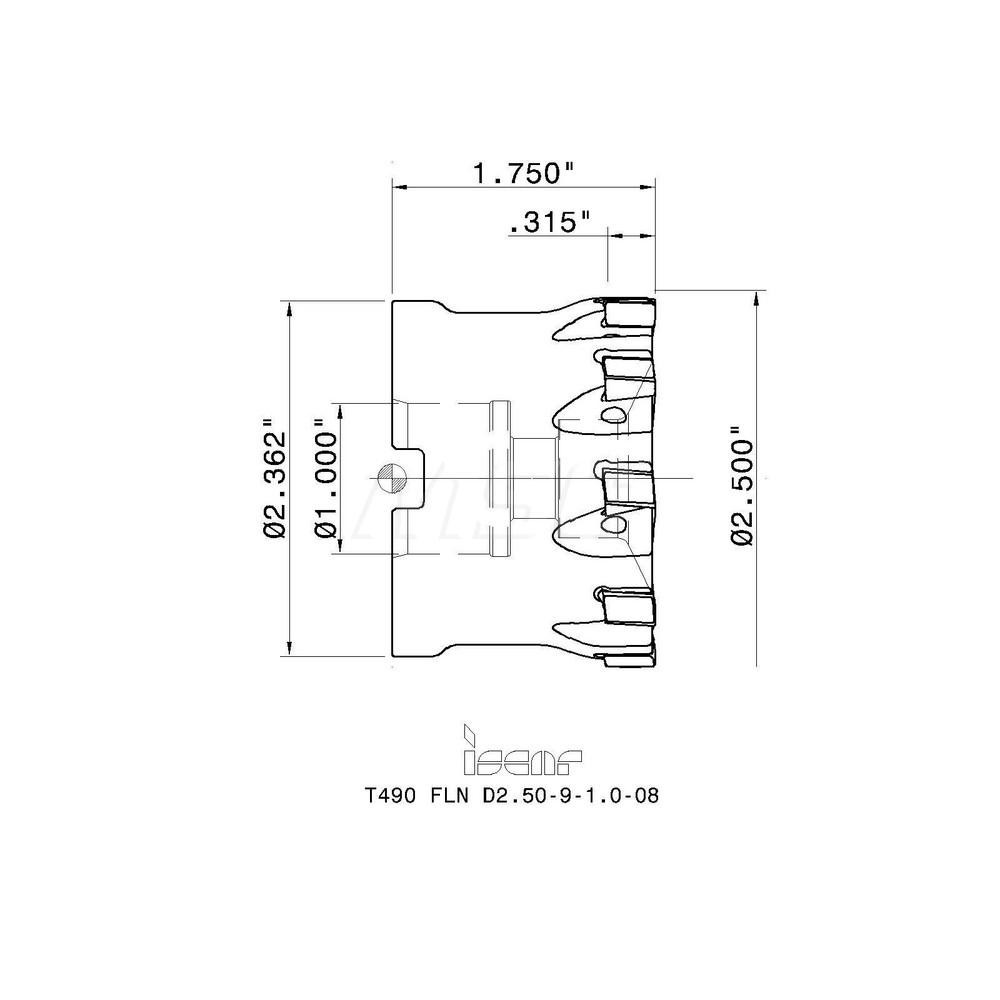

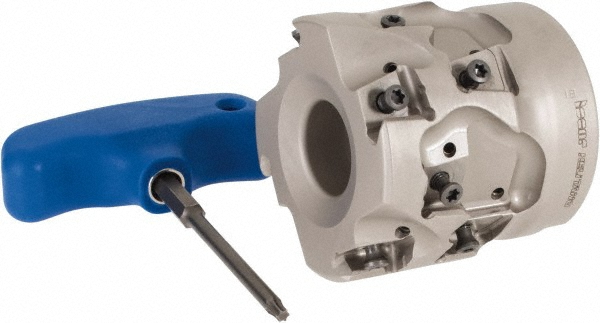

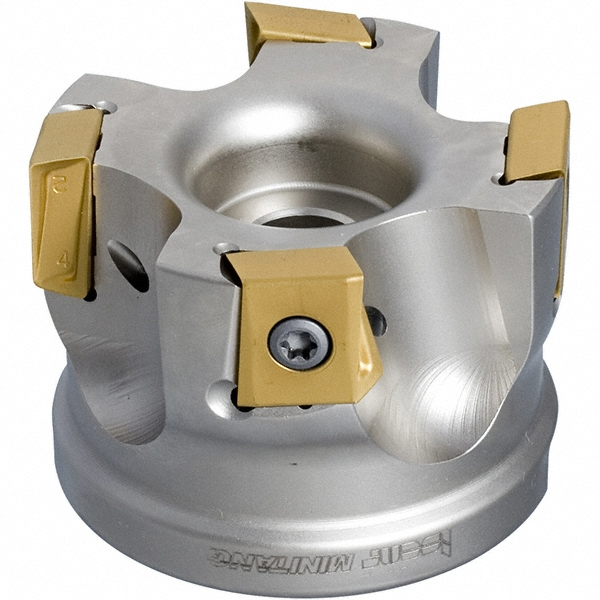

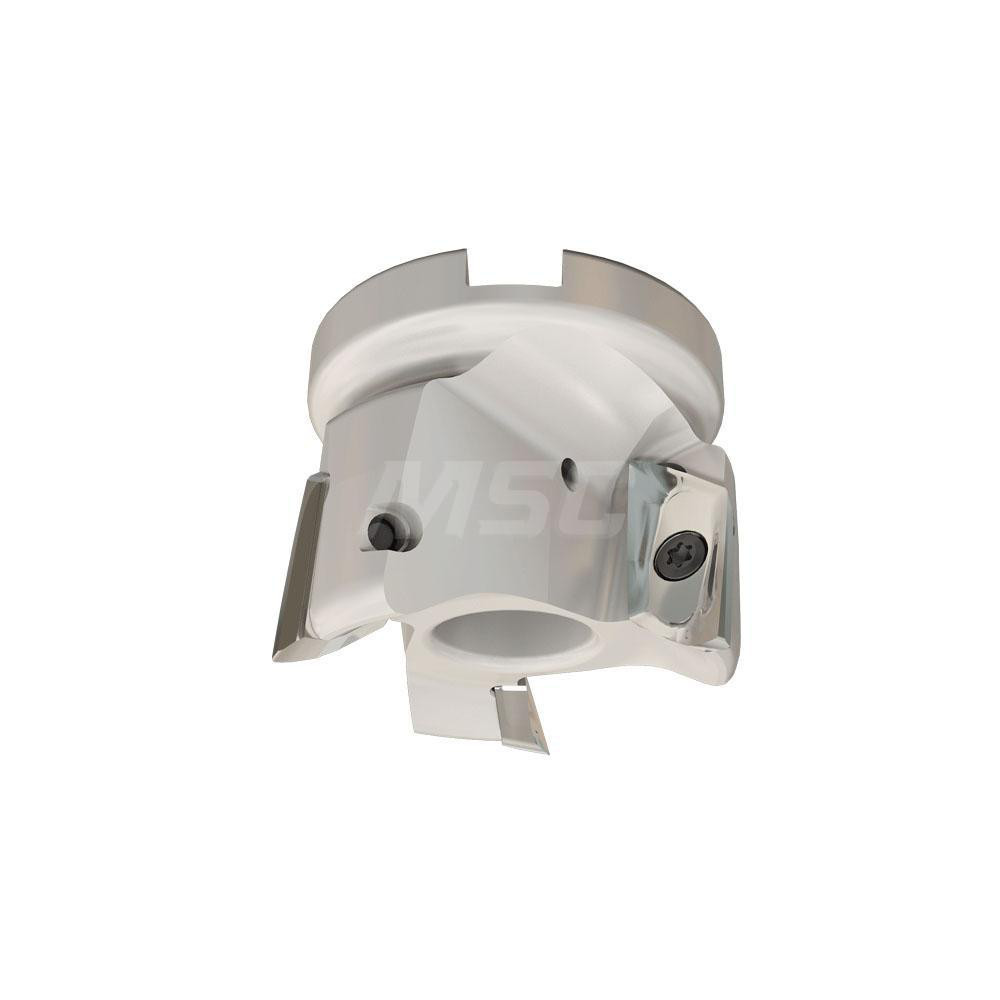

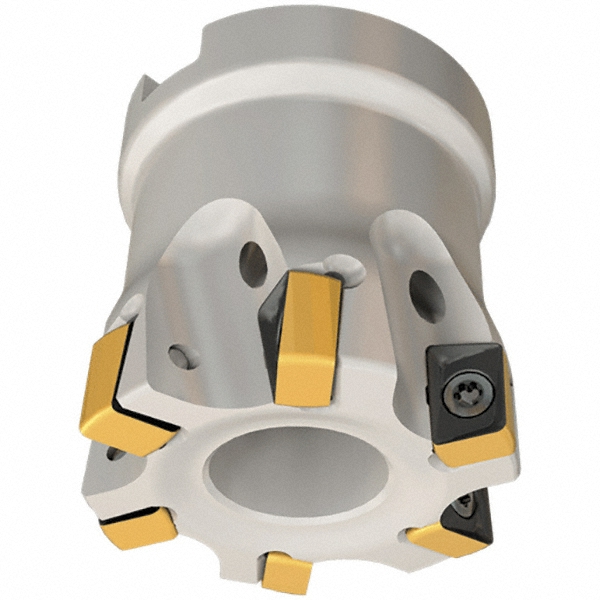

Takes 9 Inserts, 0/90° Lead Angle, 1-3/4" High, T490 LN.T 0804 Insert Style, Through Coolant, Series Helitang

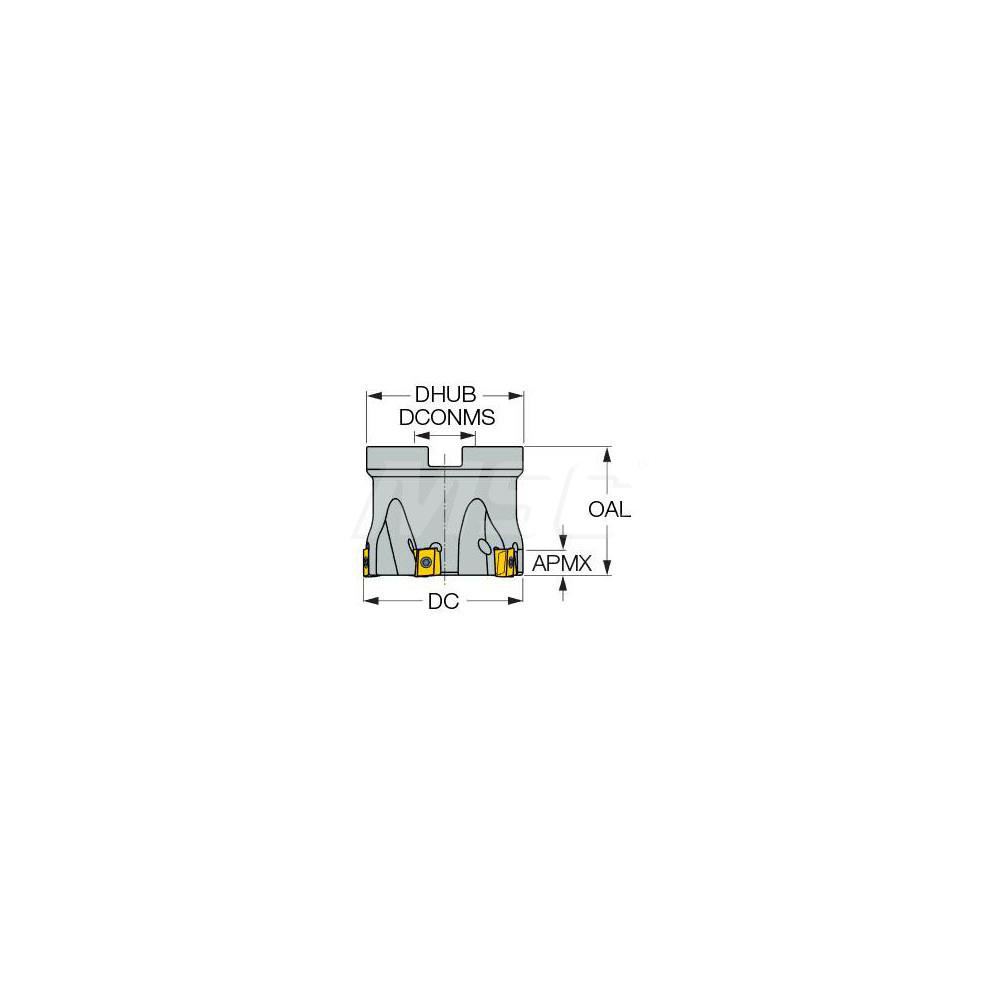

| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | T490 LN.T0804 |
| Cutter Style | T490 FLN-08 |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Helitang |
| Overall Height (Decimal Inch) | 1.7500 |
| Hub Diameter (Decimal Inch) | 2.3600 |
| Standards | ISO |
| Cutting Edge Length (Decimal Inch) | 0.3150 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |

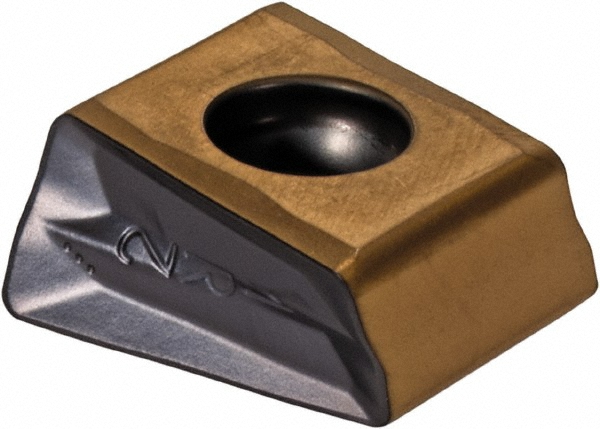

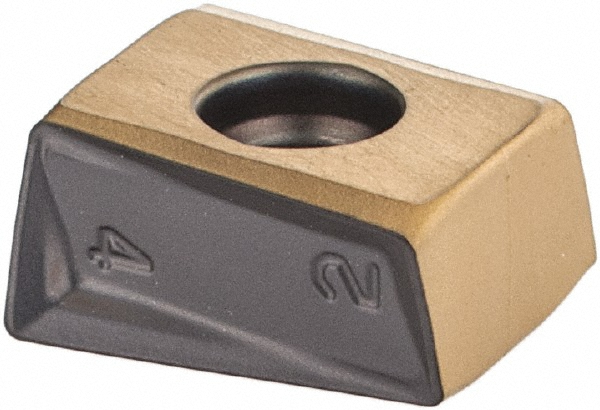

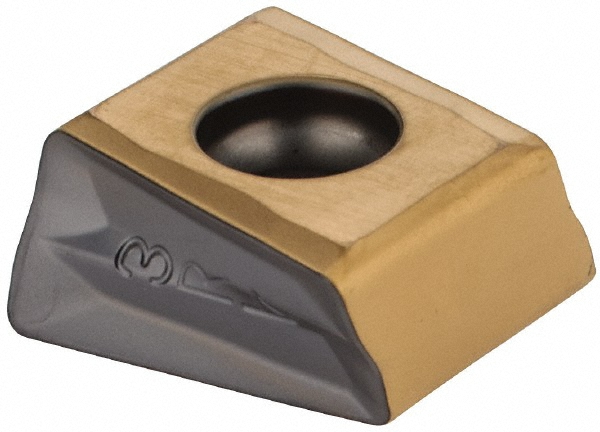

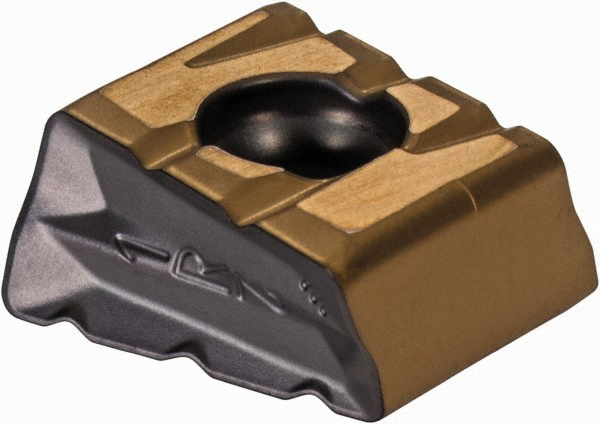

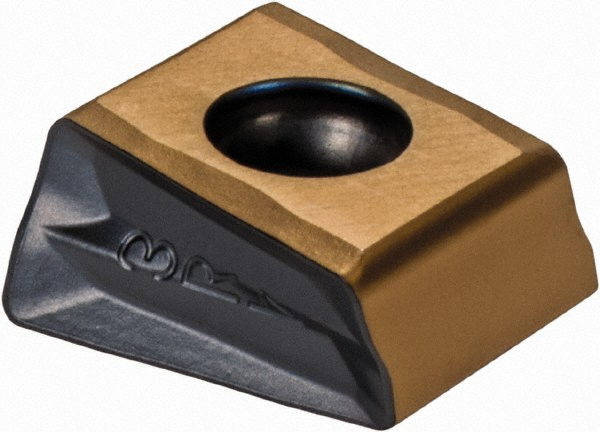

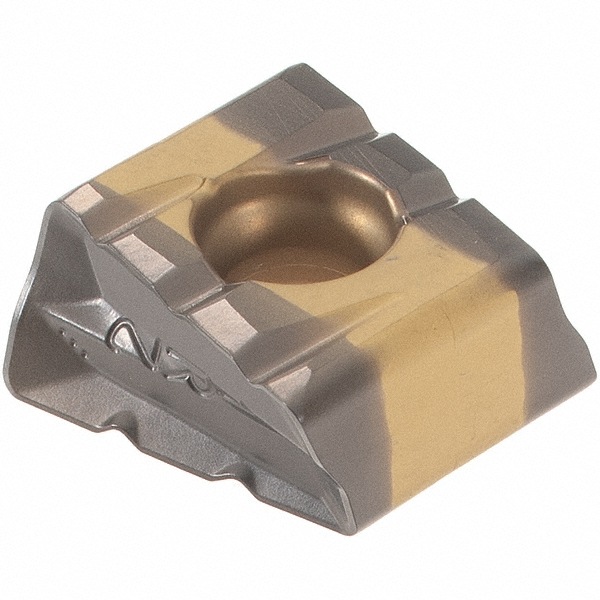

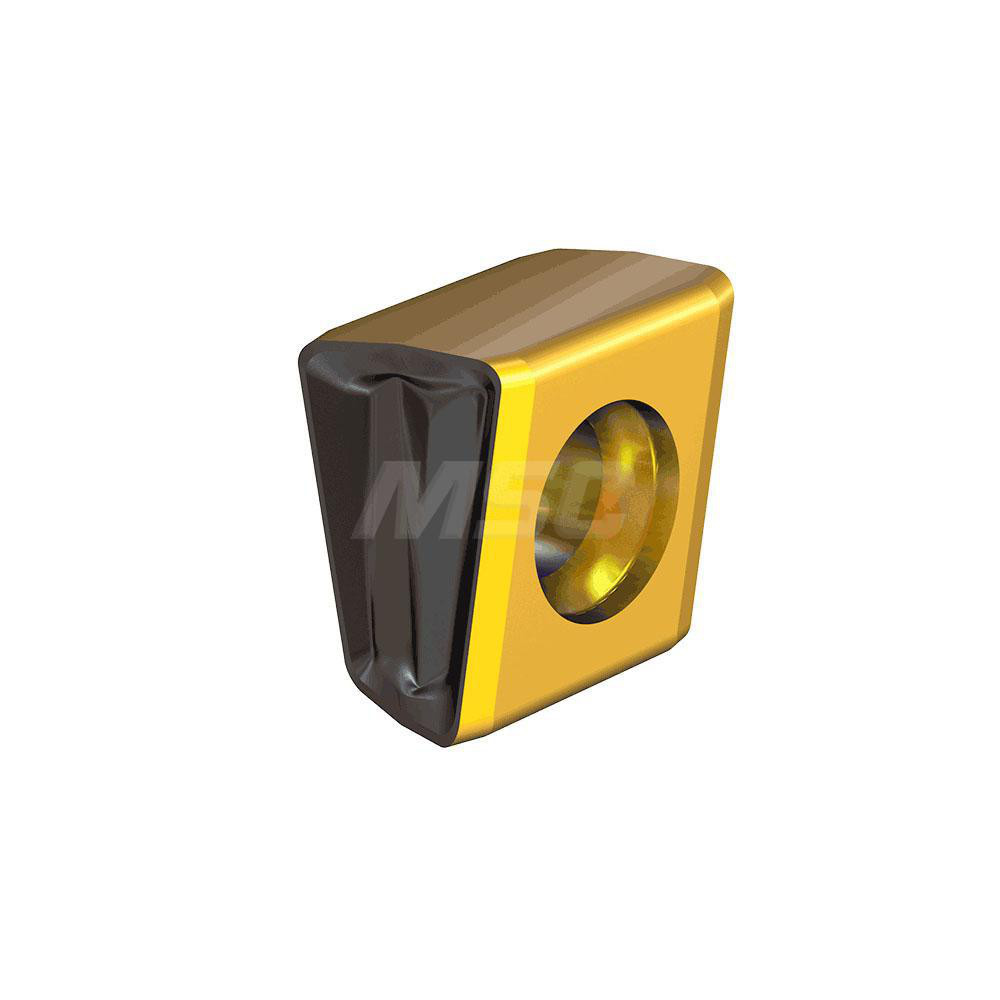

| Complete Insert Compatibility | LNHT 0804; T490 LNMT |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | T490 FLN D2.50-9-1.0-08 |
| Maximum Insert Radius (Decimal Inch) | 0.0470 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
| Country of Origin | Israel |
| MSC Number | MSC# 45817053 |
